3.8.1 Camera positioning Resetting the camera 3.10 Closing the unit Browser connection System requirements Establishing the connection 4.2.1 Password protection in camera Protected network Connection established 4.4.1 LIVEPAGE Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
| Table of Contents IP Camera 200 Series Troubleshooting LED indicators Resolving problems Customer service Maintenance Repairs 9.1.1 Transfer and disposal Technical Data 10.1 Specifications 10.1.1 Accessories AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
If not avoided, this could result in minor or moderate bodily injury. CAUTION! Low risk: Indicates a potentially hazardous situation. If not avoided, this could result in property damage or risk of damage to the device. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
10. Attachments, changes or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority to operate the equipment.
Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Please dispose of these devices at an environmentally compatible recycling facility, per European Directive 2002/96/EC More information For more information please contact the nearest Bosch Security Systems location or visit www.boschsecurity.com AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual...
Digital Equipment Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. This software is based in part on the work of the Independent JPEG Group. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 12
| Safety IP Camera 200 Series AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...

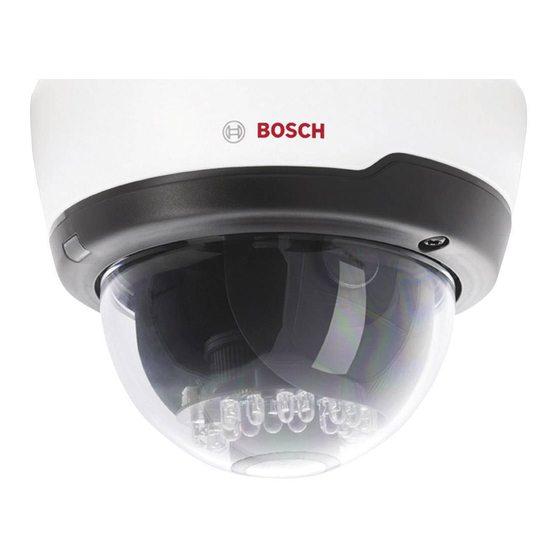

It uses H.264 compression technology to give clear images reducing bandwidth and storage.The camera can be used as a stand-alone video surveillance system with no additional equipment or it can easily integrate with the Bosch DVR 700 Series recorders. Features include: MicroSD/SDHC card slot supports edge recording up to 32GB –...
– Installation paper sticker – Quick installation guide – CD ROM – Bosch Video Client – Documentation – Tools If equipment has been damaged during shipment, repack it in the original packaging and notify the shipping agent or supplier. WARNING!
Using the special screwdriver bit supplied, loosen the two tamper-resistant screws in the dome (the screws remain in place). Remove the dome from the base. Remove the inner liner by pulling it off the base. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
IP Camera 200 Series MicroSDHC card microSDHC Card Figure 3.1 MicroSDHC card Disassemble the camera. Slide the microSDHC card into the slot. The camera supports most microSD/SDHC cards. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Use a shielded UTP Category 5e cable with RJ45 connectors. – Power can be supplied to the camera via the Ethernet cable compliant with the Power-over-Ethernet (IEEE 802.3af) standard. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
120 VAC power supply outlet. When power is supplied to the camera the LED on the bottom- front of the camera lights. (This LED can be disabled in the Installer menu.) AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Relay output switching capability: Max. voltage 24 VAC or 24 VDC. Max. 1 A continuous, 12 VA. – Relay in: Short or +5 VDC activation. – Alarm input configurable as active low or active high. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
200 mVrms Line out: 16 Ohm min. Line - R 200 mVrms (earphone compatible) Figure 3.5 Audio connectors Connect audio devices to the Line In and Line Out connectors. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Attach the camera and base unit securly to the surface using the two supplied M4 screws. CAUTION! Do not point the camera/lens into direct sunlight as this may damage the sensors. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Do not expose them to direct sunlight or bright spotlights in operating and non-operating conditions. Avoid bright lights in the field of view of the camera. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 23
To obtain a horizontal horizon (for tilted ceilings or sidewall mounting), rotate the base of the lens as necessary to align the picture shown on the monitor. Do not rotate more than 340°. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Align the LED light guide of the dome with the opening at the front of the mounting base and slot it home. Use the supplied special screwdriver bit to tighten the two tamper-resistant screws. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
A computer with Microsoft Internet Explorer can be used to receive live images from the camera, control cameras, and replay stored sequences. The camera is configured over the network using a browser or via the Bosch Video Client (supplied with the product). System requirements –...
If the connection is not established, the maximum number of possible connections may already have been reached. Depending on the device and network configuration, up to 25 web browsers, or 50 Bosch VMS connections are supported. 4.2.1 Password protection in camera A camera offers the option of limiting access across various authorization levels.
Refer to Section 7.2 Recordings page, page 98 for more information. 4.4.3 SETTINGS Click SETTINGS in the application title bar to configure the camera and the application interface. A new page containing Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 28
Section 6 Advanced Mode, page 35 for more information on advanced settings. Note: It is recommended that only expert users or system administrators use the Advanced Mode. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Note: When entering names do not use any special characters, for example &. Special characters are not supported by the internal recording management system. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Define and change a separate password for each level while logged in as service or if the device is not protected by a password. Enter the password (19 characters maximum) for the selected level. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Click Sync to PC to apply the system time from your computer to the device. Note: It is important to ensure that the date/time is correct for recording. An incorrect date/time setting could prevent correct recording. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
On to activate the automatic acceptance of DHCP-assigned IP addresses. Note: Certain applications (for example, Bosch Video Management System) use the IP address for the unique assignment of the device. If using these applications, the DHCP server must...
This page provides general information on the hardware and firmware system, including version numbers. No items can be changed on this page but they can be copied for information purposes when troubleshooting. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 34
| Basic Mode IP Camera 200 Series AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Note: When entering names do not use any special characters, for example &. Special characters are not supported by the internal recording management system. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Assign a camera name to assist in identifying it. The name simplifies the management of multiple devices in more extensive systems, for example the VIDOS or Bosch VMS software. The camera name is used for remote identification, for example, in the event of an alarm. Enter a name that makes it as easy as possible to identify the location unambiguously.
Page 37
The new password is only saved after clicking Set. Therefore, click Set immediately after entering and confirming the password, even if assigning a password at another level. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Click Generate to fill the table with the preset values from the camera. Select the region or the city which is closest to the system's location from the list box below the table. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Top, at the Bottom, or at a position of choice using the Custom option, or it can be set to Off for no overlay information. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 40
Select On for the transmitted video images to be watermarked. After activation, all images are marked with an icon. The icon indicates if the sequence (live or saved) has been manipulated. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Enter the path for a suitable image for the device logo in this field. The image can be stored on a local computer, a local network, or at an Internet address. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
The system messages are displayed with the date and time in a field next to the video image and provide information about the establishment and termination of connections, etc. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
File for system log Enter the path for saving the system log here. If necessary, click Browse to find a suitable folder. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
The red gain adjustment offsets the factory white point alignment (reducing red introduces more cyan). G-gain The green gain adjustment offsets the factory white point alignment to optimize the white point. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 45
– On: the IR illumination is always on. – Off: the IR illumination is always off. Default Click Default to set all video values to their factory setting. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 46
ISDN (1B) QVGA resolution for ISDN connections at 50 kbps maximum – MODEM QVGA resolution for analog modem connections at 22 kbps maximum – QVGA resolution for GSM connections AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 47
The value entered here must be at least 10% higher than the value entered in the Target bit rate field. If the value entered here is too low, it is automatically adjusted. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 48
P-frame quality This setting adjusts the maximum image quality of the P-frames. The basic setting Auto automatically adjusts to the optimum combination of movement and image definition (focus). AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 49
A value of 51 results in a very high refresh rate and lower image quality. Default Click Default to return the profile to the factory default values. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 50
Click Preview << to close the preview displays. Note: Deactivate the display of the video images if the performance of the computer is adversely affected by the decoding of the data stream. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 51
Select G.711 or L16 as the audio Recording format. The default value is G.711. Select L16 if you want better audio quality with higher sampling rates. This requires approximately eight times the G.711 bandwith. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Note: Shutter time is affected by frame rate in auto framerate mode. For example, if the frame rate is 30 IPS, the longest shutter time available is 1/30s. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
MP, T:80Kb, M:100Kb) Note: The recording hours table is only an indication for reference, an actual situation might be different (because of different scenes or networking status for example). Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
A Video Recording Manager (VRM) can control all recording when accessing an iSCSI system. The VRM is an external program for configuring recording tasks for video servers. For further information, contact your local customer service at Bosch Security Systems. 6.5.1 Storage Management Device manager...
Page 55
In the Recording media section, click the iSCSI Media or Local Media tab to display the applicable storage media in the overview. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 56
Click OK to close the window. Deactivating Storage Media Deactivate any storage medium from the Managed storage media list. It is then no longer used for recordings. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 57
Click a storage medium in the Managed storage media list to select it. Click Remove below the list. The storage medium is deactivated and removed from the list. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
– Off: no automatic recording takes place. In the Stream list box, select Stream 1, Stream 2 or I-frames only for standard recordings. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 59
Video loss alarm) that is to trigger a recording. Select the Virtual alarm sensors that are to trigger a recording, via RCP+ commands or alarm scripts, for example. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
VGA for complete frame rate and high image quality. Enter the required retention time in hours or days for each recording. Recording 1 corresponds to Stream 1; Recording 2 corresponds to Stream 2. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Click the date to be deleted. Click OK. The selection is removed from the table and the window is closed. Repeat for any other dates to be deleted. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
The graphic indicates the recording activity. An animated graphic is seen when recording is taking place. 6.5.5 Recording Status Details of the recording status are displayed here for information. These settings cannot be changed. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Only ten passwords can be defined here. Define a general password if more than ten connections are required, for example, when connections are initiated by a controlling system such as VIDOS or Bosch Video Management System. Bosch Security Systems Installation and Operation Manual...
Page 64
If a particular video output is selected and a split image is set for this output on the receiver, select the decoder from Decoder in the receiver that is to be used to AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 65
Select On to automatically re-established a connection to one of the previously specified IP addresses after each reboot, connection breakdown, or network failure. Audio Select On to transmit the audio stream with an alarm connection. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Select a VCA configuration and make the required settings. If necessary, click the Default button to return all settings to their default values. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
No further alarm is triggered during the aggregation time. The post-alarm time set for alarm recordings only starts once the aggregation time has expired. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 68
The sensor reacts to variations in the brightness of the video image. The darker the observation area, the higher the value that must be selected. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 69
Detect tampering of cameras and video cables by means of various options. Run a series of tests at different times of the day and night to ensure that the video sensor is operating as intended. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 70
Activate this function if tampering associated with exposure to extreme light (for instance, shining a flashlight directly on the objective) should trigger an alarm. The average brightness of the scene provides a basis for recognition. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 71
If the selected area is too homogenous, so that concealing and moving the structure would not trigger an alarm, then an alarm is triggered immediately to indicate the inadequate reference image. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 72
Right-click any fields to deactivate. Click OK to save the configuration. Click the close button (X) in the window title bar to close the window without saving the changes. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Assign the individual holidays to the VCA profiles, as described above. Deleting Holidays Delete defined holidays at any time: Click Delete. A new window opens. Click the date to delete. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 74
| Advanced Mode IP Camera 200 Series Click OK. The item is deleted from the table and the window closes. The process must be repeated for deleting additional days. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
A delay period may be useful in avoiding false alarms or frequent triggering. During the delay period, the Silent MOTION+ configuration is always enabled. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
The name makes it easier to search for or identify the alarm in extensive video monitoring systems, for example with the Bosch Video Client and Bosch Video Management System programs. You can also use the name in the Forensic Search program function as a filter option for quick search in recordings.
Obtain information on operating your cellphone from your cellphone provider. Attach JPEG from camera Check the box to specify that JPEG images are sent from the camera. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 78
This makes it easier to identify the origin of the e-mail. Test e-mail Click Send Now to test the e-mail function. An alarm e-mail is immediately created and sent. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
If the transfer was successful, the message Script successfully parsed. is displayed over the text field. If it was not successful, an error message is displayed with further information. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
For example, if you want an alarm-activated lamp to stay on after the alarm ends, select Bistable. If you wish an alarm- activated siren to sound for ten seconds, for example, select 10 s. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 81
&.) Trigger relay Click the button to switch the relay manually (for example, for testing purposes or to operate a door opener). Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
If a DHCP server is employed in the network for the dynamic assignment of IP addresses, activate acceptance of IP addresses automatically assigned to the device. Certain applications (Bosch Video Management System, Archive Player, Configuration Manager) use the IP address for the unique assignment of the device. If using these applications,...
Page 83
To limit connections to SSL encryption, set the Off option in the HTTP browser port, the RCP+ port, and Telnet support. This deactivates all unencrypted connections allowing connections on the HTTPS port only. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 84
DynDNS.org and register the required host name for the device on that site. Note: Information about the service, registration process and available host names can be found at DynDNS.org. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 85
To transfer the IP address of the device, click the Register button. Status The status of the DynDNS function is displayed here for information purposes; these settings cannot be changed. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Enter the user name that the Radius server uses for the camera in the Identity field. Enter the Password that the Radius server expects from the camera. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
The prerequisite for multicast operation is a multicast-capable network that uses the UDP and IGMP protocols. Other group membership protocols are not supported. The TCP protocol does not support multicast connections. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 88
A value can be entered to specify how long the multicast data packets are active on the network. If multicast is to be run via a router, the value must be greater than 1. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Path on FTP server Enter an exact path to post the images on the FTP server. Max. bit rate Enter a limit for the bit rate in kbps. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
The latest firmware can be obtained from your customer service center or from the Bosch Security Systems download area. To update the firmware: First, store the firmware file on your hard disk.
Page 91
Once all files have been successfully uploaded, the device must be rebooted. In the address field of the browser, enter /reset after the camera's IP address, for example: 192.168.0.10/reset The new SSL certificate is valid. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Keep this information at hand when seeking technical support. Select the text on this page with a mouse and copy it so that it can be pasted into an e-mail if required. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
When accessing the camera with a browser, the processor load and network information is available in the upper right of the window next to the Bosch logo. Move the mouse cursor over the icons to display numerical values. This information can help with problem solving or when fine tuning the device.
An automatic reconnection procedure is started in the background to recover from this error. No video recorded Watermarking not valid AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Event Log field. These messages can be saved automatically in a file. To delete the entries from the fields, click the icon in the top right-hand corner of the relevant field. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Click the recording icon again to stop recording. Play back saved video sequences using the Player from Bosch Security Systems. 7.1.7 Running recording program The hard drive icon below the camera images on the Livepage changes during an automatic recording.
Page 97
All connected users receive audio signals sent from the camera but only the user who first pressed the F12 key can send audio signals; others must wait for the first user to release the key. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
A green arrow above the bar indicates the position of the image currently being played back within the sequence. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Page 99
Jump to the following bookmark Bookmarks are only valid while in the Recordings page; they are not saved with the sequences. All bookmarks are deleted when leaving the page. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 100
100 en | Operation via the browser IP Camera 200 Series AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or contact Bosch Security Systems Customer Service directly. The Installer should write down all information regarding the unit so that it can be referenced for warranty or repair. The...
Page 102
Service menu. Note down this information and the information found on the camera label before contacting customer service. AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Defective or superfluous devices and parts should be disposed of professionally or taken to your local collection point for hazardous materials. Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Page 104
104 en | Maintenance IP Camera 200 Series AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
Audio Output Line out jack connector Audio Two-way, full duplex communication Audio compression G.711, L16 (live and recording) Memory card slot Supports up to 32 GB microSD/SDHC card Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.5 | 2011.01...
Temperature Humidity 10% to 80% relative humidity (non-condensing) 10.1.1 Accessories Contact a Bosch representative in your area for the latest available accessories or visit our website at www.boschsecurity.com AR18-10-B012 | v1.5 | 2011.01 Installation and Operation Manual Bosch Security Systems...
