Thank you for purchasing this Panasonic product.
Please read this manual carefully before using this product and save this manual for future use.
Document Version: 2016-01

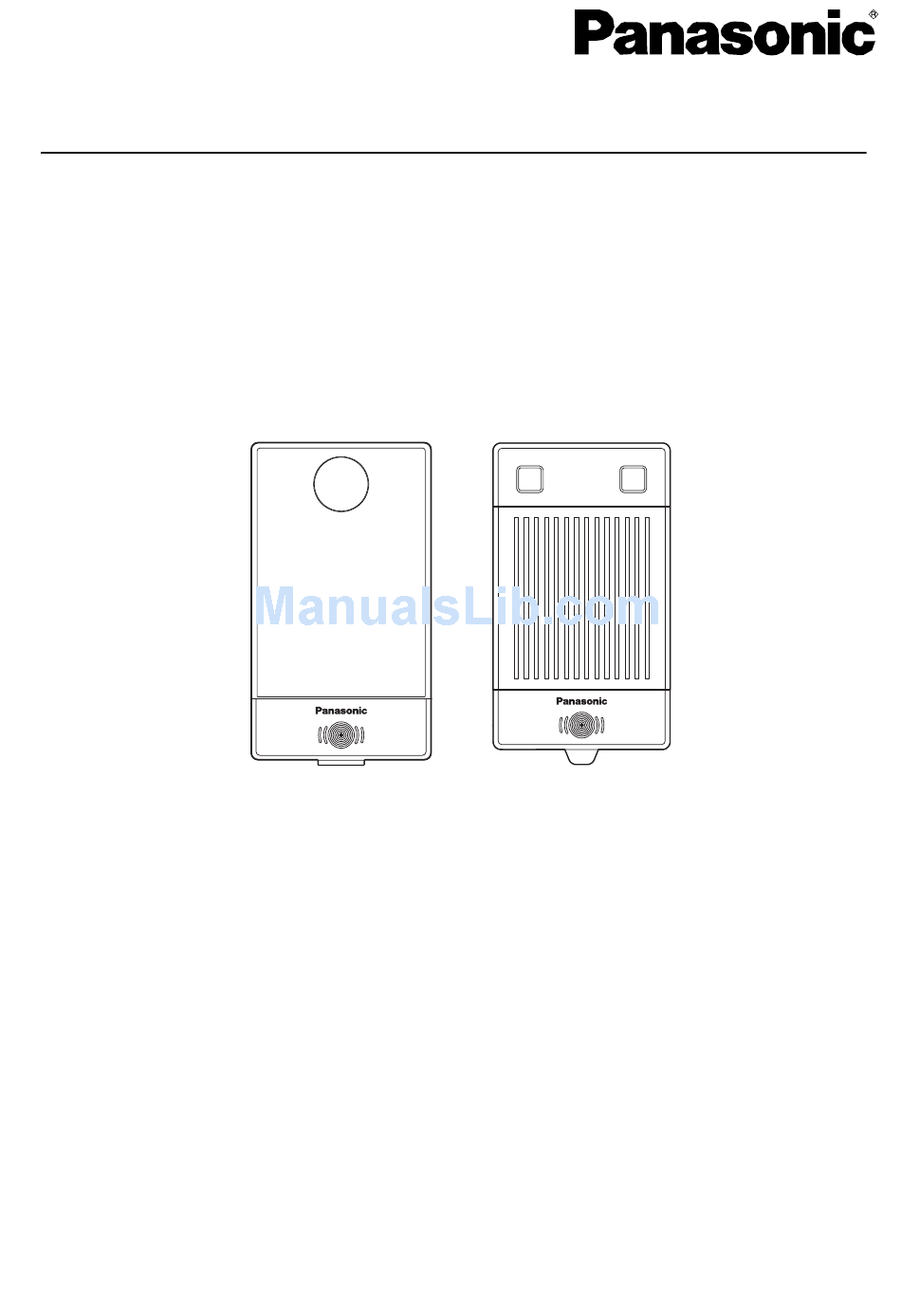

Communication IP Camera
KX-NTV150
User's Manual
KX-NTV150
Model No.
IP Video Doorphone
KX-NTV160
Model No.
KX-NTV160

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-NTV150

Summary of Contents for Panasonic KX-NTV150

  • Page 1 Communication IP Camera KX-NTV150 Model No. IP Video Doorphone KX-NTV160 Model No. KX-NTV150 KX-NTV160 Thank you for purchasing this Panasonic product. Please read this manual carefully before using this product and save this manual for future use. Document Version: 2016-01...
  • Page 2 Preface Preface Outline This manual describes information about the installation and operation of KX-NTV150 and KX-NTV160. Note • In this manual, the suffix of each model number is omitted unless necessary. • The illustration such as some keys may differ from the appearance of the actual product.
  • Page 3 Preface For Future Reference Record the information in the space below for future reference. Note • The serial number and MAC address of this product may be found on the label affixed to the bottom of the unit. You should note the serial number and MAC address of this unit in the space provided and retain this manual as a permanent record of your purchase to aid in identification in the event of theft.
  • Page 4 This device is a Communication IP Camera operating in the frequency band of 2412 MHz to 2472 MHz. The usage of this device is generally allowed in all EU countries. Panasonic System Networks Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC.
  • Page 5 Important Information Contact to Authorized Representative: Panasonic Testing Center Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany The following declaration is applicable to KX-NTV160NE only For information of Compliance with EU relevant Regulatory Directives, contact to Authorized Representative: Panasonic Testing Center...
  • Page 6 Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this product. Technical Support Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Telephone: 1 (800) 528-6747 Option 1...

  • Page 7: For Best Performance

    These noise sources can interfere with performance of the product. • Do not pace the product in places where the temperatures out of the range of product spec. KX-NTV150: 0 °C to 40 °C KX-NTV160: -10 °C to 50 °C •...

  • Page 8: Table Of Contents

    1.6.5 Network Deployment ......................20 1.6.6 Registering to a PBX ......................26 LED Status ........................26 Hardware Key ........................27 Communication IP Camera Call (KX-NTV150) ..............27 1.10 IP Video Doorphone Call (KX-NTV160) .................31 2 Software ....................35 Software Installation .......................35 Accessing the KX-NTV150/KX-NTV160 .................35 Main Page ........................41 Configuration Area ......................41...
  • Page 9 Table of Contents 2.12 PTZ ..........................102 2.12.1 PTZ settings .........................102 2.13 Event ..........................106 2.13.1 Event settings .......................106 2.14 Applications ........................116 2.14.1 Motion detection ......................116 2.14.2 DI and DO ........................119 2.14.3 Camera tampering detection ..................120 2.14.4 Voice detection ......................121 2.15 Recording ........................122 2.15.1 Recording settings ......................122 3 Specifications ..................128...

  • Page 10: Operations

    1.1 Overview KX-NTV150 and KX-NTV160 are designed for SIP communication, which can easily be compatible with existing SIP system, such as Panasonic PBX with SIP protocol. Besides, users can access KX-NTV150/ KX-NTV160 through WEB browser, and other software. Viewer Application...

  • Page 11: Read Before Use

    1.2 Read Before Use The use of surveillance devices may be prohibited by law in your country or area. The KX-NTV150/ KX-NTV160 is not only a high-performance web-ready camera but can also be part of a flexible surveillance system.

  • Page 12: Package Contents

    1 Operations 1.3 Package Contents KX-NTV150 Included Accessories Attachment kit for the stand: 1 Camera Stand: 1 Accessory parts for the stand – Screw for the camera stand wall mounting: 3 – Sponge for camera stand: 1 – Rubber for camera stand: 4...

  • Page 13: Determining The Installation Position Of The Kx-Ntv160

    1 Operations Hints: Hints are useful information that helps enhance or facilitate an installation, function, or process. 1.5 Determining the installation position of the KX-NTV160 Views when the KX-NTV160 is facing forwards at 0°. Example: Installation height is 150 cm (59.1 inches). •...

  • Page 14: Physical Description

    Panasonic assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation. • When installing the KX-NTV150/KX-NTV160, make sure to remove the protective film from the lens cover. 1.6.1 KX-NTV150...
  • Page 15 1 Operations Installing the stand When installing on a flat surface. Note • Use rubber to prevent stand from shifting if necessary. Rubbers should be aligned with the 4 arcs in the corner. When installing on the wall Note • Skid proof stickers should be aligned with the 4 arcs in the corner.

  • Page 16: Kx-Ntv160

    1 Operations 1.6.2 KX-NTV160 Front view A Light source LED B Lens C Mic D Status LED E Screw cover F Speaker G Call button H Reset button (inside) Rear view A External I/O port B LAN port User’s Manual...
  • Page 17 1 Operations Please install the mounting bases on a vertical flat surface. Hexagon socket head screw 2.0 mm (0.07 inch) When installing directly on a wall User’s Manual...

  • Page 18: Digital Input/Out Diagram

    1 Operations When installing with a metal plate 1.6.3 Digital Input/Out Diagram Please refer to the following illustration for the connection method. Switch input circuit DI_GND Max. voltage: DC+50V Max. current: 100mA Diode Resistor drive Vout External circuit DC Power Supply DO_GND Relay...

  • Page 19: Hardware Reset

    1 Operations Connect a digital input/output device to the I/O pins of KX-NTV150/KX-NTV160. From the Applications ® DI and DO page, you can let the KX-NTV150/KX-NTV160 report the current signal status to determine the signal's Normal status during operation. 1.6.4 Hardware Reset Press the buttons according to the model to reset the KX-NTV150/KX-NTV160: KX-NTV150: Press WPS/Reset button (A) for over 30 seconds.

  • Page 20: Network Deployment

    The reset button is used to restore the factory default settings. Sometimes resetting the system can return KX-NTV150/KX-NTV160 to normal operations. If the system problems remain after reset, restore the factory settings and install again. Press and hold the reset button until the status LED rapidly blinks with Green 0.25 second On/0.25 second off status.
  • Page 21 • Because the KX-NTV150 can enter wireless mode or LAN mode, if you want to enter LAN mode, please only use a PoE cable, or insert an AC adaptor and LAN cable at the same time within 35 seconds. If you want to enter wireless mode, please only insert an AC adaptor and boot up.
  • Page 22 1 Operations When using a PoE-enabled switch KX-NTV150 is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the KX-NTV150 to a PoE-enabled switch via an Ethernet cable. User’s Manual...
  • Page 23 Follow the below illustration to connect the KX-NTV160 to a PoE-enabled switch via an Ethernet cable. Internet connection via a router Before setting up the KX-NTV150/KX-NTV160 over the Internet, make sure you have a router and follow the steps below.
  • Page 24 Subnet mask : 255.255.255.0 Default router : 192.168.0.1 In this case, if the Local Area Network (LAN) IP address of your KX-NTV150/KX-NTV160 is 192.168.0.3, please forward the following ports for the KX-NTV150/KX-NTV160 on the router. n HTTP port: default is 80; secondary HTTP port is 8080...
  • Page 25 NAT traversal function with the precondition that your router must support the UPnP™ port forwarding feature. Internet connection with static IP Choose this connection type if you are required to use a static IP for the KX-NTV150/KX-NTV160. Please refer to LAN setting on page 78 for details. User’s Manual...

  • Page 26: Registering To A Pbx

    Images can only be sent through IP networks. Images cannot be sent if analog cables are used. • The KX-NTV150/KX-NTV160 can only be used with following models. (The KX-NTV150/KX-NTV160 cannot be used with third-party PBXs, SIP servers or other Panasonic PBXs such as KX-NCP PBXs.) Model...

  • Page 27: Hardware Key

    Outgoing call Outgoing call Call cancel 1.9 Communication IP Camera Call (KX-NTV150) Using SIP Outgoing Call function, bidirectional voice communication and 1 way (Communication IP Camera ® other PBX terminal) video communications are executed between the Communication IP Camera and the other PBX terminal.
  • Page 28 1 Operations Pressing the call button (A) of Communication IP Camera to start a call. User can set a callee (Internal line number) from the KX-NTV150 Communication IP Camera with an embedded Web menu. External line is selectable for callee too. We call this phone number a SIP outgoing number. Please refer to SIP outgoing setting on page 111.
  • Page 29 1 Operations The same applies for after pressing Dial Key . If a user presses the call button again, it sounds the Key confirmation tone and goes back to idle status. The video will be stopped and the status LED turns on green.
  • Page 30 1 Operations Camera control (ePTZ) is available after answering a call and during talking. ePTZ can be controlled by exclusive software or Dial Key detection. Please see the figure below. It shows the operation and Dial Key number. Dial Key 2 Dial Key 4 Dial Key 6 Dial Key 8...

  • Page 31: Ip Video Doorphone Call (Kx-Ntv160)

    1 Operations Note • Operations can be made even when not talking. 1.10 IP Video Doorphone Call (KX-NTV160) Using the SIP Outgoing Call function, bidirectional voice communications and 1 way (IP Video Doorphone ® other PBX terminal) video communications are executed between IP Video Doorphones and other PBX terminals.
  • Page 32 1 Operations If a call button is pressed, Pinpon tone rings and the light source LED lights up according to the web setting, and the status LED starts blinking (Blue 0.25 second on/0.25 second off). In addition, at the IP Video Doorphone side ring-back tone is audible.
  • Page 33 1 Operations IP Video Doorphone talking automatically begins by making a call from the Internal line to the IP Video Doorphone. In this case, video monitoring starts automatically too. Light source LED turns on (depending on embedded web menu settings). Confirmation tone is sent to both the doorphone and internal line.
  • Page 34 1 Operations The door opener (Digital output) is operated. Talking ends after both sides hear a confirmation tone after 8 seconds. *Pressing call button is ignored during Doorphone talking. Control Embedded web menu User can operate door-opener (Digital output) on "Home" - "View" of Embedded web menu. * Can be operated even when not talking with the doorphone.

  • Page 35: Software

    10/Windows 8/Windows 7 above ® ® If the IP address of KX-NTV150/KX-NTV160 is unknown, Installation Wizard App can search the camera devices. By double clicking the model name, browser will be opened to camera live view and camera setting page.
  • Page 36 The live video will be displayed in your web browser. If it is the first time installing the KX-NTV150/KX-NTV160, an information bar asking you to install plug-in software will be displayed. In order to view images and videos, this plug-in software must be installed.
  • Page 37 2 Software Choose Tools ® Internet Options ® Security ® Custom Level. User’s Manual...
  • Page 38 Hints: The onscreen Java control can malfunction under the following situations: A PC connects to different KX-NTV150/KX-NTV160 that are using the same IP address (or the same camera running different firmware versions). Removing your browser cookies will solve this problem.
  • Page 39 WPS enables easy setup with compatible APs. Disconnect your LAN cable, and connect the power cord. Wait for 1 minute for the KX-NTV150 to boot up. Press the WPS button for more than 2 seconds. The front panel LED should blink red.
  • Page 40 The KX-NTV150 should then be connected over the wireless network. If successfully configured, the KX-NTV150 LED should blink with Orange color every 0.5 seconds. If after booting up for 1 minute, the KX-NTV150 LED does not turn Green within 2 minutes, check your wireless configuration for errors.

  • Page 41: Main Page

    2 Software 2.3 Main Page This section explains the layout of the main page. It is composed of the following parts: Panasonic Logo, Host Name, KX-NTV150/KX-NTV160 Control Area, Configuration Area, Menu, and Live Video Window. Host Name The host name can be customized to fit your needs. For more information, please refer to System on page 47.
  • Page 42 2 Software Language: Click this button to choose a language for the user interface. Language options are available in: English, Spanish, French, Italian, German, Portuguese, and Russian. Please note that you can also change the language on the Configuration page. Hide Button You can click the hide button to hide the control panel or display the control panel.
  • Page 43 The largest frame size PTZ Panel: This KX-NTV150/KX-NTV160 supports both "digital" (e-PTZ) pan/tilt/zoom control. Please refer to PTZ settings on page 102 for detailed information. Note that the PTZ buttons on the panel are not operational unless you are showing only a portion of the full image. If the live view window is displaying the full view, the PTZ buttons are not functional.
  • Page 44 Mute: Turn off the volume on the local computer. The button becomes the Audio On button after clicking the Mute button. Talk: Click this button to talk to people around the KX-NTV150/KX-NTV160. Audio will project from the external speaker connected to the KX-NTV150/KX-NTV160. Click this button again to end talking transmission.
  • Page 45 Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Media ® Image on page 65. Video and Audio Control Buttons: Depending on the KX-NTV150/KX-NTV160 model and KX-NTV150/ KX-NTV160 configuration, some buttons may not be available.
  • Page 46 UDP Multicast: This protocol allows multicast-enabled routers to forward network packets to all clients requesting streaming media. This helps to reduce the network transmission load of the KX-NTV150/ KX-NTV160 while serving multiple clients at the same time. Note that to utilize this feature, the KX-NTV150/ User’s Manual...

  • Page 47: System

    PC having a web session with the KX-NTV150/KX-NTV160 for a few seconds before being played on the live viewing window. This helps you see the streaming more smoothly. If you enter 3000 Millisecond, the streaming will delay for 3 seconds.
  • Page 48 2 Software System Host name: Enter a desired name for the KX-NTV150/KX-NTV160. The text will be displayed at the top of the main page. Turn off the LED indicator: If you do not want others to notice the KX-NTV150/KX-NTV160 is in operation, you can select this option to turn off the LED indicators.

  • Page 49: Homepage Layout

    2 Software 2.5.2 Homepage layout This section explains how to set up your own customized homepage layout. General settings This part shows the settings of your homepage layout. You can manually select the background and font colors in Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field.
  • Page 50 2 Software Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings. Font color of the Background Color of Video Title...

  • Page 51: Logs

    The selected color will be displayed in the corresponding fields and in the Preview column. Click Save to enable the settings. 2.5.3 Logs This section explains how to configure the KX-NTV150/KX-NTV160 to send the system log to a remote server as backup. User’s Manual...
  • Page 52 2 Software Log server settings Follow the steps below to set up the remote log: Select Enable remote log. User’s Manual...
  • Page 53 When completed, click Save to enable the setting. You can configure the KX-NTV150/KX-NTV160 to send the system log file to a remote server as a log backup. Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log messages from the KX-NTV150/KX-NTV160.

  • Page 54: System Log

    2 Software System log Input the SYSLOG output level from 0 to 7 levels, to filter the syslog by priority. Code Severity General Description Emergency A "panic" condition usually affecting multiple apps/servers/sites. At this level it would usually notify all tech staff on call. Alert Should be corrected immediately, therefore notify staff who can fix the problem.
  • Page 55 Information useful to developers for debugging the application, not useful during operations. This column displays the system log in a chronological order. The system log is stored in the KX-NTV150/ KX-NTV160 buffer area and will be overwritten when reaching a certain limit.

  • Page 56: Parameters

    This section explains how to restore the KX-NTV150/KX-NTV160 to factory default, upgrade firmware version, etc. 2.6 General settings 2.6.1 Upgrade firmware This feature allows you to upgrade the firmware of your KX-NTV150/KX-NTV160. It takes a few minutes to complete the process. User’s Manual...
  • Page 57 Do not power off the KX-NTV150/KX-NTV160 during the upgrade! Follow the steps below to upgrade the firmware: Download the latest firmware file from the Panasonic website. The file is in .pkg file format. Click Browse… and specify the firmware file.

  • Page 58: Restore

    When completed, the live video page will be displayed in your browser. The following message will be displayed during the reboot process. If the connection fails after rebooting, manually enter the IP address of the KX-NTV150/KX-NTV160 in the address field to resume the connection.
  • Page 59 Follow the steps below to export: In the Export files column, click Export to export the daylight saving time configuration file from the KX-NTV150/KX-NTV160. A file download dialog will be displayed. Open the XML file to review it, or save it for editing.
  • Page 60 KX-NTV150/KX-NTV160. An error message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. Panasonic provides seven languages: English, Spanish, French, Italian, German, Portuguese, and Russian Update custom language file: Click Browse… and specify your own custom language file to upload.

  • Page 61: Sip

    2.7 SIP 2.7.1 General Settings The KX-NTV150/KX-NTV160 are designed to be used like a SIP device; users can set the outgoing number and SIP status timer under SIP ® General settings page. Call button outgoing number: User can enter the SIP phone number they wants to outgoing.
  • Page 62 2 Software Basic mode: User can simply enter one outgoing number. Advanced mode: With the setting, make SIP outgoing according to time setting (Day/Lunch/Break/Day2/Night). By Time mode, users can divide one day into Day/Lunch/Break/Day2/Night time periods. Set the time period with the following rules: •...
  • Page 63 2 Software Day2: Start from 14:00 Night: start from 17:00 Then we can get below time period: Day1: 9:00~12:00 Lunch: 12:00~14:00 Break: 14:00~16:00 Day2: 16:00~17:00 Night: 17:00~09:00 • Only Break can set START/END time, it has a higher priority than other periods. •...

  • Page 64: Sip Settings

    2 Software device after hooking off and before Call ring duration, the two-way audio will be started just like normal conversation on a phone. If the SIP device on the callee side is Audio only, two-way audio will be automatically started. Ringback tone after finish video monitor: Once YES is selected for this item, if the caller hook on the phone during video monitoring, the SIP outgoing will be stopped.

  • Page 65: Media

    Authentication Password: Specifies the authentication password used to access the SIP server. 2.8 Media 2.8.1 Image This section explains how to configure the image settings of the KX-NTV150/KX-NTV160. It is composed of the following four tabs: General settings, Image settings, Exposure, and Privacy mask. General settings Video title: Enter a name that will be displayed on the title bar of the live video as the picture shown below.
  • Page 66 Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights. Note that after the power line frequency is changed, you must disconnect and reconnect the power cord of the KX-NTV150/KX-NTV160 in order for the new setting to take effect.
  • Page 67 2 Software LED settings" on home view page. If you do not do this, the Light source LED will always turn on when power supply is being supplied to the KX-NTV160. Emitting control after call button pushed: You can select Always on/Always off/Time schedule. If you select Always on, it means that once you press the call button, the Light source LED is ON during SIP outgoing.
  • Page 68 Place a sheet of paper of white or cooler-color temperature paper, such as blue, in front of the lens, then allow the KX-NTV150/KX-NTV160 to automatically adjust the color temperature. Click the ON button to Fix current value and confirm the setting while the white balance is being measured.
  • Page 69 2 Software Image Adjustment • Brightness: Adjusts the image brightness level, which ranges from 0%-100%. • Contrast: Adjusts the image contrast level, which ranges from 0%-100%. • Saturation: Adjusts the image saturation level, which ranges from 0%-100%. • Sharpness: Adjusts the image sharpness level, which ranges from 0%-100%. •...
  • Page 70 A total of 9 inclusive and exclusive windows can be created for a view. You can create Exclude windows for the KX-NTV150/KX-NTV160 to ignore the lighting condition of certain areas. Note that the title pane of the Include/Exclude windows is not included into the calculation.
  • Page 71 A total of 9 inclusive and exclusive windows can be created for a view. You can create Exclude windows for the KX-NTV150/KX-NTV160 to ignore the lighting condition of certain areas. Note that the title pane of the Include/Exclude windows is not included into the calculation.
  • Page 72 (50 or 60 Hz) and exposure time. When selected, the exposure time will be forced to stay longer than 1/120 second. For KX-NTV150/KX-NTV160 that come with fixed iris lens, setting the exposure time to longer than 1/120 second may introduce too much light into the lens.
  • Page 73 2 Software Privacy mask Click Privacy mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns. To set the privacy mask windows, follow the steps below: Click New to add a new window. You can use the mouse cursor to size and drag-drop the window, which is recommended to be at least twice the size of the object (height and width) you want to cover.

  • Page 74: Video

    On the video settings page, stream 1 is the setting for RTSP streaming, and stream 2 is the setting for SIP streaming. This KX-NTV150/KX-NTV160 supports multiple streams with a frame size ranging from 176x144 to 1600x1200. The definition of multiple streams: •...
  • Page 75 2 Software This KX-NTV150/KX-NTV160 provides real-time H.264 and MJPEG compression standards (Dual Codec) for real-time viewing (Stream2 is H.264 only). If H.264 mode is selected, the video is streamed via RTSP protocol. There are several parameters for you to adjust the video performance: Frame size You can set up different video resolutions for different viewing devices.
  • Page 76 2 Software Maximum frame rate This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality and for recognizing moving objects in the field of view. If the power line frequency is set to 50 Hz, the selectable frame rates are 5 fps, 8 fps, 10 fps, 15 fps, 20 fps, and 25 fps.

  • Page 77: Audio

    2 Software 2.8.3 Audio Audio Settings Internal microphone input gain: Select the gain of the external audio input from the drop-down list (Level 1, Level 2, and Level 3) according to ambient conditions. Internal speaker output gain: Select the gain of the external audio output from the drop-down list (Level 1, Level 2, and Level 3) according to ambient conditions.

  • Page 78: Network

    This section explains how to configure a wired network connection for the KX-NTV150/KX-NTV160. Network type LAN: Select this option when the KX-NTV150/KX-NTV160 is deployed on a local area network (LAN) and is intended to be accessed by local computers. The default setting for the Network Type is LAN. Please remember to click Save when you complete the Network setting.
  • Page 79 2 Software Use fixed IP address: Select this option to manually assign a static IP address to the KX-NTV150/ KX-NTV160. You can make use of Panasonic Installation Wizard to easily set up the KX-NTV150/KX-NTV160 on LAN. Please refer to Software Installation on page 35 for details.
  • Page 80 2 Software KX-NTV150/KX-NTV160 will be listed in My Network Places. You can click the shortcut to link to the web browser. Note that to utilize this feature, please make sure the UPnP component is installed on your computer. Enable UPnP port forwarding: UPnP port forwarding, or NAT traversal, automatically configures port mapping in a NAT router.
  • Page 81 Disconnect the power to the KX-NTV150/KX-NTV160; remove it from the LAN environment. Note • If the default ports are already used by other devices connected to the same router, the KX-NTV150/ KX-NTV160 will select other ports for the KX-NTV150/KX-NTV160. •...
  • Page 82 1025 and 65535. FTP port: The FTP server allows the user to save recorded video clips. You can utilize Panasonic's Installation Wizard to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535.

  • Page 83: Streaming Protocols

    To access the KX-NTV150/KX-NTV160 on the LAN, both the HTTP port and secondary HTTP port can be used to access the KX-NTV150/KX-NTV160. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the KX-NTV150/KX-NTV160’s IP address.
  • Page 84 KX-NTV150/KX-NTV160. RTSP streaming To utilize RTSP streaming authentication, make sure that you have set a password for the KX-NTV150/ KX-NTV160 first; please refer to Security ® User accounts on page 92 for details.
  • Page 85 The access name is used to differentiate the streaming source. If you want to use an RTSP player to access the KX-NTV150/KX-NTV160, you have to set the video mode to H.264 and use the following RTSP URL command to request transmission of the streaming data.

  • Page 86: Ddns

    2.9.3 DDNS This section explains how to configure the dynamic domain name service for the KX-NTV150/KX-NTV160. DDNS is a service that allows your KX-NTV150/KX-NTV160, especially when assigned with a dynamic IP address, to have a fixed host and domain name.

  • Page 87: Qos (Quality Of Service)

    2 Software Manual setup DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. We offer other DDNS providers, such as Dyndns.org (Dynamic), Dyndns.org (Custom), safe100.net, CustomSafe100.

  • Page 88: Snmp (Simple Network Management Protocol)

    (0~63). 2.9.5 SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the KX-NTV150/KX-NTV160. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.
  • Page 89 2 Software The SNMP consists of the following three key components: Manager: Network-management station (NMS), a server which executes applications that monitor and control managed devices. Agent: A network-management software module on a managed device which transfers the status of managed devices to the NMS.

  • Page 90: Wireless

    2 Software 2.10 Wireless 2.10.1 WLAN (KX-NTV150 only) Wi-Fi Enable (default checked): If connect camera with PoE (Power over Ethernet) cable, camera directly connects to LAN. If connected only with AC adaptor power and without a LAN cable, the camera connects to WLAN. However if this setting is unchecked, camera cannot connect to WLAN in all situations.
  • Page 91 2 Software WEP (Wired Equivalent Privacy): This allows communication only with other devices with identical WEP settings. • Authentication mode: Choose one of the following modes. The default setting is "Open". Open: Communicates the key across the network. Shared: Allows communication only with other devices with identical WEP settings. •...

  • Page 92: Security

    We recommend to use WPA-PSK/WPA2-PSK because they are more secure. • After wireless configurations are completed, click Save and the KX-NTV150 will reboot. Wait for the live image to be reloaded to your browser. You have to unplug the power and Ethernet cables from the KX-NTV150;...

  • Page 93: Https (Hypertext Transfer Protocol Over Ssl)

    Save to enable the settings. If you give Viewer the privilege, Operators will also have the ability to control the KX-NTV150/KX-NTV160 through the main page. Allow anonymous viewing: If you check this item, any client can access the live stream without entering a User ID and Password.
  • Page 94 "HTTPS only". Note that you have to create and install a certificate first before clicking the Save button. Create and Install Certificate Method Before using HTTPS for communication with the KX-NTV150/KX-NTV160, a Certificate must be created first. There are three ways to create and install a certificate: Create self-signed certificate Select this option from a pull-down menu.
  • Page 95 The Certificate information will automatically be displayed as shown below. You can click Certificate properties to view detailed information about the certificate. Click Save to preserve your configuration and your current session with the KX-NTV150/KX-NTV160 will change to the encrypted connection.
  • Page 96 2 Software Click Create certificate to proceed. The Certificate information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate. User’s Manual...

  • Page 97: Access List

    2 Software Copy the contents of the Certificate request (in PEM format). Use the contents to apply for a third-party certification authority such as Symantec VeriSign. Wait for the certificate authority to issue an SSL certificate; search for the issued certificate, and then upload it to finish the process. Note •...
  • Page 98 Filter type: Select Allow or Deny as the filter type. If you choose Allow, only those clients whose IP addresses are on the Access List below can access the KX-NTV150/KX-NTV160, and the others cannot access. On the User’s Manual...
  • Page 99 Deny, those clients whose IP addresses are on the Access List below will not be allowed to access the KX-NTV150/KX-NTV160, and the others can access. Then you can add a rule to the following Access List.

  • Page 100: Ieee 802.1X

    Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. KX-NTV150/KX-NTV160 support two types of EAP methods to perform authentication: EAPPEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings:...
  • Page 101 Certificate Authority (i.e., your network administrator) which can be validated by a RADIUS server. Connect the KX-NTV150/KX-NTV160 to a PC or notebook outside of the protected LAN. Open the configuration page of the KX-NTV150/KX-NTV160 as shown below. Select EAP-PEAP or EAP-TLS as the EAP method.

  • Page 102: Ptz

    2 Software Assuming all certificates are validated, the switch then changes the state of the KX-NTV150/ KX-NTV160 to authorized and access is allowed to the protected network via a pre-configured port. Certificate Authority (CA) Certificate Certificate KX-NTV150 Network Switch RADIUS Server Protected LAN 2.12 PTZ...
  • Page 103 2 Software The e-PTZ control settings section will be displayed as shown below: Select Stream: Select a video stream to set up the e-PTZ control. Please note that each stream can possess its own preset and patrol settings. For detailed information about how to set up preset and patrol settings, please refer to page 105.
  • Page 104 Note that the "Click on Image" function only applies when you have configured a smaller "Region of Interest" out of the maximum output frame, e.g., an 1024x768 region from the 1280x960 maximum frame size of the KX-NTV150/KX-NTV160. This enables you to travel to other unrevealed areas within the maximum frame size. User’s Manual...
  • Page 105 2 Software Patrol settings You can select some preset positions for the KX-NTV150/KX-NTV160 to patrol. Please follow the steps below to set up a patrol schedule: Select the preset locations on the list, and click. The selected preset locations will be displayed on the Patrol locations list.

  • Page 106: Event

    To set an event with recorded video or snapshots, it is necessary to configure the server and media settings so that the KX-NTV150/KX-NTV160 will know what action to take (such as which server to send the media files to) when a trigger is activated. An event is an action initiated by a user-defined trigger source. In the Event column, click Add to open the event settings window.
  • Page 107 999 minutes are allowed. Digital input This option allows the KX-NTV150/KX-NTV160 to use an external digital input device or sensor as a trigger source. Depending on your application, there are many choices of digital input devices on the market which helps to detect changes in temperature, vibration, sound, and light, etc.
  • Page 108 This option allows users to enable event triggers manually by clicking the on/off button on the homepage. Please configure 1 to 3 associated events before using this function. Action Define the actions to be performed by the KX-NTV150/KX-NTV160 when a trigger is activated. User’s Manual...
  • Page 109 To set an event that will be recorded in videos or snapshots, it is necessary to configure the server and media settings so that the KX-NTV150/KX-NTV160 will know what action to take (such as which server to send the media files to) when a trigger is activated. Click Add server to open the server setting window. You can specify where the notification messages are sent when a trigger is activated.
  • Page 110 • FTP folder name: Enter the folder where the media file will be placed. If the folder name does not exist, the KX-NTV150/KX-NTV160 will automatically create a folder on the FTP server. • Passive mode: Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall.
  • Page 111 2 Software Server type - HTTP Select to send the media files to an HTTP server when a trigger is activated. • Server name: Enter a name for the server setting. • URL: Enter the URL of the HTTP server. •...
  • Page 112 Source: Select to take snapshots from stream 1-2. • Send pre-event images: The KX-NTV150/KX-NTV160 has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide how many images to capture before a trigger is activated. Up to 7 images can be generated.
  • Page 113 Source: Select the source of video clip. • Pre-event recording: The KX-NTV150/KX-NTV160 has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide the duration of recording before a trigger is activated. Up to 9 seconds can be set.
  • Page 114 2 Software Click Save media to enable the settings. Media type - System log Select to send a system log when a trigger is activated. Click Save media to enable the settings, then click Close to exit the page. In the Event settings column, the Servers and Media you configured will be listed; please make sure the Event ®...
  • Page 115 2 Software Please see the example of the Event setting page below: When the Event Status is ON, once an event is triggered by motion detection, the KX-NTV150/KX-NTV160 will automatically send snapshots via e-mail. If you want to stop the event trigger, you can click ON to turn it to OFF status or click Delete to remove the event setting.

  • Page 116: Applications

    2 Software 2.14 Applications 2.14.1 Motion detection This section explains how to configure the KX-NTV150/KX-NTV160 to enable motion detection. A total of five motion detection windows can be configured. Follow the steps below to enable motion detection: Click New to add a new motion detection window.
  • Page 117 2 Software For example: The Item size means the object you want to detect in the scene. The Sensitivity can control the detect threshold. If image vibration exceeds the threshold, the red bar rises. Meanwhile, the motion detection window will be outlined in red.
  • Page 118 2 Software If you want to configure other motion detection settings for a different time period within a day, please click Profile to open the Motion detection Profile Settings page as shown below. A total of three motion detection windows can be configured on this page as well. Please follow the steps below to set up a profile and additional motion detection windows in it: Create a new motion detection window.

  • Page 119: Di And Do

    KX-NTV160 will automatically detect the current connection state as pulled-high or pulled-low. You may then define the triggering condition. Digital input: Select High or Low to define the "Normal status" for the digital input. The KX-NTV150/ KX-NTV160 will report the current status.

  • Page 120: Camera Tampering Detection

    You can configure Tampering Detection as a trigger element to the proactive event configurations in Event ® Event settings ® Trigger. For example, when the KX-NTV150/KX-NTV160 is tampered with, KX-NTV150/KX-NTV160 can be configured to send pre- and post-event video clips to a networked storage device. Please refer to page 125 for detailed information.

  • Page 121: Voice Detection

    2 Software 2.14.4 Voice detection Simply select High/Middle/Low threshold level for Voice detection. Voice detection, along with video motion detection, is applicable in the following scenarios: Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door or window.

  • Page 122: Recording

    At Schedule mode, you can manually configure a period of time during which this profile will take effect. Click Save and then click Close to complete your configuration. 2.15 Recording 2.15.1 Recording settings This section explains how to configure the recording settings for the KX-NTV150/KX-NTV160. User’s Manual...
  • Page 123 2 Software Recording Settings Click Add to open the recording setting window. On this page, you can define the adaptive recording, recording schedule, and recording capacity. A total of 2 recording settings can be configured. • Recording name: Enter a name for the recording setting. •...
  • Page 124 Settings on page 106. • Pre-event recording and post-event recording: The KX-NTV150/KX-NTV160 has a buffer area (a flash memory); it temporarily holds data up to a certain limit. Enter a number to decide the duration of recording before and after a trigger is activated.
  • Page 125 2 Software Trigger Schedule: The server will start to record files on the local storage or a networked storage (NAS). Destination You can select the network storage (NAS) for the recorded video files. NAS server If you have not configured a NAS server, click Add NAS server to open the server setting window and follow the steps below to set up: User’s Manual...
  • Page 126 2 Software Fill in the information for your server. For example: Click Test to check the setting. The result will be shown in a pop-up window. If successful, you will receive a test.txt file on the network storage server. Enter a server name. Click Save to complete the settings and click Close to exit the page.
  • Page 127 2 Software If you want to enable recording notification, please click Event to configure event triggering settings. Please refer to Event ® Event settings on page 106 for more details. When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page.

  • Page 128: Specifications

    1. DC 9 V POE maximum: 3.9 W Maximum: 3.6 W 2. POE maximum: 3.7 W Ambient Operating range KX-NTV150: 0 °C to 40 °C Temperature KX-NTV160: -10 °C to 50 °C Storage range -10 °C to 50 °C Ambient Humidity Operating range...

  • Page 129: Video (Live View Settings)

    3 Specifications Feature KX-NTV150/KX-NTV160 Lens Type Fixed-focal Focal Length f=2.8 Aperture F=1.8 Focus Range to 0.4 m Field of View (16:9) Horizontal 92° Vertical 52° Diagonal 106° Field of View (4:3) Horizontal 92° Vertical 70° Diagonal 115° 3.1.3 Video (Live View Settings)

  • Page 130: Audio

    3 Specifications Feature KX-NTV150/KX-NTV160 Video quality Setting by configuration menu on WEB access Select one: → (H.264) CBR: 20 K,30 K,40 K,50 K,64 K,128 K,256 K, 512 K,1 M,2 M,3 M,4 M,6 M, 8 Mbps, and Customized (4 to 8000 Kbps)

  • Page 131: Sip Terminal Features

    Max. -100 mA • applied voltage: Max. +50 V 3.1.6 SIP Terminal Features Feature KX-NTV150/KX-NTV160 Power Supply AC Adaptor (only KX-NTV150) PoE (IEEE 802.3 af) 1 ´ RJ45 Network Interface 10Base-T/100BaseTx (Packet Loss Concealment) Echo Cancellation Wideband Codec G.722...
  • Page 132 AES Key Sizes 128/192/256 bits RSA Key Sizes 2048/4096 bits WIFI WEP 64 bit/128 bit (only KX-NTV150) WIFI WPA(TKIP/AES) Yes (only KX-NTV150) WIFI WPA2(TKIP/AES) Yes (only KX-NTV150) THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ( "AVC VIDEO"...

  • Page 133: Appendix

    4 Appendix 4 Appendix SIP Settings PHONE_NUMBER_1 STRING Up to 32 characters (only 0-9*#ABCDFPT()-[]) SIP_RGSTR_ADDR_1 STRING Up to 128 characters (only 0-9, A-Z, a-z, -, .) SIP_RGSTR_PORT_1 US-INTEGER 1 to 65535 SIP_PRXY_ADDR_1 STRING Up to 128 characters (only 0-9, A-Z, a-z, -, .) SIP_PRXY_PORT_1 US-INTEGER...

  • Page 134: Entering Characters

    4 Appendix DST_START_TIME US-INTEGER 0-1380 (min) NTV setting only per hour (ex. 0, 60, 120, 180, ..., 1380) DST_STOP_MONTH US-INTEGER 1-12 DST_STOP_ORDINAL_DAY US-INTEGER (1: the first week of the month, 2: the second week of the month, ..., 5: last week of the month) DST_STOP_DAY_OF_WEEK US-INTEGER (0: Sun, 1: Mon, ..., 6: Sat)
  • Page 135 Notes User’s Manual...
  • Page 136 Copyright: This material is copyrighted by Panasonic System Networks Co., Ltd. , and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic System Networks Co., Ltd.
