  • Page 1 PowerScan™ PD9530 Industrial Corded Handheld Area Imager Bar Code Reader Quick Reference Guide...
  • Page 2 Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Own- ers of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes.

  • Page 3: Table Of Contents

    FCC RF Radiation Exposure Statement ......32 Canadian Notice ................32 Power Supply ................... 33 Imager Labeling ................33 Aiming System..............33 WEEE Statement ................38 Datalogic ADC Limited Factory Warranty ............39 Ergonomic Recommendations ............. 41 Services and Support ................41...
  • Page 4 NOTES...

  • Page 5: End User License Agreement

    Agreement. If you do not intend to be bound to the terms of this Agreement, Datalogic is not willing to license the Software to you, you may not use the Datalogic Product or the Software, and you must contact the party from whom you acquired the Datalogic Product for instructions.

  • Page 6: Limited Warranty

    Datalogic Product to any third party unless such third party agrees with Datalogic in writing to be bound by the terms and conditions of this Agree- ment. Any such transfer of the Datalogic Product absent such agreement shall be null and void.

  • Page 7: Limitation Of Liability

    Datalogic ADC, Inc., Legal Department, 959 Terry Street, Eugene, OR 97402. 7.2 In the defense or settlement of any such claim, Datalogic may, at its option, 1) procure for End User the right to continue using the Datalogic Product, 2) modify...

  • Page 8: Software Product Policy

    State of Oregon located in either Multnomah or Lane coun- ties shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute discretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located.

  • Page 9: Description

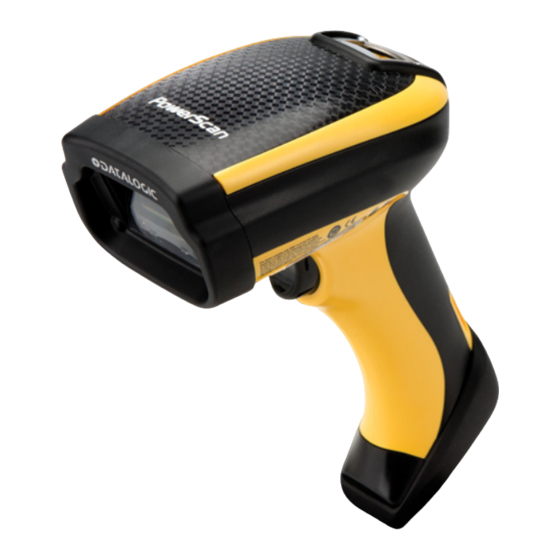

    Powerscan™ PD9530 Description The PowerScan™ 9530 is a feature-rich and rugged area im- ager reader. It is offered in several different models to better fit the different needs of each customer. The table below shows the unique features of each model: Model P/N Optical feature PD9530...

  • Page 10: Setting Up The Reader

    USA USA Driver Driver License PDF417 barcodes. This feature License can be enabled using either Datalogic Alad- Parsing din™ or the barcodes in the USA Driver License Parsing Quick Reference Guide (QRG), available on the Datalogic website.

  • Page 11: Connecting The Cable

    Setting Up the Reader Connecting the Cable A. Rubber gasket B. Cable Holder C. Cover D. Connector Holder Slip the cable through the Cover. Push the Rubber Gasket onto the Cable Holder. FRONT>> Push the Cable Holder and gasket into the handle. Ensure that the “Front”...

  • Page 12: Using The Powerscan™ Pd9530

    If the entire bar code is within the aiming field, you will get a good read. Successful reading is signaled by an audible tone plus a good-read green spot LED indicator. Reference the PowerScan PD9530 Product Reference Guide (PRG) for more information about this feature and other pro- grammable settings.

  • Page 13: Selecting The Interface Type

    Information and programming options for each interface type are provided in this section. For defaults and additional infor- mation associated with each interface, proceed to the corre- sponding chapter in the PowerScan PD9530 PRG. Configuring the Interface Scan the appropriate programming bar code to selects the in- terface type for your system.
  • Page 14 RS-232 standard interface RS-232 RS-232 Wincor-Nixdorf RS232-WN RS-232 for use with OPOS/UPOS/JavaPOS RS-232 OPOS USB Com to simulate RS-232 standard interface USB-COM USB-OEM (can be used for OPOS/UPOS/JavaPOS) USB-OEM a. Download the correct USB Com driver from www.datalogic.com PowerScan™ PD9530...
  • Page 15 Selecting the Interface Type USB (continued) USB Keyboard with standard key encoding USB-KBD USB Keyboard with alternate key encoding USB-KBD-ALT USB Keyboard for Apple computers USB-KBD-APPLE Quick Reference Guide...

  • Page 16: Scancode Tables

    Standard Key Encoding without external keyboard KBD-AT-NK IBM AT or PS/2 PCs w/Alternate Key KBD-AT-ALT IBM AT or PS/2 PCs Alternate Key Encoding without external keyboard KBD-AT-ALT-NK Scancode Tables Reference the PowerScan PD9530 PRG for information about control character emulation for keyboard interfaces. PowerScan™ PD9530...

  • Page 17: Country Mode

    Selecting the Interface Type Country Mode This feature specifies the country/language supported by the keyboard. This option is usable only with USB-KBD and Keyboard Wedge interface without the "Alternate Key" mode. COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Country Mode = U.S. Country Mode = Belgium Country Mode = Britain Country Mode = Croatia*...
  • Page 18 Selecting the Interface Type COUNTRY MODE (Continued) Country Mode = Czech* Country Mode = Denmark* Country Mode = France $CKBCO13(CR) Country Mode = French Canadian* Country Mode = Germany Country Mode = Hungary* *Supports only the interfaces listed in the Country Mode feature description PowerScan™...
  • Page 19 Selecting the Interface Type COUNTRY MODE (Continued) Country Mode = Italy Country Mode = Japanese 106-key* Country Mode = Lithuanian* Country Mode = Norway* Country Mode = Poland* Country Mode = Portugal* *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...
  • Page 20 Selecting the Interface Type COUNTRY MODE (Continued) Country Mode = Romania* Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia* Country Mode = Switzerland* *Supports only the interfaces listed in the Country Mode feature description PowerScan™ PD9530...

  • Page 21: Caps Lock State

    Selecting the Interface Type Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard is se- lected. ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable...

  • Page 22: Numlock

    Selecting the Interface Type Numlock This option specifies the setting of the Numbers Lock (Num- lock) key while in keyboard wedge interface. This only applies to alternate key encoding interfaces. It does not apply to USB keyboard. ENTER/EXIT PROGRAMMING MODE Numlock = Numlock key unchanged Numlock = Numlock key toggled PowerScan™...

  • Page 23: Programming

    PowerScan PD9530. Check the corresponding features sec- tion for your interface, and also the Data Editing and Symbol- ogies chapters of the PRG.

  • Page 24: Reading Parameters

    Reading Parameters Reading Parameters Move the reader toward the target and center the aiming pat- tern and illumination system to capture and decode the image. for more informa- Using the PowerScan™ PD9530 on page 8 tion. The aiming system will briefly switch off after the acquisition time, and if no code is decoded will switch on again before the next acquisition.

  • Page 25: Operating Modes

    Operating Modes Operating Modes Scan Mode The imager can be set to operate in one of several scanning modes. See the PRG for more information and settings for any of the options: This mode is associated with typical Trigger Single (Default): handheld reader operation.

  • Page 26: Motion Aiming Control

    Operating Modes Scan Mode (continued) ENTER/EXIT PROGRAMMING MODE Scan Mode = Trigger Single Scan Mode = Trigger Pulse Multiple Scan Mode = Trigger Hold Multiple Scan Mode = Flashing Scan Mode = Stand Mode Scan Mode = Always On Motion Aiming Control This feature configures the ability of the scanner to Enable/ Disable the Aiming system when motion is detected.

  • Page 27: Pick Mode

    Operating Modes Pick Mode Specifies the ability of the reader to decode labels only when they are close to the center of the aiming pattern. Pick Mode is a Decoding and Transmission process where bar codes that are not within the configurable distance from the center of the aiming pattern are not acknowledged or transmitted to the host.

  • Page 28: Technical Specifications

    Technical Specifications Technical Specifications The following table contains Physical and Performance Char- acteristics, User Environment and Regulatory information. Item Description Physical Characteristics Height: 212 mm Dimensions Length: 110 mm Width: 74 mm Weight (without cable) 330 gr (without cable) Electrical Characteristics PD9530/ PD9530-HPE PD9530-DPM...
  • Page 29 Technical Specifications Depth of Field (Typical) Symbology Standard Model: High Performance: 4 mils: 6-17 cm 2.5 mils: 2-6 cm Code 39 20 mils: 4-55 cm 20 mils: 3-70 cm 40 mils: 4-85 cm 40 mils: 3-110 cm EAN 13 13 mils: 4-48 cm 13 mils: 3-60 cm PDF-417 10 mils: 2-25 cm...
  • Page 30 Technical Specifications Drop Specifications Scanner withstands >50 times 6.5' (2 m) drops to concrete Ambient Light Immunity 100,000 Lux Contaminants: Spray/rain, IP65 Dust/particulates ESD Level 20 KV Beeper/Speaker >= 80 dB @ 10 cm Regulatory Electrical Safety UL 60950, CSA C22.2 No. 60950, IEC 60950 North America (FCC) : Part 15 Class B;...

  • Page 31: Led And Beeper Indications

    LED and Beeper Indications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The following tables list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are programmable, and so may or may not be turned on.

  • Page 32: Programming Mode

    LED and Beeper Indications Indicator Description Beeper Upon successful read of a label, the Green Spot software shall turn flashes momen- the green spot on tarily for the time speci- fied by the config- ured value. Blue light flashes 2 When ready to cap- Image Capture times when...

  • Page 33: Error Codes

    Error Codes Reader sounds Label Program- Cancel label has been two times at low ming Mode Can- scanned. frequency and cel Item Entry current volume. Error Codes Upon startup, if the reader sounds a long tone, this means the reader has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode.

  • Page 34: Cleaning

    Cleaning Cleaning Exterior surfaces and scan windows exposed to spills, smudges or debris require periodic cleaning to ensure best performance during scanning. Use a soft, dry cloth to clean the product. If the product is very soiled, clean it with a soft cloth moistened with a diluted non- aggressive cleaning solution or diluted ethyl alcohol.

  • Page 35: Regulatory Information

    Any changes or modifications to equipment, not expressly ap- proved by Datalogic could void the user's authority to operate the equipment. Statement of Agency Compliance This device complies with part 15 of the FCC Rules. Opera-...

  • Page 36: Fcc Rf Radiation Exposure Statement

    Regulatory Information FCC RF Radiation Exposure Statement Exposure to Radio-Frequency Radiation CAUTION To comply with FCC RF exposure compliance requirements, for mobile configurations, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.

  • Page 37: Power Supply

    Regulatory Information Power Supply This device is intended to be connected to a UL Listed/CSA Certified computer which supplies power directly to the read- er or else be supplied by UL Listed/CSA Certified Power Unit marked “Class 2” or LPS power source rated 5-14V minimum 900mA.
  • Page 38 Regulatory Information LA LUCE DIE LASER-STRAH- LE RAYON A LUZ LÁSER ES LASER È VISI- LUNG IST FÜR DAS LASER EST VISI- VISIBLE AL OJO BILE MENSCHLICHE BLE À L'OEIL HUMANO Y ES ALL'OCCHIO AUGE SICHTBAR NU ET IL EST EMITIDA POR UMANO E UND WIRD AM...
  • Page 39 Regulatory Information The product utilizes a low-power laser diode. Although staring directly at the laser beam momentarily causes no known bio- logical damage, avoid staring at the beam as one would with any very strong light source, such as the sun. Avoid that the la- ser beam hits the eye of an observer, even through reflective surfaces such as mirrors, etc.
  • Page 40 Regulatory Information Es ist nicht notwendig, das Gerät wegen Betrieb oder Installa- tions-, und Wartungs-Arbeiten zu öffnen. Jegliche Änderungen am Gerät sowie Vorge- hensweisen, die nicht in dieser Betriebsanlei- tung beschreiben werden, können ein gefährliches Laserlicht verursachen. ACHTUNG Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine Augenschäden von kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere Zeit in den Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B.
  • Page 41 Regulatory Information ESPAÑOL Las informaciones siguientes son presentadas en conformidad con las disposiciones de las autoridades internacionales y se re- fieren al uso correcto del terminal. NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER Este aparato resulta conforme a las normativas vigentes de se- guridad láser a la fecha de producción: CDRH 21 CFR 1040 y EN 60825-1.

  • Page 42: Weee Statement

    Sie auf der Webseite www.adc.datalogic.com. Spanish Si desea información acerca de los procedimientos para el desecho de los residuos del equipo eléctrico y electrónico (WEEE), visite la página Web www.adc.datalogic.com. Portuguese Para informações sobre a disposição de Sucatagem de Equipamentos Elétricos e Eletrônicos (WEEE -Waste Electrical and Electronic Equipment), consultar o site web...

  • Page 43: Datalogic Adc Limited Factory Warranty

    Datalogic service center, with shipping charg- es prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Datalogic service center is located.

  • Page 44: Risk Of Loss

    OF THE POSSIBILITY OF SUCH DAMAGES. Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Dat- alogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific written instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment.

  • Page 45: Ergonomic Recommendations

    • Provide a suitable working environment • Improve work procedures. Services and Support Datalogic provides several services as well as technical support through its website. Log on to and click on the links indi- www.datalogic.com cated for further information. Products...
  • Page 46 Services and Support NOTES PowerScan™ PD9530...

  • Page 47: Declaration Of Conformity

    Eugene, OR 97402 dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el PowerScan PD9530 Barcode Reader e tutti i suoi modelli and all its models et tous ses modèles und seine Modelle y todos sus modelos...
  • Page 48 Datalogic ADC, Inc. 959 Terry Street Eugene, OR 97402 Telephone: (541) 683-5700 Fax: (541) 345-7140 ©2013 Datalogic ADC, Inc. 820045614 (Rev A) January 2013...
