User guide
Parrot SK4000
English
Parrot SK4000
User Guide
1

Advertisement

Table of Contents
loading

Related Manuals for Parrot SK4000

Summary of Contents for Parrot SK4000

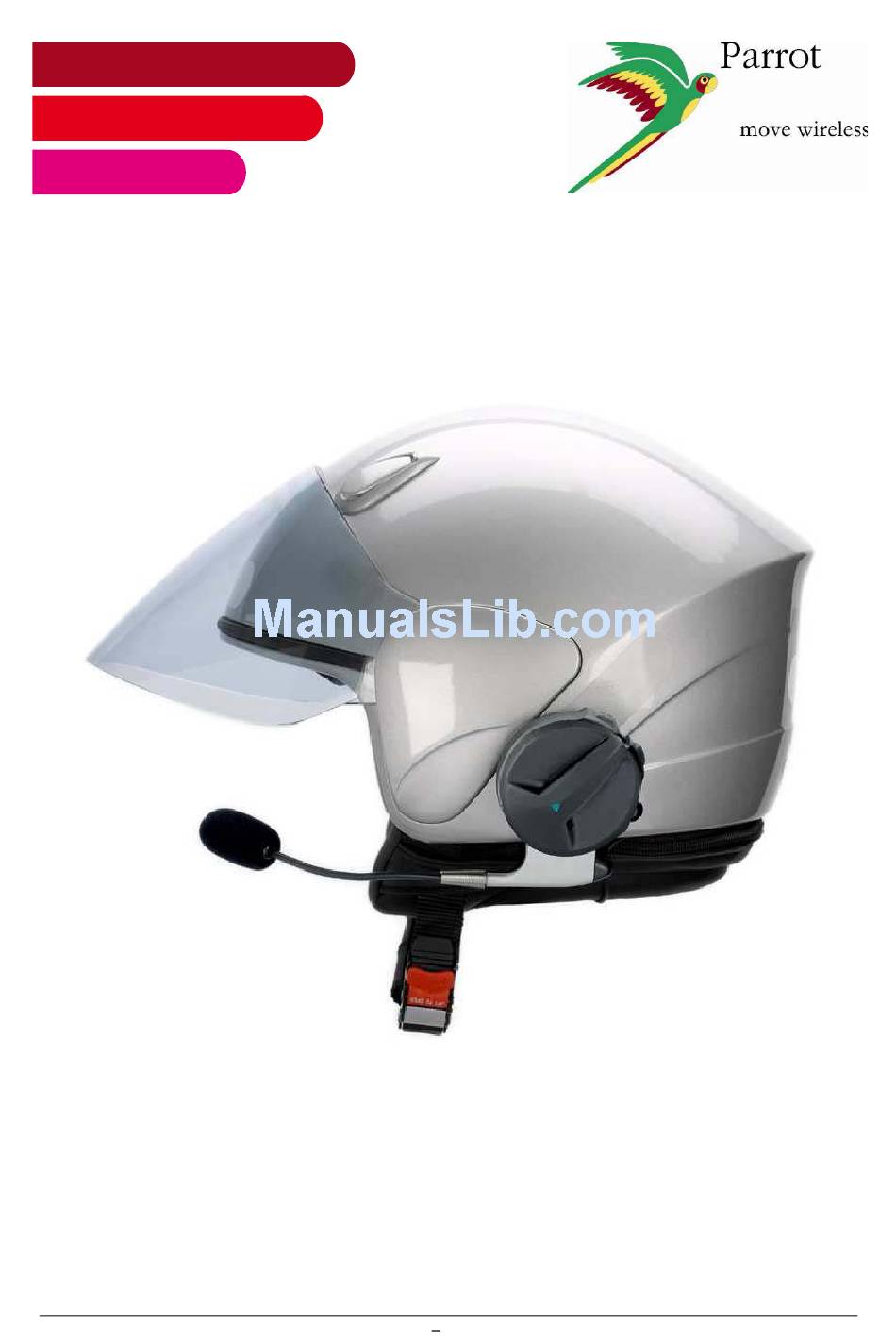

  • Page 1 User guide Parrot SK4000 English Parrot SK4000 User Guide...

  • Page 2: Table Of Contents

    Table of contents Introduction ......................... 4 Kit contents ......................... 4 Using the Parrot SK4000 for the first time ................. 5 Installing the Parrot SK4000 ....................5 Description of the Parrot SK4000 ..................7 Operating the Parrot SK4000 ..................... 8 Associating the control unit with the remote control ............10 Pairing your phone with the Parrot SK4000 ..............10...
  • Page 3 Adjusting the volume ......................22 Technical specification ......................23 Audio ..........................23 Interface..........................23 Bluetooth ..........................23 Dimensions ........................24 Processor .........................24 Updating your Parrot SK4000 ....................25 Hotline ..........................25 Parrot SK4000 User Guide...

  • Page 4: Introduction

    Parrot SK4000. With the Parrot SK4000, you will be able to make phone calls from your motorbike while keeping your hands on the handlebars. You can also use the audio streaming function on your hands-free kit to listen to the music files stored on your phone, PDA or audio player (if your phone, PDA or audio player supports the audio streaming function).

  • Page 5: Using The Parrot Sk4000 For The First Time

    Using the Parrot SK4000 for the first time Slide the control unit downwards along the sliding panel until Installing the Parrot SK4000 a clicking sound indicates that the control unit is locked in place. Place the control unit between the protection foam and the external shell of your helmet, making sure of the microphone’s proper location.
  • Page 6 Attach the clamp of the Parrot SK4000 to your helmet with the allen key provided. Before locking the control unit, make sure nothing blocks the insertion of the control unit. If it is not the case, use the extension pad provided with your Parrot SK4000.

  • Page 7: Description Of The Parrot Sk4000

    7. Slide the remote control on the left grip of the handlebar by opening the clips of the remote control. Control unit Description of the Parrot SK4000 Button Functions - Answer an incoming call - Make a call via the voice recognition feature...

  • Page 8: Operating The Parrot Sk4000

    - Long press : redial function Enter and scroll through the available audio sources selection menu Charging the Parrot SK4000 Operating the Parrot SK4000 Do not use your Parrot SK4000 during the charge. - Control unit power cable supplied charge battery of the control unit.
  • Page 9 Parrot SK4000 until you hear a tone signal. > The LED is on until the device turns off. > A vocal message informs you that the Parrot SK4000 is turned off. Parrot SK4000 User Guide...

  • Page 10: Associating The Control Unit With The Remote Control

    2. As soon as the LED turns off, simultaneously hold down the + / – buttons of the remote control during 3 seconds. > The control unit LED blinks rapidly. > Now you can browse through the Parrot SK4000 menus using the remote control. Pairing your...

  • Page 11: Connecting Your Phone To The Parrot Sk4000

    Audio Settings > Stereo mode. To reset the Parrot SK4000, press simultaneously the Reset the keys of the control unit of the Parrot SK4000. This process will remove the Parrot SK4000 pairings as well as the contacts and the associated tags. Parrot SK4000...

  • Page 12: Menu Structure

    Otherwise, you must first send your contacts from the phone to the kit by activating the Receive contacts menu. X X X X Refer to the Recording your contacts on the Parrot SK4000 section for further information. Volume: adjust the volume. Audio settings: this menu allows you to activate/deactivate the automatic volume control during a call, depending on the noise level of your environment.

  • Page 13: Sources Selection Menu

    Sources selection Press the key to enter the sources selection menu. It allows SOURCE menu you to select one of the available audio sources: FM radio function Analogue audio source Bluetooth audio source Parrot SK4000 User Guide...

  • Page 14: Using The Telephony Function

    Using the telephony function Before using the telephony function of your Parrot SK4000, you first have to connect your phone with it. If it is the first time you use both devices, you first have to pair them. X For further information, refer to the Pairing the Parrot SK4000 to a phone and Connecting the Parrot SK4000 with a Bluetooth phone sections.

  • Page 15: Using The Magic Words

    You can make a call via voice recognition using several combinations of keywords. For example, « call ‘Paul’» or simply « ‘Paul’ ». You can also associate the type of number you want to call: «call ‘Paul’ at Parrot SK4000 User Guide...
  • Page 16 > The name of the caller is announced if his number is recorded in the phonebook of the phone connected to the Parrot SK4000. 7. If this contact has several phone numbers, use the +/- keys to browse the list of the available numbers.

  • Page 17: Ending A Call

    • If the contact is not in the phonebook of the kit If the contact you want to call is not in the phonebook of the Parrot SK4000, stop your vehicle in a safe location then make the call directly from your phone.

  • Page 18: Answering A Second Call

    All your contacts, after automatic synchronization or Object Push Recording voice tags process, are directly provided with a voice tag in the Parrot SK4000. Consequently, you don’t have to record your own voice tag on each contact to make a call via the voice recognition process.
  • Page 19 5. Follow the instructions to record the new voice tag. To interrupt the process, press the key of the control unit. Parrot SK4000 User Guide...

  • Page 20: Using The Music Function

    > A vocal message informs you about the name of the selected station if it is available. Press the key of the control unit to stop playback or press the key to get back to the Phone mode. SOURCE Parrot SK4000 User Guide...

  • Page 21: Using An Analogue Audio Source

    Phone mode. SOURCE The Parrot SK4000 allows you to play music files stored in a Bluetooth Using the Audio Streaming function device which supports the A2DP profile. For the first use, pair and connect your device to the Parrot SK4000.

  • Page 22: Adjusting The Volume

    Use the +/- keys of the control unit or of the remote control to adjust Adjusting the volume the volume. The Parrot SK4000 adapts the volume automatically. It adapts the restitution volume depending on the importance of the background noise. For further information, refer to the Menu Structure section.

  • Page 23: Technical Specification

    HFP 0.96 / 1.0 / 1.5 (Hands Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio Video Remote Control Profile) OPP Sync (Object Push Profile) PBAP (Phone Book Access Profile) • Range: 10 meters • Pairing by PIN code • Update by Bluetooth Parrot SK4000 User Guide...

  • Page 24: Dimensions

    Height: 68 mm • Thickness: 30.5 mm • Width: 64 mm Remote control : • Height: 91 mm • Thickness: 43 mm • Width: 23 mm Parrot P5+ Processor Flash = 256 Mbits - RAM= 64 Mbits Parrot SK4000 User Guide...

  • Page 25: Updating Your Parrot Sk4000

    Updating your Parrot SK4000 You can update your device by a serial cable or by Bluetooth. Refer to the process concerning the Parrot SK4000 update on our website www.parrot.com. Hotline Our hotline is at your disposal from Monday to Friday between 9am and 6 pm (GMT+1) by mail hot-line@parrot.com...
