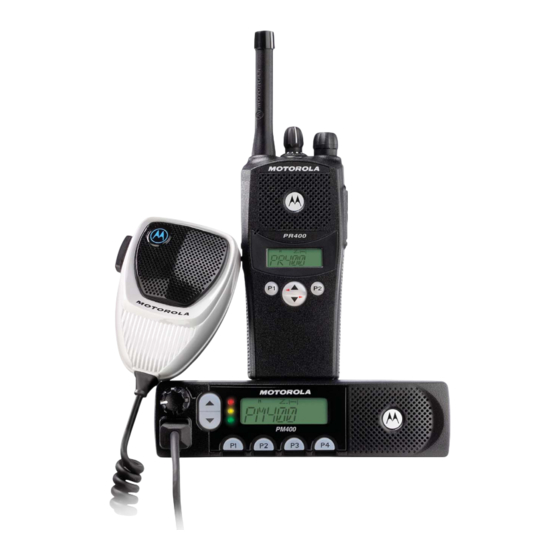

Motorola PR400 User Manual

Motorola user guide two-way radio pr400, pm400.



Summary of Contents

  • Page 2

    Motorola is known for. Each radio is backed by a limited two-year* warranty on parts and labor. So when you select the PR400 or PM400, you will experience the same exceptional quality you have come to expect from Motorola products.

  • Page 3

    Motorola accessories are system-tested with Motorola radios to ensure optimum performance. Ask us how we can help customize your two-way radios with just the right accessories for your communication needs.

  • Page 4

    PR400 Portable with No Display or Keypad PR400 Features • 16 Channels • UHF and VHF Frequencies • Up to 4 Programmable Features • Busy Channel Lockout • Transmit Time-Out Timer • Voice-Operated Transmit (requires voice-activated microphone) • TPL Standard and Non-Standard Reverse Burst (for better compatibility with fleets) •...

  • Page 5

    • Antenna (VHF Heliflex or UHF Whip)* • User Guide • Safety Manual • 2-Year Radio Warranty *Motorola offers a variety of antenna options, such as the UHF Heliflex Stubby Antenna (NAE6522) shown throughout this brochure and VHF Stubby Antenna (HAD9742/HAD9743). Excellence in Design...

  • Page 6

    PR400 Portable with Full Display and Limited Keypad PR400 Additional Features The Full Display/Limited Keypad model has all of the same regular and programmable features as the Non Display model plus the following: • 32 Channels • Up to 8 Programmable Features •...

  • Page 7

    PR400 Portable with Full Display and Full Keypad PR400 Additional Features The Full Display/Full Keypad model has all of the same regular and programmable features as the Non Display and Limited Keypad models plus the following: • 64 Channels • User Editable Standard and Non-Standard TPL/DPL Codes •...

  • Page 8

    PM400 Mobile PM400 Features • 64 Channels • Up to 8 Programmable Features • VHF and UHF Frequencies • Transmit Time-Out Timer • Busy Channel Lockout • Voice-Operated Transmit (requires voice-activated microphone) • Private-Line/Digital Private-Line Code Editing • TPL Standard and Non-Standard Reverse Burst (for better compatibility with fleets) •...

  • Page 9

    PM400 Programmable Features • 2-Channel Home Revert Returns to 1 or 2 favorite channels • Volume Set Sets preferred volume level for radio speaker • Silent Monitor/Open Squelch Silent monitor causes radio to remain silent when there is no channel activity; open squelch monitor causes “white noise”...

  • Page 10

    PR400 Portable Two-Way Radio Specifications General Specifications Frequency Channel Capacity Power Supply FCC Description No Display or Keypad H w/o knobs x W @spkr x D @ spkr w/o belt clip 1100 mAh NiCd 1300 mAh NiMH Intrinsically Safe (FM)

  • Page 11

    PR400 Portable Two-Way Radio Specifications Receiver Specifications Frequency Sensitivity 12dB SINAD Adjacent Channel Selectivity Intermodulation Frequency Stability (-30 C to +60 C) Spur Rejection Image and 1/2 I-F Rejection Audio Output @ <5% Distortion Transmitter Specifications RF Output Frequency Channel Spacing...

  • Page 12

    PM400 Mobile Two-Way Radio Specifications General Specifications Channel Capacity Technical RF Output Frequency Dimensions ( H * W * L ) Weight (radio only) Current Drain: Standby Rx@ rated, external 8 ohm speaker Transmit FCC Description Receiver Frequencies Channel Spacing...

  • Page 13

    Accelerated Life Test Motorola’s Accelerated Life Test (ALT) is a developmental process of rigorous laboratory testing that simulates years of field use. Motorola has a firm commitment to quality and reliability. These radios have been designed, manufactured and tested to achieve high levels of component and workmanship quality.

  • Page 14

    Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2003. https://www.motorola.com MD-EUPR400/PM400 Motorola’s Commercial, Government and Industrial Solutions Sector (CGISS) is a recipient of the prestigious 2002 Malcolm Baldrige National Quality Award, in recognition of its commitment to performance excellence and quality achievement.
