Impex MWB-36780B Owner's Manual

Impex MWB-36780B Owner's Manual

W/80lb weight set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MWB-36780B
Retain This
Manual for
Reference
110624

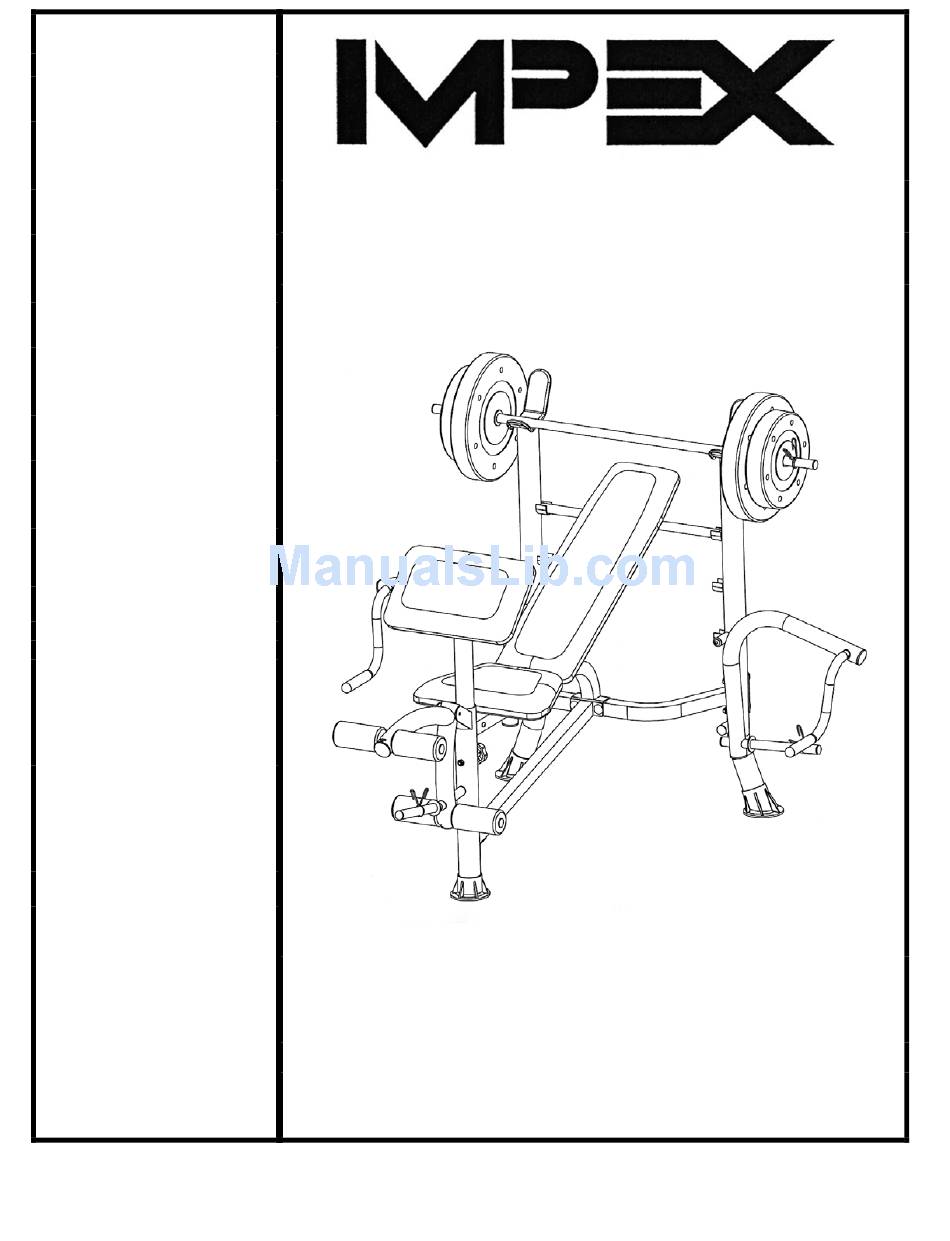

OWNER'S
MANUAL
MARCY
W/80LB WEIGHT SET
MWB-36780B
IMPEX
2801 S. Towne Ave., Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
®
BENCH
®
INC.

Advertisement

Table of Contents
loading

Related Manuals for Impex MWB-36780B

Summary of Contents for Impex MWB-36780B

  • Page 1 NOTE: Please read all instructions carefully before using this product ® MARCY BENCH Table of Contents Safety Notice W/80LB WEIGHT SET Hardware Identifier MWB-36780B Assembly Instruction Parts List Warranty Ordering Parts Model MWB-36780B Retain This Manual for Reference 110624 OWNER'S MANUAL ®...

  • Page 2: Table Of Contents

    PARTS LIST....................……. WARRANTY....................…. ORDERING PARTS..................… BEFORE YOU BEGIN Thank you for selecting the MARCY MWB-36780B Bench w/80lb weight set ® by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notice

    BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

  • Page 4: Warning Label Placement

    WARNING LABEL PLACEMENT The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.

  • Page 5: Hardware Identifier

    HARDWARE IDENTIFIER NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTION Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Bench should be placed on flat surface. The incline or decline of surface should be limited to a 3% or less for best performance and safety.
  • Page 7 STEP 2 (See Diagram 2) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Install a Front Leg End Cap (#20) onto the bottom of Front Leg (#5). Attach the Front Leg to the Main Seat Support (#3). Secure it with three M8 x 5/8” Allen Bolts (#35) and three Ø...
  • Page 8 STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#7) to the Front Leg (#5). Secure it with one M8 x 3 1/8” Allen Bolt (#36), two Ø 5/8” Washers (#40), and one M8 Aircraft Nut (#44). B.) Insert two Foam Tubes (#11) halfway through the holes on the Leg Developer. Push four Foam Rolls (#28) onto the Tubes from both sides.
  • Page 9 STEP 4 (See Diagram 4) A.) Attach the Backrest Supports (#10) onto both ends of the pivot on the Main Seat Support (#3). Place the other end rest against the Backrest Adjustment Bar (#32). B.) Place the Backrest Board (#31) onto the Backrest Supports. Secure it with four M6 x 1 ½” Hex Bolts (#46) and Ø...
  • Page 10 STEP 5 (See Diagram 5) A.) Attach the Arm Curl Pad (#29) to the Arm Curl Stand (#6). Secure it with two M8 x 5/8” Allen Bolts (#35) and Ø 5/8” Washers (#40). B.) Insert the Arm Curl Stand into the top opening on the Front Leg. Secure it with a M10 x 2 5/8”...
  • Page 11 STEP 6 (See Diagram 6) A.) Attach one Butterfly (#8) to the pivot on Left Upright Beam (#2). Secure it with one M10 x 5 7/8” Hex Bolt (#37), two Ø ¾” Washers (#39), one M10 Hex Nut (#51)and one M10 Butterfly Lock Knob (#50). Do not over tighten the Knob.
  • Page 12 STEP 7 (See Diagram 7) A.) Load 25 lbs two Weight Plates (#26) onto each end of the Bar. B.) Load 15 lbs two Weight Plates (#27) onto each end of the Bar. C.) Attach a Spring Clip (#19) to each end of the Bar to hold the plates in position. D.) Place the Weight Bar (#14) onto the Left &...

  • Page 14: Parts List

    PARTS LIST KEY NO. DESCRIPTION QUANTITY Right Upright Beam Left Upright Beam Main Seat Support Cross Brace Front Leg Arm Curl Stand Leg Developer Butterfly Main Seat Stabilizer Backrest Support Foam Tube Curved Bracket Butterfly Handle Weight Bar 1” Square End Cap Ø...

  • Page 15: Limited Warranty

    IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
