USAGE

CONTENTS

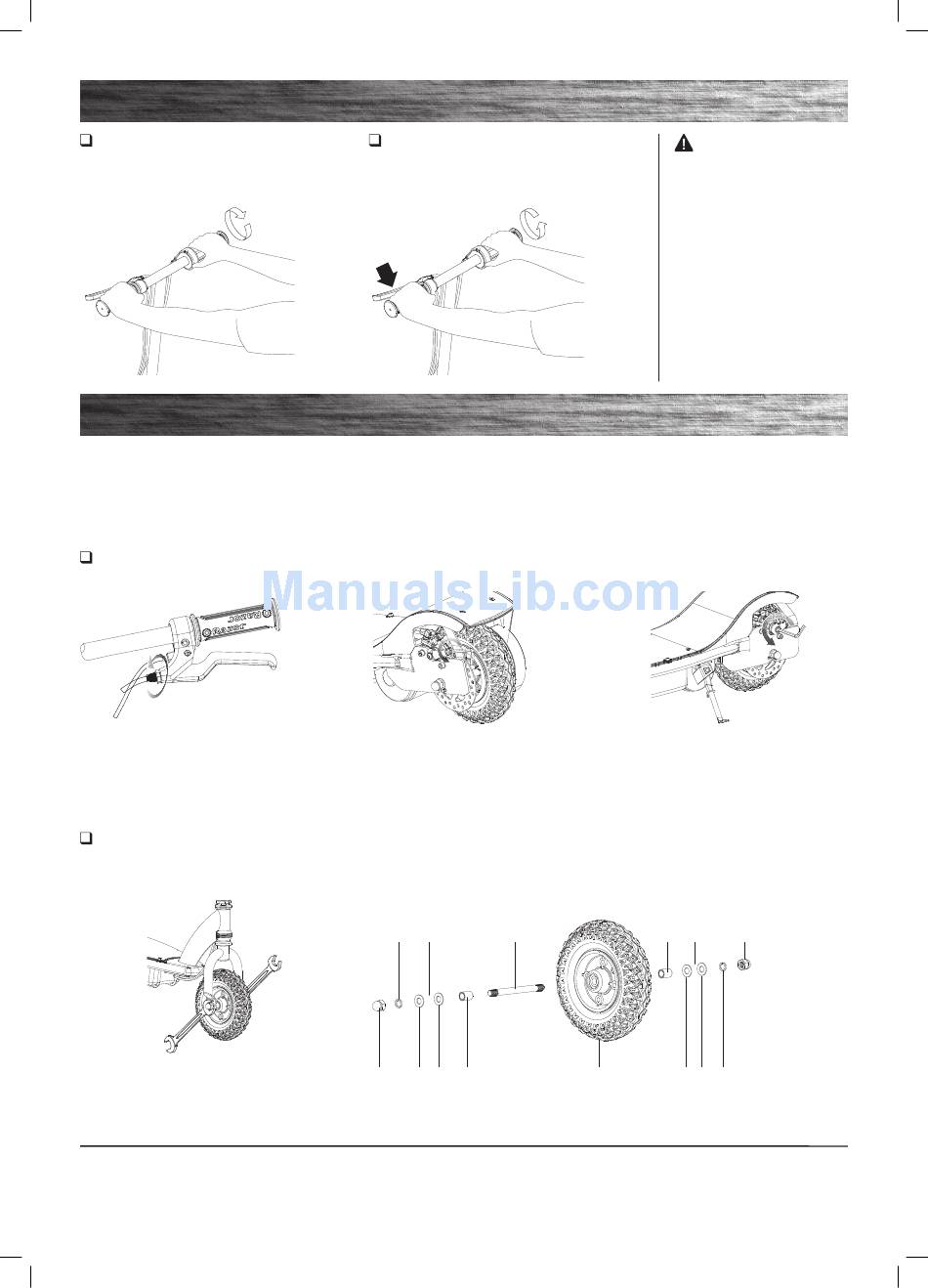

Starting the Scooter
To start unit, turn on power switch; place both hands on
handlebars and use one foot to push scooter forward
while applying the throttle with right hand.

REPAIR AND MAINTENANCE

Turn power switch "OFF" before beginning repair or maintenance:
• Read the instructions
• Remove charger plug
• Turn the power switch off
Adjusting the Brakes
Tool required: 5 mm Allen wrench
1
To adjust the brake cable tension, thread the
brake lever adjuster in or out 1/4 to 1/2 turn until
the desired brake adjustment is attained. Most
adjustments are complete at this step. If brake
still needs further adjustment, proceed to step 2.
Front Tire Replacement
Tools required: Phillips screwdriver, and two (2) 16 mm wrenches.
Disassembly
1
Using two (2) 16 mm wrenches, loosen the front
axle bolts by turning the wrenches counter clockwise.
Remove wheel and install replacement wheel. Note the
sequence of the hardware.
Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service
contact information is listed at the back of this manual.
RX200_MAN_US_141215.indd 6
Stopping the Scooter
To stop unit, release the throttle and apply the brake
until the unit comes to a complete stop.
• Secure the unit under repair
• Exercise caution around
exposed parts
2
If the brake is too tight or too loose, use a
5 mm Allen wrench to loosen the bolt for
additional adjustment on the brake cable.
Securely tighten the bolt when fi nished.
Spring
Fork
Washer
Lock Thin
Nut Washer
• Contact Razor customer service
if unsure about any repair or
maintenance
3
If the brake rotor is dragging on the brake pads,
use a 5 mm Allen wrench to twist the caliper
adjuster in either direction until rotor is centered
between pads.
Front
Axle Bolt
Front
Spacer
Wheel
6
WARNING:
The brake is capable of skidding
the rear tire and throwing an
unsuspecting rider. Practice in an
open area free from obstacles until
you are familiar with the brake
function. Avoid skidding to a stop as
this can cause you to lose control
and/or damage the rear tire.
Note: As an additional safety
feature, the scooter is designed to
cut power to the motor when the
hand brake is applied.
Lock
Spacer Fork
Nut
Thin Spring
Washer Washer
