3.0 Installation

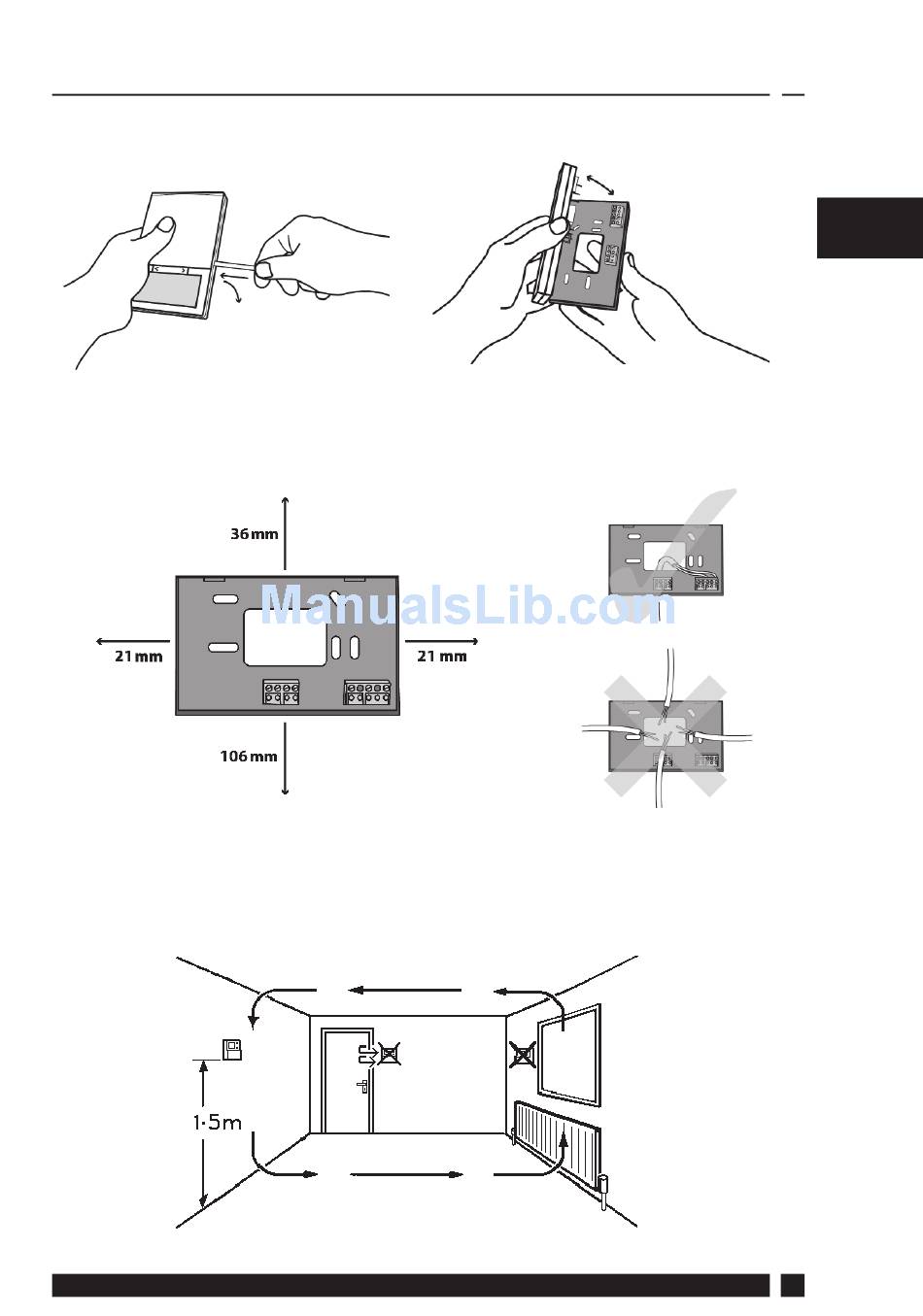

3.1 First remove the wallplate from the back of the unit.
3.2 From the top left hand corner of the wallplate, there must be
clearances of at least 21mm to the right, 21mm to the left, 36mm
above and 106mm below in order to mount the plug-in module.
3.3 Fix the TP70001/TP7001M and its optional remote room sensor
at a height of approximately 1.5m from the fl oor, away from
draughts or heat sources such as radiators, open fi res or direct
sunlight.
Danfoss Heating
GB
GB
5
