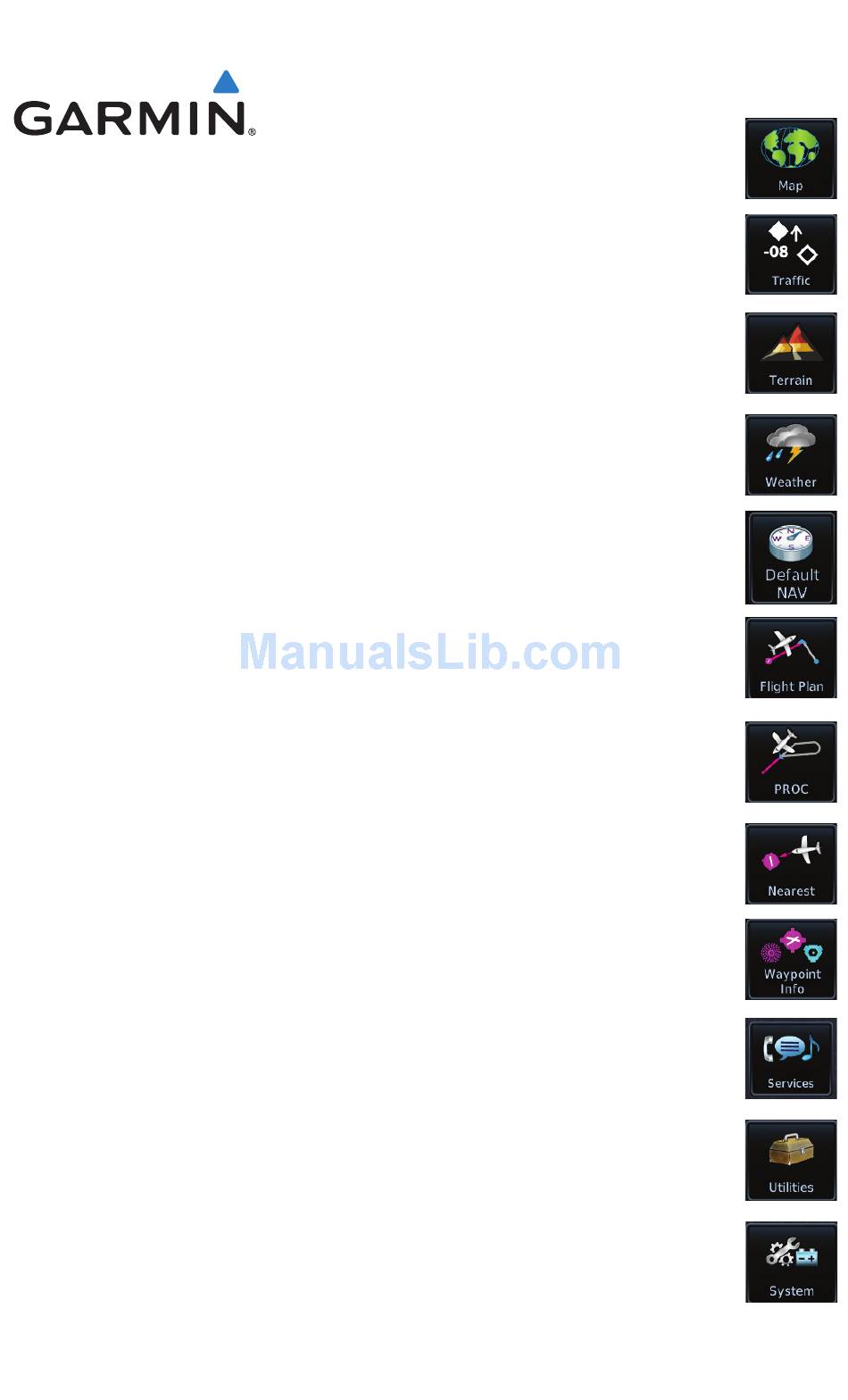

  • Page 1 GTN 625/635/650 Traffic Cockpit Reference Guide (CRG) Terrain Weather Default NAV Flight Plan Procedures Nearest Waypoint Info Services Utilities System...
  • Page 2 Although unlikely, it may be possible for erroneous operation to occur without a fault indication shown by the GTN 625/635/650. It is thus the responsibility of the pilot to detect such an occurrence by means of cross-checking with all redundant or correlated information available in the cockpit.
  • Page 3 WARNING: To reduce the risk of unsafe operation, carefully review and understand all aspects of the GTN 625/635/650 Pilot’s Guide as well as this guide. Thoroughly practice basic operation prior to actual use. During flight...
  • Page 4 Unauthorized repairs or modifications could void both the warranty and the pilot’s authority to operate this device under FAA/FCC regulations. CAUTION: The GTN 625/635/650 has a display that is coated with a special anti-reflective coating that is very sensitive to waxes and abrasive cleaners.
  • Page 5 Updated message list. Mar 2011 Updated part number on back cover only. Nov 2012 Added v3.00 functionality. Feb 2013 Added v4.00 functionality. Oct 2013 Added v5.00 functionality. Aug 2014 Added v5.11 functionality. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 6 This page intentionally left blank GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 7: Table Of Contents

    Flight Plan Menu ........................26 PROCEDURES ....................27 Flying the Missed Approach ....................... 28 Flying an Approach with a Hold ....................28 NEAREST ......................29 WAYPOINT INFO....................30 Creating a User Waypoint ......................31 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 8 Stormscope® Symbols....................... 49 Map Tool Bar Symbols ....................... 49 MESSAGES ...................... 50 GLOVE QUALIFICATION PROCEDURE .............. 73 Tests Required for Glove Qualification ..................74 Test Not Required for Glove Qualification ................... 75 viii GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 9: Introduction

    This cockpit reference guide (CRG) is intended to serve as a quick reference covering the basic features and operating procedures for the GTN 625/635/650. For detailed descriptions of any information found in this guide, refer to the latest revision of the GTN 625/635/650 Pilot’ s Guide, P/N 190-01004-03 found at www.garmin.com. Active...

  • Page 10: Direct-To Navigation

    2. Touch the NRST APT tab and then the desired airport from the Nearest Airport list. Touch the Up or Down keys as needed to show more of the list. 3. Touch Activate or press the small right knob. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 11: Nav/Com Radio

    NAV/COM RADIO NOTE: The GTN 625/635/650 are all GPS/SBAS navigators. In addition, the GTN 635 has COM functionality and the GTN 650 has COM/NAV functionality. Active COM Active NAV Frequency Frequency Identifier and Type Shown Standby NAV for the Selected Frequency...

  • Page 12: Selecting A Nav/Com Frequency Using Rotary Knobs

    To flip/flop the active and standby NAV/COM frequencies, touch and hold the small knob or touch the active NAV/COM frequency field. An annunciation, Hold for Flip-Flop, will be displayed near the knobs. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 13: Transponder

    ALT displays in the squawk code field. VFR: Touch to set the squawk code to 1200. Enable ES: When a GTX 33/330 is connected, touch to enable the extended squitter. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 14: Special Squawk Codes

    NOTE: While 1200 is the default VFR squawk code, the installer can configure any code to the VFR key. This is to support international operations where 1200 may not be used. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 15: Map

    Touch to select the fields Touch to restore the unit to that are displayed in the four Garmin factory defaults. corners on the Map Screen. Map Menu Options 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 16: Changing User Fields

    Field Type List. Touch To Touch To Select Select Data Field Data, Function, or Page Slider Indicates More Selections Available. Press Finger and Slide To View More Selections. Select User Fields Page GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 17: Pan Mode

    Waypoint Info Key Next Back Touch to create or edit flightplan. Cursor To enter or edit a flight plan, touch the Graphically Edit FPL key. To leave Pan Mode, touch the Back key. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 18: Creating (Or Editing) A Flight Plan In Pan Mode

    NOTE: It is not possible to graphically add an intermediate waypoint between the current position and a direct-to waypoint unless that waypoint is in the flight plan. Garmin recommends deleting any flight plan prior to graphically editing a direct-to waypoint.

  • Page 19: Traffic

    TRAFFIC Traffic NOTE: Depending on which traffic device is installed and how it is configured, the pages will be different than what is shown. Refer to the GTN 625/635/650 Pilot’s Guide, P/N 190-01004-03, for more information. Touch to activate testing mode.

  • Page 20: Traffic System Status Annunciations

    (climbing/descending). Failed Traffic data has failed. Data is being received from the transponder, but a failure Data Fail is detected in the data stream. No Data Traffic has not been detected. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 21: Tcas - System Menu

    The table below defines the displayed traffic ranges for each altitude filter setting. Altitude Filter Displayed Traffic Range Below -9900 ft to 2700 ft Normal -2700 ft to 2700 ft Above -2700 ft to 9900 ft Unrestricted All Traffic Shown 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 22: Tcad - System Menu

    Touch to select local baro. field elevation. Touch to set traffic audio volume. Touch to activate operation. Touch to select Touch to select ground mode. approach mode. TCAD Traffic and Control Menu Control GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 23: Ads-B Traffic

    Off, Surface, or Traffic Test Airborne Select Altitude Filter: Select Motion Vector: Normal, Above, Below, Absolute, Relative, Off Unrestricted Select Vector Duration: 30 sec, 1 min, 2 min, 5 min ADS-B Traffic Menu 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 24: Motion Vector

    ADS-B and TCAS Status Traffic Motion and Altitude Filter Vector (Green) Orientation Touch To View Traffic Menu Selected Traffic Info Selected Vector Motion and Touch For Duration Next Target Relative Motion (Green Vectors) GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 25: Terrain

    Touch to display terrain as a active flight plan. terrain legend. 360° ring or a 120° arc. Touch to suppress Touch to test TAWS alerts. the TAWS system. TAWS Terrain Menu Options 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 26 360° ring or a 120° arc. Touch to Touch to toggle Touch to Touch to test acknowledge alert. Reduce Protection deactivate HTAWS system. (RP) mode on and aural and off. visual alerts. HTAWS Terrain Menu Options GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 27: Weather

    WEATHER NOTE: Features may vary, depending on your configuration. Refer to the GTN 625/635/650 Pilot’s Guide, P/N 190-01004-03 for more information. Weather SiriusXM Weather (Optional) ® SiriusXM Weather Menu Touch to select Touch to select orientation. Selections the NEXRAD type.

  • Page 28: Fis-B Weather

    Touch NEXRAD key to select weather overlay map Off, US, or Canada NEXRAD. orientation. Touch keys to select Touch to display weather product. the legend. Green bar indicates selected product. FIS-B Weather Menu Options GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 29: Stormscope ® Weather (Optional)

    NOTE: Refer to the WX-500 Pilot’s Guide for a detailed description of the WX-500 Stormscope. Stormscope Weather Menu Displays Stormscope as Touch to select 360° ring or 120° arc. operating mode. Stormscope Menu Options 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 30: Connext Weather (Optional)

    Connext Settings view the status of the datalink. Touch to display map orientation options. North Up, Orientation Track Up, or Heading Up. Legend Touch to display the legend of weather information. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 31: Default Nav

    Touch to reset the unit to fields to display on page. Garmin factory defaults. Default Navigation Menu The data field selections are the same as listed in the “Changing Data Fields” section in the Map section. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 32: Flight Plan

    Touch to select String group of letters. individual letter of the group. Keypad Entry Sample Flight Plan NOTE: Do not save flight plans that have modified procedures as this may produce undesireable results. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 33: Airways

    Cancel: Touch to exit without changes to flight plan. Remove Airway: Touch to remove airway from flight plan. Touch Preview (if desired) to review selected airways. Touch to load selected airway to flight plan. Airway Selection for Waypoint 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 34: Flight Plan Menu

    Touch to review flight plan prior to loading. Touch to edit flight plan. Touch to copy flight plan. Touch to delete flight plan. Route Options for Flight Plans GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 35: Procedures

    On the Procedures (PROC) page, you are able to select approach, arrival, and departure procedures. Touch to enter Touch to activate departure. available approaches. Touch to Touch to enter approach. enter arrival. Procedures (PROC) Page 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 36: Flying The Missed Approach

    NOTE: If you need to lose extra altitude or speed by going around the holding pattern again, touch SUSP to manually suspend waypoint sequencing BEFORE crossing the holding waypoint the second time. If you’ve already passed this waypoint, re-activate the holding pattern leg. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 37: Nearest

    Touch to display the bearing, distance, and frequency of the nearest ARTCC. Touch to display the bearing, distance, and frequency of the nearest Flight Service Station. Touch to display the bearing, distance, and frequency of the nearest weather station. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 38: Waypoint Info

    Touch to display distance, bearing, and reference waypoint information for created waypoints. Touch to create permanent or temporary waypoints. Items such as user identifier, comments, position type, reference waypoint, radial, and distance can be configured. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 39: Creating A User Waypoint

    3. Touch Create to confirm your entry. Preview Waypoint Name Touch to Waypoint create a Comment temporary waypoint. Touch to exit without creating Touch to Position Type waypoint. confirm entry. Create User Waypoint Screen 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 40: Services

    Touch to place Touch to Touch to increase call to entered select type of and decrease volume. phone number. suppression. Choices are Off, On, On During APR/MAPR/TERM. Phone Page GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 41: Music

    Presets Key Music Page Selecting a Channel 1. Touch the CH Number key to display a numeric keypad. 2. Touch numbers of the channel number. 3. Touch Enter to accept channel. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 42: Position Reports

    3. After automatic reporting is enabled, touch the Report Period key to display the keypad and enter the frequency of reporting. 4. Touch the Enter key to confirm your selection. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 43: Contacts

    1. In the contact list, touch the contact that you wish to delete. 2. Touch the Delete key. 3. Touch the OK key to delete contact. Touch the Cancel key to not make any changes to contact in list. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 44: Utilities

    Touch to safely clean the Touch to view trip screen. Press the HOME key information about the to exit cleaning mode. currently loaded flight plan. Touch to view and use checklist information. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 45: Vertical Calculator (Vcalc)

    Touch to reset the target Touch to show altitude, altitude messages related to type, VS profile, the VCALC profile on and offset fields. the message page. VCALC Profile Menu Options 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 46: System

    Nearest Airport Criteria, level of backlighting. and COM Channel Spacing. Touch to customize alerts of arrival, destination Touch to customize the proximity, airspace altitude data fields. buffer, and entry into selected airspaces. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 47: Crossfill

    Touch OK to enable Crossfill or touch Cancel to return to the System Setup page without enabling Crossfill. Touch OK to enable crossfill with dual units. Confirming Crossfill Selection 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 48 Plans and the active Direct-To course to the GNS unit. 5. Touch the Transfer User Waypoints key to transfer the User Waypoints from the GTN unit to the connected GNS unit. Transfer Of User Waypoints In Progress GTN-GNS Crossfill GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 49: Connext Setup - Flight Stream 210

    Connext Setup page and/or the Manage Paired Devices page. The pairing must be initiated by the portable device. Pop-ups displayed on the portable device and GTN will be displayed to confirm the pairing. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 50: Operation

    Essentially, pairing must be removed on both devices before repairing. Touch To Automatically Connect To The Device Touch To Remove When In Range The Device Device Is Connected And Communicating Managing Paired Devices GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 51: Symbols

    Towered, Serviced Airport Soft Surface, Serviced Airport Soft Surface, Non-serviced Airport Private Airport Heliport Intersection LOM (compass locator at outer marker) NDB (Non-directional Radio Beacon) VOR/DME ILS/DME or DME-only VORTAC TACAN 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 52: Safetaxi™ Symbols

    Proximity Advisory (PA) (intruder is within 5 NM and less than 1200 ft vertical separation) Traffic Advisory (TA) (closing rate, distance, and vertical separation meet TA criteria) Traffic Advisory Off Scale GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 53 Basic Off-scale Selected Traffic Proximate Non-Directional Traffic Proximate Directional Traffic Proximate Off-scale Selected Traffic Non-Directional Alerted Traffic Off-Scale Non-Directional Alerted Traffic Directional Alerted Traffic Off-Scale Directional Alerted Traffic Non-Directional Surface Vehicle Directional Surface Vehicle 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 54: Terrain Obstacle Symbols

    Unlighted Obstacle altitude (Red) 1000 ft Terrain between 100 ft and 1000 ft below the aircraft altitude (Yellow) Terrain more than 1000 ft below the aircraft altitude (Black) Terrain Altitude/Color Correlation GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 55: Htaws Obstacle Symbols

    Terrain more than 500 ft below the aircraft altitude (Black) HTAWS Altitude/Color Correlation Basemap Symbols Symbol Description Interstate Highway State Highway US Highway National Highway - 2-digit drawn inside Small City or Town Medium City Large City 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 56: Miscellaneous Symbols

    High-Wing Prop Kit Plane Single-Engine Jet Twin-Engine Prop Single-Engine Jet Business Jet 2-Blade Rotorcraft 3-Blade Rotorcraft 4-Blade Rotorcraft Non-Directional Ownship Signal Parallel TrackWaypoint Restricted/Prohibited/Warning/Alert TFR (Temporary Flight Restrictions) Class B Airspace GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 57: Stormscope® Symbols

    Traffic Enabled and Not Available Indicator Ownship is receiving TIS-B and ADS-R services Possible incomplete traffic picture - ownship is not receiving one (or both) of the TIS-B or ADS-R services 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 58: Messages

    AIRSPACE ALERT - The aircraft is within No action is necessary; message is 2nm of an airspace type informational only. Within 2 nm of for which alerts are airspace. configured. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 59 Vertical Superflag the GTN on-screen CDI and other vertical flag output has been turned navigational equipment. Contact on CDI/HSI is off due to an over- dealer for service. inoperative. current condition. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 60 TAWS is inoperative Contact dealer for service. due to a configuration - Terrain/TAWS problem with the GTN. configuration is This message will be invalid. GTN needs accompanied by a TER service. FAIL annunciation. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 61 “on” but is not working crossfilled items that will no longer due to software be crossfilled. Contact dealer to GTN software mismatch. have software versions updated. mismatch. See CRG for crossfilled items. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 62 DATABASE - The terrain or obstacle Re-load these databases on the database is missing or external data card. Terrain or Obstacle corrupt. database not available. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 63 GDL 88 is not able Contact dealer for service. to transmit an ADS-B GDL 88 ADS-B message due to a failure. Unable to failure with the GDL 88 transmit ADS-B system or antenna(s). messages. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 64 DATALINK - The GDL 88 has lost Contact dealer for service. communication with the GDL88 control transponder. input fault. Check transponder is in correct mode. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 65 GTN with the datalink. Data is lost. from the datalink will not be available. DATALINK - GDL 88 has detected an Contact dealer for service. internal fault. GDL88 needs service. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 66 Heading up map displays will not to receive heading be available. Contact dealer for Heading source information but is not service. inoperative or receiving it from any connection to GTN source. lost. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 67 Modify stored LOCKED - the current navigation flight plans as necessary to include Stored flight plan database. waypoints that are in the current waypoint is not in navigation database. current navigation database. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 68 GNS. GNS waypoint(s) user waypoint catalog transferred. is full. GNS CROSSFILL - Waypoint transfer The data transfer should be failed/incomplete. reattempted. Waypoint transfer failed. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 69 Use a different GPS receiver reporting that it needs or a non-GPS based source of GPS receiver needs service. The GPS module navigation. Contact dealer for service. may continue to service. function. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 70 GTN needs service. the user. INTERNAL SD Internal SD card was Contact dealer for service. CARD REMOVED - removed. This card is not accessible by the GTN needs service. user. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 71 GPS receiver or a non- Verify GPS loss of integrity. GPS based source of navigation. position with Contact dealer for service if this other navigation message persists. equipment. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 72 OBS requires an active No action is necessary; message is waypoint and is not informational only. OBS is not supported in dead available due to reckoning mode. dead reckoning or no active waypoint. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 73 Remote CDI key is for at least 30 seconds. stuck. This input will now be ignored. This input is not available in all installations. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 74 Com remote switch has been in frequency pressed position for increment key is at least 30 seconds. stuck. This input will now be ignored. This input is not available in all installations. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 75 Remote go around pressed position for key is stuck. at least 30 seconds. This input will now be ignored. This input is not available in all installations. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 76 The selected course Set the CDI/HIS selected course to on the CDI/HSI does the current desired track. Set course on CDI/ not match the current HSI to [current desired track. DTK]. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 77 TAWS audio may be heard at the same time as other audio alerts. TIMER - A user-configured timer No action is necessary; message is has expired. informational only. Timer has expired. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 78 Verify squawk code and altitude reporting to the GTN with ATC. Contact dealer for 1 OR 2 that it needs service. service. Transponder 1 or 2 The transponder may needs service. continue to function. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 79 Edit the User Waypoint catalog to IMPORT - User is full and the requested remove unneeded user waypoints. user waypoints could waypoint import not be imported. failed. User waypoint database is full. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 80 WAYPOINT - User has configured No action is necessary; message is Arriving at [wpt the arrival alarm and informational only. name]. is within the specified distance. GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 81: Glove Qualification Procedure

    (6XX or 7XX) that was used during this procedure. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)

  • Page 82: Tests Required For Glove Qualification

    Touch the COM standby frequency to activate the Same Worse com frequency entry keypad (Task applicable to 635/650/750 only). Enter a valid com frequency and touch the Enter key Same Worse (635/650/750 only). GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...

  • Page 83: Test Not Required For Glove Qualification

    KONP and dragging it to an area without any waypoints (Pan and zoom in/out as necessary to accomplish the task). Insert KSPB between KMMV and BTG by dragging the Same Worse leg between KMMV and BTG to KSPB. 190-01004-04 Rev. G GTN 625/635/650 Cockpit Reference Guide (CRG)
  • Page 84 This page intentionally left blank GTN 625/635/650 Cockpit Reference Guide (CRG) 190-01004-04 Rev. G...
  • Page 86 Garmin. Garmin hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage medium to be viewed for personal use, provided that such electronic or printed copy of this manual or revision must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
