WAAS RAIM/FDE PREDICTION PROgRAM INSTRuCTIONS
NOTE: The WFDE Prediction Program is part of the Garmin Trainer and Route Planning software programs. The
required software and instructions are available via the Garmin website at www.garmin.com.
NOTE: The WFDE Prediction Program requires an internet connection to provide access to current almanac, GEO
almanac, and configuration files.

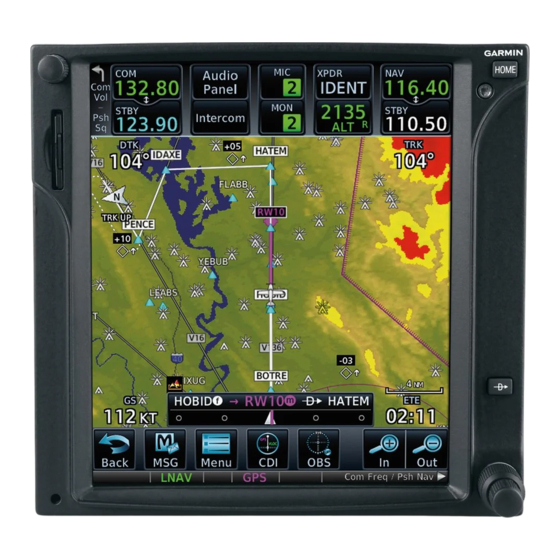

NOTE: These instructions assume the user has experience operating the G1000 with GIA 63W, the GNS480/CNX80,
or the applicable GNS 400W/500W or GTN 6XX/7XX Series Unit and is familiar with the operation of RAIM and
FDE.
