TELEPHONE WIRING

The RE-2 connects between the incoming telephone line of the
residence and local telephone sets.
Telephone Bypass Module
The RE-2's Telephone Bypass Module provides a switch to remove
the RE-2 from the telephone line and re-connect the local telephones
to the telephone system. ALL TELEPHONE WIRING FOR THE
RE-2 MUST PASS THROUGH THE BYPASS MODULE.
The bypass module is housed in a weather-resistant enclosure and
should be located in an area that is easily accessible to the resident.
In case of system trouble, the resident can use the bypass switch to
remove the RE-2 from the telephone system.
Telephone Wiring
• DO NOT ROUTE TELEPHONE AND AC WIRING INSIDE THE SAME
CONDUIT. Route all telephone wires inside a dedicated conduit that is
at least six inches away from any AC line wiring.
• All telephone wiring must be made on the "house" side of the telephone
company's demarcation device (the terminal block where the telephone
line connects to the residence).
• If any security system or personal alert system at the residence is
connected to the telephone line, be sure that it is connected to the line
ahead of the Telephone Bypass Module using a RJ-31X or RJ-38X
interface.
• Use only high-quality telephone wire rated for direct underground
burial. All telephone wire should be twisted-pair with a minimum size of
24 AWG.
Typical Telephone Wiring
1. Connect the bypass module's EARTH GROUND terminal to a good
earth ground.
2. Before connecting the incoming telephone line to the bypass module
check the polarity of the wires with a DC voltmeter. Connect the
negative wire (RING - usually green) to the bypass module TELCO
RING terminal. Connect the positive wire (TIP - usually red) to the
bypass module TELCO TIP terminal.
3. Connect the resident's local telephone line RING (usually green) to
the bypass module HOUSE RING. Connect the local telephone line
TIP (usually red) to the bypass module HOUSE TIP terminal.
4. Connect the RE-2 TELCO RING to the bypass module RE-2 TELCO
RING terminal. Connect the RE-2 TELCO TIP to the bypass module
RE-2 TELCO TIP terminal.
5. Connect the RE-2 HOUSE RING to the bypass module RE-2 HOUSE
RING terminal. Connect the RE-2 HOUSE TIP to the bypass module
RE-2 HOUSE TIP terminal.
TELEPHONE
BYPASS
MODULE
TO HOUSE
PHONES
TO TELCO
LINE

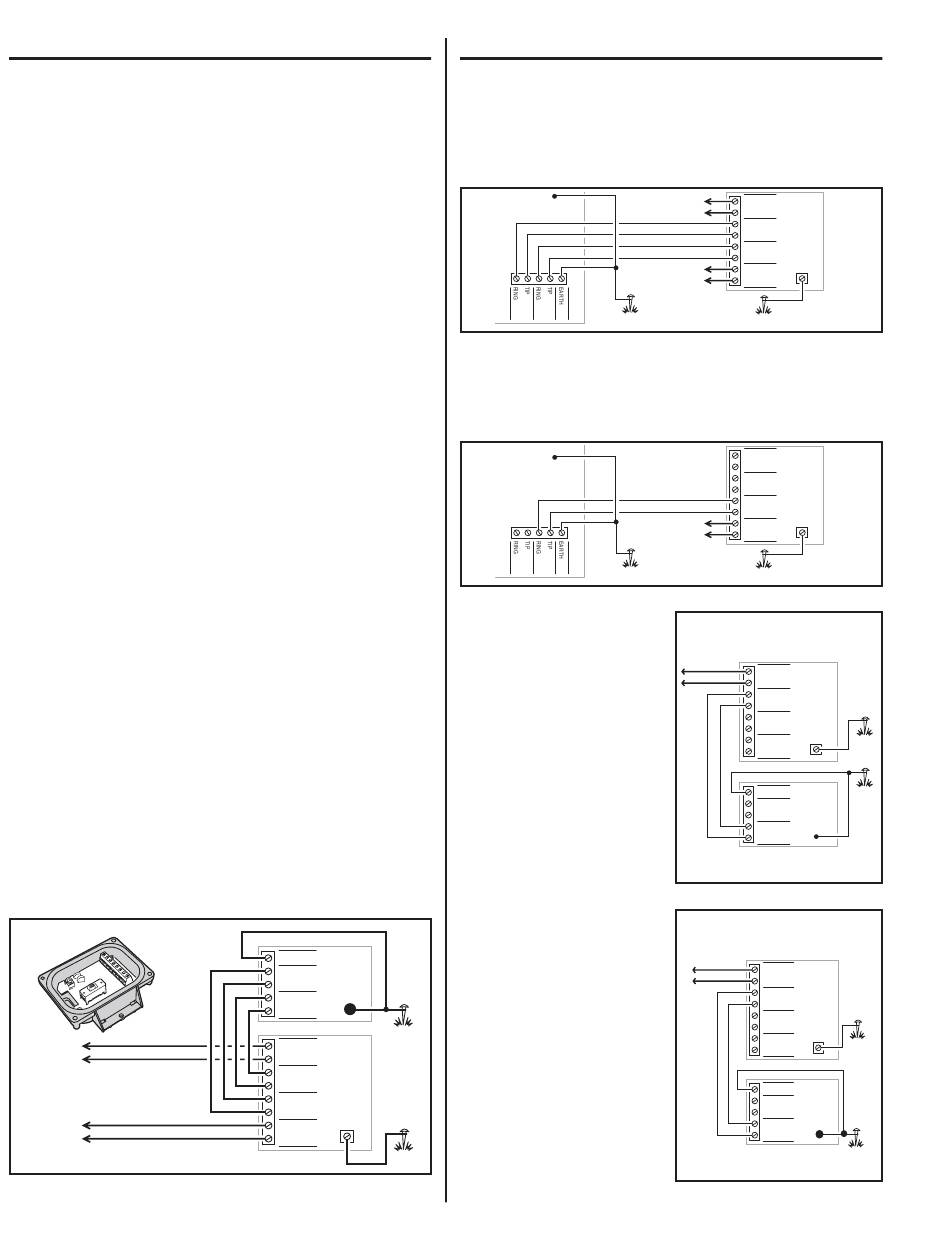

Figure 5. Telephone Wiring
6
RE-2
EARTH
ENTRY
TIP
SYSTEM
TELCO
RING
GROUND
CASE
STAKE
TIP
GROUND
HOUSE
RING
RING
HOUSE
TIP
RING
RE-2
TELEPHONE
HOUSE
TIP
BYPASS
RING
RE-2 MODULE
TELCO
TIP
GROUND
EARTH
STAKE
GROUND
RING
TELCO
TIP

TELEPHONE WIRING OPTIONS

Shared Line
This is the standard confi guration. The telephone line is routed
through the RE-2 to the house phones. Pressing the Call button on
the RE-2 will cause the RE-2 to disconnect the house phones from
the telephone company line and generate a ring signal that is heard
on the house phones.
RE-2
ENTRY
CASE
SYSTEM
GROUND
10' MAXIMUM
HOUSE TELCO
GROUND
STAKE
Figure 6. Shared Line Wiring
Dedicated Line
Pressing the Call button on the RE-2 will cause the RE-2 to sieze
the phone line and dial out to an outside number. See PPN #54 for
programming options.
RE-2
CASE
ENTRY
GROUND
SYSTEM
10' MAXIMUM
HOUSE TELCO
GROUND
STAKE
Figure 7. Dedicated Line Wiring
Intercom Mode
Pressing the Call button on
the RE-2 will cause the RE-2
to generate a ring signal as
if it were an intercom station.
A live phone line is not used
and the RE-2 provides power
for the remote intercom phone.
See PPN #52 for programming
options.
✦ Note: in this mode, remote
programming, call forwarding
or alternate resident calling is
not available.
Ring Down Mode
Pressing the Call button
on the RE-2 will cause the
RE-2 to sieze the phone
line and provide immediate
communications with the PBX
system. See PPN #54 for
programming options.
