BASIC SYSTEM PROGRAMMING

Entering Programming Mode
The 6-digit Master Programming Code (default = 123456) is used to enter
Programming Mode from a local or remote telephone or the keypad.

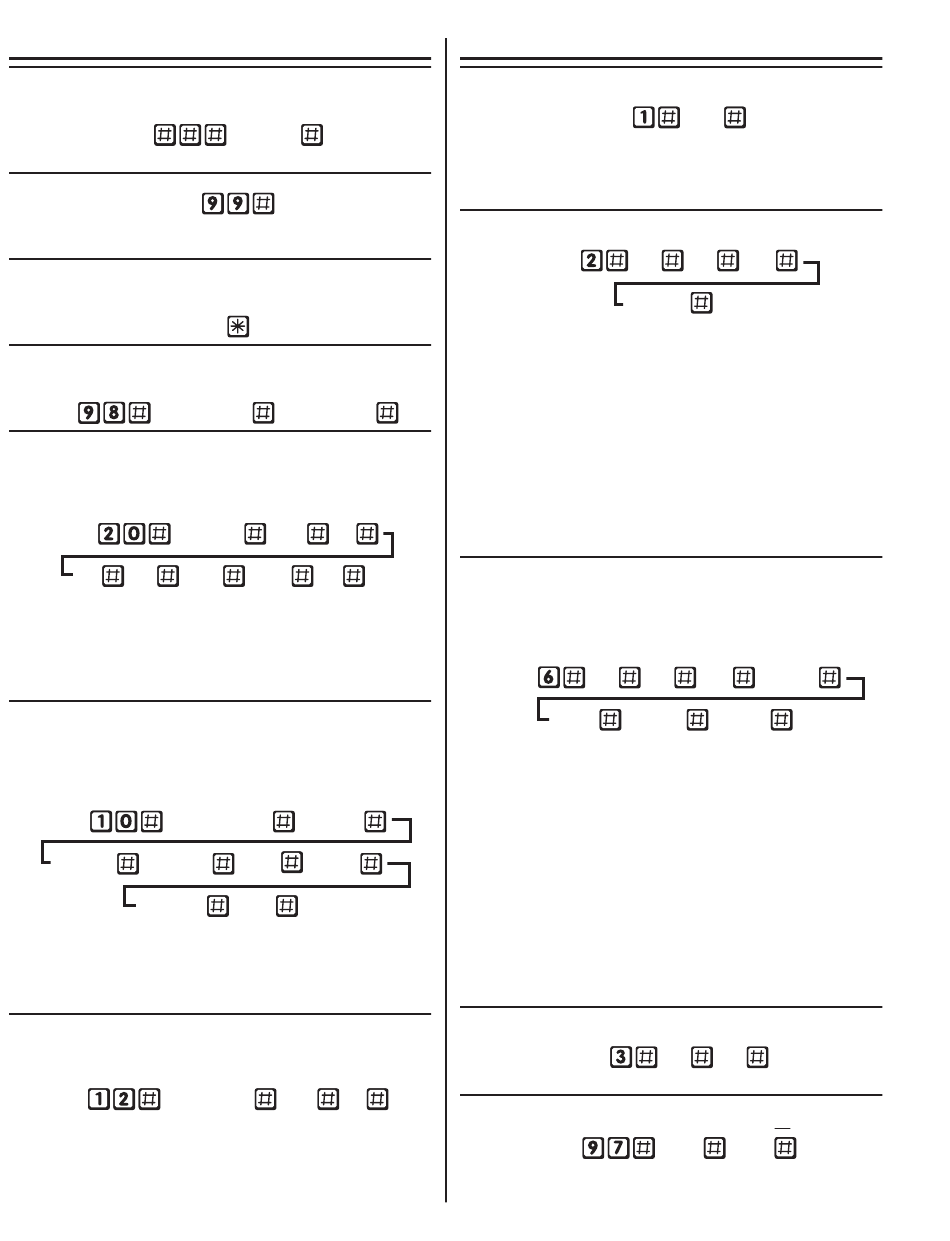

Press:
Master Code = the current 6-digit Master Programming Code
Exiting Programming Mode
Press:
✦ NOTE: The RE-2 will automatically exit Programming Mode after fi ve
minutes of programming inactivity.
Re-entering a Command After a Mistake
If an incorrect entry, or an incorrect key is pressed during programming, to
clear the keypad:
Changing the Master Code
Use this PPN to change the six-digit Master Programming Code. Be sure to
write down the new code.
Press: New Master Code
Setting the Clock And Calendar
The time and date set in the clock and calendar control the system time
zones, holiday schedules, and time stamping of the event log. The GTZ
setting controls when the downlight is on. The RE-2 has an on-board lithium
battery to maintain the date and time if power is removed from the unit.
Press: Day of Week
Year Hour Minute
Day of Week: 1 = Sun; 2 = Mon; 3 = Tue; 4 = Wed; 5 = Thu; 6 = Fri; 7 = Sat
Month = 1-12; Day = 1-31; Year = 2000-2127;
Hour = 1-12 (in Standard Time)
Minute = 0-59; AM/PM: 0 = AM; 1 = PM
GTZ (Geographic Time Zone): 0 = None (disables nightime keypad lighting);
1 = Eastern; 2 = Central; 3 = Mountain; 4 = Pacifi c; 5 = Alaska; 6 = Hawaii
Setting the Time Zones
Seven time zones are available for restricting access, automatic gate entry,
call forwarding schedule, assigning an access groups for transmitters,
assigning a temporary entry code, and setting the "Do Not Disturb" schedule.
A time zone constrained event will be allowed or occur between the start
and end times on the active days selected.
Press: Time Zone Number
Start Hour Start Minute
End Minute
Time Zone Number = 1-7
Active Days (Enter up to 8 digits):
1 = Sun; 2 = Mon; 3 = Tue; 4 = Wed; 5 = Thu; 6 = Fri; 7 = Sat; 8 = Holidays
Start Hour = 1-12 Start Minute = 0-59 AM/PM: 0 = AM; 1 = PM
End Hour = 1-12 End Minute = 0-59
Setting the Holiday Days
Up to ten holidays can be programmed. Holidays are used to restrict access
on holiday days. If an entry method (code or transmitter) is assigned to a time
zone, holidays must be set as an active day to allow access on holidays.
Press: Holiday Number
Holiday Number = 1-10
Month = 1-12
Day = 1-31
16
Master Code
Press:
New Master Code
Month Day
AM/PM GTZ
Active Days
AM/PM End Hour
AM/PM
AM/PM: 0 = AM; 1 = PM
Month Day

ENTRY CODE PROGRAMMING

Setting the Entry Code Length
Sets the number of digits for all the entry codes programmed.
Press:
Length = 2 - 6 for entry code length
✦ NOTE: If the Entry Code Length is going to be changed from the factory
default of four digits, make this change fi rst, before programming any
entry codes.
Adding a New Entry Code
Use this PPN to add up to 100 entry codes.
Press: Code
Time Zone
Code = The new entry code: 1-999999, depending on code length
Relay = Relay output entry code will activate:
1 = Relay #1 2 = Relay #2 3 = Both Relays
4 = Latch Relay #1 (no access restrictions, latches relay, unlatch relay by
re-entering code) Also see PPN #23
Time Zone = 0 = no time zone; 1-7 to restrict access per time zone 1-7
If the new entry code chosen is already being used for another entry code, the
system will reject the code. A new unique entry code needs to be entered.
✦ NOTE: Leading zeros (zeros before the code number, i.e. 0001) do not
need to be entered when programming a new entry code. The RE-2 will
internally add any zeros to fi ll all digits determined by the entry code
length setting. Leading zeros will have to be entered by the user when
entering their code to gain access.
Adding a Temporary Entry Code
Temporary entry codes with a starting and ending date can be created to
permit limited access. Temporary entry codes will expire and no longer be
able to grant access outside the programmed dates and a programmed
number of uses. The total number of temporary and regular entry codes
cannot exceed 100.
Press: Code
Number Valid From
Code = The new entry code: 1-999999, depending on code length
Relay = Relay output entry code will activate:
1 = Relay #1 2 = Relay #2 3 = Both Relays
Time Zone = 0 = no time zone; 1-7 to restrict access per time zone 1-7
Number = Number of times (1-255) that the entry code is allowed access
Valid From = First date (MMDDYY) that the entry code is valid
Valid Thru = Last date (MMDDYY) the entry code is valid.
If the new temporary entry code chosen is already being used for another
entry code, the system will reject the code. A new unique temporary entry
code needs to be entered.
✦ NOTE: Leading zeros (zeros before the code number, i.e. 0001) do not
need to be entered when programming a new entry code. The RE-2 will
internally add any zeros to fi ll all digits determined by the entry code
length setting. Leading zeros will have to be entered by the user when
entering their code to gain access.
Removing a Single Entry Code
Use this PPN to delete an entry code.
Press:
Code = The entry code to remove.
Erasing All Entry Codes
★ WARNING: This command will remove all entry codes.
Press:
Default: 4 digits
Length
Code Relay
Code Relay Time Zone
Valid Thru
Code Code
000000 000000
