Control Wiring - Linear Access RE-2 Installation, Programming And Operation Instructions

CONTROL WIRING

Gate Control
1. Route two wires between the gate and the RE-2. Connect the gate
operator's OPEN terminals to the RE-2 Relay #1 COM & N.O.
terminals.
✦ NOTE: For operator wiring specifi cs, refer to the gate operator's wiring
diagram.
2. If an access keyswitch is required refer to the Optional Keyswitch
section of this manual for details on keyswitch wiring and installation.
3. If an external timer for preventing access at certain times is required,
route two wires from the RE-2 to the timer contacts. Connect the timer
contacts to the RE-2 SENSE #1 and COMMON terminals.
✦ NOTE: If the sense input is going to be used as an inhibit input, it must
be programmed to select that input type. See programming PPN #29.
4 WIRES FOR
RE-2
TELEPHONE
ENTRY
SYSTEM
2 WIRES FROM RE-2
TO GATE OPEN TERMINALS

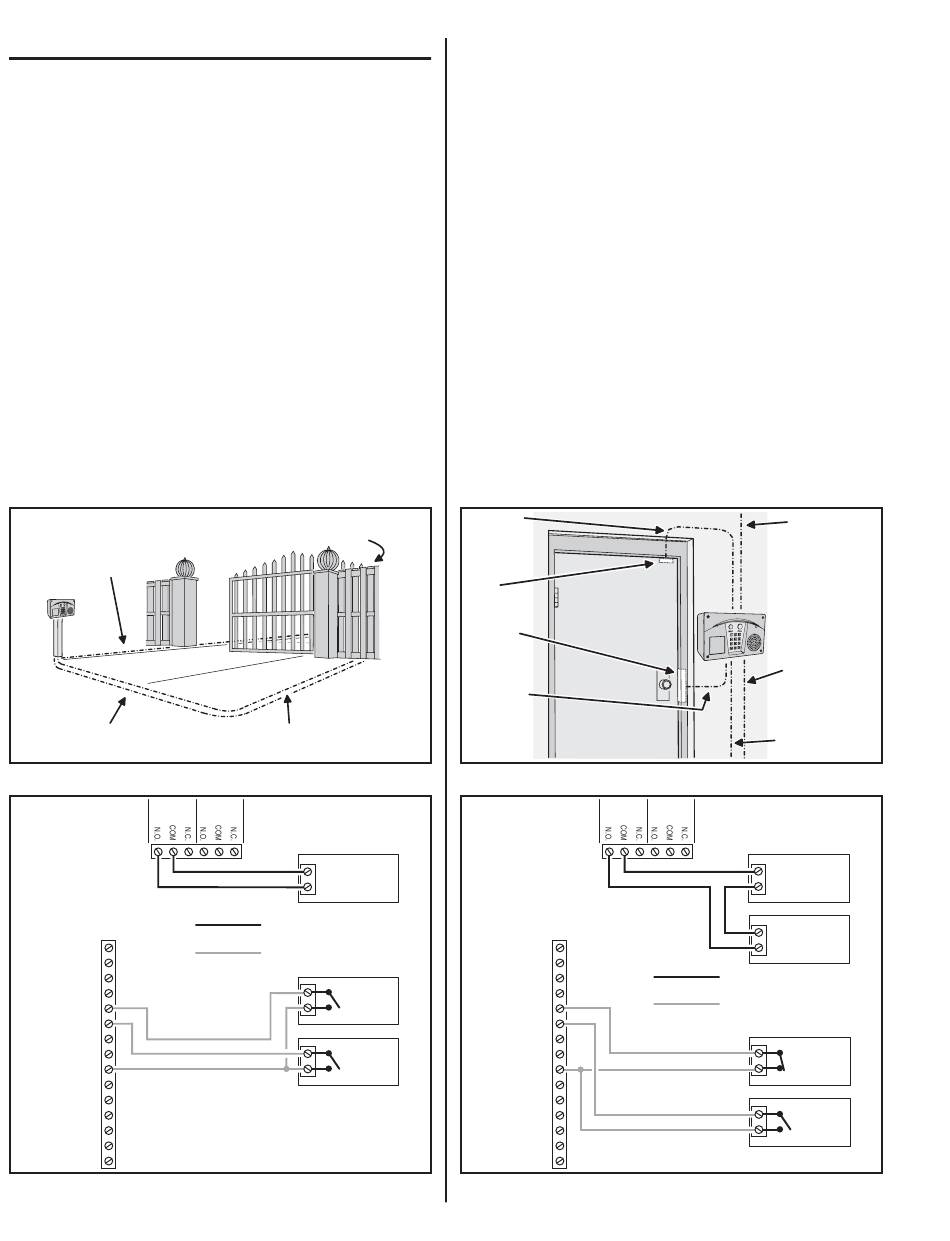

Figure 11. Gate Installation Example
RELAY
#1
RE-2
TERMINALS
TRANSFORMER
TRANSFORMER
BATTERY NEGATIVE
BATTERY POSITIVE
NOTE: IN THIS EXAMPLE
SENSE #1
SENSE #1 TERMINAL IS
SET AS AN INHIBIT INPUT
OPEN #1
SENSE #2
OPEN #2
COMMON
KEYPAD CLK
KEYPAD DVAL
KEYPAD DAT 0
KEYPAD DAT 1
KEYPAD GND
KEYPAD PWR
Figure 12. Gate Installation Wiring
8
GATE
OPERATOR
(BEHIND GATE)
NOTE: ROUTE TELEPHONE
WIRES AWAY FROM POWER
WIRES
2 WIRES FROM
TRANSFORMER
FOR RE-2 POWER
RELAY
#2
GATE
OPEN
OPERATOR
REQUIRED WIRING
OPTIONAL WIRING
INHIBIT
TIMER
ACCESS
KEYSWITCH
Door or Pedestrian Gate Control
1. Install a low voltage electric door strike or magnetic lock as a locking
device for the door or pedestrian gate.
2. Install the power supply or transformer for the locking device. DO NOT
POWER THE RE-2 FROM THIS POWER SUPPLY.
3. Connect one wire from the power supply to one wire from the locking
device.
4. Route two wires between the locking device and the RE-2. Connect
one wire to the remaining wire of the locking device. Connect the
other wire to the remaining wire of the power supply.
• For a door strike, connect the wires to the RE-2 Relay #1 COM & N.O.
terminals.
• For a magnetic lock, connect the wires to the RE-2 Relay #1 COM &
N.C. terminals.
5. If an access keyswitch is required refer to the Optional Keyswitch
section of this manual for details on keyswitch wiring and installation.
6. To use the door sense feature to detect forced entry or door ajar
conditions, install a normally closed door switch on the door or
pedestrian gate and route two wires from the switch to the RE-2.
Connect the door sense switch to the RE-2 SENSE #1 and COMMON
terminals. See programming PPN #24 & #27 to defi ne when Relay #2
will activate based on the sense input.
2 WIRES
FOR DOOR
SENSE
SWITCH
DOOR
SENSE
SWITCH
ELECTRIC
DOOR
STRIKE
2 WIRES
FOR DOOR
STRIKE
Figure 13. Door Installation Example
RELAY
#1
RE-2
TERMINALS
TRANSFORMER
TRANSFORMER
BATTERY NEGATIVE
BATTERY POSITIVE
SENSE #1
OPEN #1
SENSE #2
OPEN #2
COMMON
KEYPAD CLK
KEYPAD DVAL
KEYPAD DAT 0
KEYPAD DAT 1
KEYPAD GND
KEYPAD PWR
Figure 14. Door Installation Wiring
4 WIRES FOR
TELEPHONE
NOTE: ROUTE TELEPHONE
WIRES AWAY FROM
POWER WIRES
RE-2
ENTRY
SYSTEM
2 WIRES FOR RE-2
POWER FROM
TRANSFORMER
2 WIRES FOR DOOR
STRIKE POWER FROM
POWER SUPPLY
RELAY
#2
ELECTRIC
DOOR STRIKE
DOOR STRIKE
POWER SUPPLY
REQUIRED WIRING
OPTIONAL WIRING
DOOR
SENSE
SWITCH
ACCESS
KEYSWITCH
