62 MAX/62 MAX +

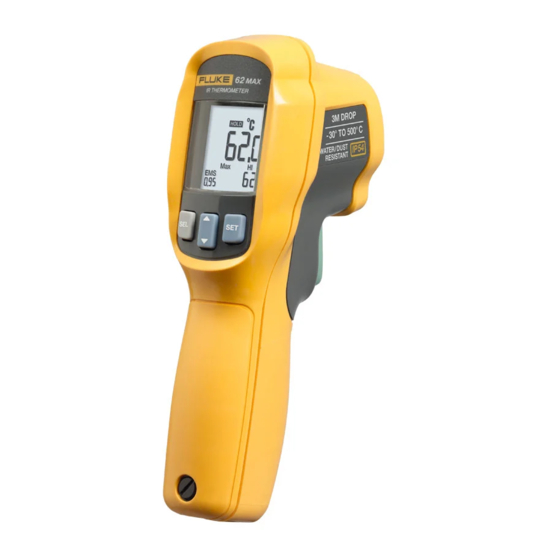

Infrared Thermometer
Users Manual
PN 4060712
April 2012 Rev. 1, 11/12
© 2012 Fluke Corporation. All rights reserved. Printed in China.
Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
Fluke-Direct
.ca
info@Fluke-Direct.ca
1.800.868.7495

Advertisement

Table of Contents
loading

Related Manuals for Fluke 62 MAX

Summary of Contents for Fluke 62 MAX

  • Page 1 62 MAX/62 MAX + Infrared Thermometer Users Manual PN 4060712 April 2012 Rev. 1, 11/12 © 2012 Fluke Corporation. All rights reserved. Printed in China. Specifications are subject to change without notice. All product names are trademarks of their respective companies. Fluke-Direct info@Fluke-Direct.ca...
  • Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for three years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

  • Page 3: Table Of Contents

    Table of Contents Title Page Introduction ......................... 1 How to Contact Fluke ....................1 Safety Information ...................... 2 Maintenance ....................... 6 How to Change the Battery ..................6 How to Clean the Product ..................6 Specifications ......................7 Standards and Agency Approval ................9 The Product ........................
  • Page 4 62 MAX/62 MAX + Users Manual Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...

  • Page 5: Introduction

    Introduction The Fluke 62 MAX and 62 MAX + Infrared Thermometers (the Product) can determine the surface temperature by measuring the amount of infrared energy radiated by the target’s surface. Note that the Japanese models indicate Celsius only. Warning Read all safety information before you use the Product.

  • Page 6: Safety Information

    62 MAX/62 MAX + Users Manual Or, visit Fluke's website at www.fluke.com. To register your product, visit http://register.fluke.com. To see, print, or download the latest manual supplement, visit http://us.fluke.com/usen/support/manuals. Safety Information A Warning identifies conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test.
  • Page 7 Replace the batteries when the low battery indicator shows to prevent incorrect measurements. • Do not use the Product around explosive gas, vapor, or in damp or wet environments. • Use the Product only as specified or hazardous laser radiation exposure can occur. Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
  • Page 8 62 MAX/62 MAX + Users Manual Table 1. Symbols Symbol Meaning Symbol Meaning This product complies with the WEEE Directive (2002/96/EC) marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With Risk of danger.
  • Page 9 Infrared Thermometer Safety Information Table 1. Symbols (cont.) Symbol Meaning Symbol Meaning Conforms to European Union   Warning. Laser. directives. Conforms to relevant Australian   Battery standards. Conforms to China Metrology Certification Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...

  • Page 10: Maintenance

    62 MAX/62 MAX + Users Manual Maintenance Caution To avoid damage to the Product, do not leave the thermometer on or near objects of high temperature. How to Change the Battery To install or change the AA IEC LR06 battery, open the battery compartment and replace the battery as shown in Figure 16.

  • Page 11: Specifications

    Infrared Thermometer Specifications Specifications 62 MAX 62 MAX + -30 °C to 500 °C -30 °C to 650 °C Temperature Range (-22 °F to 932 °F) (-22 °F to 1202 °F) ≥0 °C: ±1.5 °C or ±1.5 % of ≥0 °C: ±1 °C or ±1 % of...
  • Page 12 62 MAX/62 MAX + Users Manual 10:1 12:1 Optical Resolution (calculated at 90 % energy) (calculated at 90 % energy) 0.1 °C (0.2 °F) Display Resolution ±0.8 % of reading or ±1.0 °C ±0.5 % of reading or ±0.5 °C Repeatability (% of reading) (2 °F), whichever is greater...

  • Page 13: Standards And Agency Approval

    IEC 60068-2-6 2.5 g, 10 to 200 Hz, IEC 60068-2-27, 50 g, 11 Vibration and Shock EN 61326-1:2006 EN 61326-2:2006 Standards and Agency Approval Compliance ..........EN/IEC 61010-1 Laser Safety ..........EN 60825-1 Class 2 Implement Standard ....... Q/SXAV37 Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...

  • Page 14: The Product

    62 MAX/62 MAX + Users Manual The Product gtt01.eps Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
  • Page 15 Infrared Thermometer The Product Max/Min/Avg/Diff gtt14.eps Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
  • Page 16 62 MAX/62 MAX + Users Manual 10 min gtt16.eps Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
  • Page 17 Infrared Thermometer The Product 30 Min 0ºC 32ºF 22ºC 72ºF ° F 1 2 5 gtt15.eps Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
  • Page 18 62 MAX/62 MAX + Users Manual 60 mm @ 100 mm @ 38 mm @ 33 mm @ 50 mm @ 85 mm @ 600 mm 900 mm 300 mm 300 mm 600 mm 900 mm 1.5" @ 2.4" @ 4"...
  • Page 19 Infrared Thermometer The Product gtt03.eps Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
  • Page 20 62 MAX/62 MAX + Users Manual 7 5 ° 2 2 5 ° 7 5 ° gtt04.eps Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
  • Page 21 Infrared Thermometer The Product gtt13.eps Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
  • Page 22 62 MAX/62 MAX + Users Manual Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
