Fluke 65 Instruction Sheet

Hide thumbs Also See for 65:
Table of Contents

Advertisement

Quick Links

Introduction

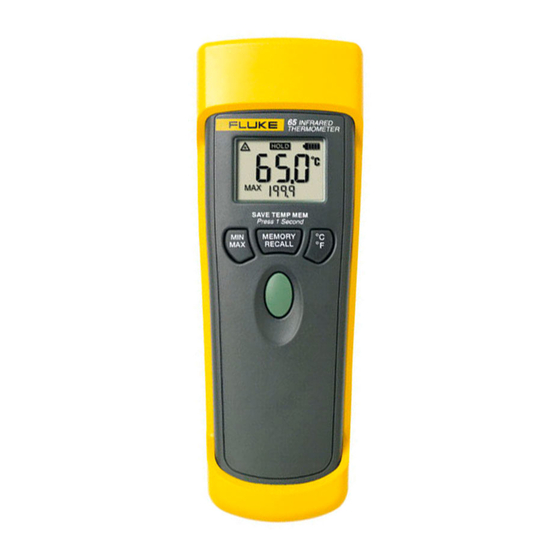

The Fluke Model 65 Infrared Thermometer ("the thermometer") is
a noncontact thermometer with laser pointer. The thermometer
determines an object's surface temperature by measuring the
amount of infrared energy radiated by the surface.
Noncontact thermometers can be used to measure surface
temperatures that are unsuitable for traditional contact
measurement methods (such as moving objects, electrically live
surfaces, and difficult-to-reach objects).
Box Contents
Thermometer, holster, carrying case, 2 AA alkaline batteries (not
installed), Instruction Sheet, Quick Reference Card, and
Registration Card.

Contacting Fluke

To contact Fluke call:
1-888-993-5853 in USA and Canada
+31-402-678-200 in Europe
+81-3-3434-0181 Japan
+65-738-5655 Singapore
+1-425-356-5500 in other countries
Visit Fluke's web site at: www.fluke.com.
PN 801818 (English) January 1999
© 1998 Fluke Corporation, All rights reserved.
Infrared Thermometer
Model 65
Instruction Sheet
®

Advertisement

Table of Contents
loading

Related Manuals for Fluke 65

Summary of Contents for Fluke 65

  • Page 1: Contacting Fluke

    Model 65 Infrared Thermometer Instruction Sheet Introduction The Fluke Model 65 Infrared Thermometer (“the thermometer”) is a noncontact thermometer with laser pointer. The thermometer determines an object's surface temperature by measuring the amount of infrared energy radiated by the surface.
  • Page 2 WWarning To avoid possible personal injury: ⇒ Caution - performance of procedures other than those specified herein may result in hazardous light exposure. ⇒ Do not stare into the laser beam or direct it toward the eyes. Caution To avoid possible damage to the thermometer or incorrect measurements: ⇒...
  • Page 3 Components aab03f.eps Focal lens Laser aperture Pushbuttons Holster Display Laser safety label Battery door release Batteries Backlight switch Laser switch...
  • Page 4 Pushbuttons Pushbutton Description Press and hold to display the object’s surface temperature. The thermometer clears any stored maximum and minimum temperatures. The laser pointer only activates if the laser switch is in the on position. HHHHH While is pressed, the display shows Release to stop measuring temperatures and deactivate the laser.

  • Page 5: Display Elements

    Display Elements aab01f.eps Laser-enabled indicator Measurement activity indicator Temperature hold indicator Battery level indicator Measured surface temperature value Celsius or Fahrenheit mode Stored temperature indicator Maximum, minimum, or stored temperature value Maximum or minimum temperature indicator Ensuring Accuracy Emissivity Emissivity is a value between 0 and 1 that indicates an object’s ability to emit infrared energy.

  • Page 6: Optical Resolution

    Optical Resolution Optical resolution (also called "Field of View" or "Distance-to- Spot-Size Ratio") is the ratio of the thermometer’s distance from the object’s surface to the size of the area measured ("spot size"). The closer the thermometer is to the object, the smaller the spot size.

  • Page 7: Measuring Temperatures

    Measuring Temperatures Read the section "Ensuring Accuracy " before measuring temperatures. Check that the batteries are installed and the laser switch is in the on position. (See the sections "Installing the Batteries" and "Setting the Switches.") To take a measurement: If the emissivity of the object is different from 0.95, apply black tape, black matte paint, or black magic marker to the object if it is safe to do so.

  • Page 8: Maintenance

    Maintenance Installing the Batteries Remove the holster before replacing the battery or setting the switches. Caution ⇒ Match the + and − polarities of the battery with the battery case. ⇒ Do not attempt to recharge the batteries. ⇒ Do not throw batteries into a fire. ⇒...

  • Page 9: Setting The Switches

    (but the surface displayed temperature stabilizes. temperature remains (Some fluctuation is normal, constant). especially in the tenths digit.) Calibration Fluke recommends that you return the thermometer annually to a Fluke Service Center for calibration, starting one year after purchase.

  • Page 10: Emissivity Of Common Materials

    Emissivity of Common Materials Object Emissivity 0.98 Skin, human 0.96–0.98 0.96 Cement Asphalt, Tar, Pitch 0.95–1.00 Concrete 0.94 0.92–0.96 Water 0.90–1.00 Plastic Foods, bulk (fruits, oils, etc.) 0.85–1.00 Glass 0.85–1.00 0.80–0.97 Paint 0.80–0.94 Ceramic 0.80–0.90 Plaster 0.80–0.90 Wood Steel, oxidized 0.80 Iron, oxidized 0.78–0.84...

  • Page 11: Specifications

    Specifications −40 to +500 F to +932 Measurement Range C (−40 to +50 F to +122 Operating Temperature C (+32 (Ambient) −20 C to +70 F to +158 Storage Temperature C (−4 without battery Display Resolution Below 200 : 0.1 Above 200 C: ±...

  • Page 12: Laser Safety Warning

    Warranty LIMITED WARRANTY & LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse or abnormal conditions of operation or handling.
