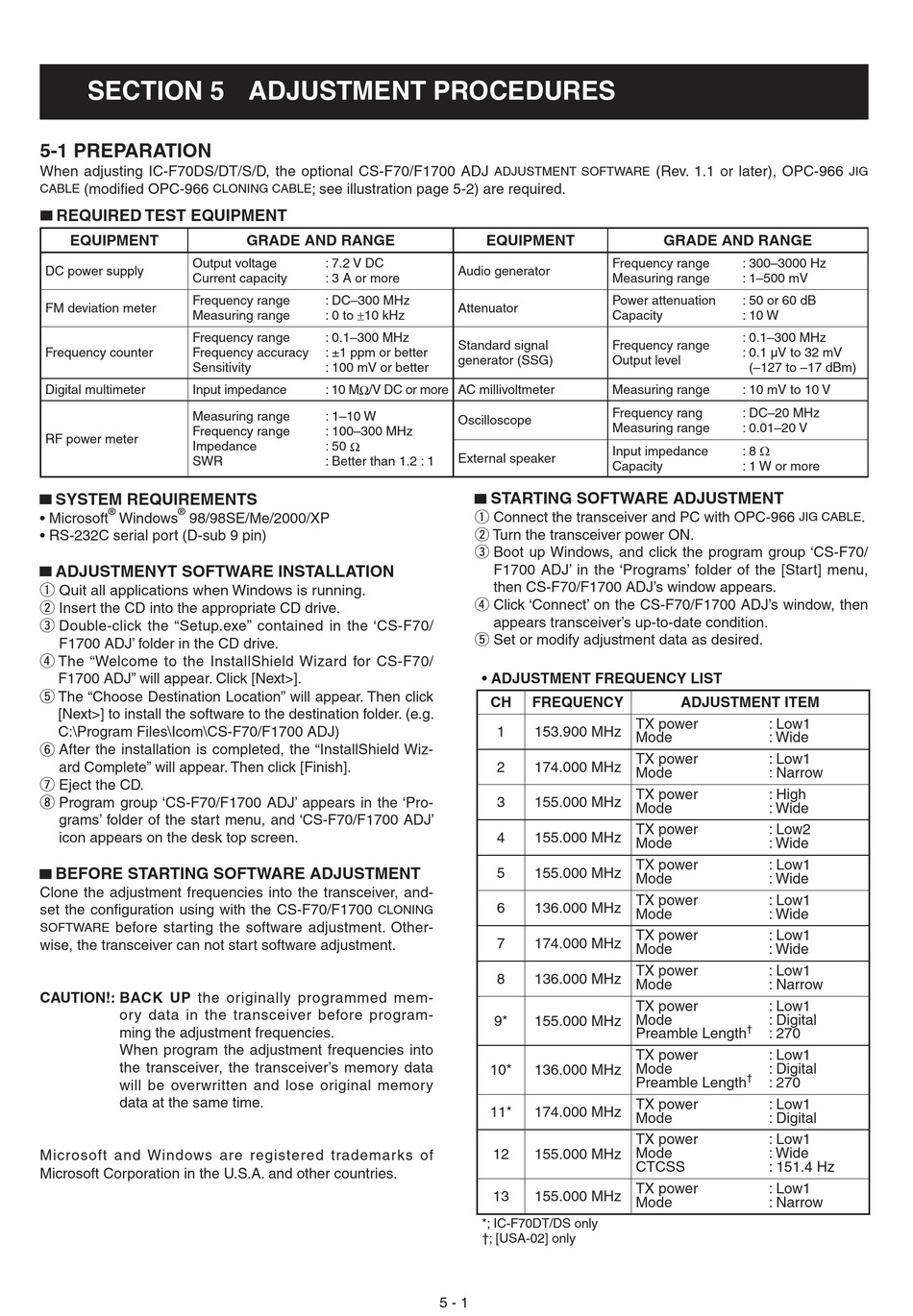

SECTION 5 ADJUSTMENT PROCEDURES

5-1 PREPARATION

When adjusting IC-F70DS/DT/S/D, the optional CS-F70/F1700 ADJ
(modifi ed OPC-966
CABLE
▄ REQUIRED TEST EQUIPMENT
EQUIPMENT
Output voltage
DC power supply
Current capacity
Frequency range
FM deviation meter
Measuring range
Frequency range
Frequency counter Frequency accuracy
Sensitivity
Digital multimeter Input impedance
Measuring range
Frequency range
RF power meter
Impedance
SWR
▄ SYSTEM REQUIREMENTS
® ®
• Microsoft Windows 98/98SE/Me/2000/XP
• RS-232C serial port (D-sub 9 pin)
▄ ADJUSTMENYT SOFTWARE INSTALLATION
q Quit all applications when Windows is running.
w Insert the CD into the appropriate CD drive.
e Double-click the "Setup.exe" contained in the 'CS-F70/
F1700 ADJ' folder in the CD drive.
r The "Welcome to the InstallShield Wizard for CS-F70/
F1700 ADJ" will appear. Click [Next>].
t The "Choose Destination Location" will appear. Then click
[Next>] to install the software to the destination folder. (e.g.
C:\Program Files\Icom\CS-F70/F1700 ADJ)
y After the installation is completed, the "InstallShield Wiz-
ard Complete" will appear. Then click [Finish].
u Eject the CD.
i Program group 'CS-F70/F1700 ADJ' appears in the 'Pro-
grams' folder of the start menu, and 'CS-F70/F1700 ADJ'
icon appears on the desk top screen.
▄ BEFORE STARTING SOFTWARE ADJUSTMENT
Clone the adjustment frequencies into the transceiver, and-
set the confi guration using with the CS-F70/F1700
before starting the software adjustment. Other-
SOFTWARE
wise, the transceiver can not start software adjustment.
CAUTION!: BACK UP the originally programmed mem-
ory data in the transceiver before program-
ming the adjustment frequencies.
When program the adjustment frequencies into
the transceiver, the transceiver's memory data
will be overwritten and lose original memory
data at the same time.
Microsoft and Windows are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
; see illustration page 5-2) are required.
CLONING CABLE
GRADE AND RANGE
: 7.2 V DC
: 3 A or more
: DC–300 MHz
: 0 to ±10 kHz
: 0.1–300 MHz
: ±1 ppm or better
: 100 mV or better
: 10 MΩ/V DC or more AC millivoltmeter
: 1–10 W
: 100–300 MHz
: 50 Ω
: Better than 1.2 : 1
CLONING
ADJUSTMENT SOFTWARE
EQUIPMENT
Audio generator
Attenuator
Standard signal
generator (SSG)
Oscilloscope
External speaker
▄ STARTING SOFTWARE ADJUSTMENT
q Connect the transceiver and PC with OPC-966
w Turn the transceiver power ON.
e Boot up Windows, and click the program group 'CS-F70/
F1700 ADJ' in the 'Programs' folder of the [Start] menu,
then CS-F70/F1700 ADJ's window appears.
r Click 'Connect' on the CS-F70/F1700 ADJ's window, then
appears transceiver's up-to-date condition.
t Set or modify adjustment data as desired.
• ADJUSTMENT FREQUENCY LIST
CH FREQUENCY
1 153.900 MHz
2 174.000 MHz
3 155.000 MHz
4 155.000 MHz
5 155.000 MHz
6 136.000 MHz
7 174.000 MHz
8 136.000 MHz
9* 155.000 MHz
10* 136.000 MHz
11* 174.000 MHz
12 155.000 MHz
13 155.000 MHz
*; IC-F70DT/DS only
†; [USA-02] only
5 - 1
(Rev. 1.1 or later), OPC-966
GRADE AND RANGE
Frequency range : 300–3000 Hz
Measuring range : 1–500 mV
Power attenuation : 50 or 60 dB
Capacity : 10 W
: 0.1–300 MHz
Frequency range
: 0.1 µV to 32 mV
Output level
(–127 to –17 dBm)
Measuring range : 10 mV to 10 V
Frequency rang : DC–20 MHz
Measuring range : 0.01–20 V
: 8 Ω
Input impedance
Capacity : 1 W or more
ADJUSTMENT ITEM
TX power : Low1
Mode : Wide
TX power : Low1
Mode : Narrow
TX power : High
Mode : Wide
TX power : Low2
Mode : Wide
TX power : Low1
Mode : Wide
TX power : Low1
Mode : Wide
TX power : Low1
Mode : Wide
TX power : Low1
Mode : Narrow
TX power : Low1
Mode : Digital
†
Preamble Length : 270
TX power : Low1
Mode : Digital
†
Preamble Length : 270
TX power : Low1
Mode : Digital
TX power : Low1
Mode : Wide
CTCSS : 151.4 Hz
TX power : Low1
Mode : Narrow
JIG
JIG CABLE .
