Handshaking
Review your system documentation to identify handshaking requirements,
and use these labels to change the settings if required. The following brief
descriptions explain each selection.

Hardware Control

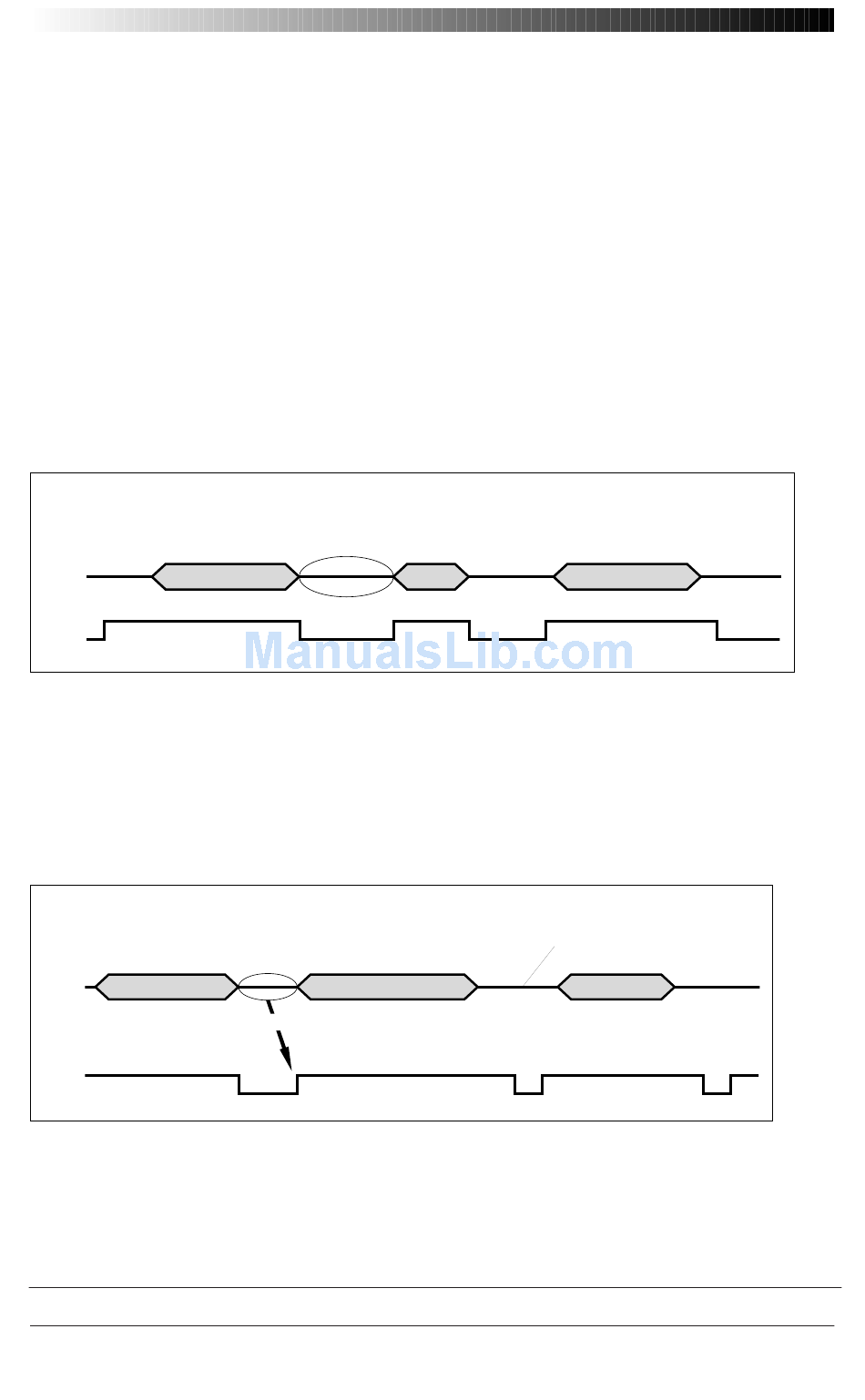

CTS/RTS Flow Control — is hardware handshaking. The
scanner activates the RTS (Ready to Send) line when it is ready to
send data to the host. The scanner waits for an active Clear to
Send (CTS) signal from the host before transmitting data. If
hardware control is disabled, CTS/RTS communication will not
take place. If the host deactivates the CTS line during data trans-
mission, the host will receive additional characters for no more
than 2msec
Data Label Transmission
Active
CTS
CTS Scan Control — is also a hardware control. When scan
control is enabled, label transmission is disabled until CTS is
asserted and de-asserted.
Data
Label 1
CTS
De-assert
1 Varies slightly depending upon baud rate selected.
R44-1540
1
.
CTS/RTS Flow Control
Disabled
Inactive
CTS Scan Control
Disabled until
Assert
Xmission
Label 1
Label Transmission
Will not scan again
until toggle
Label 2
19
