3.1.4 Removing the MAIN BOARD assembly
(See Fig.5, 6)
(1) Remove the three screws D attaching the REAR BRACK-
ET. (See Fig.5)
(2) Remove the three screws E attaching the MAIN BOARD
assembly. (See Fig.6)
(3) Disconnect the connector
BOARD assembly and DVD mechanism assembly. (See
Fig.6)
3.1.5 Removing the DVD mechanism assembly
(See Fig.7)
(1) Remove the three screws F attaching the DVD mechanism
assembly.
1-14 (No.MA312)

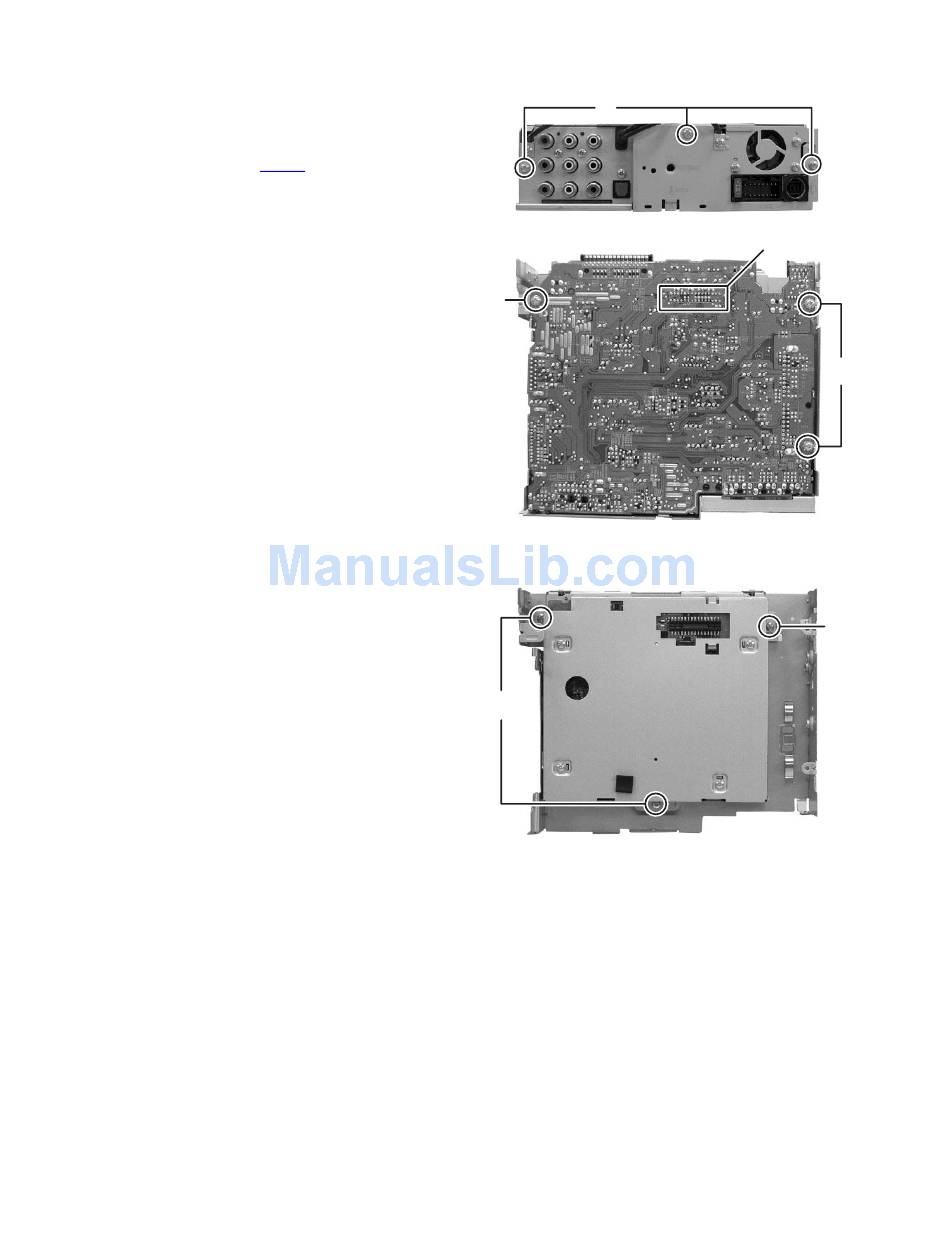

CN501 connected MAIN
D
Fig.5
E
Fig.6
F
Fig.7
CN501
E
F
