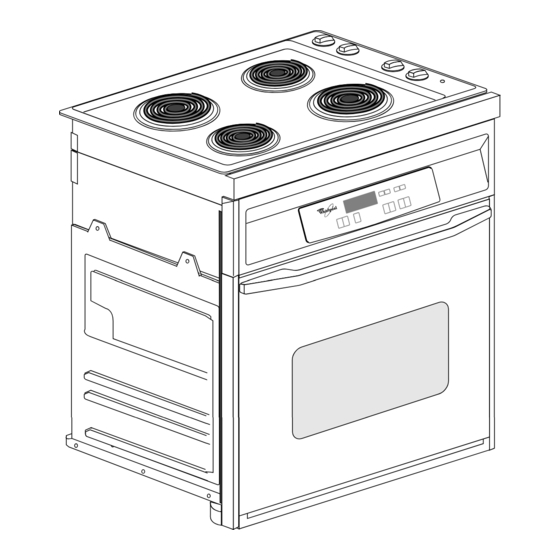

- Page 1 VISION II DROP-IN RANGE MODELS RS610PXE, RS675PXE, & RS696PXE JOB AID 4322212 Part No.
- Page 2 Vision II Drop-In Range. It is designed as reference material and is not a replacement for basic training. WHIRLPOOL CORPORATION assumes no responsibility for any repair made on our products by anyone other than Authorized Factory Service Technicians.
- Page 3 WARNING LABELS This Job Aid is intended for factory-service technicians only. We recommend that customers DO NOT service their own units, because of the complexity and risk of high-voltage electrical shock. WARNING WARNING Fire Hazard Do not obstruct the flow of combustion and ventilation air.
- Page 4 (FACTORY SPECIFICATION PARTS) as replacements. Use of “fits-all,” or “look alike” parts could result in early parts failure, safety hazard, or substandard performance of a WHIRLPOOL appliance. It could also result in an unnecessary repeat of your repair efforts. To be sure that the part(s) you purchase meet the exacting quality standards used to build every new WHIRLPOOL appliance, be sure to ask for genuine FSP replacement parts, as specified for your model.
-
Page 5: Table Of Contents
Table of Contents Model & Serial Number Location ....................Page 2 Component Locations ........................Page 3 Control Panel Removal ........................Page 4 Control Panel Installation ........................ Page 9 Ceran Glass Cooktop Components ....................Page 10 Open Coil Cooktop Components ....................Page 12 Wiring Diagram - Models RS610PXEW &... -
Page 6: Model & Serial Number Location
MODEL & SERIAL NUMBER LOCATION The Model/Serial Number Plate is located on the oven frame. Model/Serial Plate (On Oven Frame) - 2 -... -
Page 7: Component Locations
COMPONENT LOCATIONS CERAN GLASS ELECTRIC RANGES Element Control Ceran Glass Cooktop Hot Surface Indicator Surface Element & Limiter OPEN COIL ELECTRIC RANGES Indicator Light Open Coil Element Cooktop Hi Limit Control Panel Blower (Self-Clean Door Latch Mechanism Models Only) (Solenoid & Door Switches On Self-Clean Models) Oven Thermal Fuse (Self-Clean Models... -
Page 8: Control Panel Removal
CONTROL PANEL REMOVAL REMOVING THE RANGE small end of pin here To remove the range from the cabinet, use the following procedure. Remove the oven door from the range. NOTE: This step is optional, but can make servicing the control panel easier. To re- move the door: a) Open the oven door and insert a pin, or screw, into each of the hinge... - Page 9 OPEN COIL MODEL Remove the screws from the rear cover and remove it from the range. Do Not remove the control compartment back and back cover. Remove the indicated three control com- partment side screws from each side of the unit. Do not remove the two (one on each side) front control compartment side screws/pins or the two control panel screws at this time.
- Page 10 From the back of the unit, grip the sides of CooktopTrim Control Panel Extension the cooktop assembly, and separate it Trim Extension from the control panel. IMPORTANT RE- MOVAL INSTRUCTIONS: To access the control panel, it will be necessary to slide Clamp/Support Holds Top the cooktop assembly back away from the Of Control Panel In Place...
- Page 11 CERAN GLASS MODEL Ceran Glass Support Plate Cooktop Remove the four screws from the support Slotted Holes plate at the rear of the cooktop and re- At Bottom move the plate. Remove the screws from the rear cover and remove it from the range. Remove the indicated five control com- partment side screws from each side of the unit.
- Page 12 From the back of the unit, grip the sides of Control Panel Cooktop Trim Trim Extension the cooktop, lift it, then slide the cooktop Extension back far enough to access the control panel. Clamp/Support Holds Top Of Control Panel In Place At Center Of Cooktop Clamp/Support Lift &...
-
Page 13: Control Panel Installation
CONTROL PANEL INSTALLATION Control Panel To install the control panel, hook the sides 1. Hook Panel Over Top Of Support over the top of the side support, then raise up on the air deflector and rotate the Side Support bottom of the control panel in so that the tabs on the control panel slide under the tabs on the air deflector. -
Page 14: Ceran Glass Cooktop Components
CERAN GLASS COOKTOP COMPONENTS Refer to the illustration on the following page. REMOVING A SURFACE ELEMENT CONTROL Remove the cooktop (refer to page 4) so that you can access the surface element control. Remove the knob from the surface element control you wish to service and the rubber grommet from the ceran glass. - Page 15 Frame Screw Trim Ring Support Bracket Support Bracket Knob Rubber Grommet Ceran Glass Surface Element Control Surface Element Limiter Hot Surface Indicator Backer Plate Heat Shield Heat Shield - 11 -...
-
Page 16: Open Coil Cooktop Components
OPEN COIL COOKTOP COMPONENTS Use the following procedure to access the cooktop components: Unplug the elements and then remove the drip pans. Remove the four screws from the cooktop inside the element openings. The cooktop can now be raised. Refer to the following page to service the individual components. REASSEMBLY NOTE: When you mount the cooktop to the range, loosely install the four mounting screws, then push the cooktop forward so that there is no gap or bow between the front edge of the cooktop and the trim extension, and then tighten the four screws securely. - Page 17 Refer to the illustration on the following page. REMOVING AN ELEMENT CONTROL Remove the knob and two mounting screws from the element control you wish to service. Remove the four mounting screws from the cooktop. Lift the cooktop and prop it up (be careful not to scratch the countertop or cooktop). Remove the old element control, then one at a time, disconnect the wires from the terminals, and reconnect them to the same terminal callouts on the new control.
- Page 18 Top Of Control Panel Red Lens Press Arms Against Slide Arms On Light Bottom Of Panel Over Shoulder Of Lens Indicator Light Knob Infinite Switch Screw Infinite Switch Ground Wire Indicator Lens Connector Socket & Screw Control Panel Indicator Light Cooktop Mounting Screw Cooktop Cooktop Hi Limit...
-
Page 19: Wiring Diagram - Models Rs610Pxew & Rs610Pxen
WIRING DIAGRAMS Models RS610PXEW & RS610PXEN ELECTRONIC CONTROL - WP #4448874 P5-2 P5-1 OVEN TEMP SENSOR TRANSFORMER P3-8 P3-9 +5V SWITCH PULSE P3-6 DOOR SWITCH P3-5 P3-1 RETURN LINE MUST BE CONNECTED P3-4 P4-1 BLOWER BAKE - 2000W P2-4 OVEN THERMAL FUSE P2-3 BROIL - 3400W... -
Page 20: Wiring Diagram - Models Rs675Pxeq & Rs675Pxez
Models RS675PXEQ & RS675PXEZ ELECTRONIC CONTROL - WP #4448874 P5-2 P5-1 OVEN TEMP SENSOR TRANSFORMER P3-8 P3-9 +5V SWITCH PULSE P3-6 DOOR SWITCH TAN BR P3-5 LATCH SWITCH OPERATED BY SOLENOID BU BU P3-3 PULSE CAVITY SIZE SELECT LOCK RELAY P3-1 P4-2 UNLOCK... -
Page 21: Wiring Diagram - Models Rs696Pxeb & Rs696Pxeq
Models RS696PXEB & RS696PXEQ ELECTRONIC CONTROL - WP #4448874 P5-2 P5-1 OVEN TEMP SENSOR TRANSFORMER P3-8 P3-9 +5V SWITCH PULSE P3-6 DOOR SWITCH TAN BR P3-5 LATCH SWITCH OPERATED BY SOLENOID BU BU P3-3 CAVITY SIZE SELECT PULSE LOCK RELAY P3-1 P4-2 P3-2... -
Page 22: Strip Circuits
STRIP CIRCUITS BAKE & PREHEAT - BAKE ELECTRONIC OVEN CONTROL BAKE - 2000W P2-4 P2-3 OR/W BROIL - 3000W OR/W P2-1 P2-2 BLOWER P4-1 P3-2 BROIL ELECTRONIC OVEN CONTROL BROIL - 3000W OR/W P2-1 P2-2 BLOWER P4-1 P5-2 - 18 -... - Page 23 CLEAN (ABOVE 600˚F) & PREHEAT - CLEAN (BELOW 600˚F) ELECTRONIC OVEN CONTROL DOOR LOCK RELAY SW 2 PULSE RELAY P4-2 DOOR LOCK UNLOCK RELAY SOLENOID BLOWER P4-1 P5-2 BAKE - 2000W P2-4 P2-3 BROIL - 3000W OR/W P2-1 P2-2 OPEN COIL SURFACE UNIT (TYPICAL) INFINITE SWITCH SURFACE ELEMENT INDICATOR...
-
Page 24: Failure Codes & Reference Data - Models Rs610Pxew & Rs610Pxen
FAILURE CODES & REFERENCE DATA Models RS610PXEW & RS610PXEN MEANING OF FAULT CODE ERROR CODE REPAIR PROCEDURE FAILURE CODE Will only be displayed if user presses and holds Cancel key Default F-Code - F0 - All E-Codes for 5-seconds and there is no pre-existing fault. Press no failure. -
Page 25: Rs696Pxeb & Rs696Pxeq
FAILURE CODES & REFERENCE DATA Models RS675PXEQ, RS675PXEZ, RS696PXEB & RS696PXEQ MEANING OF FAULT CODE ERROR CODE REPAIR PROCEDURE FAILURE CODE Will only be displayed if user presses and holds Cancel key for Default F-Code - F0 - All E-Codes 5-seconds and there is no pre-existing fault. -
Page 26: Testing The Components
TESTING THE COMPONENTS WARNING Electrical Shock Hazard Certain procedures in this section require electrical tests or measurements while power is applied to the range. Exercise extreme caution at all times. If test points are not easily accessible, disconnect power, attach test equipment, and reapply power to test. COMPONENT TEST PROCEDURE RESULTS... -
Page 27: Surface Elements
With no power applied, disconnect one wire from the element terminals. You should obtain the reading for the element as listed in the following chart. If the resistance reading is not within the range shown, the element is defective and should be replaced. Whirlpool Wattage Voltage Total Resistance Part No. -
Page 28: Limiter
LIMITER To test a limiter, perform the following steps: Use an ohmmeter and set the range to R x 1. With no power applied, touch the ohmmeter leads to the following terminals. You should obtain the following readings at the indicated temperature: 1A and 2A opens @ 1025˚F 1B and 2B closes @ 275˚F If the readings are not within the range shown, the limiter is defective and should be replaced. -
Page 29: Coil Elements
Touch the leads of the ohmmeter to the terminals of the coil element and measure the resistance (see the chart below for the correct reading for the element you are testing). If the above results are not obtained, the element is defective and should be replaced. Whirlpool Number Wattage Voltage... -
Page 30: Troubleshooting Charts
TROUBLESHOOTING CHARTS WARNING Electrical Shock Hazard Certain procedures in this section require electrical tests or measurements while power is applied to the range. Exercise extreme caution at all times. If test points are not easily accessible, disconnect power, attach test equipment, and reapply power to test. PROBLEM POSSIBLE CAUSE SOLUTION... - Page 31 PROBLEM POSSIBLE CAUSE SOLUTION Line voltage should be minimum Cooktop element will not heat Low line voltage. 240-volts. Electrician should re- higher than low-medium. pair cause for low line voltage. Defective cooktop element. Check element. Customer using improper cookware. Evaluate suitability of cookware. Cooktop element heats up nor- mally, but drops to lower setting Defective cooktop control switch.
-
Page 32: Warranty
C. Pickup and delivery. Your range is designed to be repaired in the home. D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not approved by Whirlpool. E. Repairs to parts or systems caused by unauthorized modifications made to the appliance.
