Installation Guide for Zyxel Prestige 630 ADSL USB Modem
1. Introduction
=======================================================================
The USB port can be used only if your system is running Microsoft(r)
Windows 98 SE, Windows 2000, Windows XP or Windows Me
2. Installation
Don't connect the USB modem before installing the drivers.
Step 1. Insert the installation CD into your CD-ROM drive and double-click the Setup icon to start
the installation procedure.
Step 2. The Welcome window provides an opportunity to quit the setup process to exit all
Windows programs before continuing. When all Windows Programs are closed, click Next >
Step 3. Read the license agreement and click Yes.
Step 4. Select Other Service Provider and click Next >
Step 5. At the Select Driver Type window, highlight ANNEX-A LAN Driver Next >

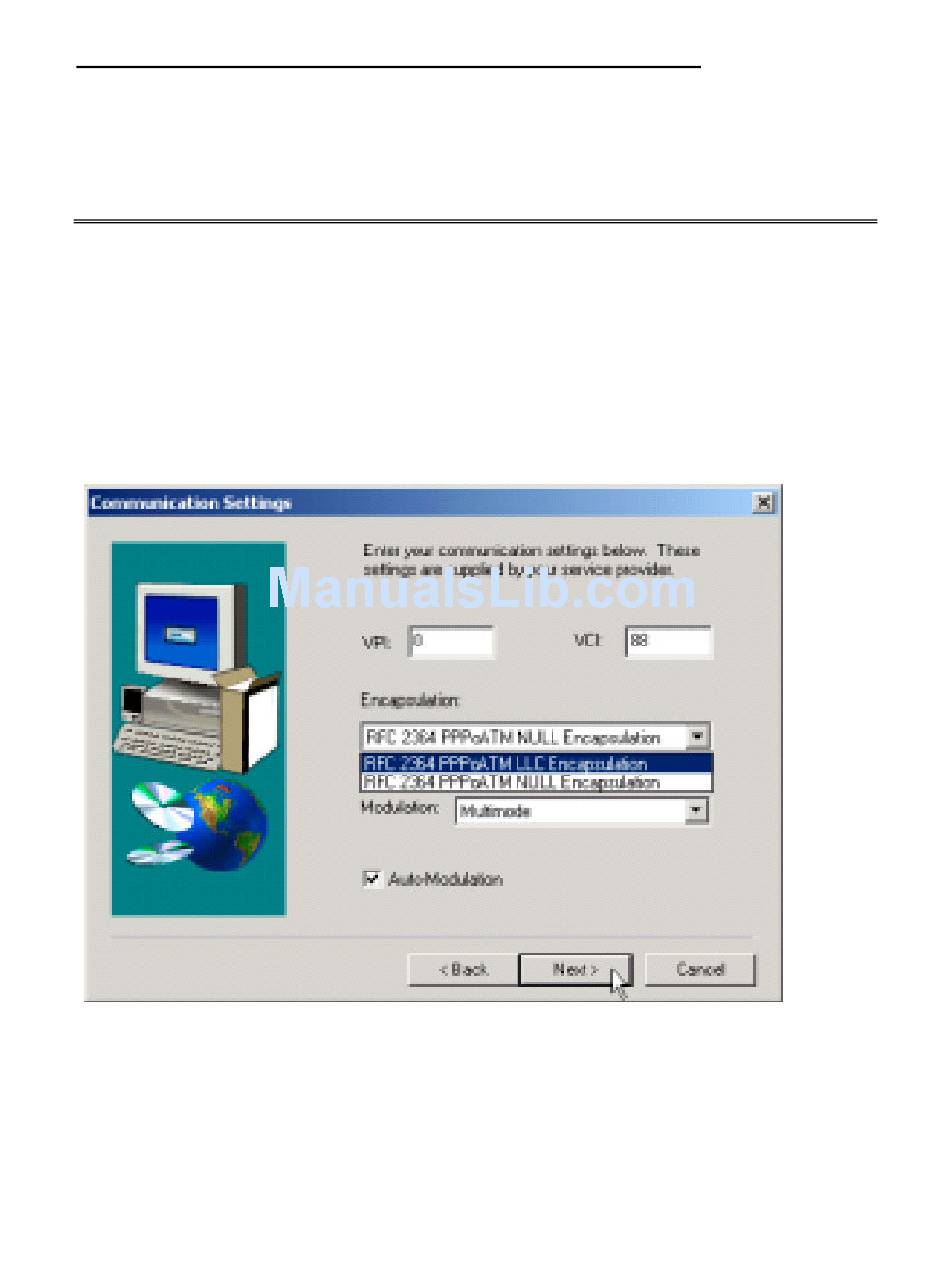

Step 6. Select RFC 1483 IPoATM Bridged Encapsulation here click Next >
Select Modulation type as G.DMT
Uncheck auto modulation tab
Advertisement
Related Manuals for ZyXEL Communications Prestige 630
Summary of Contents for ZyXEL Communications Prestige 630
- Page 1 Installation Guide for Zyxel Prestige 630 ADSL USB Modem 1. Introduction ======================================================================= The USB port can be used only if your system is running Microsoft(r) Windows 98 SE, Windows 2000, Windows XP or Windows Me 2. Installation Don’t connect the USB modem before installing the drivers.
- Page 2 Step 7. At the Start Copying Files window, review your current settings. Click Customize or < Back to change the settings. Click Next > to accept the current settings. Note: For Windows 2000 applications, the Digital Signature not found window warns that the installation software is not a digitally signed version.
- Page 3 3. Indicator LED’s USB: will be solid green ADSL: Blinks if the Line is down and solid green if the line is up. 4. Checking device Status ======================================================================= Click Start Settings Control Panel and then double-click the Zyxel DSL Modem icon to check the line status and line rate.
- Page 4 5. Uninstalling the USB Modem ======================================================================= Click Start Programs Zyxel DSL Modem and click on uninstall tab to remove Modem from the PC after uninstalltion restart the PC. 6. Configuring Static IP address ======================================================================= In Windows XP, Windows Me and Windows 2000 go to Control Panel, Network & Dialup connections folder identify the New Local Area Connection # which got created during the installation.
