Denon AVR-1911 Service Manual

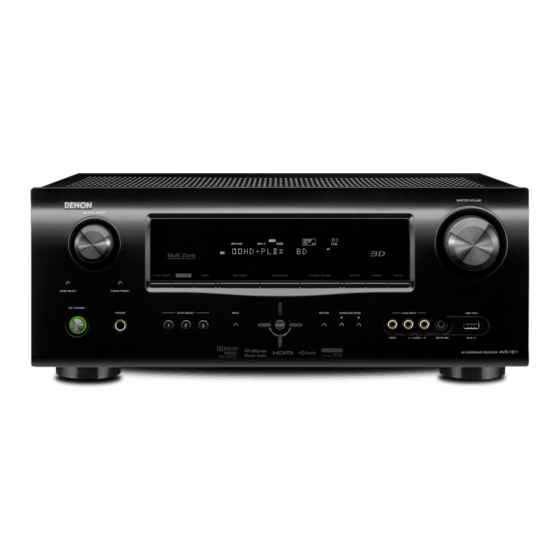

Av surround receiver
Hide thumbs Also See for AVR-1911:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
e
AVR-1911 s
AVR-791
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0051-1V03DM/DG1005
SERVICE MANUAL
MODEL
AV SURROUND RECEIVER
Copyright 2010 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
JP
E3
E2
P P
P
e
D&M Holdings Inc.
Ver. 3
Please refer to the
MODIFICATION NOTICE.
EK
EA
E1
E1K E1C
P
s
P

Advertisement

Table of Contents
loading

Related Manuals for Denon AVR-1911

Summary of Contents for Denon AVR-1911

  • Page 1 Please refer to the MODIFICATION NOTICE. SERVICE MANUAL MODEL E1K E1C AVR-1911 s AVR-791 AV SURROUND RECEIVER • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail.
  • Page 2 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check.
  • Page 3 NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts marked with this symbol z have critical characteristics. Use ONLY replacement parts recommended by the manufacture CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective.
  • Page 4 TECHNICAL SPECIFICATIONS s n Audio Section n Tuner section (for 1911E2,1911E1C,791E3,791EA) • Power amplifier [FM](Note: μV at 75 Ω, 0 dBf = 1 x 10 –15 Rated output : Receiving Range (for 791E3) : Front : 90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) [FM] 87.5 MHz – 107.9 MHz [AM]520 kHz – 1710 kHz 125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.) Receiving Range (for 1911E2,1911E1C,791EA) : 140W+140W(6 Ω, JEITA) Center : 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) [FM] 87.5 MHz – 108.0 MHz [AM]522 kHz – 1611 kHz 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.) Usable Sensitivity : 140W(6 Ω, JEITA) [FM]1.2 μV (12.8 dBf) [AM]18 μV...
  • Page 5 SURROUND MODE 0 Service Jigs When you repair the printing board, you can use the following JIG (Extension cable kit). Please order to Denon Official Service Distributor in your region if necessary. 8U-110084S : EXTENSION UNIT KIT : 1 Set s...
  • Page 6 DISASSEMBLY • Disassemble in order of the arrow of the figure of following flow. • In the case of the re-assembling, assemble it in order of the reverse of the following flow. • In the case of the re-assembling, observe "attention of assembling" it. • I f wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly as they were originally bundled or placed afterward. Otherwise, incorrect arrangement can be a cause of noise generation. CABINET TOP FRONT PANEL ASSY RADIATOR ASSY HDMI UNIT ASSY Refer to "DISASSEMBLY Refer to "DISASSEMBLY Refer to "DISASSEMBLY 1. FRONT PANEL ASSY" 2. RADIATOR ASSY" 4. HDMI UNIT ASSY" and "EXPLODED VIEW"...
  • Page 7 1. FRONT PANEL ASSY Proceeding : CABINET TOP FRONT PANEL ASSY → (1) Remove the screws. View from bottom (2) Cut the wire clamp band, then disconnect the connector wires and FFC cable. Remove the screws. STYLE PIN : Loose CP100 STYLE PIN : Loose N4401 FFC cable Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT PANEL ASSY.
  • Page 8 2. RADIATOR ASSY Proceeding : CABINET TOP RADIATOR ASSY → (1) Remove the screws. View from bottom (2) Remove the screws. Direction of Direction of photograph: C photograph: D STYLE PIN : Loose...
  • Page 9 (3) Cut the wire clamp bands, then disconnect the connector wires and FFC cable. RADIATOR ASSY CP100 STYLE PIN : Loose N2706 FFC cable (4) Disconnect the connector wires. CP401 CP402 STYLE PIN : Loose PCB 7CH AMP CP403 CP405 Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in RADIATOR ASSY.
  • Page 10 3. PCB REG CNT/PCB REG Proceeding : CABINET TOP RADIATOR ASSY PCB REG CNT/PCB REG → → (1) Remove the screws. PCB REG (2) Disconnect the connector wires and connector board.. CP102 CP104 PCB REG CNT CP13B Direction of photograph: C PCB REG Board to board CP13A...
  • Page 11 4. HDMI UNIT ASSY Proceeding : CABINET TOP HDMI UNIT ASSY → (1) Disconnect the connector wire and FFC cable. FFC cable HDMI UNIT ASSY CX100 BACK PANEL (2) Remove the screws, then remove the BACK PANEL. Direction of photograph: A (3) Cut the wire clamp band, then disconnect the and connector wires. Remove the screw. CP401 N2501 N2706 CP13B N4401 CP13A HDMI UNIT ASSY...
  • Page 12 (4) Disconnect the connector, then remove the HDMI UNIT ASSY from the main unit. CP12 Direction of photograph: D (5) Disconnect the connector board. Board to board Board to board PCB HDMI Board to board (6) Disconnect the connector board. PCB SIDE CNT Board to board PCB FRONT CNT Board to board PCB AUDIO VIDEO...
  • Page 13 5. PCB SPK/PCB SMPS Proceeding : CABINET TOP HDMI UNIT ASSY PCB SPK/PCB SMPS → → (1) Remove the Sheet, then remove the screws and SUPPORTER P.C. SUPPORTER P.C. Sheet View from bottom (2) Disconnect the connector wire, then remove the screws. PCB SPK/PCB SMPS CX102...
  • Page 14 (3) Disconnect the connector wire, then remove the screws. Remove the PCB SPK/PCB SMPS from the main unit. (4) Disconnect the connector board. PCB SPK PCB SMPS Board to board...
  • Page 15 6. TRANS MAIN Proceeding : CABINET TOP TRANS MAIN → (1) Disconnect the connector wires, then remove the screws. CP100 STYLE PIN : Loose CX102 (2) Disconnect the connector wires. CP102, CP104...
  • Page 16 SPECIAL MODE Special mode setting button b Press the ON/STANDBY button to turn on while pressing both buttons A and B at the same time. Mode Button A Button B Contents Firmware versions such as Main, Sub, DSP are displayed in µcom/DSP Version display mode STATUS DIMMER...
  • Page 17 1. µcom/DSP Version display mode 1.1. Operation specifications µcom/DSP version display mode: When started up, the version information is displayed. Starting up: With the "DIMMER" and "STATUS" buttons pressed, press the "ON/STANDBY" button to turn the power on. Now, press the "STATUS" button to the display the 2nd item information on the FL Display. 1.2.
  • Page 18 2. Errors checking mode (Displaying the protection history) 2.1. Operation specifications Error mode (Displaying the protection history): When started up, the error information is displayed. Starting up: ●All model commonness With the "STATUS" and "MULT EQ" buttons pressed, press the "ON/STANDBY" button to turn the power on. The error (protection history display) mode is set.
  • Page 19 2.3. Clearing the protection history There are two ways to clear the protection history, as described below. (1) Start up the error (protection display) mode, display the error, then press and hold in the "ENTER" button for 3 seconds. : T H E R M A L T H E Press and hold in the "ENTER"...
  • Page 20 When you repair the printing board, you can use the following JIG (Extension cable kit). Please order to DENON Official Service. Distributor in your region if necessary. Note: When the connection which is wrong in the JIG (EXTENSION UNIT KIT) is done it becomes cause of damage.
  • Page 21 (4) Connect the four extension jig cables. PCB HDMI Insulation sheet PCB FRONT CNT PCB SIDE CNT Connection table of Board to Board Ref. No. Ref. No. 11 pin SIDE CNT N2709 HDMI 25 pin SIDE CNT N2708 HDMI 19 pin CP105 FRONT CNT N2701...
  • Page 22 ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE When replaced of the U-PRO (Microprocessor) or the Flash ROM, confirm contents of the following. After PWB Name Ref. No. Description Remark replaced DIGITAL U3102 R5F64169DFD SOFTWARE: Main DIGITAL U3301 R5F3650KNFB SOFTWARE: Sub DIGITAL U1903 EN29LV160BB-70TIP SOFTWARE: DSP ROM...
  • Page 23 4. Run the DENON Flash ROM Writer Run the “FlashWriter7_001_forAVR1611_1911_2311.exe” on desktop of PC. 5. Communication check (1) Click the “Check communication” button. (2) When connection is good, then you can see the “Communication check OK.” message. (3) If connection is not good, then you can see the “Communication error!” message.
  • Page 24 6. Download the firmware (1) Click the "Select" button. (2) Download the firmware from the specified download source to PC.
  • Page 25 7. Complete the firmware updating (1) Click the “Update” button. (2) When writing of the firmware is completed, the power of this unit turns on automatically and you can see the “Update completed” message. (3) If you can’t complete the firmware update, please retry the firmware update from “3. Turn on the AV receiver/ amplifier”.
  • Page 26 8. Notice: Please keep the following notice for firmware update. (a) Keep the PC environment (b) Avoid the communication cable from the electrical noise source. (e.g. telephone cable, AC line, a fluorescent light) (c) Don’t remove cable during update. (d) Don’t turn off the power during update. (e) Don’t run other PC application during update.
  • Page 27 Simple version Basic version Advanced version Information SURROUND MODES AND PARAMETERS...
  • Page 29 Simple version Basic version Advanced version Information...
  • Page 31 ADJUSTMENT Audio Section Idling Current Required measurement equipment: DC Voltmeter 1. Preparation (1) Avoid direct blow from an air conditioner or an electric fan, and adjust the unit at normal room temperature 15 °C ~ 30 °C (59 °F ~ 86 °F). (2) Presetting • POWER (Power source switch) STANDBY...
  • Page 32 TROUBLE SHOOTING 1. POWER 1.1. Power not turn on Power not turn on. When the power turned on, does the ON/STANDBY Is the fuse blown? Refer to 1.2.Fuse is blown. indicator on the front panel flashing green? Is a DC 5V voltage output Check for damage in the SMPS B'D Is a DC 5V voltage being...
  • Page 33 2. Analog video MONITOR OUT (CVBS) output NG Input CVBS Input S Input Function : SAT Function : DOCK COMPONENT To A To B Not output HDMI OUT outpu NG Input CVBS Input S Input COMPONENT Input Function : SAT Function : DOCK Function : SAT HDMI...
  • Page 34 Input CVBS Check power supply voltage. FRONT CONNECTOR B'D REGULATOR B'D flaw. V+5V : CP13B-4pin V-5V : CP13B-1pin Check on set value of each IC. HDMI B'D L2706 : H(5V) L2707 : L(0V) HDMI B'D flaw. L2708 : L(0V) L2709 : H(5V) L2710 : H(5V) L2711 : H(5V) Extend HDMI B'D using a jig.
  • Page 35 Input Check power supply voltage. FRONT CONNECTOR B'D REGULATOR B'D flaw. V+5V : CP13B-4pin V-5V : CP13B-1pin Check on set value of each IC. HDMI B'D L2706 : L(0V) L2707 : L(0V) HDMI B'D flaw. L2708 : L(0V) L2709 : L(0V) L2710 : L(0V) L2711 : L(0V) Extend HDMI B'D using a jig.
  • Page 36 Input CVBS/S/COMPONENT Check input signal of VIDEO DECODER HDMI B'D V : L2718 Check signal DET Input CVBS : to A S-Y : L2718 V/S_L2704 : H(+3.3V) Input S : to B S-C : L2719 COMPONENT_L2703 : H(+3.3V) Input COPONENT : to D COMPONENT-Y : L2717 COMPONENT-Cb : L2716 COMPONENT-Cr : L2715...
  • Page 37 Check HDMI output setting, referring to the (5) Is the BD/DVD player's HDMI output setting correct? BD/DVD player's operating instructions. (6) When using a DENON BD/DVD player's, is the fluorescent display tube's "HDMI" indicator lit? If using a non-DENON BD/ DVD player's, proceed to "YES".
  • Page 38 BD/DVD player, is the FL HDMI connector (K1001/K1002/K1003/ from the HDMI connector display's "HDMI" indicator lit? K1004)15pin(DDC_CLK)/16pin(DDC_DATA)? (K1001/K1002/K1003/ If using a non-DENON BD/ Is 1pin/3pin/4pin/6pin/7pin/9pin/10pin/12pin of K1004) to the U1001 is DVD player, proceed to HDMI connector (K1501) terminated by 3.3V and defective.
  • Page 39 Check operation of each device. (AMP source : BD / Video input of player : 480P / Connect the TV.) Check operation of U1001. (18) Check power supply. Is 1.8V supplied to C1019/C1053/C1037/L1003? The power supply circuitry is defective. Is 3.3V supplied to C1112/C9032/C1124/C1122? (19) Check xtal oscillator.
  • Page 40 3.2. HDMI test point and waveforms C9000 C9005 C9010 C9015 L2516 C9020 C2568 C2702 C2560 L2736 N2703 L2734 C2502 L2735 R2512 R2517 R2502 L2731 C9073 C9083 C2529 R2513 C2520 C2130 R2332 C2547 Q2517 Q2528 C2904 R2515 C2503 R2514 R2503 C2530 R2518 U2305 C9098...
  • Page 41 DDC_CLK/DDC_DATA/TMDS(1,3,4,6,7,9,10,12pin) : Check item (15),(17) 0.9V DDC_CLK 2.48V DDC_DATA IPINDE/IPINVSYNC/IPINHSYNC/IPINPCK : Check item (21) 31.76us IPINDE IPINDE 31.84us IPINHSYNC IPINHSYNC 16.68ms IPINVSYNC IPINVSYNC IPINPCK 37.0ns...
  • Page 42 1TXDE/1TXVSYNC/1TXHSYNC/1TXPCK : Check item (25) 31.76us 1TXDE 1TXDE 31.84us 1TXHSYNC 1TXHSYNC 16.68ms 1TXVSYNC 1TXVSYNC 1TXPCK 37.0ns...
  • Page 43 4. AUDIO 4.1. AUDIO CHECK AUDIO OUTPUT : NG INPUT SURROND MODE SOURCE CHECK1 Check ANALOG AUDIO BLOCK. ANALOG 2CH DIRECT ANALOG INPUT SURROND MODE SOURCE CHECK2 Check Digital AUDIO BLOCK. COAX or OPT Legacy(PCM or DolbyDigital or dts…) INPUT SURROND MODE SOURCE CHECK3 Check via AD.
  • Page 44 4.2. Power AMP (7CH AMP B'D) No sound is output. The protector operates. Is the power transistor open or short circuit? Replace the power transistor. 2SB1560/2SD2390 Is the emitter resistance of the power transistor open? Replace the emitter resistance. 0.47Ω Is the base resistance of the power transistor open? Replace the base resistance.
  • Page 45 4.3. Analog audio No sound is output Is the voltage of ±8V supplied to The power supply of ±8V is repaired. AV B'D CP8? Is the audio signal transmitted to The power amplifier is repaired. AV B'D CN401? Connect the connectors properly. Is the serial data for electronic volume Is the connector correctly connected transmitted to AV B'D CP11?
  • Page 46 Personal notes:...
  • Page 47 CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK Wave form U1001 HDMI Rx ADV7840 CH1: D-DATA U1707 AUDIO PLD EPM3032ATC DIR/DIT U1706 LC89058W-E INPUT CH1: DATA COAXIAL-1 (2)RX0 SDIN(24) SLRCK(23) (42)SLRCK OPTICAL-1 (4)RX2 (37)256fsDIR RMCK(16) RBCK(17) (3)64fsDIR (9)RX5 RLRCK(20) (2)fsDIR CH2: fs RDATA(21) (44)DATADIR1...
  • Page 48 BLOCK DIAGRAM AUDIO BLOCK DIAGRAM SPDIF 1TXSPDIF HDMI IN1 U1001(8U-310052) LRCK 1TXFS U1903(8U-310052) U1902(8U-310052) 1TX64FS INPUT SWITCHER MCLK 1TXMCLK RECEIVER EPROM I2S3 HDMI IN2 ADV7840 I2S2 16MBIT 64MBIT I2S1 I2S0 KEY_MATRIX RESONATOR RESONATOR HDMI IN3 FCX-03(16MHz) 1TXI2S0 ZTT16MHz 1TXI2S0 1TXI2S1 1TXI2S1 DIN_FLFR 1TXI2S2...
  • Page 49 VIDEO BLOCK DIAGRAM HDMI 1.4VER REPEATER BLOCK HDMI-1 HDMI-2 U1501(8U-310052) AVR1611 ONLY ADV7511 HDMI HDMI IN MONITOR OUT HDMI Tx HDMI-3 U1001(8U-310052) ADV7840 HDMI Rx HDMI-4 DECODER IC811(AV B'D) DOUBLER SIGNAL DET. NJM2586M -6dB -6dB LOAD -6dB COMPONENT LOAD LOAD -6dB LOAD OPEN...
  • Page 50 VCC BLOCK DIAGRAM MAIN +B S1(AMP +B) MAIN -B 7808 A+8.0V (Pre) DA+5.0V 7805 S2(+8V,-8V) A-8.0V (Pre) 7908 2388F09 A.TUNER+9.0V(E2/E1C/J) 2388F05 A.TUNER+5.0V(E3) MAIN TRANS 7805 A.V+5.0V S4(VIDEO) 7905 A.V-5.0V -VKK S5(-VKK) FL AC (F1) AC CORD S6(FILAMENT) FL AC (F2) PQ033 HD Radio+3.3V CPUPOWER...
  • Page 51 LAEVEL DIAGRAM LEVEL DIAGRAM FRONT ch R2A15220FP ANALOG H/POUT SPEAKER ＋ LINE IN GAIN ADJ. ＋ AK4358VQ ＋ (AVR3311 ONLY) AK5358B ＋ － － MUTE PRE OUT ZONE2 (AVR2311/3311 ONLY) ZONE3 (AVR3311 ONLY) (AVR3311ONLY) RECOUT1 RECOUT2 EXT IN +30dB 4.34Vrms/8Ω SPK OUT FULL SCALE LEVEL=3Vrms AK4358VQ...
  • Page 52 LEVEL DIAGRAM CENTER ch R2A15220FP SPEAKER ＋ GAIN ADJ. AK4358VQ ＋ ＋ (AVR3311 ONLY) － － MUTE PRE OUT EXT IN +30dB 4.2Vrms/8Ω SP OUT MAX SIGNAL LEVEL +20dB +20dB 0dBFS=1.77Vrms +29dB +10dB +10dB -10dBFS L.P.F GAIN=+1.6dB 213mVrms EXT IN -3dB 200mV 　0dB...
  • Page 53 LEVEL DIAGRAM SUBWOOFER ch R2A15220FP SPEAKER ＋ GAIN ADJ. AK4358VQ ＋ ＋ (AVR3311 ONLY) － － MUTE PRE OUT EXT IN +30dB 4.74Vrms SW ch DAC MAX SIGNAL LEVEL PRE OUT Config1(S/S/S/Y)DOLBY LIMIT LEVEL=2.5Vrms (5.1ch-3dBFS at 30Hz) +11dB AK4358VQ +20dB +20dB 0dBFS=1.77Vrms 1.37mVrms...
  • Page 54 LEVEL DIAGRAM SURROUND ch R2A15220FP SPEAKER ＋ GAIN ADJ. AK4358VQ ＋ ＋ (AVR3311 ONLY) － － MUTE PRE OUT EXT IN +30dB 4.2Vrms/8Ω SP OUT MAX SIGNAL LEVE AK4358VQ +5dB +20dB +20dB 0dBFS=1.77Vrms +29dB +10dB +10dB -10dBFS L.P.F GAIN=+5dB 218mV -3dB 200mV 　0dB...
  • Page 55 LEVEL DIAGRAM SURR.BACK ch R2A15220FP SPEAKER ＋ GAIN ADJ. AK4358VQ ＋ (AVR3311 ONLY) ＋ － － MUTE PRE OUT (AVR2311/3311 ONLY) from from ZONE2 ZONE2 from ZONE3 (AVR3311 ONLY) +30dB 4.2Vrms/8Ω SP OUT AK4358VQ MAX SIGNAL LEVE +20dB +20dB 0dBFS=1.77Vrms +1.6dB +29dB +10dB...
  • Page 56 R2A15220FP LEVEL DIAGRAM SB-ch FRONT/ZONE ASIGN 0dB ZONE2/3 from F-ch from SPEAKER DA SB-ch ＋ LINE IN ＋ MAIN from EXT.IN SB-ch AVR2311/3311, ZONE2 NJW1194 ONLY TONE MONO MUTE PREOUT MONO AVR3311 ONLY ZONE3 NJW1194 TONE MONO MUTE PREOUT MONO +30dB SP OUT 4.48Vrms/8Ω...
  • Page 57 PRINTED WIRING BOARDS 7CH-AMP (COMPONENT SIDE) 7CH AMP B'D G401 631010096006S WIRE 7020-06941-000-0S BONDING CLAMP 400 G400 G401 BKT400 CP401 WIRE WIRE J590 WIRE BONDING BONDING BONDING C408 R428 WIRE C456 C424 R687 G402 R601 BONDING R440 R558 C440 R472 C504 R471 R644...
  • Page 58 SMPS (COMPONENT SIDE) D103 D25SC6M SMPS (FOIL SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 59 SPK (COMPONENT SIDE) JACK3 WIRE4 WIRE4 JACK1 WIRE5 WIRE5 RLY3 RLY5 RLY2 RLY6 RLY7 CP22 WIRE3 RLY4 7020-06942-201-0S SPK B'D CN13 BKT1 BAR CODE BKT3 WIRE1 WIRE2 WHITE(R) BLACK(L) WIRE3 RLY1 WIRE1 WIRE2 WHITE(R) BLACK(L) LIMIT- LIMIT- LIMIT+ LIMIT+ MUTE+7V RLGND RL+B RELAY_WIDE...
  • Page 60 SPK (FOIL SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 61 REG (COMPONENT SIDE) FRONT_CNT (COMPONENT SIDE) CLAMP100 CLAMP101 CP105 C137 IC108 J118 R144 J116 C136 R129 7028-06943-301-0 D123 CP117 R126 FRONT CNT_B'D NJM2388F CP14 J104 V-5V CN15 BAR CODE J105 V_GND CN13 V_GND J106 V+5V -->CN104 CP116 C127 D115 R146 R145 J107 C126...
  • Page 62 REG (FOIL SIDE) FRONT_CNT (FOIL SIDE) TRG_VGND TRG_15V TRG_15V +5V_IN +5V_IN VGND VGND -5V_IN -5V_IN TU_GND TU_GND TU_VOL_IN TU_VOL_IN REG_CNT (FOIL SIDE) Q100 Q101 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 63 SIDE_CNT (COMPONENT SIDE) SIDE_CNT (FOIL SIDE) IC109 PQ033DNA1ZPH J101 CP802 M3.3V 232IMO 232OMI M/DGND BKT101 AZ4580 7028-06943-401-0 CP13A SIDE CNT_B'D AC MUTE DET AC MUTE DET X2 VOLT DET X2 VOLT DET DA+5V DA+5V TRG+15V TRG+15V TRG_GND TRG_GND A+8V A+8V A-8V A-8V AGND...
  • Page 64 FRONT (COMPONENT SIDE) FRONT B'D 7028-06944-101-0 CP100_1 CP102 U101 JP93 C143 C142 U100 RMC100 C144 JP86 JP131 R108 LED101 JP72 C147 JP85 JP27 JP80 JP105 JP71 LED102 LED104 JP104 ZD101 DSXLED MTZ6.8B R192 JP103 C101 JP32 JP41 JP102 C102 C151 JP125 JP33 JP94...
  • Page 65 FRONT (FOIL SIDE) C500 C501 R150 R149 C140 C503 C502 Q100 R110 R163 D107 C124 C125 C126 C139 C165 R172 C146 R159 R156 R154 R158 R157 D105 R111 R161 D109 C137 R160 R155 R153 R145 Q105 C111 R114 R173 R109 Q104 Q103 Q106...
  • Page 66 AUDIO_VIDEO (COMPONENT SIDE) AUDIO_VIDEO (FOIL SIDE) R1068 IC812 C970 TC4053BFT R1051 C972 C969 C948 R1060 R1066 R1035 R1053 C971 R1052 R1054 CP1003 C968 IC811 NJM2586M C974 R1041 VGND Q831 C911 R1031 VDI_CR C952 R1032 VGND R1067 VDI_CB C961 VGND VGND VDI_CR VDI_PY VGND...
  • Page 67 HDMI (COMPONENT SIDE) C9000 C9005 C9010 C9015 L2516 C9020 C2568 C2702 C2560 L2736 N2703 L2734 C2502 L2735 R2512 R2517 R2502 L2731 C9073 C9083 C2529 R2513 C2520 C2130 R2332 C2547 Q2517 Q2528 C2904 R2515 C2503 R2514 R2503 C2530 R2518 U2305 C9098 C9102 L2510 L2507...
  • Page 68 HDMI (FOIL SIDE) R2126 R2160 C2144 R2159 C9078 C9068 C9058 C2511 C2512 C2510 Q2509 R2122 R2156 C2539 L2515 R2507 R2508 C2142 R2155 R2509 C2358 C2357 C2508 C2507 C2509 L2513 R2521 R2936 R2153 R2119 R2505 R2550 C2113 R2154 C2141 R2506 L2514 R2504 R2934 R2935...
  • Page 69 PAGE 1 AMP B'D 1/2 R703 R703:2.7K R401 1.2K ZD401 R402 1611/1911 R403 1.2K R404 R406 MTZJ5.1A 100K 270(1) R405 OPEN PRF18BC471QB5RB C401 270(1) 100N-K C402 OPTION_A Q401 D401 OPEN TP401 OPTION_D KTA1024Y C403 R407 1SS133T OPEN 10N-K C404 OPEN 2311/3311 Q403 R412:47K...
  • Page 70 PAGE 2 PAGE 2 PAGE 2 AMP B'D 1/2_A10 AMP B'D 1/2_M10 R706:2.7K R706 R531 ZD410 R532 1.2K 1611/1911 R533 1.2K R534 MTZJ5.1A 100K 270(1) R535 R537 270(1) 5.6K(1) OPTION_A PRF18BC471QB5RB C449 C450 Q437 D419 OPEN TP404 OPTION_D 100N-K KTA1024Y 1SS133T OPEN C452 47/50...
  • Page 71 PAGE 3 SPEAKER B'D JACK1 470(2) H/PR SPK_SMPS 1/2 FR_GND 2200P 0.047 FR_A RLY1 BC3-12 FL_GND 0.047 H/PL 2200P 470(2) FL_A 0.5uH 0.047 C_GND 10(NB) 2200P 0.047 10(2) 0.5uH 0.047 10(NB) RLY2 G5PA-28-MC 12V JACK2 10(2) SR_GND 2200P 0.047 0.5uH SL_GND 0.047 2200P...
  • Page 72 PAGE 4 SPK_SMPS 2/2 CX103 SMPS B'D OPEN POWER S/W E3 OPTION J180 L100 L101 BKT102 JUMPER LF4ZBE273H OPEN F100 TH100 J100 JUMPER D100 1N4007 JK100 J150 AC INLET live OPEN ZD100 D101 1N4007 JUMPER ZD101 MTZJ22B (E3) Neutral ¡Ü ¡Ü...
  • Page 73 PAGE 5 REGULATOR B'D REG_SIRIUS_COMMON CNT 1/3 D114 SCHOTTKY IC103 NJM7805FA VIDEO_+5V VIDEO_-5V CN14 IC104 NJM7905FA VIDEO-5V VIDEO_GND SCHOTTKY VIDEO_GND D117 VIDEO+5V D118 SCHOTTKY OPTION_C IC106 CP117 IC105 NJM7805FA NJM7808FA A+8V CN13 FUSE F104,F105,F106,F107,F108 RL GND AGND RL +B AVR1611/1911 T1.6AL/250V TU_RTGND TU 3.3/5V/9V...
  • Page 74 PAGE 6 REG_SIRIUS_COMMON CNT 2/3 SIDE CONNECTOR OPTION A OPTION B MODEL MODEL AVR1611 AVR1611 AVR1911 AVR1911 OPTION_B AVR2311 AVR2311 AVR3311 AVR3311 OPTION_A OPEN IC109 OPEN PQ033DNA1ZPH AVR1911 E3 ONLY CP802 OPEN 10/50 IC1A:A 10/50 M3.3V 232IMO 232OMI AZ4580MTR D/MGND TO HD RADIO 10/50 CP801...
  • Page 75 PAGE 7 REG_SIRIUS_COMMON CNT 3/3 FRONT CONNECTOR HDMI HDMI HDMI HDMI HDMI PAGE 19(2B) PAGE 19(2C) PAGE 19(4D) PAGE 19(4D) PAGE 19(4B) AVR16/1911 _ N.C CP107 CP108 CP110 CP106 TO HDMI CP105 CP109 AVR2311/3311, TO A_VIDEO CP113 CP112 OPEN OPEN CP111 OPEN OPEN...
  • Page 76 TO CONNECT SIDE TO CONNECT FRONT AV B'D(1/3) TO CONNECT FRONT PAGE 6(8E) PAGE 6(5E) PAGE 7(4E) TO CNT1 PAGE 7(6E) PAGE 3(1E) PAGE 8 OPEN CP10 CP11 CN402 11 10 6 5 4 3 2 H/P_L TO TUNER H/P_GND H/P_R RLY_F RLY_C...
  • Page 77 PAGE 9 AV B'D(2/3) OPTION_D L1001 R1204 75J-207CX C872 R933 10/50 OPTION_A C1112 8.2N(R) R1200 C1111 R1063 Q824 R934 R935 4.7N(R) KRC231S 100K CP800 OPTION_B TUNERL TUNERL TUNERR TUNERR TO ANALOG TUNER BD801 BEAD TU_5V TU_3.3V/5V/9V R949 Q825 R936 R937 SCLK TU_TXMI/SCL L1000...
  • Page 78 AV B'D(3/3) PAGE 10 CVBS OUTPUT SW (TC4052BF) C903 C904 INPUT 47/16 47/16 OUT PUT FUCTION C905 C906 X0 Y0 10N-K 10N-K X1 Y1 X2 Y2 X3 Y3 NONE NONE R951 V+5V Y/C_MIX MONI_SEL_A IC807:A D839 BD7628 MONI_SEL_B KDS4148U R958 75-D R959 CVBS_DET...
  • Page 79 PAGE 11 R1023 CEC_RX CEC_COM K1001 L1003 HDMI-CONNECTOR RXA_5V CEC1.8V AVDD1.8 D1045 OPEN RXA_5V SHELL2 R1010 U1002 R1011 R1012 R1024 R1025 L1002 OPEN OPEN HPD/HEAC- OPEN IN 1 LRCLK RXD_2- RXD_1- RXD_0- RXD_C- CEC3.3V RXC_2- RXC_1- RXC_0- RXC_C- RXB_2+ RXB_1+ RXB_0+ RXB_C+ RXA_2+...
  • Page 80 DV5V DV3.3V DV1.8V DGND IPINB0 IPINB0 IPINB1 IPINB1 IPINB2 IPINB2 PAGE 12 IPINB3 IPINB3 IPINB4 IPINB4 IPINB5 IPINB5 IPINB6 IPINB6 DV5V IPINB7 IPINB7 DV3.3V IPINB8 IPINB8 DV1.8V IPINB9 IPINB9 DGND IPINB10 IPINB10 IPINB11 IPINB11 IPSCL IPING0 IPING0 IPSDA IPING1 IPING1 IPING2 1TXVSYNC IPING2...
  • Page 81 PAGE 13 1TXINT 1TXINT 1TXRST R1525 OPEN 1TXRST R1526 OPEN C1516 4.7/6.3 C1517 OPEN C1518 OPEN IPSCL IPSCL IPSDA IPSDA R1502 TX_VSYNC R1521 OPEN 1TXVSYNC CEC_CLK AVR1911/791 TX_HSYNC R1502 ONLY 1TXHSYNC DVDD R1502 TX_DE C1501 0.1/10 C1519 0.1/10 DVDD 1TXDE DVDD R1504 TX_PCK...
  • Page 82 TO HDMI TX PAGE 14 TO SUB CPU TDIA ↓ AUDIOPLD X1701 FCX04(24.576MHZ) C1714 C1715 N1701 OPEN AUDIO1 R1743 DIR1PERR R1746 MCLK1 R1730 33x4 3.3K R1740 R1730 33x4 DIRDOUT R1739 DATAAD. DIRDIN R1730 33x4 SLRCK1 SLRCK DIRCE SBCK1 R1730 33x4 SBCK DIRCLK R1731...
  • Page 83 TO DIR/PLD PAGE 15 TO SUBCPU R1945 CLKO. R1946 33x4 R1946 33x4 33x 4 SDA10. R1946 R1946 33x4 C1969 0.1/1 0 1 VCC R1947 33x4 SDWE. ED0. 2 DQ0 ED15. R1974 68x4 DQ15 R1970 68x4 C1970 R1947 33x4 ..CKE 0.1/1 0 3 VCC 33x 4 RAS.
  • Page 84 TO DIR/PLD TO SUB CPU PAGE 16 C9151 1000P C9152 1000P C9153 DA+5V DA+7V DA-7V 1000P C9154 1000P R2135 R2136 C9155 C9059 C9074 C9068 C9088 1000P OPEN OPEN OPEN OPEN C9073 C9093 DA+5V OPEN OPEN DGND DAGND A+7V C9078 C9098 DA+7V C2107 0.1/10...
  • Page 85 TO MAIN CPU PAGE 17 USB TCC8600 AVR1911/791 ONLY NET3.3V DIGITAL NET1.8V SUPPLY DGN D R2311 4.7K R2348 R2312 4.7K U2305 C2356 C2359 AK4424ET 1/10 1/10 C2360 JTAG 4.7/6.3 N2301 L2303 OPEN VSS2 R2332 BLM21PG221 TCKUSB CVDD MCLKUSB GND_D1 TDOUSB BCKoUSB MCLK BICK...
  • Page 86 PAGE 18 L2513 BLM21PG221 L2514 BLM21PG221 L2515 BLM21PG221 N2501 5P-BASE(SMW250) D5.2V D3.3V D5.2V DGN D DGN D AVR1911/791 ONLY L2516 11A121 MAINPOWER D3.3V L2501 L2507 500mA BLM21PG221 20 PVIN VOUT OPEN D3.3V 430mA 430mA 21 PVIN NET3.3V VOUT Q2507 500mA TCC8600 U2504 22 NC...
  • Page 87 TO DIGITAL SUPPLY PAGE 19 EMI FILTER MP=PATARN SHORT L2813 OPEN L2814 SWM5V OPEN L2815 OPEN REMOTE3.3V L2816 OPEN SWM3.3V M3.3V L2817 OPEN L2818 OPEN L2819 OPEN L2820 N2708 OPEN 25P-SOCKET(C125Z2) L2721 OPEN D5V(MX) SWM5V(MX) SWM3.3V M3.3V DA+5V D/MGN D DA+7V SIR_MO5/RDSDA L2790...
  • Page 88 TO DIGITAL CONNECT PAGE 20 R2925 R2926 OPEN R2927 OPEN R2928 OPEN DIGITAL SUPPLY SWM3.3V REMOTE3.3V N2901 SWM5V 4P-FFCs R2937 4.7K M3.3V DGND 232MO 232I_MO COMP.SDET 232MI 232O_MI Z1VSIG.DET Z1SSIG.DET R2902 CEC_POWER R2903 DV_POWER2 DA_POWER DV_POWER1 232IMO3 DA_POWER DV_POWER1 232OMI3 DV_POWER2 R2906 R2905/R291 0...
  • Page 89 TO_LEVEL_CHG PAGE 21 SWM3.3V R3151 4.7K M 3.3V R3152 4.7K DGND M AINPOWER MAINPOWER M _RESET M_RESET BDOWN BDOWN U3103 MICDET R1EX24256ASAS0A Q3101 P11/D9 P43/A1 9 RELAY_H/P KRC102S R3138 4.7Kx 4 CLKSIMO P10/D8 P44/A20 CLKSIMO RELAY_H SIMO P07/D7 P45/A21 SIMO MUTE_Z2 ACKSIMO P06/D6...
  • Page 90 TO HDMI RX PAGE 22 TO I/P TO HDMI TX SCPU5V SCPU3.3V R3325 4.7K DGND R3326 4.7K SUBBDOWN SUBBDOWN SUBTDO DV_POWER1 SUBTDO SUBTDI CEC_POWER SUBTDI SUBTMS SUBTMS SUBTCK SUBTCK MPLDCSMAIN MPLDCSMAIN MPLDDATA MPLDDATA MPLDCLK MPLDCLK PLDAERR. PLDAERR. DIRCLK DSPMOSI R3301 DIRCLK DIRCE COMP.SDET...
  • Page 91 PAGE 23 FRONT 1/1 V.AUX B'D BLOCK R-NO AVR16/1911 AVR2311 BLOCK A R107/R108 U100 18-ST-13GINK R115/R117 100K NOT USE R100 R101 R116/R118 Q107/Q108 KTC3875S HDMI RESTORER AUDYSSEY SLEEP R105/112 DIGITAL+ STEREO AUTO R103 ZD100 R102/104 MULTEQ XT C100 OPEN MTZ5.1B 10/50 R120/123 1/2.2...
  • Page 92 WIRING DIAGRAM AC CORD AV B'D SPK B'D HDMI B'D FRONT CNT B'D MAIN TRANS S1 TAP REG CNT B'D S2 , S4 TAP REG B'D 7CH-AMP B'D 2P WIRE(SBL/R) SELECTION B'D VOLUME B'D FRONT B'D (S5,S6) V.AUX B'D USB B'D H/P B'D 5P WIRE...
  • Page 93 EXPLODED VIEW s 77 X6 G X3 D X3 A X23 G X3 C X1 18 -1 16 -1 T X5 32 X5 18 -2 T X5 T X6 AVR791 E X21 H x4 G X2 AVR1911 BKE2/SPE2 AVR791 BKEA Q X5 (HDMI) A X23...
  • Page 94 791BKEA 963412000570D KNOB FUNCTION(KD) 5080211761000SZ PCB 7CH-AMP ASSY 1911BKE3 7025HK0922010 412510003031D KNOB FUNCTION 5087211901000S PCB 7CH-AMP ASSY 791BKEA 7025HK0922020 00D9630362109 BADGE DENON 5630210028300S PCB 7CH-AMP ASSY 1911SPE1C 7025HK0922040 00D9630362202 BADGE DENON 5630210028400S PCB 7CH-AMP ASSY 1911SPE2 7025HK0922050 963402009830D PANEL FRONT...
  • Page 95 Ref. No. Part No. Part Name Remarks Q'ty Ref. No. Part No. Part Name Remarks Q'ty 00D9630365002 BUTTON WIN 3KEY 5097213371000S 1911SPE2,1911BKE2,791BKEA 00D9630048307 SCREW +2S 4*8 B-TYPE(DOT) BK/BH 1500040083B10S : for INLET 00D9630365301 BUTTON WIN 3KEY 5097213371110S 00D9630048307 SCREW +2S 4*8 B-TYPE(DOT) BK/BH BK : for CABINET TOP 1500040083B10S 963411003400D BUTTON WIN 3KEY C...
  • Page 96 6007211730210S WARRANTY CARD 1911BKE3,791BKE3 5727000003002S WARRANTY CARD 1911SPE1C 5777001670010S CARD S.S LIST 577700162001GS BATTERY DRY (AA) G670001R50190S LABEL DENON CONTROL 5507000007000S PE SHEET SET 6327040059000S 324010001003D MIC CONDENSER M040000310040S PAD BOX BACK 6240210730000S 963611001490S CORD ASSY 791BKEA L068250100070S E2,EA model...
  • Page 97 SEMICONDUCTORS Only major semiconductors are shown, general semiconductors etc. are omitted to list. The semiconductor which described a detailed drawing in a schematic diagram are omitted to list. 1. IC's R5F64169DFD (HDMI :U3102) (Note 1) IIO0_0 / IIO1_0 / D8 / P1_0 P4_4 / CS3 / A20 / CTS6 / RTS6 / SS6 AN0_7 / D7 / P0_7 P4_5 / CS2 / A21 / CLK6...
  • Page 98 R5F64169DFD Terminal Functions Pin Name Synbol I/O Type Pullup STBY Stop Function 1 P96/(TXD4) O/L NC 2 P95/(CLK4) HDRADIO RST/TU RST/ST IND O/L HDRADIO/TUNER KST-MW/KST-MT control 3 P94/(CTS4)/TB4IN O/(I) /M3.3 4 P93/(CTS3)/TB3IN O/(I) 5 P92/TXD3/SDA3 HDRADIO MOHI/TU SDIO/TU SDA O/L HDRADIO/TUNER KST-MW/KST-MT control 6 P91/RXD3/SCL3 HDRADIO MIHO/TU SCLK/TU SCL I/(0) O/L HDRADIO/TUNER KST-MW/KST-MT control...
  • Page 99 Pin Name Synbol I/O Type Pullup STBY Stop Function 61 P130 SCPU POWER O/L SUB CPU POWER ON/OFF switch(H:ON) 62 P53/(BCLK) 63 P52/(RD) 64 P51/(WR1)/(BC1) 65 P50/(WR0)/(WR)/CE CE Rewrite boot program start : H input set 66 P127 VSEL A SW3VPu Master Volume rotation detect input (Rotary encoder) 67 P126...
  • Page 100 Pin Name Synbol I/O Type Pullup STBY Stop Function SUB UPDATE mode control (DPMS/DENON WRITTER). 125 P155/(RXD6) SUB UPDATE Normal:L. SUB rewriting mode:H(SUB reset) MINI JACK connection detection pin for DOCK connection 126 P154/(TXD6) iPod DET SW3VPu (Connection:H) 127 P153...
  • Page 101 R5F3650KNFB (HDMI : U3301)
  • Page 102 ABT RST IP CONV(ABT2015) Reset 20 P80/(RXD5) 21 P77/(CLK5) SUB TDO PLD rewriting control (JTAG) A PLD control pin/ DENON WRITTER 22 P76/(TXD5) A PLD CS /"D/M" /MITSUBISHI rewritten for determining (DW :L) 23 P75 A PLD DATA A PLD control pin...
  • Page 103 Pu/Pd PURE Pin Name Synbol I/O Type Det P.OFF Function (Int.) (Ext.) STBY 58 P32 DAC MDI DAC control pin (ASK4358) 59 P31 DAC MC DAC control pin (ASK4358) 60 VCC +3.3V 61 P30 DAC MS DAC control pin (ASK4358) 62 VSS 63 P27 DAC RST...
  • Page 104 SECTION 5: PIN AND PACKAGE INFORMATION This section shows the pinout of the ADV7511 100-lead LQFP package. This section also contains a brief description of the different pins as well as the mechanical drawings 100-lead LQFP configuration (top view - not to scale) Figure 6 ADV7511BSTZ (HDMI : U1501) PIN 1...
  • Page 105 LC89058W-E (HDMI : U1706) 35 34 33 32 31 30 29 28 27 26 25 SDIN SLRCK SBCK RDATA XMODE RLRCK LC89058W-E DV DD DGND DGND DV DD RBCK GPIO0 GPIO1 RMCK GPIO2 AGND GPIO3 AV DD RXOUT2 * : Pull-down resistor internal at no selection Pin Functions RXOUT1 RX0-6 input S/PDIF through output pin 1...
  • Page 106 LC89058W-E Continued from preceding page. Pin No. Name Function DGND Digital GND DV DD Digital power supply (3.3V) XMCK Oscillation amplifier clock output pin XOUT Output pin connected to the resonator External clock input pin, connected to the resonator (12.288MHz/24.576MHz) DV DD Digital power supply DGND...
  • Page 107 ADSP21367KSWZ2A (HDMI : U1901) PIN 1 INDICATOR TOP VIEW (PINS DOWN) ADSP21367KSWZ2A Terminal Function Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal DATA28 DATA27 IOVDD IOVDD ADDR0 SDCAS IOVDD ADDR2 SDRAS DATA26 ADDR1 SDCKE DATA25 ADDR4 SDWE DATA24 ADDR3...
  • Page 108 W9864G2IH W9864G2IH-6 (HDMI : U1902) 4. PIN CONFIGURATION                                 ...
  • Page 109 W9864G2IH-6 Block diagram CLOCK BUFFER CONTROL SIGNAL GENERATOR COMMAND DECODER COLUMN DECODER COLUMN DECODER CELL ARRAY CELL ARRAY BANK #0 BANK #1 MODE REGISTER SENSE AMPLIFIER SENSE AMPLIFIER ADDRESS BUFFER DATA CONTROL CIRCUIT BUFFER DQ31 COLUMN REFRESH COUNTER COUNTER DQM0~3 COLUMN DECODER COLUMN DECODER CELL ARRAY...
  • Page 110 W9864G2IH W9864G2IH-6 Pin description 5. PIN DESCRIPTION PIN NUMBER PIN NAME FUNCTION DESCRIPTION Multiplexed pins for row and column address. Row address: A0−A10. Column address: A0−A7. 24, 25, 26, 27, 60, 61, 62, A0−A10 Address A10 is sampled during a precharge command to 63, 64, 65, 66 determine if all banks are to be precharged or bank selected by BS0, BS1.
  • Page 111 EN29LV160BB (HDMI : U1903) Bottom boot Sector EN29LV160BT (HDMI : U2301) Top boot Sector BYTE# DQ15/A-1 DQ14 DQ13 Standa rd DQ12 TSOP RESET# DQ11 RY/BY# DQ10 EN29LV160BT EN29LV160BB/ Block Diagram Block Diagram RY/BY# DQ0-DQ15 (A-1) Block Protect Switches Erase V oltage Generato r Input/Output Buffers State Control...
  • Page 112 TCC8600 Package TCC8600 (HDMI : U2304) READY / MODE0 UART1RTSn / GPIO_D20 GPIO_B9 / UART0RXD GPIO_D21 GPIO_B8 / UART0TXD TDI / GPIO_J1 ND_nWE / GPIO_B7 TMS / GPIO_J2 GPIO_B6 / IDE_nCS1 TCK / GPIO_J3 TDO / GPIO_J0 VDDI nTRST / GPIO_J4 XTIN SPDIFTX / GPIO_A0 XTOUT...
  • Page 113 TCC8600 Pin Description TCC8600 Pin Description Table 2.1 TCC8600 Pin Description Signal Name Pin# Type Description – TCC8600 SD_CLK SDRAM Clock SD_CKE / GPIO_B[0] SDRAM Clock Enable signal. Active high. / GPIO_B[0] SD_nCS / GPIO_B[1] Chip select signal for SDRAM, Active low / GPIO_B[1] XA[21] / DQM[0] External Bus Address Bit [21] / Data I/O Mask 0 XA[20] / DQM[1]...
  • Page 114 Doc. No AS-C-8600X-EA TCC8600-00X-EAR Rev. No 32-bit RISC Microprocessor for Host Player Page 9 of 30 Signal Name Pin# Type Description – TCC8600 GPIO_A[15] / EXINT[3] GPIO_A[15] / External Interrupt Request [3] GPIO_A[14] / EXINT[2] GPIO_A[14] / External Interrupt Request [2] GPIO_A[13] / EXINT[1] GPIO_A[13] / External Interrupt Request [1] GPIO_A[12] / EXINT[0]...
  • Page 115 Doc. No AS-C-8600X-EA TCC8600-00X-EAR Doc. No AS-C-8600X-EA TCC8600-00X-EAR Rev. No Rev. No 32-bit RISC Microprocessor for Host Player Page 10 of 30 32-bit RISC Microprocessor for Host Player Page 10 of 30 Signal Name Pin# Type Description – TCC8600 Signal Name Pin# Type Description –...
  • Page 116 Doc. No AS-C-8600X-EA TCC8600-00X-EAR Rev. No 32-bit RISC Microprocessor for Host Player Page 11 of 30 Pin# Signal Name Type Description – TCC8600 XA[16] / SD_nRAS / ND_ALE External Bus Address Bit [16] / SDRAM RAS signal / ALE for NAND Flash XA[17] / ND_CLE External Bus Address Bit [17] / CLE for NAND Flash XA[18] / DQM[0]...
  • Page 117 Doc. No AS-C-8600X-EA TCC8600-00X-EAR Rev. No 32-bit RISC Microprocessor for Host Player Page 12 of 30 Pin# Signal Name Type Description – TCC8600 GPIO_D[17] GPIO_D[17] / I2C SCL GPIO_D[18] / UART1TXD GPIO_D[18] / UART1 TX Data. Internal pull-up resistor enabled at reset. GPIO_D[19] / UART1RXD GPIO_D[19] / UART1 RX Data.
  • Page 118 GNDQ DQ10 TIONS GNDQ IS42S16400F IS42S16400F-6TL (HDMI : U1303, U2302) LDQM UDQM IS45S16400F DQ15 GNDQ PIN DESCRIPTIONS GENERAL DESCRIPTION DQ14 A0-A11 Row Address Input DQ13 Write Enab The 64Mb SDRAM is a high speed CMOS, dynamic other three banks will hide the precharge cycles and provide A0-A7 Column Address Input GNDQ...
  • Page 119 AK4424ET (HDMI : U2305) AK4424ET Block Diagram...
  • Page 120 AK4358VQ -40∼+85°C 48pin LQFP AKD4358 評価ボード ピン配置 AK4358VQ (HDMI : U2102) AVSS LOUT1- AVDD LOUT1+ DZF3 VREFH DZF2 ROUT4+ AK4358VQ DZF1 ROUT4- DIF0 CAD0 ACKSN DSDR3 Top View DSDL3 BICK DSDR2 MCLK DSDL2 DSDR1 DVDD DVSS DSDL1 ASAHI KASEI [AK4358] PIN/FUNCTION AK4358VQ Pin Function Pin Name...
  • Page 121 DSDL4 DAC4 DSD Lch Data Input Pin DSDR4 DAC4 DSD Rch Data Input Pin DSDL1 DAC1 DSD Lch Data Input Pin DSDR1 DAC1 DSD Rch Data Input Pin DSDL2 DAC2DSD Lch Data Input Pin DSDR2 DAC2 DSD Rch Data Input Pin DSDL3 DAC3 DSD Lch Data Input Pin DSDR3...
  • Page 122 CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 14-Input selector And Tone control BLOCK DIAGRAM AND PIN CONFIGURATION (TOP VIEW) R2A15220FP (AV : IC801) TRER MUTE AVEE AVCC BASSR2 AVEE BASSR1 ADCL 0/-6/-12/-18dB ADCR TREL SUB2 AGND BASSL2 MAIN INR1 BASSL1 Bass/ Treble 0~-95dB, +42~0dB -14~+14dB...
  • Page 123 R2A15220FP R2A15220FP CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 14-Input selector And Tone control PIN DESCRIPTION R2A15220FP Pin Function PIN No. Function Name FROUT,FLOUT, 22,20, COUT,SWOUT, 16,14, Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel SROUT, SLOUT, 10, 8, SBROUT,SBLOUT 2, 100 23,19, FR Pre-out,FL Pre-out, Pre-output pin of FL/FR/SL/SR/SBL/SBR channel 11, 7, SR Pre-out, SL Pre-out,...
  • Page 124 EPM3032A (HDMI : U1707) LC74781 (AV : IC810) Pin 34 Pin 1 I/O/TDI I/O/TDO EPM3032A EPM3064A I/O/TMS I/O/TCK Pin 12 Pin 23 NJM2586AM (AV : IC811)
  • Page 125 2. FL DISPLAY FLD (18-ST-13GINK) (FRONT : U100) PIN CONNECTION GRID ASSIGNMENT...
  • Page 126 ANODE CONNECTION...
  • Page 127 PARTS LIST OF P.C.B. UNIT s zParts for which "nsp" is indicated on this table cannot be supplied. zThe parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. Note: The symbols in the column "Remarks" indicate the following destinations. 1911E3 : U.S.A.
  • Page 128 Ref. No. Part No. Part Name Remarks Q'ty D432-434 00D2760401905 D,SWITCHING 1SS133T K000013300520S D438-440 00D2760401905 D,SWITCHING 1SS133T K000013300520S ZD401 00D2760643983 D,ZENER MTZJ5.1A K06005R134520S ZD402,403 00D9630047502 D,ZENER MTZJ3.3B K06003R344520S ZD404 00D2760643983 D,ZENER MTZJ5.1A K06005R134520S ZD405,406 00D9630047502 D,ZENER MTZJ3.3B K06003R344520S ZD407 00D2760643983 D,ZENER MTZJ5.1A K06005R134520S ZD408,409 00D9630047502 D,ZENER MTZJ3.3B...
  • Page 129 Ref. No. Part No. Part Name Remarks Q'ty R538 R,FIXED 1WJ-5.6K N113135656220S R545 R,METAL FILM 22-J,1W C060022065050S R551 R,METAL FILM 100-J,1W C060010165060S R554,555 R,FIXED 2WJ-0.47 N113136647820S R561,562 R,FIXED 2WJ-0.47 N113136647820S R564 R,METAL FILM 3.3K-J,1W C060033265050S R569 R,METAL FILM 22-J,1W C060022065050S R571 R,METAL FILM 1.2K-J,1W C060012265050S...
  • Page 130 Ref. No. Part No. Part Name Remarks Q'ty C413 C,CERAMIC X7R2200PF-K/50V D011222777200S C415,416 00D9630234302 C,ELECT 10UF-M/100V D04010008C050S C418 C,CERAMIC 0.1UF-K/50V D011104577160S C419 00D9630324005 C,ELECT 100UF-M/100V D04010108C240S C420 00D9630234506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S C421 C,CERAMIC 100PF-J/50V D010101167160S C422 C,CERAMIC SL220PF-J/500V D00022106D051S C423 00D9630234506 C,ELECT 47UF-M/50V (Pb Free)
  • Page 131 Ref. No. Part No. Part Name Remarks Q'ty C498 C,CERAMIC 0.1UF-K/50V D011104577160S C500 00D9630234506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S C501 C,CERAMIC 100PF-J/50V D010101167160S C502 C,CERAMIC SL220PF-J/500V D00022106D051S C503 00D9630234506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S C504 00D9630224503 C,ELECT 22UF-M/50V D040220087060S C506 00D9609009937 C,ELECT 100UF-M/50V D040101087060S C508...
  • Page 132 PCB SPK ASS'Y Ref. No. Part No. Part Name Remarks Q'ty SEMICONDUCTORS GROUP z IC100 963239010480S IC PC123X2YFZ (DIP4P SHARP) K614123000010S z IC102 231010091708S IC TOP258MG G200258000010S IC116 212050010508S IC KIA2431AP J126243118010S Q1-5 00D9630120704 TR KRA102S(PB) J520010200210S Q8-12 00D9630120801 TR 2SC KRC102S (NB) J522010200210S D1-5 00D9630355401 D,SWITCHING KDS4148U...
  • Page 133 Ref. No. Part No. Part Name Remarks Q'ty C,CERAMIC 2200PF-K/50V D011222777160S C3,4 C,FILM MI-0.047UF-J/50V D020473167050S C,CERAMIC 2200PF-K/50V D011222777160S C,FILM MI-0.047UF-J/50V D020473167050S C,CERAMIC 2200PF-K/50V D011222777160S C8,9 C,FILM MI-0.047UF-J/50V D020473167050S C,CERAMIC 2200PF-K/50V D011222777160S C11,12 C,FILM MI-0.047UF-J/50V D020473167050S C,CERAMIC 2200PF-K/50V D011222777160S C,FILM MI-0.047UF-J/50V D020473167050S C,CERAMIC 2200PF-K/50V D011222777160S...
  • Page 134 Ref. No. Part No. Part Name Remarks Q'ty CN,WIRE 230MM/5P L000231052050S CN,WIRE 670MM/2P L000671020010S CN,WIRE 2MM 170MM/10P L002171102620S CN.WAFER 3CKT L108353280360S CP12 CN.FPC 1.25MM 19P L131019100010S CP22 CN.WAFER 5P L101100040510S CX100 CN.WAFER 7.92MM 1911E3, 1911E1C, 791E3 L108202000220S CX102 CN.WAFER 7.92MM L108353280290S CX104 CN.WAFER 5P...
  • Page 135 PCB REG_CNT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty SEMICONDUCTORS GROUP 963239001880S IC AZ4580M 1911E3 J121458000020S IC103 00D2630553006 IC NJM7805FA J126780500130S IC104 00D2630554005 IC NJM7905FA J126790500020S IC105 00D2630553006 IC NJM7805FA J126780500130S IC106 00D2630810008 IC NJM7808FA J126780800030S IC107 00D2630503001 IC NJM7908FA J126790800020S IC108 963239003420S IC NJM2388F05...
  • Page 136 Ref. No. Part No. Part Name Remarks Q'ty C137 00D9630234205 C,ELECT 10UF-M/50V 1911E2,1911E1C,791E3,791EA D040100087070S C139,140 963134011280S C,ELECT 470UF-M/25V 1911E2,1911E1C,791EA D040471084060S C142-144 C,FILM 0.1UF-J/50V D020104167050S C146-148 C,FILM 0.1UF-J/50V D020104167050S OTHERS PARTS GROUP BKT101 BRACKET 0.8t/SCREW 4010210196100S CLAMP101 CLAMP WIRE(SOLDER) 4330000120000S CN10 CN,WAFER 11P L109012521110S CN11...
  • Page 137 PCB FRONT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty SEMICONDUCTORS GROUP IC100 963239001880S IC AZ4580M J121458000020S z IC101 00D9600195808 IC ICP-N15 J120001500030S IC102 963239001880S IC AZ4580M J121458000020S Q100,101 00D9630121509 TR KTC3875S J522038750210S Q102 00D9600133103 TR KSA916Y J5000916Y0050S Q106 00D9600285006 TR KRC104S (ND) J522104S00210S Q107,108...
  • Page 138 Ref. No. Part No. Part Name Remarks Q'ty C119 C,FILM 0.1UF-K/250V D02010407H080S C120 C,CERAMIC 330PF-J/50V D010331167160S C121 C,CERAMIC 0.1UF-K/50V D011104577160S C122 00D9630234205 C,ELECT 10UF-M/50V D040100087070S C123 00D9630293602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S C124-126 C,CERAMIC 100PF-J/50V D010101167160S C127 C,CERAMIC0.047UF-K/25V D011473774161S C129 00D9630293602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S C130...
  • Page 139 Ref. No. Part No. Part Name Remarks Q'ty CN102 CN,WIRE 2MM 450MM/5P L002451050120S CP100 CN.WAFER 5P L101200100510S CP100_1 5268-07A 7P ANGLE L102526800700S CP102 CN.WAFER 2.0MM 8P L101100030810S CP103,104 CN.WAFER 8P L101100040810S CP105 CN.WAFER 2.0MM 8P L101100030810S G101 RING,TER WIRE 100MM/1P 8410101010240S JACK100 00D9630367802 JACK,D3.5 EARPHONE...
  • Page 140 PCB AUDIO_VIDEO ASS'Y Ref. No. Part No. Part Name Remarks Q'ty SEMICONDUCTORS GROUP IC801 235810045600S IC R2A15220FP J084152200010S IC804 00D2623446900 IC TC4052BFT J040405201010S IC805 232810005504S IC BD7628F-E2 J127762800010S IC806 963239010400S IC MM74HC4053MTC J040744053050S IC807,808 232810005504S IC BD7628F-E2 J127762800010S IC809 00D2623445901 IC TC4051BFT J040405101010S IC810 00D9630116307 IC LC74781-9013-E...
  • Page 141 Ref. No. Part No. Part Name Remarks Q'ty C837 C,CERAMIC 330PF-J/50V D010331167160S C838,839 00D9630293709 C,ELECT 100UF-M/10V D040101082070S C840 00D9630234205 C,ELECT 10UF-M/50V D040100087070S C842 C,CERAMIC 330PF-J/50V D010331167160S C844 00D9630234205 C,ELECT 10UF-M/50V D040100087070S C845 00D9630333203 C,ELECT 100UF-M/16V D040101083090S C846 00D9630293709 C,ELECT 100UF-M/10V D040101082070S C847 C,CERAMIC 330PF-J/50V...
  • Page 142 Ref. No. Part No. Part Name Remarks Q'ty C933 00D9630293602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S C934 00D9630293709 C,ELECT 100UF-M/10V D040101082070S C935,936 C,CERAMIC 0.01UF-K/50V D010103777160S C937 00D9639005862 C,ELECT 47UF-M/16V D040470083080S C938,939 C,CERAMIC COG24PF-J/50V D010240167160S C940 C,CERAMIC 0.022UF-Z/50V D011223597160S C941 C,CERAMIC 0.01UF-K/50V D010103777160S C942,943 C,CERAMIC 20PF-J/50V...
  • Page 143 PCB HDMI ASS'Y Ref. No. Part No. Part Name Remarks Q'ty SEMICONDUCTORS GROUP U1001 IC ADV7840 J040784005510S U1301 00D9630244907 IC SN74LV14APWR J040741400180S U1302 IC ABT1030 J080103005510S IC MEMORY-RAM NOTE : U1303 J001421640060S (IS42S16400F-6TL) When update Firmware, please confirm a last U1501 963239010410S IC ADV7511BSTZ-225 J040751100010S...
  • Page 144 Ref. No. Part No. Part Name Remarks Q'ty Q2302,2303 00D9630120801 TR 2SC KRC102S (NB) J522010200210S Q2304 963219004200S CHIP FDC608PZ P-CH J543608000010S Q2305 00D9630120704 TR KRA102S(PB) J520010200210S Q2507-2514 00D9630121402 TR KRA104S J520010400210S Q2515-2522 963219004200S CHIP FDC608PZ P-CH J543608000010S Q2523-2524 00D2710326904 TR 2SA 2SA1954 J520195405510S Q2525 963209011260S D,SWITCHING DAN202U...
  • Page 145 Ref. No. Part No. Part Name Remarks Q'ty CAPACITORS GROUP C1001-1007 C,CERAMIC 0.1UF-K/50V D011104177101S C1008 C,CERAMIC 0.01UF-K/25V D011103774102S C1009-1012 C,CERAMIC 0.1UF-K/50V D011104177101S C1013,1014 C,CERAMIC 12PF-J/50V D011120167101S C1015,1016 C,CERAMIC 15PF-J/50V D011150167101S C1017 C,CERAMIC 0.1UF-K/50V D011104177101S C1018 C,CERAMIC 1000PF-K/50V D011102177101S C1019 C,CERAMIC 4.7UF-K/6.3V D011475571160S C1022-1029 C,CERAMIC 0.1UF-K/50V...
  • Page 146 Ref. No. Part No. Part Name Remarks Q'ty C2728 C,CERAMIC 0.1UF-K/16V D011102177101S C2729,2730 C,CERAMIC 470PF-K/50V D011471177101S C2901-2903 C,CERAMIC 0.1UF-K/16V D011102177101S C2906-2908 C,CERAMIC 0.1UF-K/16V D011102177101S C2909 C,CERAMIC 0.01UF-K/25V D011103774102S C2910 C,CERAMIC 0.1UF-K/16V D011102177101S C2911-2914 C,CERAMIC 0.01UF-K/25V D011103774102S C3101 C,CERAMIC 0.1UF-K/16V D011102177101S C3102 C,CERAMIC 1000PF-K/50V 1911E3...
  • Page 147 Ref. No. Part No. Part Name Remarks Q'ty C1313,1314 C,CERAMIC 4.7UF-K/6.3V D011475571160S C1315 C,CERAMIC 0.1UF-K/50V D011104177101S C1316,1317 C,CERAMIC 4.7UF-K/6.3V D011475571160S C1318-1320 C,CERAMIC 0.1UF-K/50V D011104177101S C1321,1322 C,CERAMIC 1000PF-K/50V D011102177101S C1323-1338 C,CERAMIC 0.1UF-K/50V D011104177101S C1339-1341 C,CERAMIC 1000PF-K/50V D011102177101S C1342 C,CERAMIC 0.1UF-K/50V D011104177101S C1343 C,CERAMIC 4.7UF-K/6.3V D011475571160S...
  • Page 148 Ref. No. Part No. Part Name Remarks Q'ty C2132,2133 C,CERAMIC 0.01UF-K/50V D011103777160S C2135 C,CERAMIC 4.7UF-K/6.3V D011475571160S C2136 963134000450S C,ELECT 100UF-MVG/16V D050101083660S C2137,2138 C,CERAMIC X7R3900PF-K/50V D011392777160S C2139 C,CERAMIC X7R2700PF-K/50V D011272777160S C2140-2142 C,CERAMIC X7R3900PF-K/50V D011392777160S C2143,2144 C,CERAMIC X7R2700PF-K/50V D011272777160S C2145-2160 C,CERAMIC 470PF-J/50V D010471167160S C2161,2162 963134000450S C,ELECT 100UF-MVG/16V...
  • Page 149 Ref. No. Part No. Part Name Remarks Q'ty N2501 CN.WAFER 5P L102050010040S N2701 CN,WAFER 19P L109012521910S N2702 CN,WAFER 17P L109012521710S N2704 CN,WAFER 19P L109012521910S N2705 CN,WAFER 17P L109012521710S N2706 CN.WAFER 5P L101200100510S N2707 CN.WAFER 33P L109012523310S N2708 CN,WAFER 25P L109012522510S N2709 CN,WAFER 11P L109012521110S...
