Owner's Manual

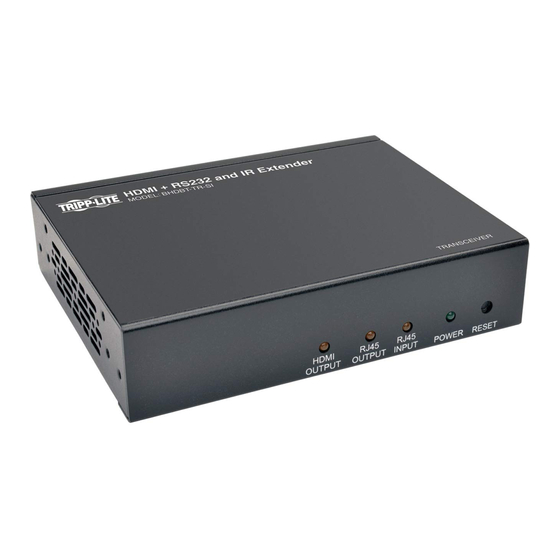

HDBaseT HDMI Over Cat5/Cat6
Extenders
Extender Kit Models:
BHDBT-K-SI, BHDBT-K-SI-ER, BHDBT-K-SI-LR
Matrix Transmitter Models:
BHDBT-T-SI-4X2, BHDBT-T-SI-4X4
Transceiver Models:
BHDBT-TR-SI, BHDBT-TR-SI-ER, BHDBT-TR-SI-LR
Receiver Models:
BHDBT-R-SI, BHDBT-R-SI-ER, BHDBT-R-SI-LR
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an ISOBAR6ULTRA
surge protector—a $50 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2015 Tripp Lite. All rights reserved.
All trademarks are the sole property of their respective owners.
1
15-01-181-933418.indd 1
2/6/2015 3:33:55 PM
Advertisement
Table of Contents
Related Manuals for Tripp Lite BHDBT-K-SI
Summary of Contents for Tripp Lite BHDBT-K-SI
- Page 1 You could also win an ISOBAR6ULTRA surge protector—a $50 value! www.tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support Copyright © 2015 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. 15-01-181-933418.indd 1 2/6/2015 3:33:55 PM...
-
Page 2: Table Of Contents
Table of Contents Package Contents Product Features Optional Accessories Mounting Instructions Installation Standard Extender Kit Installation Extender Kit with Transceiver Installation Matrix Transmitter Installation RS-232 Serial Control (Matrix Transmitter Units Only) Troubleshooting Warranty and Product Registration Regulatory Compliance Package Contents Transmitter (T), Transceiver (TR), Receiver (R), Kit (K) External Power Supply (1, 2) -
Page 3: Product Features
Product Features • Extends HDMI audio/video, RS-232 Serial and IR Control Signals over Cat5/6 cabling. • Supports 7.1-channel surround sound, DTS-HD and Dolby True HD audio. • Uses a 39 KHz IR frequency. • Supports RS-232 Serial full-duplex baud rates up to 3 Mbps. •... - Page 4 Product Features Model A. BHDBT-K-SI 130 ft. 115 ft. 230 ft. 200 ft. (40 m) (35 m) (70 m) (60 m) B. BHDBT-K-SI-ER 500 ft. 500 ft. (150 m) (150 m) C. BHDBT-K-SI-LR 328 ft. 230 ft. 328 ft. 328 ft.
-
Page 5: Optional Accessories
Optional Accessories • N001-Series Cat5 Patch Cables • N022-01K-GY Cat5 24 AWG Solid Wire Bulk Cable – 1,000 ft. • N202-Series Cat6 24 AWG Solid Wire Patch Cables • N222-01K-BL Cat6 24 AWG Solid Wire Bulk Cable – 1,000 ft. •... -
Page 6: Installation
HDMI cable, you must not exceed a 16-foot length. 5. The transmitter and receiver included in each kit are compatible with each other only. You cannot mix and match transmitters and receivers from different kits. For example, a BHDBT-K-SI transmitter will not work with a BHDBT-K-SI-ER receiver. - Page 7 (e.g., Blu-Ray player, TV). 6. Connect the external power supply to the local transmitter unit and plug it into a Tripp Lite Surge Protector, Uninterruptible Power Supply (UPS) or Power Distribution Unit (PDU). 7. Connect the RJ45 Output port on the local transmitter unit to the RJ45 Input port on the remote receiver unit using Cat5e/6/6a cable.
-
Page 8: Extender Kit With Transceiver Installation
Higher gauge cabling such as 26 AWG has a more limited transmission capability than lower gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling. Extended lengths of 23 AWG solid wire Cat6a cable is available from Tripp Lite as a custom order. - Page 9 8. (Optional) Connect the HDMI monitor to the HDMI Output port on the transceiver unit. 9. Connect the external power supply to the transceiver unit and plug it into a Tripp Lite Surge Protector, Uninterruptible Power Supply (UPS) or Power Distribution Unit (PDU).
-
Page 10: Matrix Transmitter Installation
Higher gauge cabling such as 26 AWG has a more limited transmission capability than lower gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling. Extended lengths of 23 AWG solid wire Cat6a cable is available from Tripp Lite as a custom order. - Page 11 RS-232 ports you will be using. 11. Connect the external power supply to the transmitter unit and plug it into a Tripp Lite Surge Protector, Uninterruptible Power Supply (UPS) or Power Distribution Unit (PDU). 12. Connect the RJ45 port marked Output 1 on the transmitter unit to the RJ45 Input port on a receiver unit using Cat5e/6/6a cable.
- Page 12 (e.g., Blu-Ray player, TV). 17. Connect the external power supply to the remote receiver unit and plug it into a Tripp Lite Surge Protector, Uninterruptible Power Supply (UPS) or Power Distribution Unit (PDU). 18. Repeat steps 12 through 17 for each additional RJ45 Output port on the transmitter that you will be connecting to a receiver unit.
-
Page 13: Rs-232 Serial Control (Matrix Transmitter Units Only)
RS-232 Serial Control (Matrix Transmitter Units Only) Before using RS-232 serial control, you must first access Terminal Emulation Software and update the COM port settings. 1. Go to the Setup drop-down menu and 3. Next, you will need to configure your select the Serial Port option. -
Page 14: Troubleshooting
To achieve maximum distance and resolution, 24 AWG solid wire Cat5e/6 cable or 23 AWG solid wire Cat6a cable must be used. Tripp Lite’s N202-Series Cat6 cables are made with 24 AWG solid wire, as are the N022- 01K-GY (Cat5) and N222-01K-GY bulk cables. -
Page 15: Warranty And Product Registration
1-Year Limited Warranty TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. -
Page 16: Regulatory Compliance
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment.
