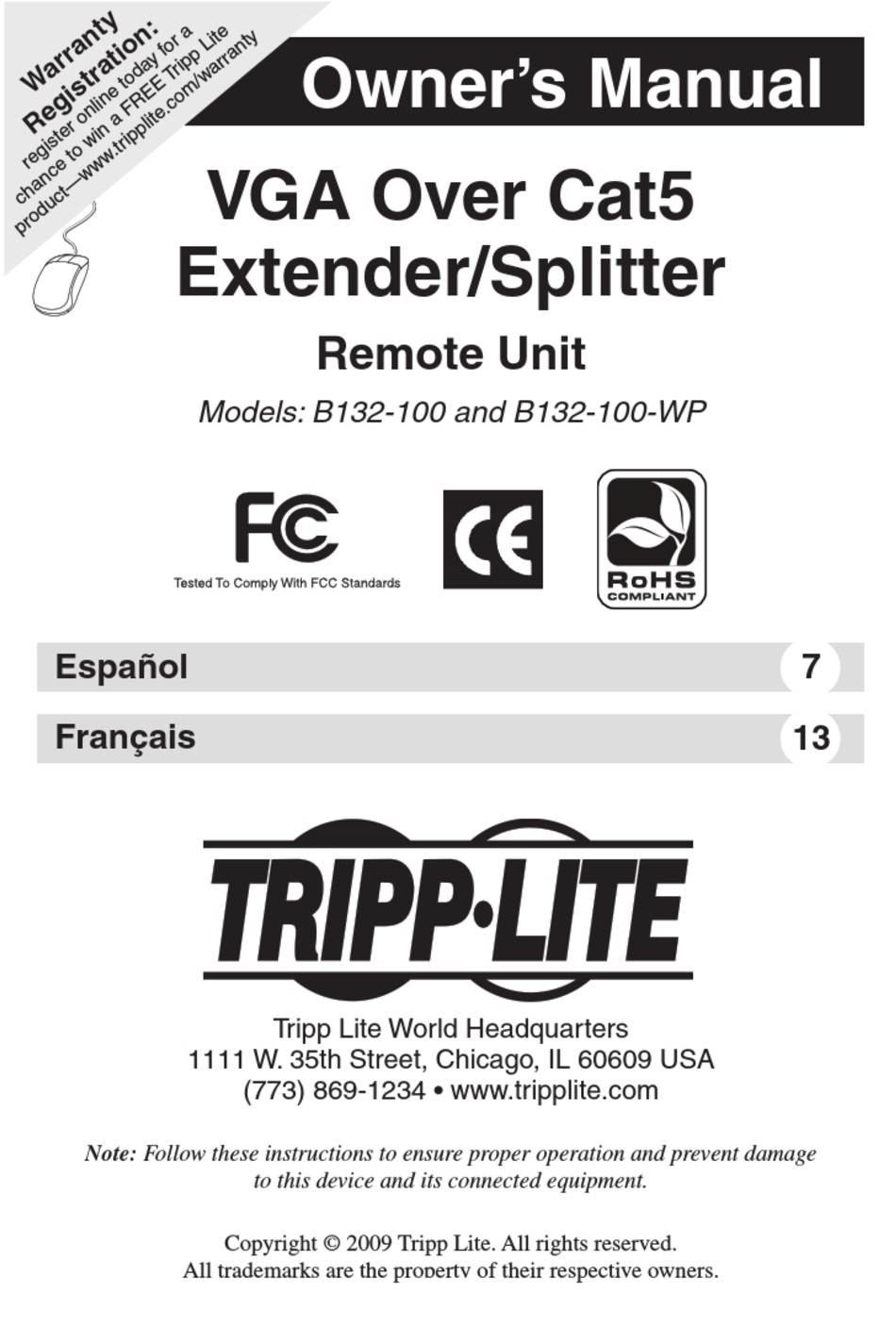

Owner's Manual
VGA Over Cat5
Extender/Splitter
Remote Unit
Models: B132-100 and B132-100-WP
Español
7 7
Français
15
13
Tripp Lite World Headquarters
1111 W. 35th Street, Chicago, IL 60609 USA
(773) 869-1234 • www.tripplite.com
Note: Follow these instructions to ensure proper operation and prevent damage
to this device and its connected equipment.
Copyright © 2009 Tripp Lite. All rights reserved.
All trademarks are the property of their respective owners.
1
Advertisement
Related Manuals for Tripp Lite B132-100-WP
Summary of Contents for Tripp Lite B132-100-WP
-
Page 1: Remote Unit
1111 W. 35th Street, Chicago, IL 60609 USA (773) 869-1234 • www.tripplite.com Note: Follow these instructions to ensure proper operation and prevent damage to this device and its connected equipment. Copyright © 2009 Tripp Lite. All rights reserved. All trademarks are the property of their respective owners. -
Page 2: Product Features
Video Amplifier Bandwidth ... 350 Mbps Input DDC Signal ... 0.7 Volts p-p (TTL) Signal Noise Ratio ... 90dB B132-100 Ports ... HD15 Female, RJ45 Female B132-100-WP Ports ... HD15 Female, 110 Punchdown WUXGA (up to 1920 x 1440) Connection... -
Page 3: Function Description
B132-100 Dimensions (Inches) ... 1.1 (H) x 2 (W) x 3.75 (D) B132-100 Weight (lbs) ... 0.4 B132-100-WP Dimensions (Inches). .. 4.5 (H) x 2.75 (W) x 1 (D) B132-100-WP Weight (lbs) ... 0.2 Note: Specifications are subject to change without notice. Mass and dimensions are approximate;... -
Page 4: Installation
B132-004 Local Unit to the Input port on the B132-100 Remote Unit. For the B132-100-WP: Use the included 110 Punchdown tool to connect each of the colored wires inside the Cat5e/6 cable to the corresponding areas of the 110 Punchdown connector, and then connect the other end of the Cat5e/6 cable to an Output port on the B132-004 Local Unit. -
Page 5: Safety Information
Safety Information • To reduce the risk of electric shock, do not expose this product to rain or moisture. • Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fire. - Page 6 Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite; 1111 W. 35th Street; Chicago IL 60609; USA. Seller will pay return shipping charges. Call Tripp Lite Customer Service at (773) 869-1234 before sending any equipment back for repair.
