- Page 1 JABRA ECLIPSE User Manual jabra.com/eclipse...
- Page 2 ® © 2015 GN Netcom A/S. All rights reserved. Jabra is a registered trademark of GN Netcom A/S. All other trademarks included herein ® are the property of their respective owners. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license.
-
Page 3: Table Of Contents
5.1 TURNING THE HEADSET ON/OFF 5.2 CONNECT USING THE APP 5.3 CONNECT VIA BLUETOOTH 5.4 CONNECT WITH AN NFC-ENABLED DEVICE 6. JABRA ASSIST APP ......17 7. HOW TO USE ........18 7.1 CALLS 7.2 HEADSET VOICE CONTROLS 7.3 HEADSET VOICE GUIDANCE 7.4 PHONE VOICE COMMANDS (SIRI, GOOGLE NOW,... - Page 4 7.6 MULTIPLE CALL HANDLING 7.7 HOW TO CHANGE HEADSET LANGUAGE 7.8 HOW TO UPDATE HEADSET FIRMWARE 7.9 HOW TO RESET THE HEADSET 8. SUPPORT ......... 25 8.1 FAQ 8.2 HOW TO CARE FOR YOUR HEADSET 9. TECHNICAL SPECIFICATIONS ..26 JABRA ECLIPSE...
- Page 5 1. WELCOME Thank you for using the Jabra Eclipse. We hope you will enjoy it! JABRA ECLIPSE FEATURES ƒ Button-free headset - gently tap/double tap the headset* ƒ Up to 10 hours talk time (up to 3 hours in the...

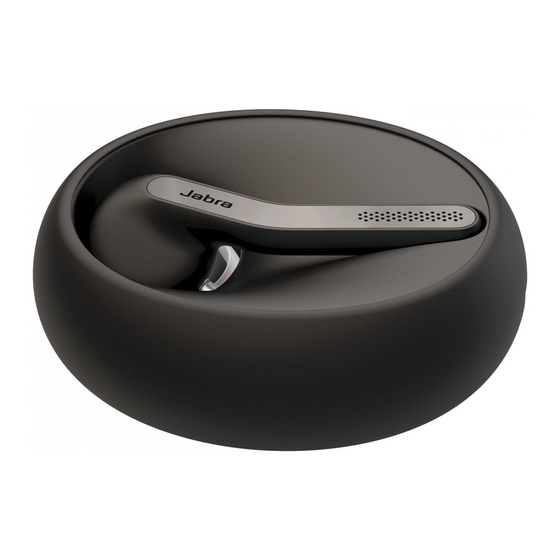

- Page 6 2. PRODUCT OVERVIEW HEADSET EarGel LED indicator Tap area (e.g Answer/end call) Microphones CHARGING CASE (TOP VIEW) Headset status LED Headset Charging case dock battery status LEDs USB charging port CHARGING CASE (BOTTOM VIEW) NFC zone Jabra button JABRA ECLIPSE...
-
Page 7: Included Accessories
2.1 INCLUDED ACCESSORIES USB cable Large Medium Small Extra- EarGel EarGel EarGel small EarGel NOTE: You can purchase an additional charging case and accessories online at jabra.com JABRA ECLIPSE... - Page 8 3.1 SELECTING THE CORRECT EARGELS The headset is supplied with four EarGel sizes: large, medium, small and extra small. The correct EarGel will feel tight and seal out background disturbances. JABRA ECLIPSE...
- Page 9 3.2 GETTING THE CORRECT FIT Fit the headset firmly inside your right ear, and angle the microphone down towards your mouth. JABRA ECLIPSE...
- Page 10 7 hours of battery. 4.1 ON-THE-GO CHARGING Dock the headset in the charging case for on-the-go charging. It takes approx. 2 hours to fully charge the headset. JABRA ECLIPSE...
-
Page 11: Usb Charging
4.2 USB CHARGING Plug the charging case into a USB power supply using the supplied USB cable to charge the headset and/or the charging case. It takes approx. 3 hours to charge the headset and the charging case together. JABRA ECLIPSE... - Page 12 To see the charging case battery status and/or the headset battery status (when docked), tap the Jabra button on the bottom of the charging case. HEADSET BATTERY STATUS 20-100% battery...
- Page 13 To exit Power Nap simply move the headset. Your mobile device must be switched on, within range, and have Bluetooth enabled. To answer an incoming call when the headset is in Power Nap mode, simply wear the headset and double-tap it to answer the call. JABRA ECLIPSE...
-
Page 14: Connect Using The App
Headset status LED will briefly light up white when the headset is docked. 5.2 CONNECT USING THE APP The easiest way to connect to your mobile device is to download and use the Jabra Assist app for iOS or Android devices. Jabra Assist JABRA ECLIPSE... -
Page 15: Connect Via Bluetooth
5.3 CONNECT VIA BLUETOOTH 1. Dock the headset in the charging case, and ensure the headset is charged. 2. Press and hold (3 secs) the Jabra button on the bottom of the charging case until the light flashes blue. 3. Wear the headset and follow the voice-guided instructions. - Page 16 5.4 CONNECT WITH AN NFC-ENABLED DEVICE Dock the headset in the charging case, and slide your NFC-enabled device against the NFC zone on the bottom of the charging case until a connection is confirmed on your mobile device. JABRA ECLIPSE...
- Page 17 6. JABRA ASSIST APP The Jabra Assist app is a free app for iOS or Android devices that enables you to: ƒ Customize your in-call audio ƒ Change headset language ƒ Automatic text message read-out ƒ Update headset firmware ƒ Enable/disable headset voice guidance ƒ...
- Page 18 Turn on Undock the headset from the headset charging case Turn off Dock the headset in the charging headset case Undock the headset from the Answer call charging case Dock the headset in the charging End/reject call case JABRA ECLIPSE...
- Page 19 End call Gently double-tap the headset Reject call Say ‘Ignore’ Activate Siri/ Google Now/ Gently double-tap the headset Cortana when not on a call (phone dependent) Headset Gently tap the headset when not battery status on a call JABRA ECLIPSE...
- Page 20 English (US), Chinese (Mandarin), Japanese, French, German, Russian, Polish, Dutch, Spanish, and Italian. Language packs can be downloaded using the Jabra Assist app. If the headset language is changed, please refer to that language’s user manual for the correct voice controls. JABRA ECLIPSE...
- Page 21 English (US), Chinese (Mandarin), Japanese, French, German, Russian, Polish, Dutch, Spanish, Italian and Farsi. Language packs can be downloaded using the Jabra Assist app. 7.4 PHONE VOICE COMMANDS (SIRI, GOOGLE NOW, CORTANA) Phone voice commands enable you to speak to Siri/Cortana/Google Now on your mobile phone using your headset.
-
Page 22: Caller Id
7.6 MULTIPLE CALL HANDLING The headset can answer or reject calls when you are already on a call. End current call and Gently double-tap answer incoming call the headset Reject incoming call, Gently tap the when on a call headset JABRA ECLIPSE... - Page 23 Polish, Dutch, Spanish, Italian, and Farsi. 7.8 HOW TO UPDATE HEADSET FIRMWARE To update headset firmware to the latest version, download and use the Jabra Assist app for iOS or Android, or go to jabra.com/eclipse for more help. JABRA ECLIPSE...
- Page 24 1. Dock the headset in the charging case, and connect the charging case to power using the USB cable. 2. Press and hold (8 secs) the Jabra button on the bottom of the charging case until the light flashes purple rapidly. Release the button.
- Page 25 8. SUPPORT 8.1 FAQ View the FAQs on jabra.com/eclipse 8.2 HOW TO CARE FOR YOUR HEADSET ƒ Always store the headset with the power off and safely protected. ƒ Avoid storage at extreme temperatures (above 70°C/158°F or below -20°C/-4°F). This can shorten battery life and may affect the headset.
- Page 26 9. TECHNICAL SPECIFICATIONS JABRA ECLIPSE SPECIFICATION Headset 5.5 g (0.19 oz) Weight: Charging case 35 g (1.23 oz) Headset L 49.95 mm x W 17.58 mm x H 24.82 mm Dimensions: Charging case L 62.2 mm x W 54 mm x H 25.5 mm...
- Page 27 JABRA ECLIPSE SPECIFICATION Bluetooth version: Up to 8, connected to two at Paired devices: the same time (MultiUse™) Headset profile (v1.2), hands Supported Bluetooth free profile (v1.6), A2DP (v1.3), profiles: phone book access profile (v1.0) Up to 10 hours (up to 3 hours in...
- Page 28 JABRA ECLIPSE...
