QSC TSC-7t Installation Manual

Networked, table-mounted, 7” touchscreen controller
Hide thumbs Also See for TSC-7t:
Table of Contents

Advertisement

Quick Links

Download this manual
™

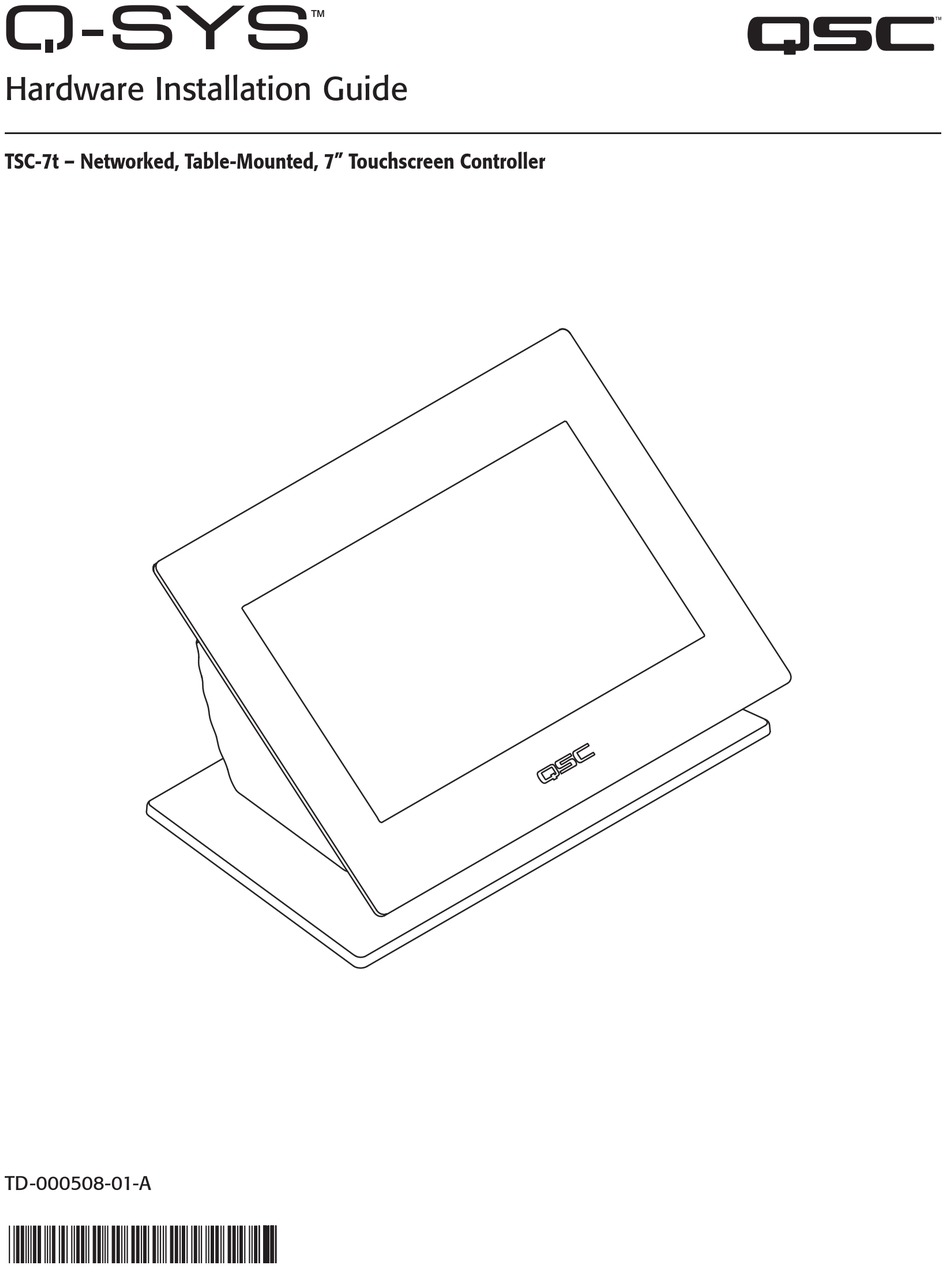

Hardware Installation Guide
TSC-7t – Networked, Table-Mounted, 7" Touchscreen Controller
TD-000508-01 -A
*TD-000508-01 *

Advertisement

Table of Contents
loading

Related Manuals for QSC TSC-7t

Summary of Contents for QSC TSC-7t

  • Page 1 ™ Hardware Installation Guide TSC-7t – Networked, Table-Mounted, 7” Touchscreen Controller TD-000508-01 -A *TD-000508-01 *...

  • Page 2: Explanation Of Symbols

    EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty.

  • Page 3: Maintenance And Repair

    The QSC TSC-7t is in compliance with European Directive 2011/65/EU – Restriction of Hazardous Substances (RoHS2). The QSC TSC-7t is in compliance with “China RoHS” directives. The following chart is provided for product use in China and its territories: Q-Sys TSC-7t 部件名称...
  • Page 4 USB, allowing the TSC-7t products to join a Q-LAN network via standard 10/100/1000 Mbps Ethernet connections. The TSC-7t products use a color graphics display with a 400 nit anti-glare LCD. The control surface is a capacitive touch interface that is reliable, bright, and easy to use.
  • Page 5 2. Q-Sys LAN A with PoE (RJ45) 5. Unit Reset Button 3. Q-Sys LAN B (redundancy) (RJ45) Touchscreen TSC-7t Packing List 1. Q-Sys TSC-7t Touchscreen assembly (1) 5. Hardware Installation Guide (TD-000508) (1) 2. Through-the-table Mounting Pipe (1) 6. Warranty Statement (TD-000453) (1) 3.

  • Page 6: General Requirements

    Installation The Q-Sys TSC-7t is designed to be mounted on a table, or desk. General Requirements Power Source The TSC-7t • PoE (Power over Ethernet – IEEE 802.3af class 3 device) LAN A only • Must have access to the Q-LAN Ethernet.
  • Page 7 Base (1). 5. Carefully place the Base (1) onto the TSC-7t body (2). Make sure the cables are not pinched. 6. Secure the Base to the TSC-7t with the 4 screws (3) removed in “Prepare for Installation (both options)”.

  • Page 8: Free-Standing Installation

    12V DC AUX Power input - optional (required if you are not using PoE) 4. Carefully route the cables as shown. NOTE: Some cables may have a protective boot over the RJ45 connector. The boots may not fi t into the TSC-7t cable cavity. Refer to Figure 13 5.
  • Page 9 TSC-7t Dimensions 198 mm 127 mm 7.8 in. 5.0 in. TSC-7t Specifi cations Display 7” Projected Capacitive Touch (fi ve coordinate simultaneous touch sensitivity) Luminance: 400 nits (400 lumen/candela per square meter) Resolution: 800x400 Rear Panel Control Reset Button (Use a paper clip or similar tool to reboot the unit)
  • Page 10 FAX: +1 (714) 754-6173 © 2014 QSC Audio Products, LLC. All rights reserved. QSC, the QSC logo, Q-Sys, the Q-Sys logo, and Q-LAN are trademarks of QSC Audio Products, LLC in the U.S. and other countries. All other trademarks are the property of their respective owners.
