11.3 Joystick Mounting Hardware – Swing-away Bracket
WARNING:
After any adjustments, repair or service and before use, make sure that all attaching hardware is tightened
securely - otherwise injury or damage may result.
SWING-AWAY JOYSTICK MOUNTING ARM
INSTALLING / REMOVAL:
This type of mounting can move the joystick position
either away from, or towards the armpad. This can
be set according to comfort and arm length as
follows.

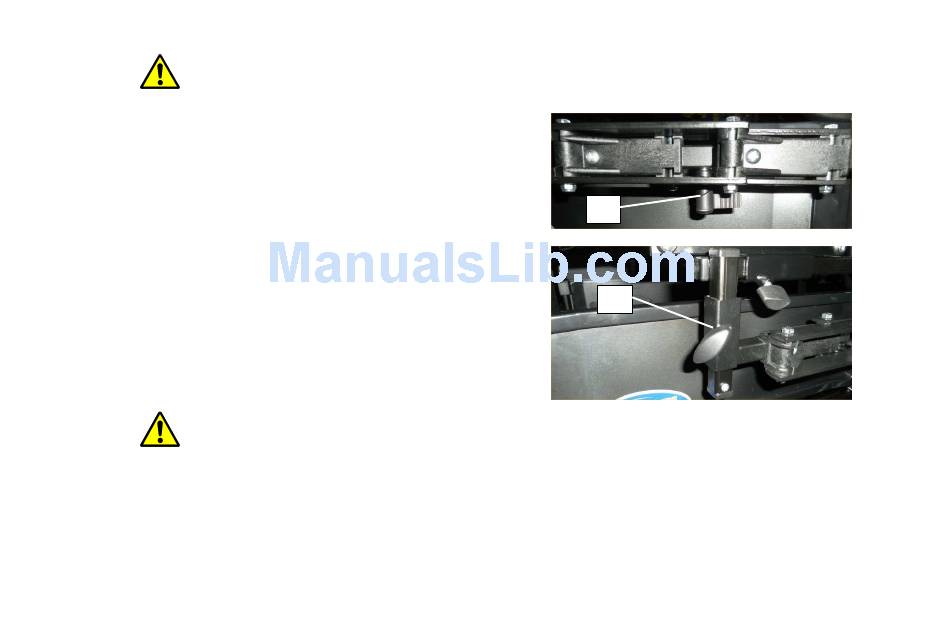

3. Rotate the small locking device (M) located on the
underside of the assembly, through 180 degrees to
lock / unlock.
4. There is also provision for height adjustment:
Slacken small hand-wheel (N), adjust height to suit
and retighten hand-wheel to secure.
CAUTION:
Do not use your powered wheelchair if the joystick boot shows any visible signs of damage. Please refer to
your INVACARE dealer regarding repairs.
M
N
