55

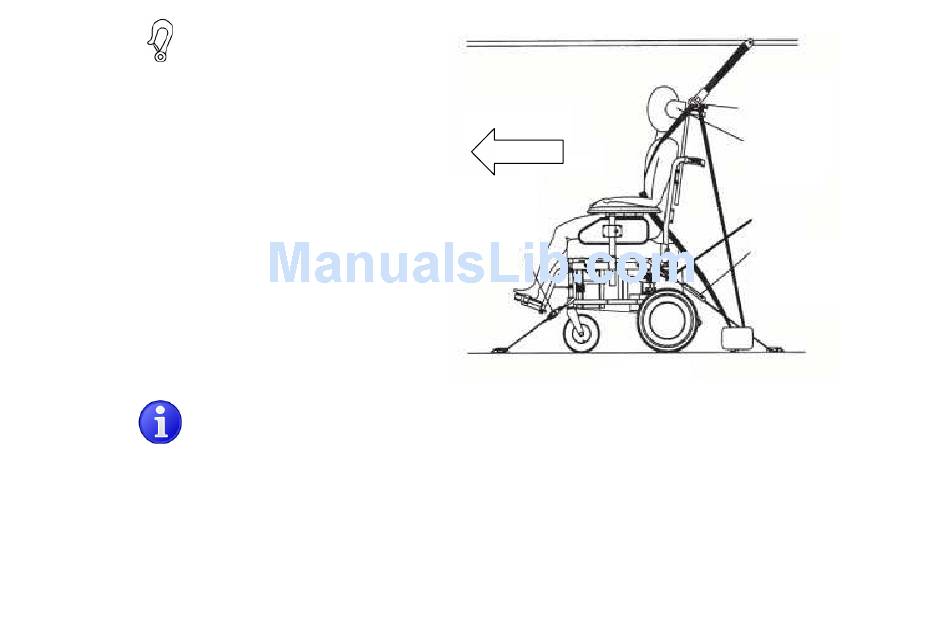

The illustration (Fig. No.2) shows a
headrest arrangement (which is
optional), the occupant's inertia reel
restraint and wheelchair tie down
details. The powered wheelchairs are
not designed or manufactured to be
replacements for purpose built vehicle
seating. The occupant must be secured
to the vehicle separately in addition to
any wheelchair restraints. See Fig. No.
2. Manually operated drive wheel-locks
must be used whilst the powered
wheelchair is being transported.
INVACARE recommend that the lap belt is used in addition to the specified tie-down/ three point occupant
restraint system. However, the lap belt should be fitted under, and not be allowed to interfere with, the three
point occupant restraint system (see note 8 on the next page).
FRONT
FRONT NON
ADJUSTABLE STRAPS
COMPLETE WITH
QUICK RELEASE
BUCKLES
FIG No. 2
THREE POINT
DOUBLE INERTIA
REEL OCCUPANT
RESTRAINT
A HEADREST
CAN BE FITTED
'D' RINGS
REAR ADJUSTABLE
STRAPS COMPLETE
WITH OVER CENTRE
BUCKLES AND
KARABINAS
