Metra Electronics 88-00-8000 Installation Instructions

KIT FEATURES KIT FEATURES
Works with
factory brackets
88-00-8000
or Metra's
99-8101
AW-800PKUV

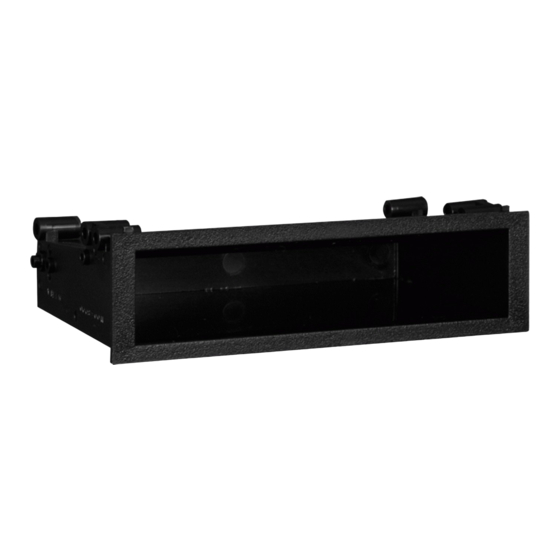

Fills space left
after removing
INSTALLATION
double-DIN unit
INSTRUCTIONS
APPLICATIONS
KIT COMPONENTS
CAR
TOYOTA
4Runner 1984-88......................................................................... 1
Pocket
4Runner 1989-95......................................................................... 1
4Runner 1996-99......................................................................... 2
Camry 1987-91............................................................................ 2
Celica (GT/GTS) 1986-89............................................................... 3
Celica 1990-93............................................................................. 3
Corolla (GTS/SR5) 1984-87........................................................... 4
Corolla (sedan/wagon-lower dash) 1988-92.................................. 4
Corolla (sedan/wagon-upper dash) 1988-92.................................. 5
Corolla (coupe-lower dash) 1993-97.............................................. 5
Corolla (coupe-upper dash) 1993-97............................................. 6
MR2 1991-94............................................................................... 6
Pickup 1984-88............................................................................ 7
Pickup 1989-91............................................................................ 7
Pickup 1992-95............................................................................ 8
Supra 1986-92............................................................................. 8
T100 1993-98.............................................................................. 9
Tacoma 1995-00........................................................................... 9
TOOLS REQUIRED
Phillips screwdriver
1-800-221-0932
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
Cutting tool
PAGE
www.metraonline.com
USE THE FOLLOWING INSTRUCTIONS FOR APPLICATIONS USING
FACTORY BRACKETS. FOR APPLICATIONS USING METRA'S 99-
8101, USE THE INSTRUCTIONS PROVIDED WITH THAT KIT.
TOYOTA 4Runner 1984-88
1
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the ashtray and (3) screws from the ashtray
bracket. Remove (1) screw from each side
of the dash console and unsnap the trim
bezel.
TOYOTA 4Runner 1989-95
1
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the driver's side speaker panel by removing
(3) screws and (1) 10mm bolt. Remove (1)
screw from the left side of the housing and
unsnap the ignition cover. Remove the
glove compartment assembly by removing
(1) 10mm bolt from the bottom of the
speaker panel and (3) screws from the right
side of the housing. Remove the remaining
(3) screws securing the radio trim bezel.
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
in the mounting brackets with the holes in the
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previously removed.
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
in the mounting brackets with the holes in the
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previously removed.
1
