AT&T 1070 Quick Reference Manual

At&t 1070 4-line small business system with caller id/call waiting and speakerphone
Hide thumbs Also See for 1070:

Advertisement

Table of Contents

See also: User Manual , Installation Manual
http://www.ochimp.com/
http://www.ochimp.com/
For More Info
Click Here ===>

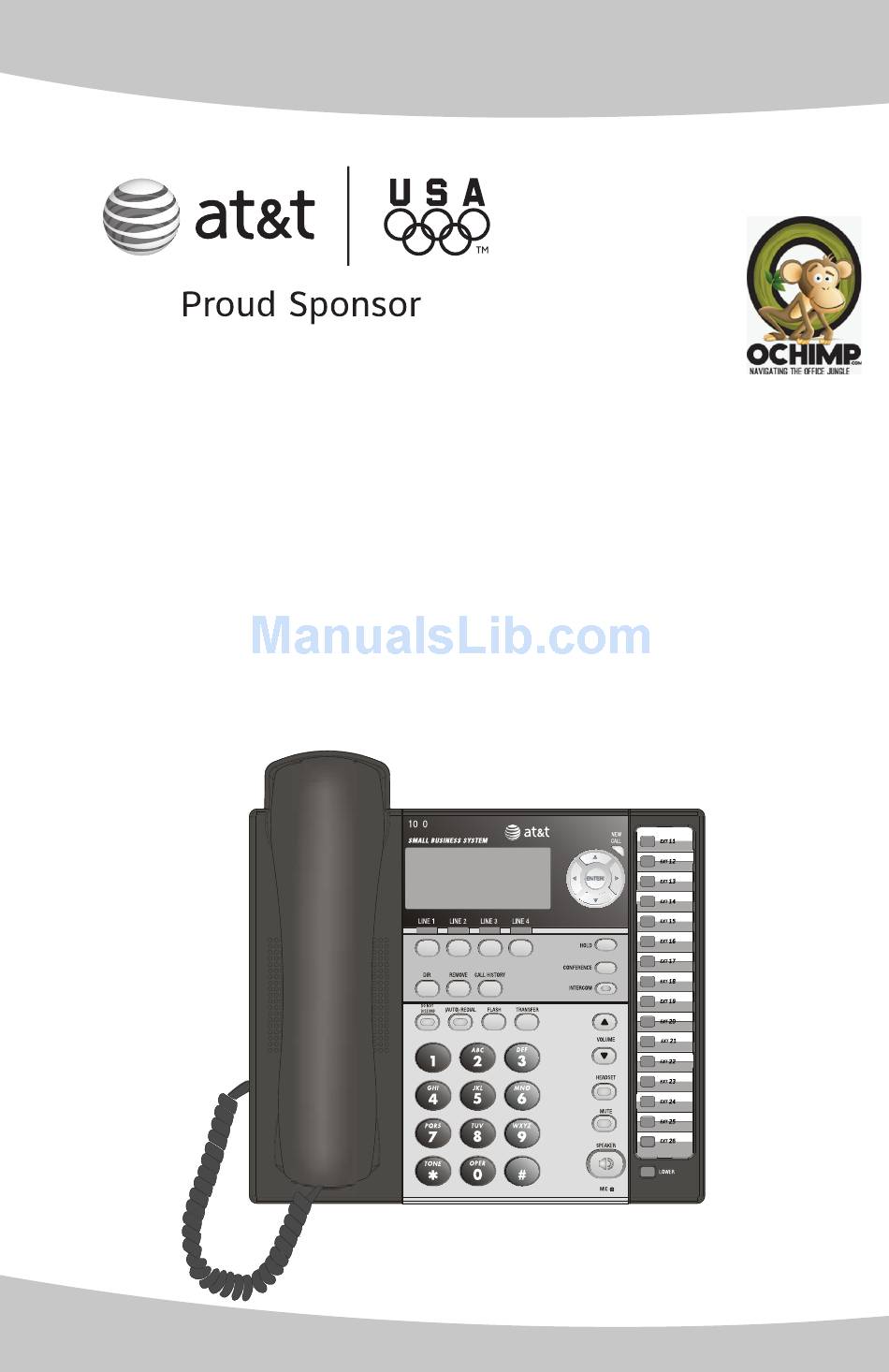

Quick reference guide
1070
4-Line small business
system with caller ID/
call waiting and
speakerphone
7

Advertisement

Table of Contents
loading

Related Manuals for AT&T 1070

Summary of Contents for AT&T 1070

  • Page 1 For More Info Click Here ===> Quick reference guide 1070 4-Line small business system with caller ID/ call waiting and speakerphone http://www.ochimp.com/...
  • Page 2 http://www.ochimp.com/ This quick reference guide provides basic instructions. For additional installation options and complete instructions that enable you to use all features of this phone, refer to your AT&T 070 4-Line small business system with caller ID/call waiting and speakerphone user’s manual and installation guide.

  • Page 3: Telephone Overview

    http://www.ochimp.com/ Telephone overview REMOVE LINE BUTTONS, 1-4 While reviewing the Press to make or answer a call on the call history, directory desired line. or redial stack, press While on a call, press to release the call to delete an individual privacy feature.
  • Page 4 http://www.ochimp.com/ Telephone overview Navigation keys One-touch keys Press to scroll up, Press to make an down, left or right intercom call or a while in the menu. one-touch outside call. ENTER VOLUME Press until you see While the telephone the main menu. is not in use, press Once in the menu, to adjust the ringer...

  • Page 5: Display Screen Messages

    http://www.ochimp.com/ Display screen messages AC FAIL There is no AC power to the set. If a good battery is installed, basic phone operation (such as making and answering calls on the handset) is supported. Speakerphone, headset and call privacy are not supported. The handset volume will be at the minimum level and only the two lowest levels of the ringer volume will be available.
  • Page 6 http://www.ochimp.com/ Display screen messages Continued from previous page NO ENTRIES FOR "Y" There are no entries in the directory matching the key pressed. PAGE FROM XX The telephone is on a single page call with another system telephone XX (XX is the extension number).

  • Page 7: Indicator Lights & Tones

    http://www.ochimp.com/ Indicator lights & tones Indicator lights LINE Green: • On when the line is in use. • Flashes slowly when the line is on hold. • Flashes quickly when there is a transferred call on the line, when there is an incoming call, or when there is an incoming auto attendant transferred call on the line.
  • Page 8 http://www.ochimp.com/ Indicator lights & tones Continued from previous page NEW CALL • On when there are unreviewed calls. • Flashes when there are new voice mail messages. The screen displays COVM, with 1, 2, 3, and/or 4 under COVM, depending on which lines have messages waiting.

  • Page 9: Automatic Mode

    http://www.ochimp.com/ Making and answering calls This phone comes programmed to use line  (default prime line) for calls when you do not press a line button. To change the prime line, see the PRIME LINE section of your installation guide. When you answer a call, the phone automatically selects the ringing line.

  • Page 10: Call Transfer

    http://www.ochimp.com/ Call transfer Blind transfer Use this feature to make a blind transfer. While on 0:0AM / a call: 00:0 Press [TRANSFER]. The outside call is automatically put on hold. TRANSFER LINE#Y TO (with Y being the line in use) appears on 0:0AM / 00:0...

  • Page 11: Conference Calls

    http://www.ochimp.com/ Conference calls Use this feature to set up a three-party call by using two lines at the same time. You can also join an intercom call with a call on an outside line. The outside line call must be established first, because an intercom call cannot be put on hold.
  • Page 12 http://www.ochimp.com/ Intercom Use this feature to make calls between system phones. An intercom call rings at the extension called with a repeating double-ring pattern. Make an intercom call with the handset If the one-touch preference is set to 0:0AM / INTERCOM, skip to step .
  • Page 13 http://www.ochimp.com/ Intercom Answer an intercom call Use this feature to answer an intercom call. When you receive an intercom call, you hear a repeating double-ring pattern and your screen displays 0:0AM / INTERCOM FROM with the extension number of EXT  INTERCOM FROM  the caller.
  • Page 14 http://www.ochimp.com/ One-touch overview This telephone has  one-touch locations (speed dial locations) where you can store the phone numbers you wish to dial using fewer keys than usual. You can store up to 4 digits in each location. The steps used to dial numbers stored in one-touch locations vary according to how you NOTE: Also use the programmed the one-touch preference.
  • Page 15 http://www.ochimp.com/ One-touch storage For more information about using the display screen menus, see the Menu operation section of your installation guide. PROGRAM Use the following steps to program the one-touch keys. (ENTER NUMBER) Press [ENTER]. The screen displays ONE PAUSE TOUCH.
  • Page 16 http://www.ochimp.com/ To dial a one-touch number For more information about using the display screen menus, see the Menu operation section of your installation guide Use this feature to dial a one-touch number. The one-touch preference is preset to INTERCOM. NOTE: To change the one-touch preference, see the PREFERENCE section of your installation guide.
  • Page 17 http://www.ochimp.com/ Setting up the auto attendant and message recording If your system has one or more 080 extensions, these 080 telephones may be set up to record messages directed to your system extension in your system. Messages System extension messages are the messages recorded on a 080 extension for individual 070 and 040 telephones (see the Forwarding to DTAD mailbox section of your user’s manual.) Play these messages from your extension.
  • Page 18 http://www.ochimp.com/ For More Info Click Here ===> www.telephones.att.com © 2007-2009 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Issue 5 AT&T 09/09. http://www.ochimp.com/...
