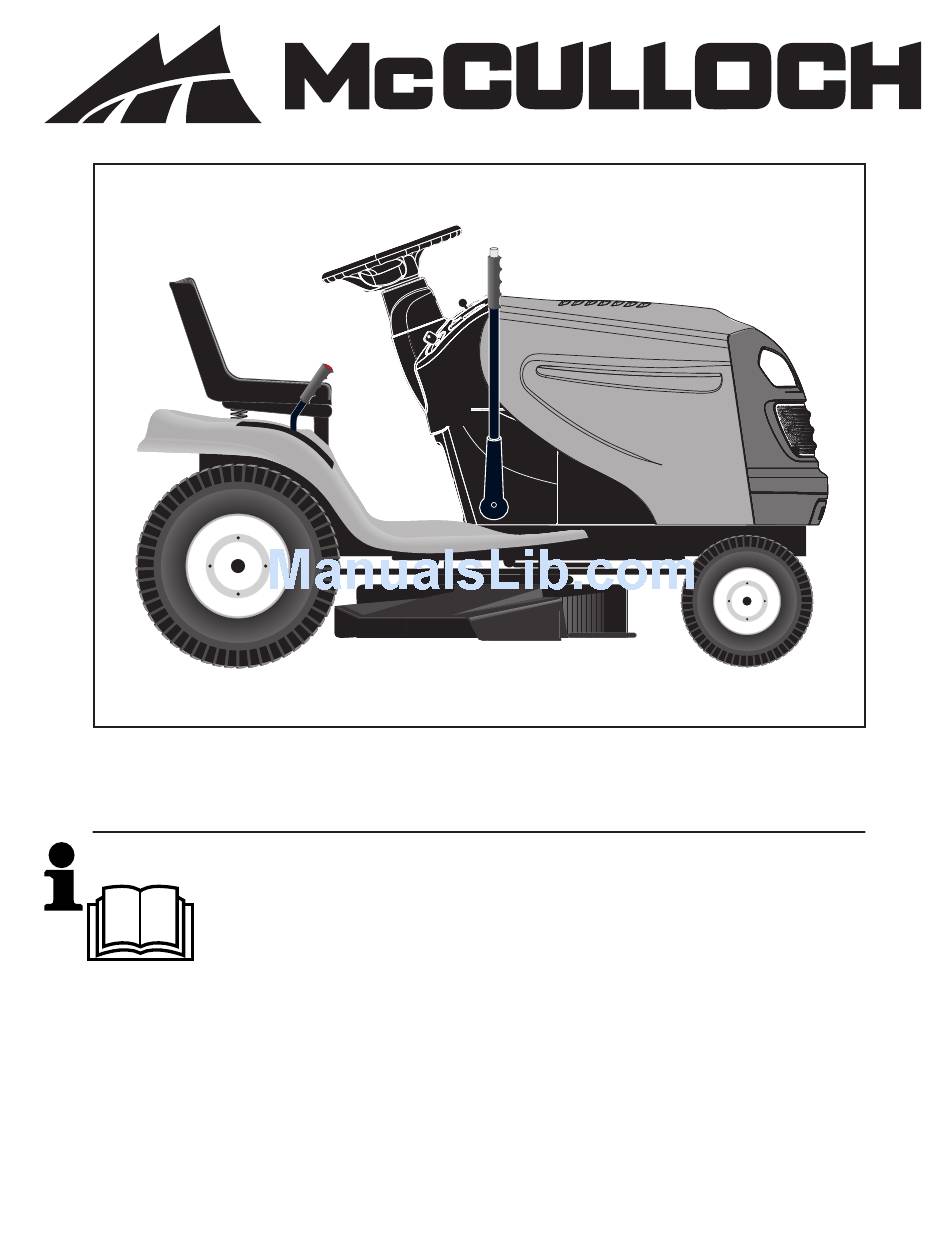

Instruction manual
Please read these instructions care-
ful ly and make sure you understand
them before using this machine.
Anleitungshandbuch
Bitte lesen Sie diese Anleitungen sorg-
fältig durch und vergewissern Sie sich,
daß Sie diese verstehen, bevor Sie die
Maschine in Betrieb nehmen.
532 43 41-98 Rev. 1
M13597
Manuel d'instructions
Merci de lire trés attentivement le man-
uel d'instructions. Assurez-vous d'avoir
tout compris avant d'utiliser ce tracteur.
Manual de las instrucciones
Por favor lea cuidadosamente y com-
prenda estas intrucciones antes de
usar esta maquina.
Manuale di istruzioni
Prima di utilizzare la macchina leggete
queste istruzioni con attenzione ed ac-
certatevi di averle comprese bene.
Instructieboekje
Lees deze instructies aandachtig en
zorg dat u ze begrijpt voordat u deze
ma chine gebruikt.

Advertisement

Table of Contents
loading

Related Manuals for McCulloch 532 43 41-98 Rev. 1

Summary of Contents for McCulloch 532 43 41-98 Rev. 1

  • Page 1 Bitte lesen Sie diese Anleitungen sorg- fältig durch und vergewissern Sie sich, daß Sie diese verstehen, bevor Sie die Maschine in Betrieb nehmen. 532 43 41-98 Rev. 1 M13597 Manuel d’instructions Merci de lire trés attentivement le man- uel d'instructions. Assurez-vous d'avoir tout compris avant d'utiliser ce tracteur.
  • Page 2 Safety rules. Sicherheitsvorschriften. Règles de sécurité. Assembly. Zusammenbau. Montage. Functional description. Funktionsbeschreibung. Description du fonctionnement. Before starting. Maßnahmen vor dem Anlassen. Avant de démarrer. Driving. Betrieb. Conduite. Maintenance, adjustment. Wartung (Instandhaltung), Einstellung. Entretien, réglages. Troubleshooting. Störungssuche. Recherche des pannes. Storage. Aufbewahrung.

  • Page 3: Safety Rules

    Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I. TRAINING • Read the instructions carefully. Be familiar with the con trols and the proper use of the equipment.

  • Page 4: Maintenance And Storage

    IV. MAINTENANCE AND STORAGE • Keep all nuts, bolts and screws tight to be sure the equip- ment is in safe working condition. • Never store the equipment with petrol in the tank inside a building where fumes may reach an open flame or spark.
  • Page 5 Regeln für die sichere Bedienung von Rasentraktoren WICHTIG: DIESE MÄHMASCHINE KANN HÄNDE UND FÜSSE ABTRENNEN UND GEGENSTÄNDE MIT HOHER GESCHWINDIGKEIT SCHLEUDERN. NICHTBEACHTUNG DER FOLGENDEN SICHERHEITSVORSCHRIFTEN KÖNNTE SCHWERE ODER TÖDLICHE VERLETZUNGEN ZUR FOLGE HABEN. I. SCHULUNG • Die Anleitungen sorgfältig durchlesen. Mit den Bedienung- selementen und der vorschriftsmäßigen Bedienung der Maschine vertraut machen.

  • Page 6: Wartung Und Lagerung

    • Alle Anbaugeräte-Antriebe ausschalten, den Motor abstel- len und das (die) Zündkerzenkabel abziehen bzw. den Zündschlüssel abziehen: vor dem Entfernen von Verstopfungen aus dem Mäh- werk oder dem Auswurf; vor dem Prüfen, Reinigen oder Reparieren des Ra- senmähers; nachdem auf ein Fremdkörper gestoßen wurde. Den Rasenmäher auf Schäden untersuchen und die Reparaturen durchführen, bevor die Maschine wieder angelassen und in Betrieb genommen wird;...

  • Page 7: Règles De Sécurité

    Conseils pour l’utilisation en toute sécurité des tracteurs de pelouse ATTENTION: CE TRACTEUR DE PELOUSE EST CAPABLE D’AMPUTER MAINS OU PIEDS ET DE PROJETER DES OBJETS.L ’INOBSERVATION DES RÈGLES DE SÉCURITÉ CI-DESSOUS PEUT ÊTRE LA CAUSE DE BLESSURES SÉRIEUSES VOIRE MORTELLES. I.

  • Page 8: Entretien Et Entreposage

    • Débrayer les lames, arrêter le moteur, et débrancher le (s) fil (s) de (s) bougie (s) d’allumage ou retirer la clef de contact : avant de retirer l’insert broyeur ou avant de retirer la goulotte d’éjection pour la nettoyer. avant de contrôler, nettoyer ou travailler sur le carter de coupe, avant de retirer un objet coincé...

  • Page 9: Reglas De Seguridad

    Prácticas de Operación Seguras para las Segadoras Conducibles IMPORTANTE: ESTA MAQUINA CORTADORA ES CAPAZ DE AMPUTAR LAS MANOS Y LOS PIES Y DE LANZAR OBJETOS. SI NO SE OBSERVAN LAS INSTRUCCIONES DE SEGURIDAD SIGUIENTES SE PUEDEN PRODUCIR LESIONES GRAVES O LA MUERTE.

  • Page 10: Mantenimiento Y Almacenamiento

    • Desenganche la transmisión a los accesorios, pare el mo- tor, y desconecte el (los) cable (s) de la bujía o remueva la llave de ignición antes de limpiar bloqueos o desatrancar del conducto; antes de inspeccionar, limpiar o trabajar sobre la segadora;...

  • Page 11: Norme Antinfortunistiche

    Regole di sicurezza per trattorini da prato ATTENZIONE: QUESTO TRATTORINO TOSAERBA HA UNA POTENZA SUFFICIENTE AD AMPUTARE MANI E PIEDI E A SCAGLIARE OGGETTI. LA MANCATA OSSERVANZA DELLE SEGUENTI ISTRUZIONI ANTINFORTUNISTICHE POTREBBE CAUSARE LESIONI GRAVI E PERSINO IL DECESSO DELLA VITTIMA. I.
  • Page 12 • Disinnestare la trasmissione del moto agli accessori, spegnere il motore e scollegare i fili delle candele oppure togliere la chiavetta di accensione: prima di pulire eventuali intasamenti e pri ma di stasare lo scivolo; prima di interventi o controlli sul tosaerba e prima delle operazioni di pulizia;...
  • Page 13 Veilige bedieningsmethoden voor zittrekkers BELANGRIJK: DEZE MAAIMACHINE KAN HANDEN EN VOETEN AMPUTEREN EN VOORWERPEN WEGSLINGEREN. HET NIET OPVOLGEN VAN DEZE VEILIGHEIDSINSTRUCTIES KAN ERNSTIG OF DODELIJK LETSEL TOT GEVOLG HEBBEN. I. TRAINING • Lees de instructies aandachtig. Zorg dat u vertrouwd bent met de bedieningselementen en het juiste gebruik van de machine.

  • Page 14: Onderhoud En Opslag

    • Schakel de aandrijving naar de hulpstukken uit tijdens transport of als ze niet worden gebruikt. • Stop de motor en schakel de aandrijving naar het hulp- stuk uit, voordat u tankt; voordat u de opvangzak verwijdert; voordat u de hoogte verstelt tenzij de hoogte vanuit de bestuurdersplaats kan worden ingesteld.
  • Page 15 These symbols may appear on your machine or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole finden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut. Ces symboles peuvent figurer sur tracteur ou dans les publications fournies avec le produit.
  • Page 16 These symbols may appear on your machine or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole finden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut. Ces symboles peuvent figurer sur tracteur ou dans les publications fournies avec le produit.
  • Page 17 01738 GEFAHR AUGEN SCHÜTZEN EXPLOSIVE GASE KÖNNEN ERBLINDUNG UND KÖRPERVERLET- ZUNGEN VERURSAC- HEN. GEVAAR OGEN BESCHERMEN EXPLOSIEVE GASSEN KUNNEN BLINDHEID OF LETSEL VERO- ORZAKEN. PELIGRO PROTEJE SUS OJOS GASES EXPLOSIVOS PUEDEN CAUSAR CEGUE-DAD O LE- SIONES. PERICOLO RIPARARE GLI OCCHI VAPORI ESPLOSIVI PUO’...

  • Page 18: Steering Wheel

    2. Montaggio. 2. Montering. Before the tractor can be used certain parts must be as- sem bled, which for transportation reasons are enclosed in the packing. Vor der Anwendung des Aufsitzmähers müssen gewisse Teile eingebaut werden, die aus Transportgründen in der Verpack- ung lose beigefügt sind.
  • Page 19 02615 Seat Remove the hardware securing seat to the cardboard pack ing and set the hardware aside for assembly of seat to tractor. Pivot seat upward and remove from cardboard packing. Remove the cardboard packing and discard. Place seat on seat pan so head of shoulder bolt is positioned over large slotted hole in pan (1).
  • Page 20 NOTE: Check that the flex connector is correctly con nect ed to the safe ty switch (3) on the seat hold er. HINWEIS: Prüfen, daß das Kabel richtig an dem Sicherheitsschalter (3) auf dem Halter des Sitzes angeschlossen ist. REMARQUE: Vérifier que le câble électrique est bien connecté...

  • Page 21: Installazione Della Batteria

    Seat pan 1. Asiento Terminal Cover 2. Cubierta Terminal Cable (+) 3. Cable (+) Cable (-) 4. Cable (-) A. Front of tractor A. Frontal de tractor Fender 5. Protección Battery terminal 6. Terminal de batería Battery 7. Batería Sitzwanne 1.
  • Page 22 WARNING: Positive terminal must be con nect ed first to prevent sparks from accidental ground ing. Remove terminal caps and discard. Connect the red cable to (+) and then the black earth cable to (-). Screw tight the cables. Grease the battery poles with vaseline to prevent cor ro sion.
  • Page 23 Install Mulcher Plate (if equipped) • Raise deflector shield (1) and place mulcher plate over open ing. • Hook front and rear latches into mower deck (2). WARNING: Do not remove deflector shield from mow er. Allow deflector shield to rest on mulcher plate while in use.
  • Page 24 3. Description du fonctionnement. 3. Descripción del funcionamiento. 3. Funzionamento. 3. Beschrijving van functies Positioning of controls 1. Light Switch 2. Throttle Control. 3. Brake and clutch pedal. 4. Gear Shift Lever. 5. Connection/disconnection of the cutting unit. 6. Quick lifting/lower of the cutting unit. 7.
  • Page 25 Emplacement des commandes 1. Interrupteur de commande des phares 2. Commande des gaz et starter 3. Pédale d'embrayage et de frein 4. Levier de commande de la boîte de vitesses 5. Embrayage/débrayage du carter de coupe 6. Relevage et abaissement du carter de coupe 7.
  • Page 26 2. Throttle control The throttle control regulates the engine revs and thus the rotation speed of the blades. = Full speed = Idling speed 2. Gashebel Mit dem Gashebel wird die Drehzahl des Motors und damit die Drehgeschwindigkeit des Mähaggregats geregelt. = Vollgas = Leerlauf 3.
  • Page 27 4. Gear shift lever The gear box has positions forward, neutral and re verse. Gear changing can take place from neutral to top gear with- out stopping in each gear position. Disengage the motor at each gear position! Start can take place irrespective of the gear lever position.
  • Page 28 01842 5. Connection/disconnection of the cutting unit Move the lever forward to connect the drive to the cutting unit, whereby the drive belt is tensioned and the blades begin to rotate. If the lever is moved backwards the drive will be disconnected and the rotation of the blades slowed down by the action of the brake shoes on the pulley.
  • Page 29 7. Ignition Lock There are four different positions for the ignition key: All electric current bro ken. ROS ON Reverse Operation System (ROS) connected Electric current connected. START Start motor connected. Reverse Operation System (ROS) - Allows operation of mower deck or other powered attachment while in reverse (See sec- tion 5 - "Driving").
  • Page 30 8. Parking brake Connect the parking brake in the following way: 1. Press down the brake pedal to bottom position. 2. Move the parking brake lever upwards and hold in this position. 3. Release the brake pedal. To release the parking brake all that is nec es sary is to push down the brake pedal.
  • Page 31 4. Avant de démarrer. 4. Antes del arranque. 4. Prima dell’avviamento. Filling up The en gine should be run of pure (not oil mixed) un lead ed petrol. Do not fill beyond the lower edge of the filling hole. Do not fill over max level. WARNING! Petrol is highly flammable.
  • Page 32 Oil level The combined oil refilling cap and the oil stick is ac ces si ble when the bonnet is lifted for wards. The oil level in the engine should be checked before each run. Make sure that the tractor is ho ri zon tal.
  • Page 33 01842 Starting of motor Make sure that the cutting unit is in the transport position (top position) and that the lever for connection/disconnection of the cutting unit is in the disconnection position. Anlassen des Motors Darauf achten, daß das Mähaggregat in Transportstellung (obere Stellung) steht und daß...
  • Page 34 Pull out the choke control (if engine is cold). Den Kaltstarthebel herausziehen (nur bei kaltem Motor). Si le moteur est froid: Tirer la commande de starter. Extraer el estrangulador (únicamente si el motor está frío). Estrarre il comando dello choke (in caso di partenza a freddo). Trek de choke uit (geldt alleen indien de motor koud is).
  • Page 35 Turn the ignition key to “START position”. NOTE! Do not run the start motor more than 5 sec onds at once. If the engine will not start, wait about 10 sec onds before the next try. Zündschlüssel auf “START” drehen. HINWEIS! Den Anlasser nicht jeweils länger als ca.
  • Page 36 NOTE! The machine is equipped with a safety switch which imme- diately breaks the current to the en gine if the driver leaves the seat with en gine run ning and with the con nec tion/ dis con nec tion le ver in position “connection”. HINWEIS! Die Maschine ist mit einem Sicherheitsschalter ausgerüstet, der den Strom zum Motor sofort unterbricht, wenn der...
  • Page 37 ROS "ON" ROS "AN" ROS "ON" ROS "ON" ROS "ON" ROS "ON" Reverse Operation System (ROS) Your tractor is equipped with a Reverse Operation System (ROS). Any attempt by the operator to travel in the reverse direction with the attachment clutch engaged will shut off the engine unless ignition key is placed in the ROS "ON"...
  • Page 38 Sistema per operazioni in retromarcia (ROS) Il Vostro trattore possiede un Sistema per operazioni in retromarcia (ROS). Qualsiasi tentativo da parte dell’operatore di guidare nella direzione opposta con la frizione abbassata comporterà lo spegnimento del motore se la chiave di accensione non è...
  • Page 39 Conseils pour la tonte • Retirer de la pelouse, les pierres et autres objets qui pourraient être propulsés par les lames et devenir ainsi des pro jec tiles dangereux. • Localiser et marquer les pierres et autres obstacles fixes afin d'éviter une éventuelle collision pendant la tonte. •...
  • Page 40 WARNING! • Do not drive in terrain at an angle of more than max. 15°. The risk for roll-over back wards is large. • In steep terrain the risk for tipping is considerable. • Avoid stopping and starting in sloping terrain. WARNUNG! •...
  • Page 41 Drive in right turns so that the cut grass is thrown away from flower beds and paths, etc. For larger lawns the drive di rec tion should be changed after 2-3 turns so that the cut grass is thrown towards the area that has already been cut as shown in the illustration.
  • Page 42 WARNING! Do not leave the ignition key in the machine when not in use to prevent children and other unauthorized persons starting the en gine. WARNUNG! Den Zündschlüssel niemals im Zündschloß sitzen lassen, wenn die Machine unbeaufsichtigt verlassen wird, damit nicht Kinder und unbefugte Personen den Motor anlassen können.
  • Page 43 lung. 6. Entretien, réglages. 6. Mantenimiento, ajuste. 6. Manutenzione. 6. Onderhoud, afstelling. WARNING! Before servicing the engine or cutting unit the fol low ing shall be carried out: • Press down the clutch/brake pedal and engage the park- ing brake lever. •...
  • Page 44 03075 (1) Hood (2) Headlight wire connector (1) Motorhaube (2) Scheinwerferanschluß (1) Capot (2) Connexion des phares (1) Cubierta (2) Conector de cables de los faros delanteros (1) Cofano (2) Connettore cavo luci (1) Motorkap (2) Aansluitkabel koplampen Engine hood •...
  • Page 45 Maintenance NOTE: Periodic maintenance should be performed on a regular basis in order to keep your tractor in good running condition. WARNING: Disconnect spark plug wire to prevent ac ci den tal starting before attempting any repair, inspection, or main te nance. Before each use: •...

  • Page 46: Olie Vervangen

    TO CHANGE OIL CAUTION: If engine has been operated for an extended period of time immediately prior to draining oil, oil will be hot. • Slide oil drain extension onto chassis under oil drain hole. • Position a container under oil drain extension to catch oil. •...
  • Page 47 SERVICE RECORD Fill in dates as you complete regular service. Change engine oil (without oil filter)... Change engine oil (with oil filter)... Lubricate pivot points ... Check brake operation... Clean air screen... Clean air filter and pre-cleaner ... Replace air cleaner paper cartridge... Clean engine cooling fins...
  • Page 48 SCHEMA D'ENTRETIEN Consigner les dates d'intervention après chaque opération d'entretien. Vidange de l'huile moteur (sans filtre à huile Vidange de l'huile moteur (avec filtre à huile) ... Graissage des articulations ... Vérification des freins ... Nettoyage de la grille d'aération ... Nettoyage du filtre à...
  • Page 49 DATI DI SERVIZIO Compilare ogni qualvolta si esegue un regolare servizio. Cambio dell'olio (Senza filtro dell’olio) ... Cambio dell'olio (Con filtro dell’olio) ... Lubrificazione punti di articolazione ... Controllo freni ... Pulizia schermo aria ... Pulizia filtro aria e prefiltro ... Sostituzione depuratore aria ...
  • Page 50 Operator Presence System and Reverse Opera- tion System (ROS) Be sure operator presence and reverse operation sys tems are work ing properly. If your tractor does not function as described, repair the problem immediately. • The engine should not start unless the brake pedal is fully de pressed, and the attachment clutch con trol is in the dis en gaged position.
  • Page 51 Sistema de Presencia Operador y Sistema de Funcionamiento Atrás (ROS) Asegurarse de que los sistemas de presencia operador y funcionamiento atrás funcionen adecuadamente. Si tu tractor no funciona como descrito, hay que reparar el problema inmediatamente. • El motor no tiene que arrancar hasta que le pedal del freno no esté...
  • Page 52 Blades For best results mower blades must be kept sharp. Re place bent or damaged blades. Sharpening can be carried out with a file or grinding disc. NOTE: It is very important that both blades are sharpened equally to avoid imbalance. BLADE REMOVAL: •...
  • Page 53 Cuchillas Para alcanzar resultados mejores las cuchillas de la sega- dora hay que mantenerlos afilados. Sustituya las cuchillas torcidos y estropeados. El afilado puede hacerse con lima o muela. NOTA: Es muy importante que los dos lados de la cuchilla sean afilados igual a in de impedir desequilibrios.
  • Page 54 02845 Dismantling of the cutting unit Work from the right side of the machine. 1. Take off the belt from the engine pulley (1). 2. Remove the small retainer spring (2) and lift clutch spring off the pulley bolt. 3. Remove the large retainer spring (3), slide collar off and push housing guide out of the bracket.
  • Page 55 02844 5. Remove the retainer springs (5), (6), (7) and axles. 6. Pull the lever for lifting/lowering the cutting unit back- wards. 7. Pull out the cutting unit from the machine. IMPORTANT: If an attachment other than the mower deck is to be mounted on the tractor, remove the front links and hook the clutch spring into square hole in frame (8).
  • Page 56 Replacement of drive belt for cutting unit 1. Dismantle the cutting unit as described previously. 2. Work off the belt from the unit's left pulley and then from the other wheels. 3. Pull the belt away from the cutting unit. 4.
  • Page 57 Adjustment of the cutting unit A. In the direction of travel 1. Check that the air pressure is correct in all four tires. 2. Make sure that the machine is on a horizontal surface. 3. Lift up the cutting unit to its highest position. 4.
  • Page 58 00598 “A” (1) Bottom edge of mower (2) Lift link adjustment nut (1) Unterkante des Mähwerks (2) Hubstangen-Stellmutter (1) Extrémités du carter de coupe (2) Ecrou de réglage du bras de suspension arrière (1) Parte inferior de la esquina de la segadora (2) Tuerca de ajuste del várillaje de levantamiento (1) Bordo inferiore del tagliaerba (2) Dado di regolazione dell'articolazione di sollevamento...
  • Page 59 Replacement of drive belt Dismantle the cutting unit as described previously. Engage the parking brake and work off the belt upwards from the pulley (1), the clutch pulley (2) and the engine's drive wheel (3). Work off the belt upwards from the pulley at the rear axle (4).
  • Page 60 1. Gear Shift Lever 2. Neutral Lock Gate 3. Adjustment Bolt 1. Steuerknüppel 2. Verschlussperre in Leerlaufstellung 3. Einstellbolzen 1. Levier de changement de vitesse 2. Encoche de position neutre (point mort) 3. Vis de réglage TRANSAXLE GEAR SHIFT LEVER NEUTRAL AD JUST MENT The transaxle should be in neutral when the gear shift lever is in neutral (lock gate) position.
  • Page 61 1. Palanca de Velocidades del Cambio Mecánico 2. Neutro Cierre Metálico 3. Perno de Regulación 1. Leva del Cambio 2. Blocco In Posizione Folle 3. Bullone Di Regolazione 1. Versnellingshendel 2. Vrijloop-Sluitboomgrendel 3. Stelbout REGULACIÓN DE LA PALANCA DE VELOCIDADES DEL CAMBIO MECÁNICO CON DIFERENCIAL Y TRACCIÓN AN TE RI OR El cambio mecánico con diferencial y tracción anterior tiene que estar en posición neutro cuando la relativa palanca está...
  • Page 62 To Check Brake If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved sur- face, then brake must be serviced. You may also check brake by: 1.
  • Page 63 DECK WASHOUT PORT Your tractor’s deck is equipped with a washout port on its surface as part of its deck wash system. It should be utilized after each use. • Drive the tractor to a level, clear spot on your lawn, near enough to a water spigot for your garden hose to reach.
  • Page 64 PORT DE LAVAGE DU CHÂSSIS Le châssis de votre tracteur est doté d’un port de lavage néces- saire pour le nettoyage. Il est conseillé d’en faire usage après chaque utilisation de la tondeuse. • Amenez le tracteur sur une surface plane, assez près d’une arrivée d’eau pour y brancher votre tuyau d’arrosage.
  • Page 65 APERTURA DI LAVAGGIO DEL PIATTO Il piatto di taglio del trattore dispone in superficie di un’apertura che fa parte del sistema di lavaggio del piatto. Tale sistema deve essere utilizzato dopo ciascun impiego del rasaerba. • Condurre il trattore su un’area sgombra e pianeggiante del prato, posizionandolo sufficientemente vicino a un rubinetto dell’acqua per potervi collegare il tubo di irrigazione.
  • Page 66 Engine will not start 1. No fuel in fuel tank. 2. Plug defective. 3. Plug connection defective. 4. Dirt in carburetor or fuel pipe. Start motor will not turn engine 1. Battery flat. 2. Poor contact between cable and battery pole. 3.
  • Page 67 Le moteur ne démarre pas 1. Manque de carburant dans le réservoir. 2. Bougie d'allumage défectueuse. 3. Le câblage de la bougie d'allumage défectueux. 4. Il y a des impuretés dans le carburateur ou dans le circuit du carburant. Le démarreur n'entraîne pas le moteur 1.
  • Page 68 Il motore non parte 1. Manca il carburante. 2. Difetto di candela. 3. Collegamento della candela difettoso. 4. Sporco nel sistema di alimentazione e o nel carbura- tore. Il motorino di avviamento non fa girare il motore 1. Batteria scarica. 2.
  • Page 69 The following steps should be taken when mowing sea- son is over: • Clean the entire machine, especially underneath the cutting unit cover. Do not use high pressure washer for cleaning. Water can enter engine and transmission and shorten the useful life of the machine. •...
  • Page 70 Al termine della stagione effettuare i seguenti interventi: • Pulire tutto il tagliaerba e particolarmente sotto il co per chio della falciatrice. Per le operazioni di pulizia, non utilizzare acqua ad alta pressione. L ’acqua può infiltrarsi nel motore e nel sistema di trasmissione, riducendo quindi così il tempo di vita della macchina.
  • Page 72 07.02.10 JA Printed in the U.S.A.
