CONNECTING UP YOUR TV RECORDER
VCR
RF lead
Aerial
Mains lead
WARNING
Before you connect or disconnect your TV Recorder to/from any other equipment,
make sure you disconnect all the equipment from the mains supply. Also refer to
the safety and electrical information in your TV Recorder's User Guide.

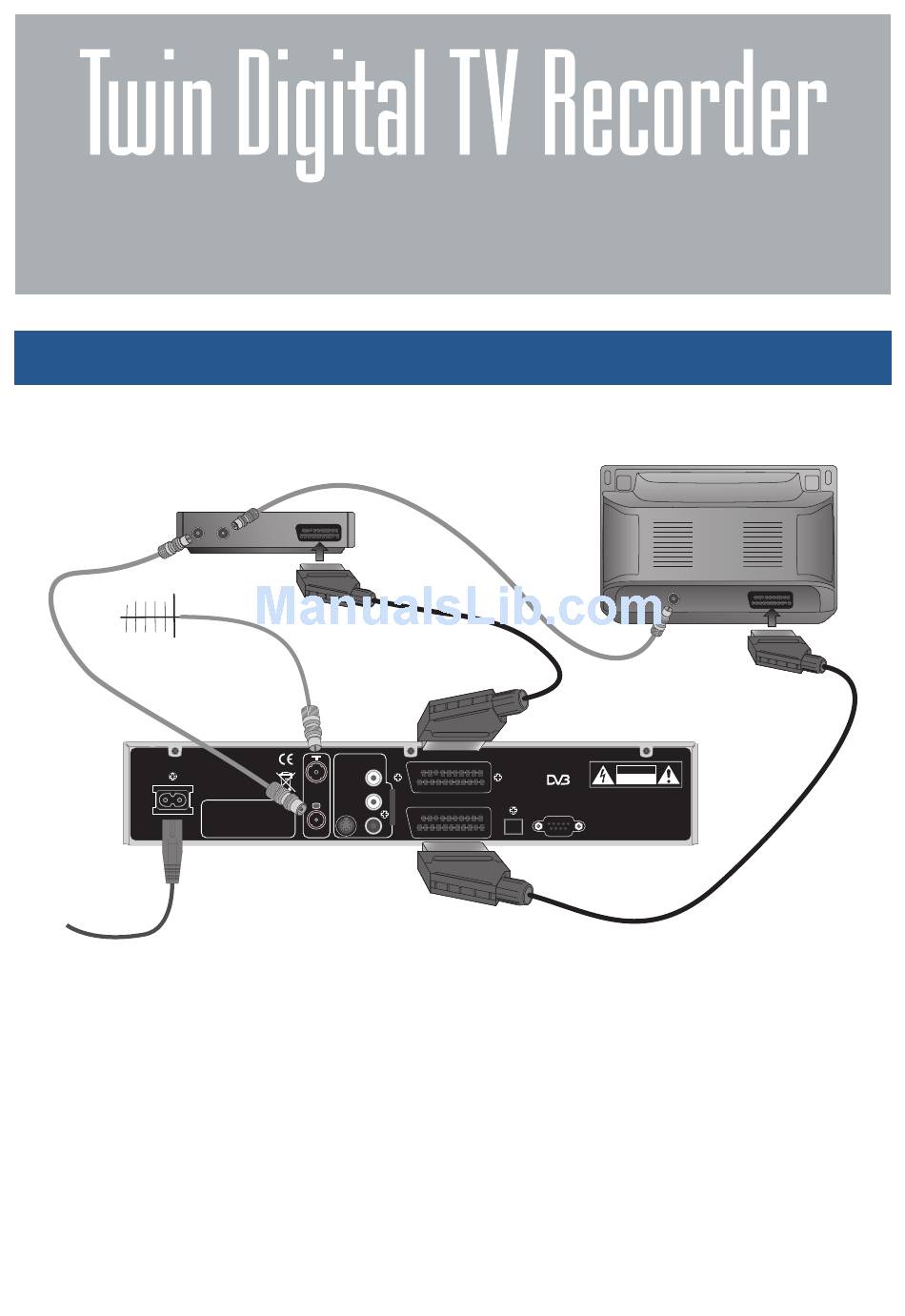

The diagram, above, shows how to connect your TV Recorder to a TV and video recorder
(VCR).
Connect the RF and SCART leads as shown (an RF lead and a SCART lead are supplied with
your TV Recorder).
When you have made all the above connections, connect all equipment to the mains supply.
IN
OUT
IN
RF lead
Composite
Video
Aerial
PACE Micro Technology plc
TV
L
115-230V ~50/60Hz 36W max.
S Video
R
Ch21-69 TV

Quick Start Guide

SCART lead
TV2/VCR
A
U
TV
DIGITAL AUDIO OUT
D
SERIAL INTERFACE
I
O
TV
RF lead
SCART lead
TV Recorder
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE,
OR REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Made in France
