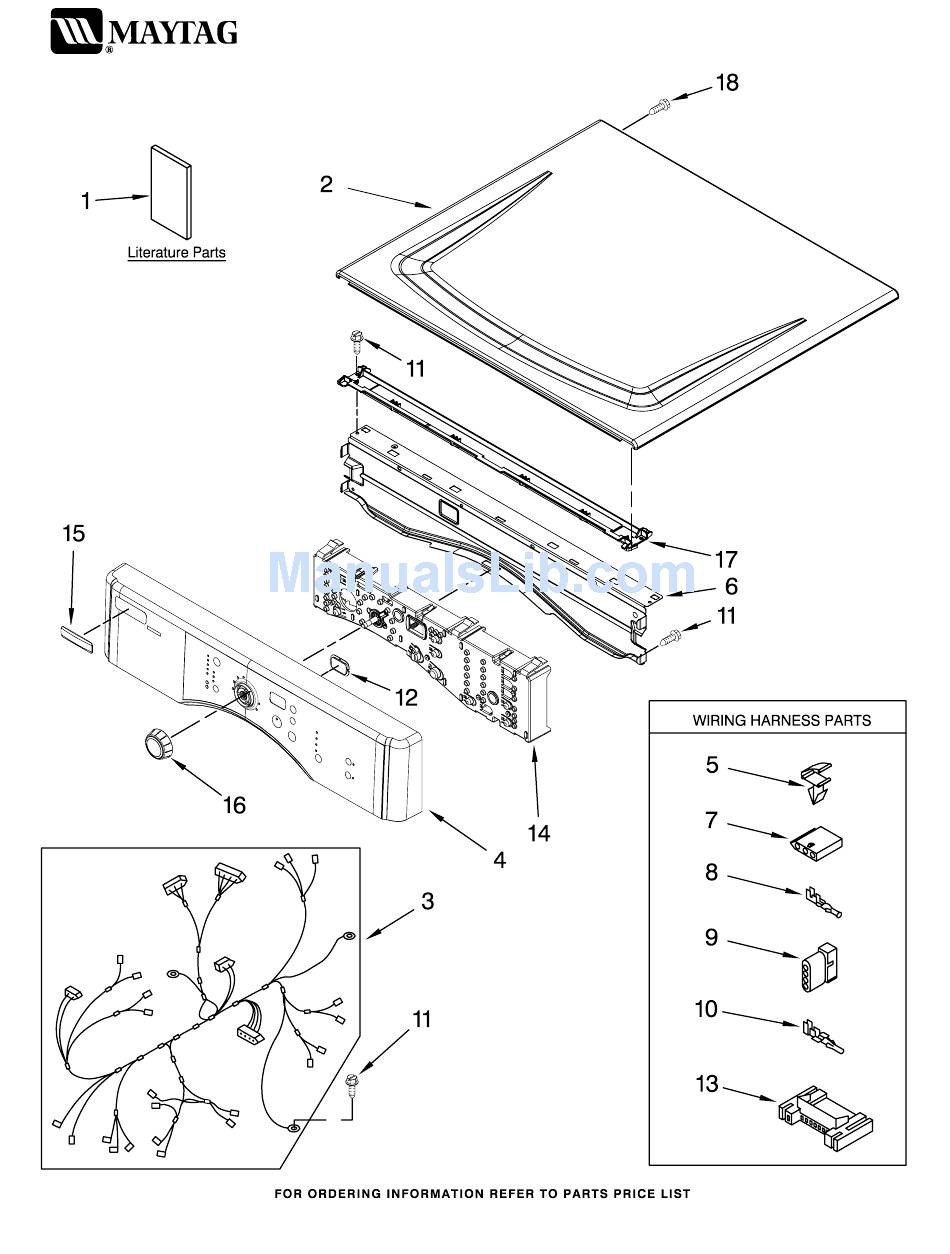

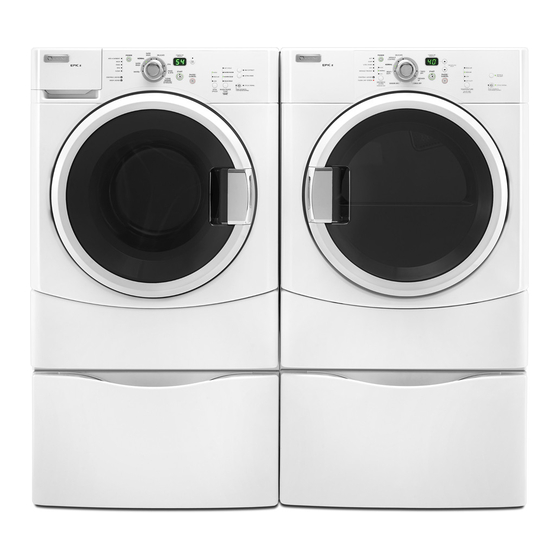

- Page 1 TOP AND CONSOLE PARTS 27" Electric Dryer For Model: MEDZ400TQ2 (Designer White) 12−07 Printed in U.S.A. (LT) Part No. W10179055 Rev. A...
- Page 2 TOP AND CONSOLE PARTS For Model: MEDZ400TQ2 (Designer White) Illus. Part DESCRIPTION Literature Parts W10112937 Use & Care Guide W10117402 Tech Sheet W10117403 Guide, Quick Start 8563730 Top 3 W10110972 Harness, Main 4 W10117384 Panel, Console (Includes Illus. 15.) 3394427 Clip, Harness...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: MEDZ400TQ2 (Designer White) W10179055... - Page 4 279318 Terminal, Brass & Tinned (3) (Includes Illus. 33) 8066120 Lever, Snap Switch 3394081 Wire, Belt Switch 343641 Screw, 10−16 x 1/2 CABINET PARTS For Model: MEDZ400TQ2 (Designer White) Illus. Part DESCRIPTION 233520 Washer, Thrust 8574875 Assembly, Door Switch 20 W10121334 Washer 8066115 Cover−Plate...
- Page 5 BULKHEAD PARTS For Model: MEDZ400TQ2 (Designer White) W10179055...
- Page 6 8533971 Screw, 8−18 x 5/16 8066208 Clip−Spring 3387747 Heater Element 279457 Terminal Wire Kit (For Heater Element Wiring Harness Repair) BULKHEAD PARTS For Model: MEDZ400TQ2 (Designer White) Illus. Part DESCRIPTION 16 W10001120 Nut, 3/8−16 (L.H.) 17 W10080170 Bulkhead, Rear 3387459 Washer, Support 8575325 Shaft, L.H.
- Page 7 9742177 Screw, 8−18 x 5/8 3400618 Screw, 6−32 x 3/8 3393258 Screw, 10−16 x 1/2 7 W10117478 Handle, Door (Includes Illus. 19.) W10179055 DOOR PARTS For Model: MEDZ400TQ2 (Designer White) Illus. Part DESCRIPTION 8 W10159996 Screw, 10−32 x .395 8519354 Retainer (Lower)
- Page 8 OPTIONAL PARTS (NOT INCLUDED) For Model: MEDZ400TQ2 (Designer White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray ACCESSORY PARTS 8529894 Hold Down Kit 8522199 Kit, Dryer Vent Testing 80047 Kit,...
