Use and Care Manual

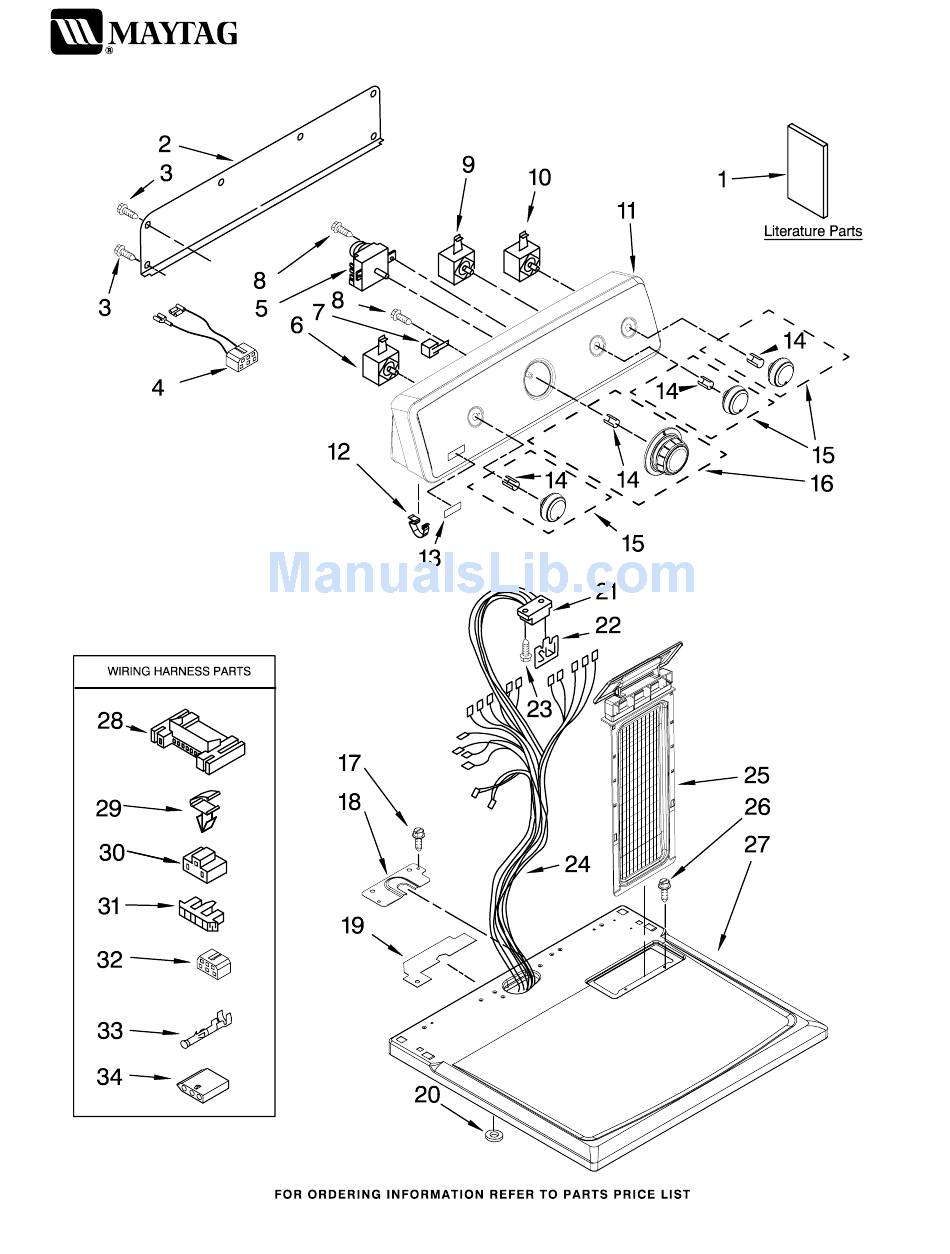

TOP AND CONSOLE PARTS
29"ELECTRIC DRYER
For Model: MED5700TQ1
(White)
10−07 Litho in U.S.A. (drd)
1
Part No. W10169066 Rev. A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Maytag MED5700TQ1
Summary of Contents for Maytag MED5700TQ1
- Page 1 TOP AND CONSOLE PARTS 29"ELECTRIC DRYER For Model: MED5700TQ1 (White) 10−07 Litho in U.S.A. (drd) Part No. W10169066 Rev. A...
- Page 2 TOP AND CONSOLE PARTS For Model: MED5700TQ1 (White) Illus. Part DESCRIPTION Literature Parts W10089171 Sheet, Cycle Feature W10088770 Use & Care Guide 8578889 Wiring Diagram 2 W10112577 Panel, Rear 693995 Screw, 8−18 x 3/8 4 W10113080 Wire, Jumper Buzzer On/Off 8566184 Timer, 60 Hz.
-
Page 3: Cabinet Parts
CABINET PARTS For Model: MED5700TQ1 (White) W10169066... - Page 4 3394083 Clip, Front Panel (2) 697773 Screw, 6−20 x 7/8 3406107 Switch, Door 98669 Lock, Front Top (2) 3403444 Panel, Front CABINET PARTS For Model: MED5700TQ1 (White) Illus. Part DESCRIPTION 98234 Clip, Ground 685203 Clip, Felt Pad (3) 3406129 Seal & Bearing...
- Page 5 BULKHEAD PARTS For Model: MED5700TQ1 (White) W10169066...
- Page 6 BULKHEAD PARTS For Model: MED5700TQ1 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 487909 Screw, 8−15 x 1/2 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 696302 Shield, Exhaust 3392519 Fuse, Thermal (91 C) 8318268 Thermostat, Internal−Bias 3977393 Thermal Cut−Off...
- Page 7 OPTIONAL PARTS (NOT INCLUDED) W10169066 For Model: MED5700TQ1 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 3406839 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.)
