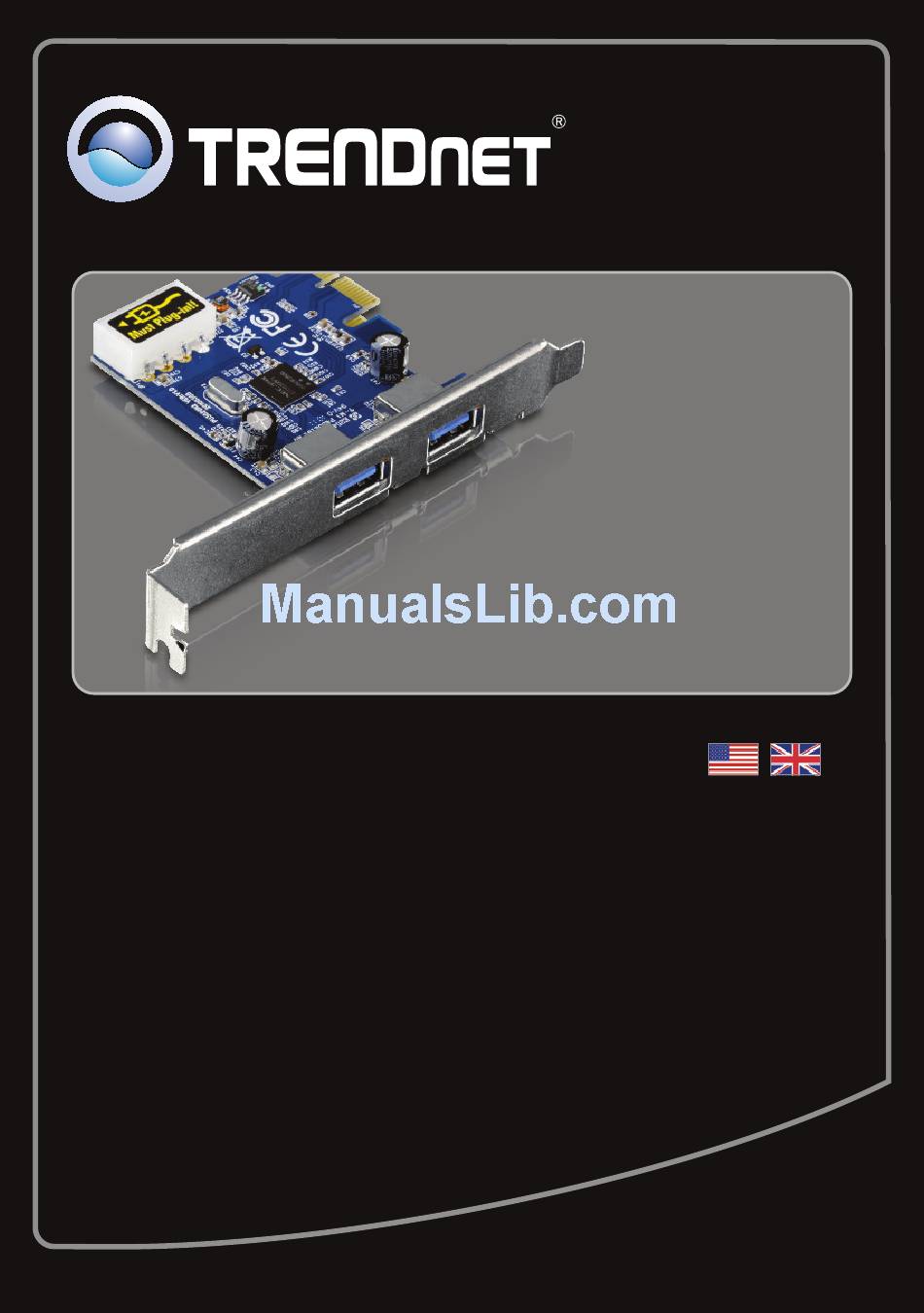

- Page 1 Quick Installation Guide TU3-H2PIE 1.02...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. How to Install Technical Specifications Troubleshooting Version 09.22.2010... -
Page 3: English
1. Before You Start Package Contents TU3-H2PIE CD-ROM (Driver) Multi-Language Quick Installation Guide System Requirements PCI Express slot 1.0a/2.0 CD-ROM Drive USB 3.0 Cable CPU: 1GHz or above (Windows 7) / 800MHz or above (Windows Vista) / 300Mhz or above (Windows XP) -
Page 4: How To Install
2. How to Installation Important! Do not insert the TU3-H2PIE in the computer until instructed to do so. 1. Insert the Driver CD-ROM into your CD-ROM drive. 2. Click Run Autorun.exe (Windows 7/ Vista only). 3. Click Install Driver. 4. Click Next. Then follow the InstallShield Wizard instructions. - Page 5 Note: Please refer to your computer's user manual regarding hardware installation. 8. Shutdown your computer. 9. Open your computer case. 10. Insert the TU3-H2PIE card firmly into an available PCIE slot, and then turn ON the computer and wait until the Windows desktop...
- Page 6 Note: For Windows 7/Vista, drivers will install automatically. Please skip to step 16. For Windows XP, continue on to step 11. 11. The Found New Hardware Wizard appears Select No, not this time and then click Next. 12. Select Install this software automatically (recommended) and then click Next.
- Page 7 16. Connect your USB device to one of the USB ports on the TU3-H2PIE. Your Installation is now complete For detailed information regarding the TU3-H2PIE configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the Driver CD-ROM, or TRENDnet's website at http://www.trendnet.com.
-
Page 8: Technical Specifications
Technical Specifications Hardware Interface USB 3.0 PCI Express Interface Revision 2.0 backwards compatible with version 1.0 Port 2 x USB 3.0 Port Supported OS Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit) Data Rates Super speed: 5Gbps High speed: 480Mbps Full speed: 12Mbps Low speed: 1.5Mbps Power Consumption 500mA (max) per port, BUS-powered... -
Page 9: Troubleshooting
3. Try connecting the external USB device to the other USB port on the TU3-H2PIE. 4. Try using a different USB cable. If you still encounter problems or have any questions regarding the TU3-H2PIE, please contact Trendnet's Technical Support Department. - Page 11 RMA number is required in order to initiate warranty service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
- Page 12 Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt...
- Page 14 Copyright ©2010. All Rights Reserved. TRENDnet.
