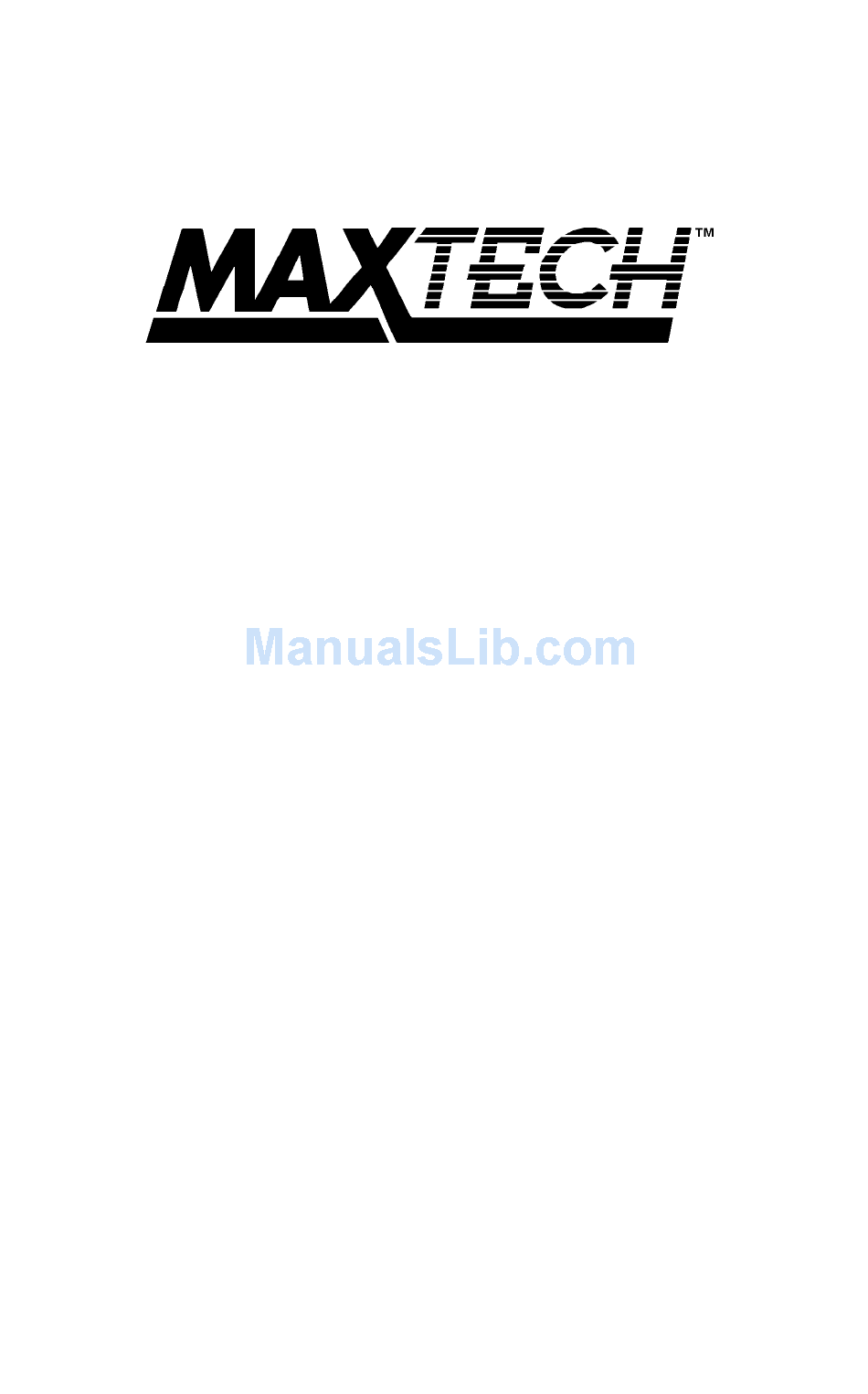

- Page 1 FHX-1200 Twelve-Port Stackable Fast Ethernet Hub User’s Guide Part #MAN092 Rev. 1.0 LS100...
-
Page 2: Table Of Contents
All registered trademarks are the property of their respective owners. Copyright © 1996 MaxTech. All rights reserved. No reproduction of this document in any form is allowed without written permission from MaxTech. -
Page 3: Section 1 - Introduction
Section 1 - Introduction The MaxTech FHX-1200 is a 12-port hub compliant with the IEEE 802.3u 100Base-TX fast ethernet standard. The twelve RJ-45 ports connect workstations or other devices together on a 100Base-TX fast ethernet network using twisted- pair cable. An additional crossover port connects this hub to a second hub using a standard (straight-through) network cable for easy network expansion. - Page 4 Figure 2 Connecting a workstation Connecting Hub to Hub The network can be expanded beyond twelve workstations by connecting two or more hubs together. There are two methods for expansion: daisy-chaining two hubs using a twisted pair cable, or stacking up to six hubs using the hub’s stacking connector. 2.2.1 Daisy-chaining hubs The hub’s twelfth port features an additional cross-over connection to facilitate daisy- chaining hubs using standard cable.
-
Page 5: Section 3 - Led Indicators
Connect the supplied stacking cable to the OUT port of the first hub and connect the cable to the IN port of the second hub (refer to Figure 4). Do not connect an OUT port to an OUT port or an IN port to an IN port. Section 3 - LED indicators The front-panel LEDs (see Figure 5) show the status of the hub and the network connections. -
Page 6: Section 4 - Troubleshooting
Section 4 - Troubleshooting Partition indicator lights up. Symptom: Causes: Hub has partitioned the 100BASE-TX (RJ-45) port due to excessive collisions. Solution: If port partitioning has occurred, the hub will automatically enable the port when the faulty condition disappears. Link/Traffic indicator remains unlit. Symptom: Causes: The workstation’s network adapter, cable or the hub port is... -
Page 7: Section 7 - Technical Support
(1) consult the Troubleshooting sec- tion of this guide and (2) consult with your dealer. If you still cannot resolve the problem, call the MaxTech Service Center at (310) 921-4438 between 9:00 a.m. and 6:00 p.m. (PST Monday through Friday). If the nature of your question is related to the network operating system that you are using, refer to its manual. -
Page 8: Appendix A - Optional 100Base-Fx Module
Appendix A - Optional 100Base-FX module The 100Base-FX module is an optional module which enables connectivity (as the thirteenth port) using multi-mode duplex 62.5/125 fiber-optic cable. Fiber- optic cable provides better immunity to electromagnetic interference and sup- ports longer cable lengths compared to copper wire. The 100Base-FX module may be used to connect the hub to either a 100Base-FX workstation or another 100Base-FX hub. -
Page 9: Appendix B - Fcc Notice
During the warranty period, MaxTech will repair (or at its option, replace) the product that proves to be defective, provided the product has not been abused, misused, modified, or re- paired by an unauthorized center. - Page 10 . Use the following procedure to return the product to MaxTech: Return the product in its original package and packing (if possible), and put it in a sturdy corrugated box. Be sure to include your name, address, day-time telephone number, RMA number, and a brief description of the problem (also enclose a check for out- of-warranty repair).
