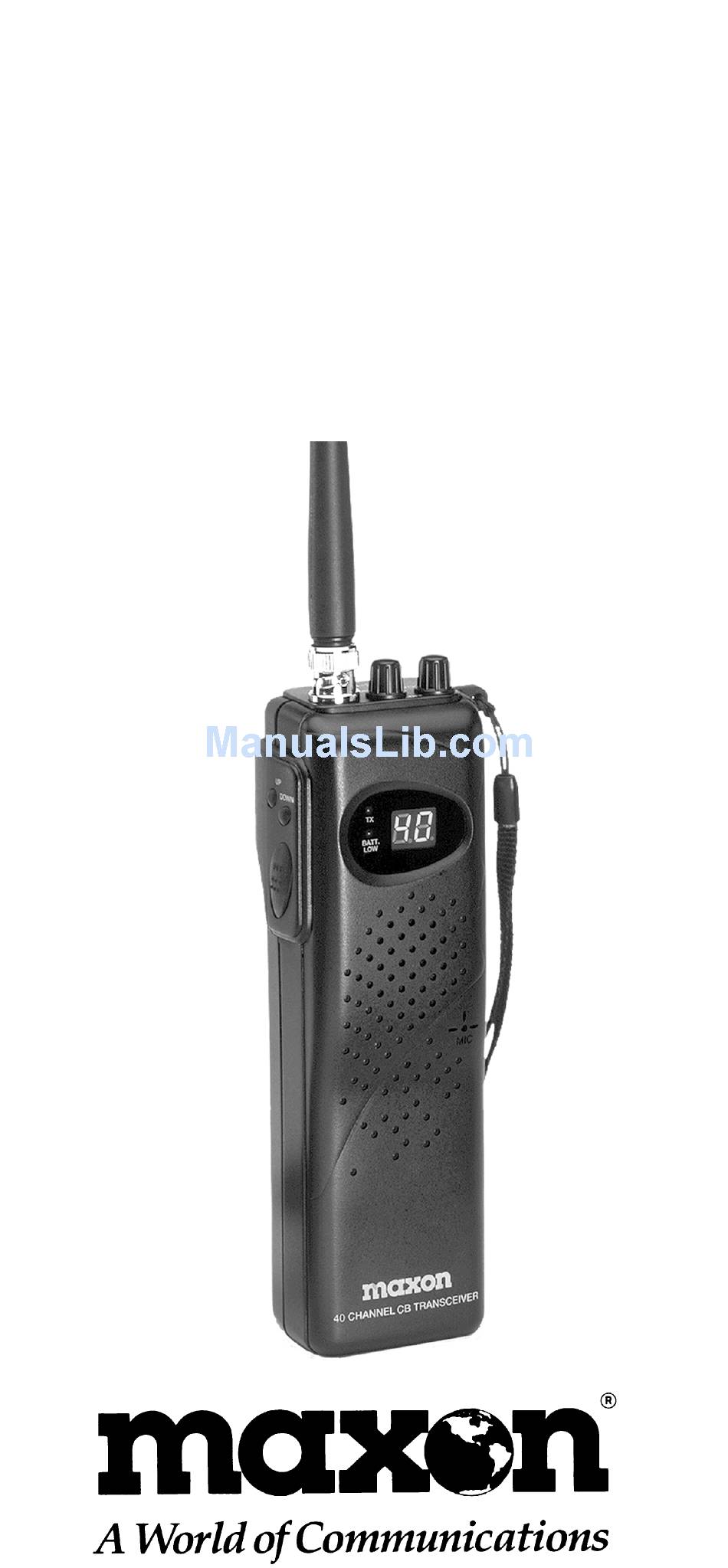

HCB-10C
Handheld 40 Channel
CB Radio
OWNER'S MANUAL
English/Spanish

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCB-10C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maxon HCB-10C

  • Page 1 HCB-10C Handheld 40 Channel CB Radio OWNER'S MANUAL English/Spanish...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Specifications FCC Regulations Product Description Package Contents Performance Features Controls and Functions Batteries Battery Charging and External Power Sources Antenna Information Operating Instructions Radio Communication Codes CB Channel Frequency Chart Troubleshooting Chart Warranty Service Instructions Warranty Statement Optional/Replacement Accessories Other Maxon Products Before operating your Maxon Citizens Band Radio,...
  • Page 4 Controles y Funciones Especificaciones Regulaciones de la FCC (Comisión Federal de Comunicaciones) Descripción del Producto Contenido del Paquete Características de Funcionamiento Baterías Carga de Baterías y Fuentes de Alimentación Externas Información Sobre la Antena Instrucciones de Operación Tabla de Frecuencia del Canal Tabla de Localización y Reparación de Averías Instrucciones Servicio de Garantía...
  • Page 5: Specifications

    GENERAL CB Channels: Frequency Range: Frequency Control: Frequency Tolerance: Operating Temperature Range: Input Voltage: Channel Display: DC Input Power: Dimensions: Weight: RECEIVER Receiving System TRANSMITTER RF Output Power: Specifications subject to change without notice. YOU DO NOT NEED AN FCC LICENSE TO OPERATE THIS RADIO IN THE UNITED STATES.
  • Page 6: Product Description

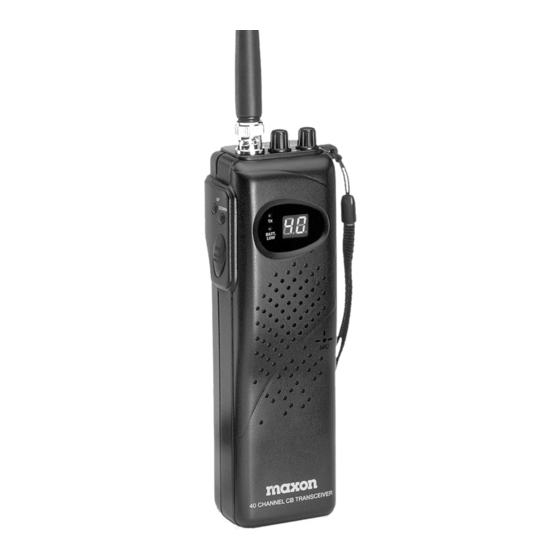

    PRODUCT DESCRIPTION Thank you for choosing the Maxon HCB-10C Handheld 40 Channel CB Radio. Maxon's HCB-10C is a compact, portable Citizen's Band radio designed to operate in the 26.965 to 27.405 MHz band. This lightweight unit provides maximum RF output power and can be battery or vehicle powered.
  • Page 7: Performance Features

    • Maximum legal RF output power (4W) with high level modulation (in accordance with FCC Part 95 Rules). • Can be used as a portable CB radio (powered by Ni-Cad or alkaline batteries) or used with provided 12V DC power cord in a vehicle or boat.
  • Page 8: Controls And Functions

    CONTROLS AND FUNCTIONS CONTROLES Y FUNCIONES Push-To-Talk Button - Permits radio transmissions • Botón "Presione Para Hablar" (P-T-T) - Permite la transmisión por radio Channel Up/Down Buttons - Selects any one of 40 channels available • Botones de Subida y Bajada de Canales - Selecciona cualquiera de los 40 canales disponibles Antenna Jack - Connects the unit's "Rubber Duck"...
  • Page 10 M. Accessory Jacks - Used with optional accessories (not shown) • Jacks Auxiliares - Usados con accesorios opcionales (no mostrados) 12V DC Power/Charge Jack - Provides external power to radio and charges installed Ni-Cad batteries (not shown) • Jack de Potencia /Carga de 12 VCC - Suministra potencia externa al radio y carga las baterías de Ni-Cad instaladas (no mostrado) HI/LO Power Selector Switch - Controls output power...
  • Page 11: Batteries

    1) To install batteries, remove the battery compartment cover on the back of the unit. Locate the battery charge switch (inside the middle well of the radio's battery compartment) and set the switch to the "Al" (down) position for "AA" alkaline batteries or the "Ni" (up) position for "AA"...
  • Page 12: Battery Charging And External Power Sources

    You can operate the HCB-10C in your home by using a standard 120V AC outlet. Contact your local electronics retailer for a 120V AC to 12V DC (1500 mA minimum current capacity) power converter.
  • Page 13: Antenna Information

    The "Rubber Duck" antenna included with this radio is suited for those applications where maxi- mum range is not needed. To convert the HCB-10C portable to a base radio: Disconnect the "Rubber Duck" or telescopic antenna and connect your base station antenna.
  • Page 14 To convert the HCB-10C portable to a mobile radio: Disconnect the "Rubber Duck" or telescopic antenna and connect your vehicle/boat's mobile CB antenna (or optional magnetic mount antenna WTA-4W). NOTE: Mobile antennas utilize the vehicle's metal body as the "ground" plane. When...
  • Page 15: Operating Instructions

    When transmitting, the TX LED will glow. To Receive: Release the push-to-talk button. NOTE: When using the HCB-10C as a beltworn radio (with a headset or speaker/microphone), the user will experience a slightly shorter transmit and...
  • Page 16: Radio Communication Codes

    RADIO COMMUNICATION CODES Citizens Band radio operators have universally adopted the "10" Code for standard questions and answers. It enables them to communicate faster, easier and more understandably in noisy surroundings. The following are some of the most common codes and their descriptions.
  • Page 17: Cb Channel Frequency Chart

    CB CHANNEL FREQUENCY CHART Channel: 26.965 MHz 26.975 MHz 26.985 MHz 27.005 MHz 27.015 MHz 27.025 MHz 27.035 MHz 27.055 MHz 27.065 MHz 27.075 MHz 27.085 MHz 27.105 MHz 27.115 MHz 27.125 MHz 27.135 MHz 27.155 MHz 27.165 MHz 27.175 MHz 27.185 MHz 27.205 MHz 27.215 MHz...
  • Page 18: Troubleshooting Chart

    TROUBLESHOOTING CHART This portable Citizens Band radio has been manufac- tured in accordance with Maxon's exacting quality control standards. It should be handled with reason- able care. Avoid exposing it to dirt or moisture. If you experience problems, please refer to this Troubleshooting Chart.
  • Page 19: Warranty Service Instructions

    WARRANTY SERVICE INSTRUCTIONS 1) Refer to the Operating Instructions section of this Owner’s Manual for proper operation and adjustments. 2) Refer to the basic Troubleshooting Chart for possible solutions. 3) If the problem cannot be corrected by refer- ence to this Owner's Manual, return the product with proof of purchase (a sales receipt) to the place of purchase, or call Maxon’s Customer Service Department for assistance,...
  • Page 20: Warranty Statement

    LIMITED WARRANTY STATEMENT The Consumer Products Division of Maxon America, Inc., (here- inafter referred to as "Maxon"), warrants that its Products and their included accessories will be free from defects in workmanship or materials under normal use for a period of one (1) year from date of purchase by the original end user, provided that the buyer has complied with the requirements stated herein.
  • Page 21: Optional/Replacement Accessories

    OPTIONAL / REPLACEMENT MAXON ACCESSORIES These Maxon HCB-10C optional accessories are available from your local Maxon CB distributor/ retailer. DV-7210 AC/DC wall battery charger for recharging Ni-Cad batteries WTA-1 Telescopic antenna with BNC connector (extends to 44") WTA-2W Replacement "Rubber Duck" antenna with BNC connector.
  • Page 22: Especificaciones

    ESPECIFICACIONES GENERALES Canales de CB: Alcance de frecuencia de CB: Control de frecuencia de CB: Tolerancia de la frecuencia: Límites de la temperatura operativa: Voltaje de entrada: Pantalla de canales: Potencia de entrada de CC: Dimensiones (alto x ancho x hondo) Peso: RECEPTOR Sistema Receptor:...
  • Page 23: Descripción Del Producto

    DESCRIPCION DEL PRODUCTO Gracias por seleccionar el Radio CB manual de 40 canales marca HCB-10C de Maxon. El HCB-10C de Maxon es un radio de Banda Ciudadana portátil y compacto que ha sido diseñado para funcionar en la banda de 26,965 a 27,405 MHz.
  • Page 24: Características De Funcionamiento

    CARACTERISTICAS DE FUNCIONAMIENTO • Potencia de salida de Frecuencia de Radio máxima legal (4 W) con modulación de alto nivel (en conformidad con la Parte 95 de las Reglas de la FCC). • Puede utilizarse como un radio de CB portátil (electrificado por baterías de Ni-Cad o alcalinas) o con el cordón eléctrico provisto de 12 VCC en un vehículo o bote.
  • Page 25: Baterías

    1) Para instalar las baterías, retire la tapa del compartimiento de baterías que se encuentra en la parte posterior de la unidad. Localice el interruptor de cargar baterías (dentro del hueco central del compartimiento de batería del radio) y fije el mismo en la posición "AI" (hacia abajo) para baterías alcalinas "AA"...
  • Page 26: Carga De Baterías Y Fuentes De Alimentación Externas

    Si no desea recargar las baterías periódicamente, utilice baterías estándares de zinc de carbono o alcalinas. Usted puede hacer funcionar el HCB-10C en su casa mediante la utilización de un tomacorriente estándar de 120 VCA. Contacte al distribuidor de componentes electrónicos de su localidad para...
  • Page 27: Información Sobre La Antena

    La antena de hule "Rubber Duck" incluida con este radio es adecuada para aquellas aplicaciones donde no se necesita alcance máximo. Para convertir el HCB-10C portátil en un radio de base: Desconecte la antena de hule "Rubber Duck" o telescópica y conecte su antena de estación base.
  • Page 28: Instrucciones De Operación

    NO INTENTE QUITARLA... LLAME A SU COMPAÑIA ELECTRICA LOCAL. Para convertir el HCB-10C portátil en un radio móvil: Desconecte la antena de "Pato de goma" o telescópica y conecte su antena de CB móvil del vehículo/bote (o antena opcional montada...
  • Page 29 Cuando transmita, el LED TX se encenderá. Para recibir: Suelte el botón de presionar para hablar. NOTA: Cuando use el HCB-10C como un radio para ajustar en el cinto (con un auricular o altavoz/ micrófono), el usuario experimentará un alcance de...
  • Page 30: Tabla De Frecuencia Del Canal

    TABLA DE FRECUENCIA DEL CANAL DE CB (BANDA CIUDADANA) Canal: 26.965 MHz 26.975 MHz 26.985 MHz 27.005 MHz 27.015 MHz 27.025 MHz 27.035 MHz 27.055 MHz 27.065 MHz 27.075 MHz 27.085 MHz 27.105 MHz 27.115 MHz 27.125 MHz 27.135 MHz 27.155 MHz 27.165 MHz 27.175 MHz...
  • Page 31: Tabla De Localización Y Reparación De Averías

    TABLA DE LOCALIZACION Y REPARACION DE AVERIAS Este radio de Banda Ciudadana portátil ha sido fabricado en conformidad con las exigentes normas de control de calidad de Maxon. El mismo debe manipularse con cuidado razonable. Evite exponerlo a suciedades y a la humedad.
  • Page 32: Instrucciones Servicio De Garantía

    INSTRUCCIONES SERVICIO 1) Refiera a la seccíon de Instrucciones de Operacion en su manual de operaciones para operaciones y ajustes apropiados. 2) Refiera a tabla de localización y reparación de averías. 3) Si el procedimiento anterior no corrije el problema que usted esta experimentando devuelva el producto (con el recibo de compra) al lugar en el cual lo compró, o llame al Departamento de Servicio para el cliente de...
  • Page 33: Aclaración De La Garantía

    ACLARACIÓN DE LA GARANTÍA LIMITADA La División de Productos para el Consumidor de Maxon America, Inc. (de aquí en adelante referido como "Maxon"), garantiza que sus Productos y los accesorios incluidos estarán libres de defectos de mano de obra o materiales bajo un uso normal por un período de un (1) año partir de la fecha de compra por el usuario original, siempre y cuando el comprador haya cumplido con los...
  • Page 34 El comprador deberá hacerse responsable de remover el Producto defectuoso e instalación de su repuesto. LAS GARANTÍAS EXPRESAS AQUI CONTENIDAS SUSTITUYEN TODAS LA OTRAS GARANTÍAS, YA SEAN EXPRESAS, O IMPLICITAS, O ESTATUTARIAS, INCLUYENDO, SIN LIMITACION, CUALQUIER GARANTIA DE BUENA CALIDAD O IDONEIDAD PARA UN PROPOSITO PARTICULAR.
  • Page 35: Accessorios Maxon

    REPUESTOS ACCESORIOS MAXON/OPCIONALES Estos accesorios opcionales del HCB-10C de Maxon se encuentran disponibles por el distribuidor/vendedor minorista de CB de Maxon de su localidad. DV-7210 Cargador de baterías de pared de CA/ CC para recargar baterías de Ni-Cad WTA-1 Antena telescópica con conector BNC...
  • Page 36 Thank you for choosing Maxon ! ¡Gracias por escoger a Maxon! For more information, contact: Para obtener más información, comuníquese con: Maxon America, Inc. Consumer Products Division 10828 NW Air World Drive Kansas City, Missouri 64153 (Within USA) Phone: 1-800-821-7848, Ext. 399 (Outside USA) Phone: 1-816-891-6320, Ext.
