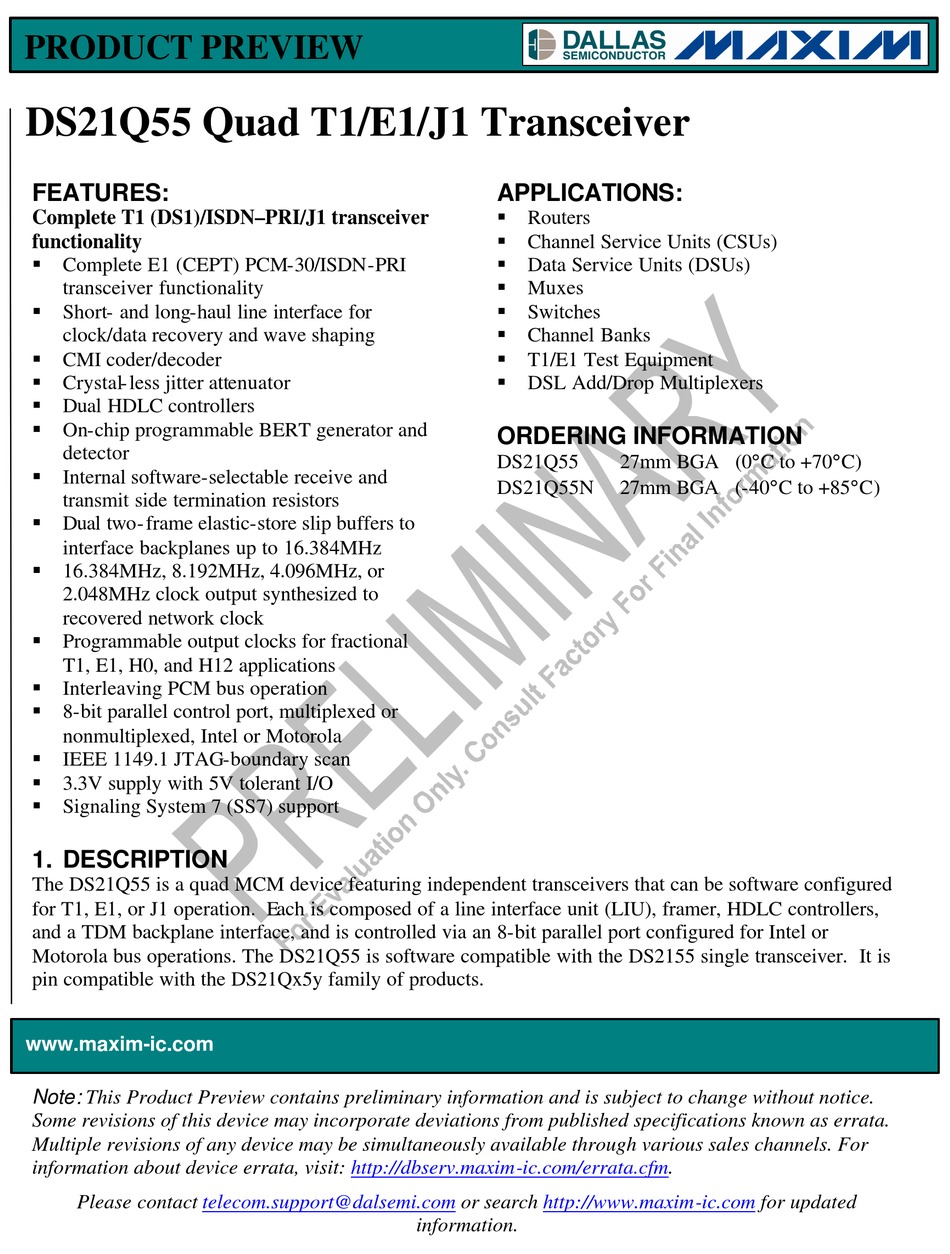

DS21Q55 Quad T1/E1/J1 Transceiver
FEATURES:
Complete T1 (DS1)/ISDN–PRI/J1 transceiver
functionality
§ Complete E1 (CEPT) PCM-30/ISDN-PRI
transceiver functionality
§ Short- and long-haul line interface for
clock/data recovery and wave shaping
§ CMI coder/decoder
§ Crystal- less jitter attenuator
§ Dual HDLC controllers
§ On-chip programmable BERT generator and
detector
§ Internal software-selectable receive and
transmit side termination resistors
§ Dual two- frame elastic-store slip buffers to
interface backplanes up to 16.384MHz
§ 16.384MHz, 8.192MHz, 4.096MHz, or
2.048MHz clock output synthesized to
recovered network clock
§ Programmable output clocks for fractional
T1, E1, H0, and H12 applications
§ Interleaving PCM bus operation
§ 8-bit parallel control port, multiplexed or
nonmultiplexed, Intel or Motorola
§ IEEE 1149.1 JTAG-boundary scan
§ 3.3V supply with 5V tolerant I/O
§ Signaling System 7 (SS7) support
1. DESCRIPTION
The DS21Q55 is a quad MCM device featuring independent transceivers that can be software configured
for T1, E1, or J1 operation. Each is composed of a line interface unit (LIU), framer, HDLC controllers,
and a TDM backplane interface, and is controlled via an 8-bit parallel port configured for Intel or
Motorola bus operations. The DS21Q55 is software compatible with the DS2155 single transceiver. It is
pin compatible with the DS21Qx5y family of products.
www.maxim-ic.com
Note: This Product Preview contains preliminary information and is subject to change without notice.
Some revisions of this device may incorporate deviations from published specifications known as errata.
Multiple revisions of any device may be simultaneously available through various sales channels. For
information about device errata, visit: http://dbserv.maxim-ic.com/errata.cfm.
Please contact
telecom.support@dalsemi.com
APPLICATIONS:
§ Routers
§ Channel Service Units (CSUs)
§ Data Service Units (DSUs)
§ Muxes
§ Switches
§ Channel Banks
§ T1/E1 Test Equipment
§ DSL Add/Drop Multiplexers

ORDERING INFORMATION

DS21Q55
DS21Q55N
or search
http://www.maxim-ic.com
information.
27mm BGA (0 C to +70 C)
27mm BGA (-40 C to +85 C)
for updated
DS21Q55
