Audio Technica ES935ML6 Instruction Manual

ES935ML6
MicroLine Condenser Gooseneck Microphone
®
Features
• Unobtrusive design with an overall length of only 316.3 mm (12.45")
• Plugs into any standard XLRF-type connector, or direct mounts to
/ "- 27 stands using included thread-mount adapter
5
8
• MicroLine polar pattern provides narrow 90º acceptance angle
®
• Superior off-axis rejection for maximum gain before feedback
• UniGuard RFI-shielding technology offers outstanding rejection
®
of radio frequency interference (RFI)
• Easy-to-adjust, rugged, small-diameter gooseneck with virtually
no "memory" permits quick positioning into desired shape
• UniSteep filter provides a steep low-frequency attenuation to
®
improve sound pickup without affecting voice quality
• Available interchangeable elements permit angle of acceptance
from 90º to 360º
• Included low-profile isolation mount attenuates noise, shock
and vibration
Description
The ES935ML6 is a wide-range miniature condenser microphone with
a MicroLine (line cardioid) polar pattern. It is designed for quality sound
®
reinforcement, professional recording, television and other demanding
sound pickup applications.
The small-diameter gooseneck design permits highly flexible positioning
while maintaining a smooth, well-contoured appearance. The ES935ML6
stands 316.3 mm (12.45") from the table or podium.
The microphone requires 11V to 52V phantom power for operation.
The microphone is equipped with UniGuard
which offers outstanding rejection of radio frequency interference (RFI).
The microphone's MicroLine
®
90° angle of acceptance. Additional interchangeable elements with
omnidirectional (360°), cardioid (120°) and hypercardioid (100°) pickup
patterns are available.
An XLRM-type connector insert at the base allows the microphone to be
plugged directly into an XLRF-type panel jack or microphone cable.
A recessed switch permits choice of flat response or low-frequency roll-
off (via integral 80 Hz high-pass UniSteep
ambient noise.
The microphone comes equipped with a two-stage foam windscreen,
a low-profile isolation mount, and a stand clamp to permit attaching
the microphone to a standard
RFI-shielding technology,
®
(line cardioid) polar pattern provides a
filter) to help control undesired
®
/ "- 27 or / "-16 threaded mic stand or
5 3
8 8
mounting flange. The microphone is enclosed in a rugged housing with a
low-reflectance black finish.
Installation and Operation
The ES935ML6 requires 11V to 52V phantom power for operation.
Output is low impedance (Lo-Z) balanced. The signal appears across Pins
2 and 3; Pin 1 is ground (shield). Output phase is "Pin 2 hot"— positive
acoustic pressure produces positive voltage at Pin 2.
The microphone can be mounted on a podium or desktop with the
included AT8474 low-profile isolation mount. Designed to be mounted
either above or beneath the mounting surface, the AT8474 firmly secures
the microphone while providing maximum attenuation of noise, shock
and vibration transmitted through the mounting surface. An AT8473 stand
clamp is also included to permit attaching the microphone to a standard
/ "- 27 or / "-16 threaded mic stand or mounting flange.
5 3
8 8
The provided two-stage foam windscreen simply slips over the element,
effectively reducing wind noise and popping.
An integral 80 Hz high-pass UniSteep
from a flat frequency response to a low-end roll-off. The roll-off position
reduces the microphone's sensitivity to popping in close vocal use. It
also reduces the pickup of low-frequency ambient noise (such as traffic,
air-handling systems, etc.), room reverberation and mechanically coupled
vibrations. To engage the UniSteep
or other small pointed instrument to slide the switch toward the "bent" line.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 110° F (43° C) for extended periods. Extremely high
humidity should also be avoided.

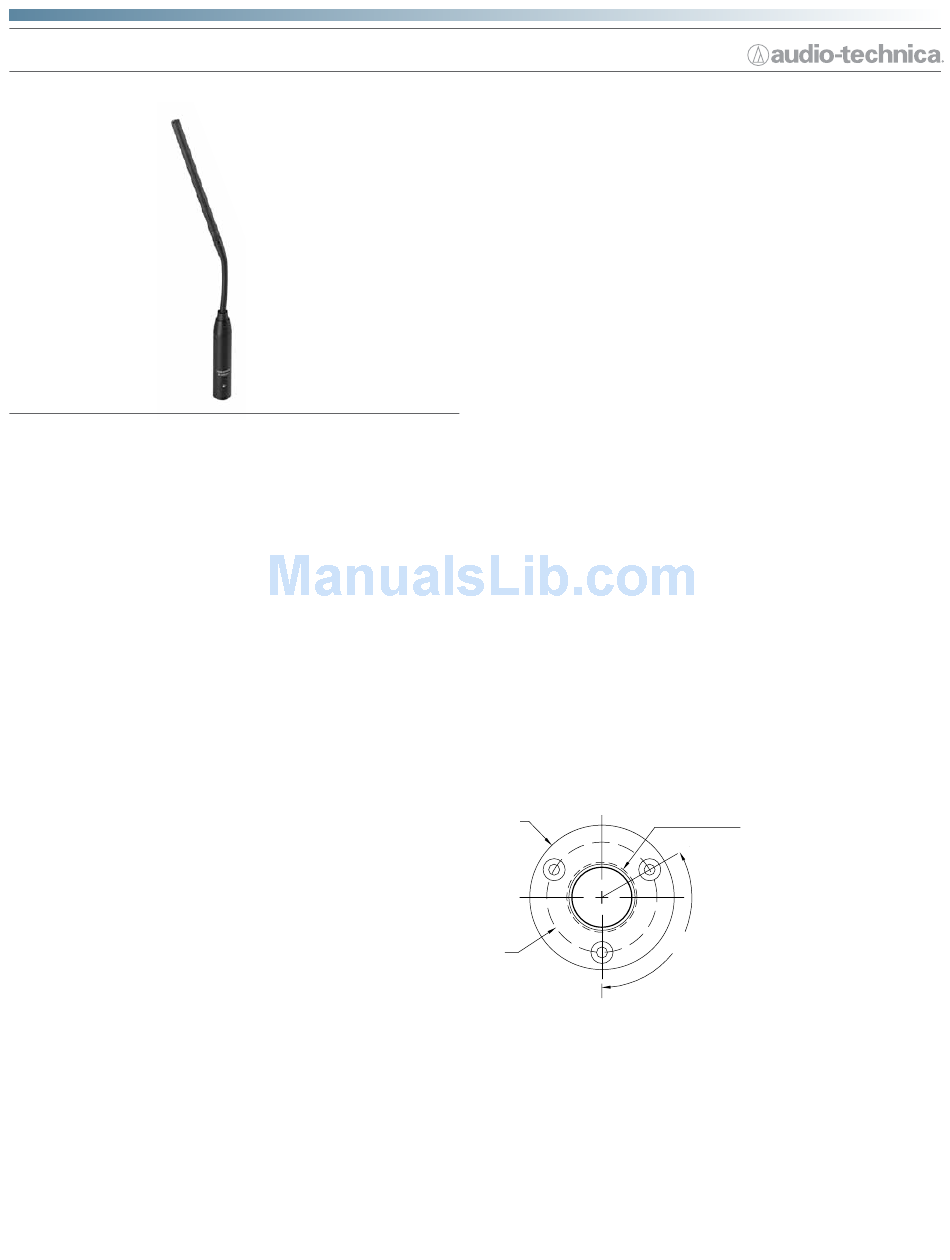

AT8474 Isolation Mount Installation Instructions
Mounting Dimensions
A. 1.5 mm ( / ") pilot holes 3 places on 40.0 mm (1.57") circle.
1
16
B. 25.4 mm (1.00") hole through the mounting surface.
C. Outside edge of mount, 52.4 mm (2.06") diameter.
C
120°
A
1. The AT8474 mount can be mounted either above or below the
table surface.
2. Locate the center of the mounting location and mark it. Allow enough
clearance to accommodate the AT8474 mount on the desired
surface and make certain there are no physical obstructions
below the desired location.
3. Locate the three mounting screw holes and mark them.
4. Using a 1" hole saw, drill the through-hole for the microphone body.
(Note: Although a 1" drill bit will work, a hole saw provides for a cleaner
hole and is less likely to damage the table surface.)
5. Using a 1.5 mm ( / ") drill bit, drill three pilot holes for the mounting
1
16
screws. (If mounting below the table surface, be certain NOT to drill
pilot holes through the table.)
engineered sound microphones
®
filter provides easy switching
®
filter, use the end tip of a paperclip
®
B
drawing not actual size
