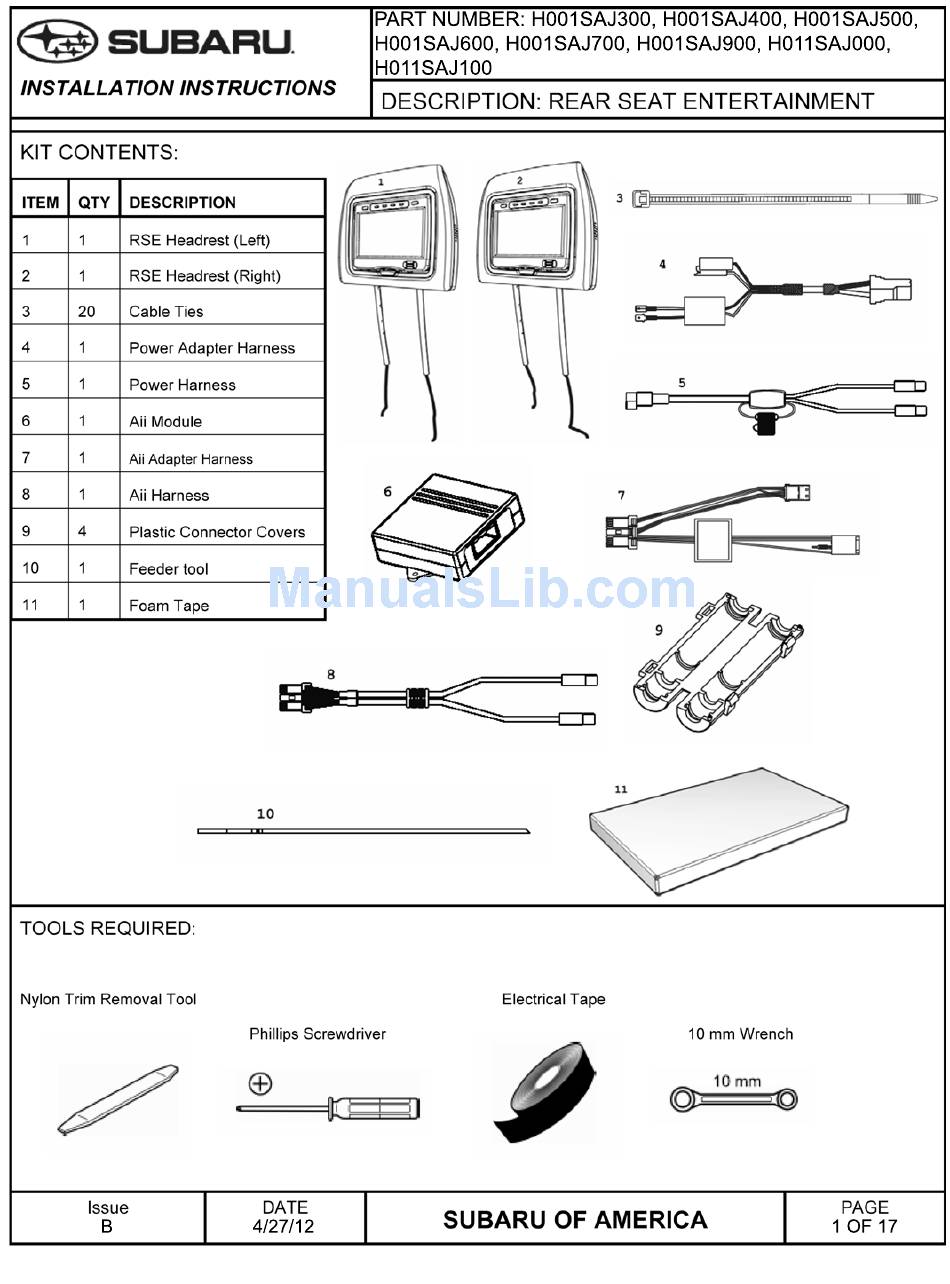

Summary of Contents for Subaru HA001SAJ300
- Page 2 Release elastic strap from bottom of seat. CAUTION! underseat area may have sharp edges. care when reaching under the seat. Gloves are recommended. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 2 OF 17...
- Page 3 (7) After the lower clips are released, slide the trim panel down gently and it will release from the seat. (8) Place the trim panels in a safe location for reuse. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 3 OF 17...
- Page 4 (2) Install the headrests [1,2] into the seats. (3) Move the headrests [1,2] down until they stop at the lowest setting. Return seats to upright position. Stop adjustment if headrests contact vehicle roof. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 4 OF 17...
- Page 5 Do not use unnecessary force. Repeat for passenger seat. Starting at the base of headrest posts, there are foam tapes to headrest cables as shown. Left seat Right seat ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 5 OF 17...
- Page 6 2) Tie RSE cables to seat frame bracket 3) Tie RSE cables to existing harness. 4) Unhook Velcro strap, route cables through and reattach. See photos below for more detail ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 6 OF 17...
- Page 7 2) Tie RSE cables to seat frame bracket 3) Use foam tape [11] to attach cables to seat frame. See photos below for more detail ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 7 OF 17...
- Page 8 Move seats to rear most position, and then disconnect battery. Automatic transmission only. For manual transmission, skip to step 19. Using plastic trim removal tool, pull lower shifter trim down as shown. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 8 OF 17...
- Page 9 Remove shifter clip Remove shifter and trim ring Using plastic trim removal tool separate clips along console trim panel in order shown. Unseat electrical connections and remove trim panel from vehicle. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 9 OF 17...
- Page 10 Use nylon trim removal tool to separate clips from sides of center console and instrument panel. Remove left and right trim panels from vehicle. Remove screws where indicated. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 10 OF 17...
- Page 11 Remove screw. Repeat for other side of console. Pull center console toward rear of vehicle until duct work clears instrument panel. Then lean front of console up and back. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 11 OF 17...
- Page 12 For both seats, feed the wiring back under the carpet to the outer duct opening. Route the wires along the seat wiring from floor up to the seat. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 12 OF 17...
- Page 13 Secure harness to seat spring with 2 cable ties [3] 3) Connect the black and green connectors. Repeat for right seat. Install plastic covers over black and green connectors. ISSUE DATE PAGE SUBARU OF AMERICA 03/16/11 13 OF 17...
- Page 14 Attach Aii adaptor harness box [7] to vehicle carpet with double-sided tape, also on centerline of vehicle. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 14 OF 17...
- Page 15 [7]. Connect the Aii adapter harness [7] to the vehicle AUX input jack. Reconnect the USB port Connect the RSE power adapter harness [4] to the RSE power harness [5]. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 15 OF 17...
- Page 16 Note orientation and polarity. Wrap the connection with electrical tape. Attach the RSE power adapter harness box to the vehicle carpet underneath the center console box. ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 16 OF 17...
- Page 17 Interior illumination (cup holder) Seat heater function (driver’s and passenger’s) AUX input function PRNDL illumination Console power outlet function 110V Outlet function RSE unit function (driver’s side and passenger side) ISSUE DATE PAGE SUBARU OF AMERICA 4/27/12 17 OF 17...
