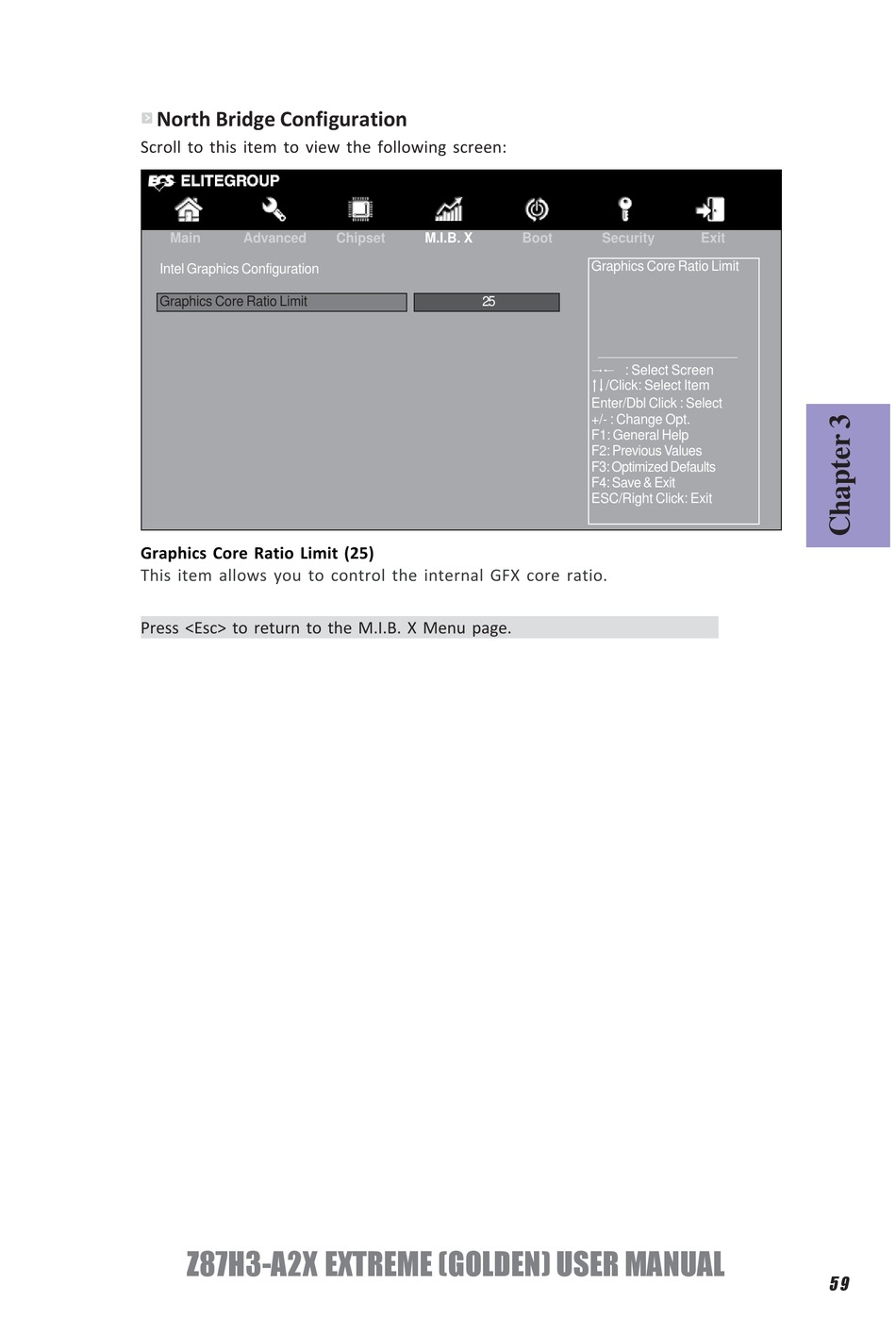

North Bridge Configuration

Scroll to this item to view the following screen:
Main Advanced
Intel Graphics Configuration
Graphics Core Ratio Limit
Graphics Core Ratio Limit (25)
This item allows you to control the internal GFX core ratio.
Press <Esc> to return to the M.I.B. X Menu page.
Z87H3-A2X EXTREME (GOLDEN) USER MANUAL
Chipset M.I.B. X
25
Boot Security
Graphics Core Ratio Limit

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Exit
59
