Summary of Contents for Spectrum Mopit 4

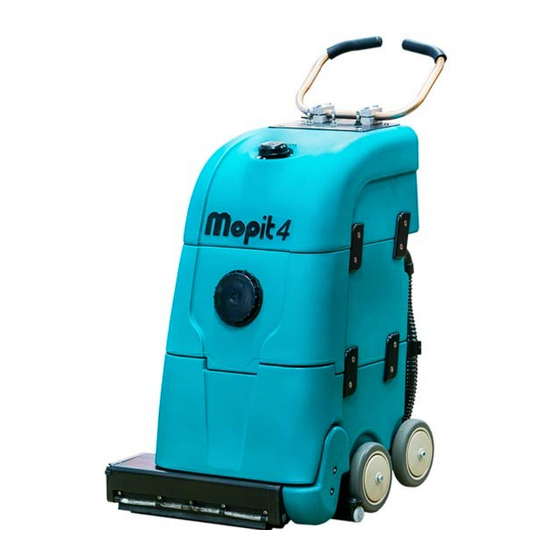

- Page 1 Mopit 4 Operator’s / Service Manual...
- Page 2 FOR PARTS AND SERVICE 1-800-290-2833 To view Mopit 4 instructional videos scan this qr code with your smart phone. You can also find Mopit 4 instructional videos on the Mopit channel at www.youtube.com...
-
Page 3: Table Of Contents
Page 3 Table of Contents BASIC OPERATION………………………………………………….4-8 Mopit safety information……………………………………….4 Filling the fresh water tank……………………………………..4 Using Mopit cleaning solution…………………………………4 Water level gauge………………………………………………5 Mopit switches…………………………………………………5 Draining the dirty water………………………………………...6 Water valve……………………………………………………..6 Transporting the Mopit…………………………………………6 Squeegee lift pedal……………………………………………...7 Charging the Mopit……………………………………………..7 MAINTENANCE / MOPIT SERVICE Draining the fresh water tank…………………………………..8 Cleaning the water filter………………………………………..8 Squeegee replacement………………………………………….9... -
Page 4: Basic Operation
Page 4 FOR PARTS AND SERVICE 1-800-290-2833 Scan this QR code with your smart phone to watch the Mopit 4 training video. You can view all of our Mopit movies on the “Mopit Channel” at www.youtube.com. BASIC OPERATION WARNING!!!! ... -
Page 5: Water Level Gauge
The Mopit 4 has brush assist, so the brush will help to pull the Mopit along the floor, making it effortless to push. When operating the Mopit you may walk at a normal pace. -
Page 6: Draining The Dirty Water
Page 6 FOR PARTS AND SERVICE 1-800-290-2833 BASIC OPERATION Draining The Dirty Water This is the dirty water drain hose Simply remove the cap and let the drain hose down onto a floor drain. After draining, be sure to put the cap on tightly. If the cap is not screwed on tightly the machine will lose suction power. -
Page 7: Squeegee Lift Pedal
Mopit is charger. The Mopit is fully charged when the red power light and the green charger lights are on. The Mopit 4 is also available with an off- board charger option. -
Page 8: Maintenance / Mopit Service
Page 8 FOR PARTS AND SERVICE 1-800-290-2833 Scan this QR code with your smart phone to watch the Mopit water filter video. You can view all of our Mopit movies on the “Mopit Channel” at www.youtube.com. MAINTENANCE / SERVICE Draining The Fresh Water Tank Occasionally you may need to drain the fresh water tank. -
Page 9: Squeegee Replacement
Page 9 MOPIT 4 Scan this QR code with your smart phone to watch the Mopit squeegee replacement video. You can view all of our Mopit movies on the “Mopit Channel” at www.youtube.com. MAINTENANCE / SERVICE Changing The Squeegee Blade On average the squeegee blade will need to be changed every 6-8 weeks. -
Page 10: Brush Pressure Adjustment
Page 10 FOR PARTS AND SERVICE 1-800-290-2833 Scan this QR code with your smart phone to watch how to adjust the brush pressure. You can view all of our Mopit movies on the “Mopit Channel” at www.youtube.com. MAINTENANCE / SERVICE Adjusting The Brush Pressure WARNING: Adjusting the brush too low can damage the brush motor and lessen the cleaning performance. -
Page 11: Belt Replacement And Tensioning
Page 11 MAINTENANCE / SERVICE Belt Replacement And Tensioning Tip the Mopit on its back Remove belt cover with a 7/16” socket Loosen these two 1/8” Allen screws with a 3/16” Allen wrench twist the belt tensioning screw counter clockwise Remove old belt Installation is the above steps in reverse Tension belt to 3/8”... -
Page 12: Brush Replacement
“The Mopit Channel” at www.youtube.com. MAINTENANCE / SERVICE Brush Replacement The Mopit 4.0 scrub brush is very durable and should last several years. As the brush wears it can be lowered by fol- lowing the instructions on page 10. For re- placement follow the steps below. -
Page 13: Cleaning The Recovery Tank
Let the tank sit with the clean out cap and drain hose cap off until the inside of the recovery tank is dry. If your machine still has a foul odor order some Mopit deodor- izer from Spectrum. Vacuum Ball Screen... -
Page 14: Battery Pack Replacement
AGM type lead acid type batteries. Standard wet lead acid batteries will leak, and may be explosive. If you have questions about replacement batteries call Spectrum at1-800 290 2833. To change out the battery pack, you will need a Phillips screw driver and two 7/16”... - Page 15 Page 15 MAINTENANCE / SERVICE Replacing The Battery Pack continued 6. Gently tip the top of the Mopit onto its side. You shouldn't have to remove any of the hoses. 7. Disconnect the Black rubber molded connector 8. As you complete the next step be sure that you don’t short circuit the battery by touching any two battery ter-...
-
Page 16: Brush Motor Replacement
Page 16 FOR PARTS AND SERVICE 1-800-290-2833 MAINTENANCE / SERVICE Brush Motor Replacement On rare occasions the brush motor may need to be replaced. Please call Spec- trum at 1-800-290-2833 to troubleshoot and see if your brush motor needs to be replaced. -
Page 17: Battery Charger Replacement
Call Spectrum to help you decide if you need a new charger. Vacuum Motor Replacement... -
Page 18: Water Solenoid Replacement
Page 18 FOR PARTS AND SERVICE 1-800-290-2833 MAINTENANCE / SERVICE Replacing Water Solenoid Turn off the manual water valve Open the battery cover door Remove the two hoses from the solenoid Disconnect the power terminals from the solenoid Using a 5/32” Allen tool and a 7/16” wrench remove the solenoid from the battery cover door To replace follow the above steps in reverse Don’t forget to turn the manual water valve back on... -
Page 19: Drain Hose Replacement
Replace the idle cup / bearing assembly Drive Bearing Replacement Follow the instructions on pages 11 and 16 for removing the brush and brush motor Pull off the bearing plate, and replace with a new bearing plate as- sembly from spectrum... -
Page 20: Troubleshooting
6. Replace the drip tube. See page 18 7. Call Spectrum for additional troubleshooting Mopit Batteries Not Charging Call Spectrum for troubleshooting. Also see page 17 on charger replacement. Mopit Is Leaving Black Marks The most common cause is not getting water onto the floor. Black marks can also be caused by missing or worn squeegee wheels. -
Page 21: Mopit Leaks When Not In Use
22 for help. You can also lift the squeegee to double scrub very dirty areas see page 7 (Squeegee pedal) Battery Charge: If your battery is weak you won’t have much suc- tion or scrubbing power. See page 7 on battery charging For more help call Spectrum 1-800-290-2833... -
Page 22: Mopit Is Not Picking Up Water
Page 22 FOR PARTS AND SERVICE 1-800-290-2833 TROUBLESHOOTING My Mopit Is Not Picking Up Water If the Mopit is not picking up water, there is an issue with the water recovery system. Here are the things to check: 1. Check the squeegee blades for wear and replace if necessary (pg 9) 2. -
Page 23: Mopit Parts Diagram
Page 23 MOPIT 4 PARTS DIAGRAM... - Page 24 Page 24 FOR PARTS AND SERVICE 1-800-290-2833 MOPIT 4 PARTS DIAGRAM...
- Page 25 Page 25 MOPIT 4 PARTS DIAGRAM...
- Page 26 Page 26 FOR PARTS AND SERVICE 1-800-290-2833 MOPIT 4 PARTS DIAGRAM...
- Page 27 Page 27 MOPIT 4 PARTS DIAGRAM...
- Page 28 Page 28 FOR PARTS AND SERVICE 1-800-290-2833 MOPIT 4 PARTS DIAGRAM...
-
Page 29: Mopit Maintenance Chart
Page 29 This chart can be printed from our website www.mopitfloorcare.com Its found under the “support” tab THE MOPIT CENTER CHART... -
Page 30: Mopit Qr Codes For Videos
Page 30 FOR PARTS AND SERVICE 1-800-290-2833 MOPIT 4 QR CODES Mopit 4 Training Video All of these videos can be found on by going to the Mopit channel on www.youtube.com. Just search Squeegee replacement Mopit. They can also be found under the “support”... -
Page 31: Mopit Specifications
Page 31 MOPIT 4 SPECIFICATIONS Cleaning Path 15 Inches Fresh Water Capacity 5 Gallons Dirty Water Capacity 5.5 Gallons Solution Flow Rate .11to.31 Gallons Per Minute Scrub Brush Speed 1200 RPM Brush Size 4 Inches in Diameter Vacuum Motor 24 Volt 2 Stage, 45.8” Water Lift Sealed... - Page 32 868 West 400 North Logan, Utah 84321 Phone: 1-800-290-2833 Email: spectrum.ind@gmail.com Web: www.mopit floorcare.com...
