Ricon Innovator Service Manual

Personal use wheelchair lift
Hide thumbs Also See for Innovator:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
®

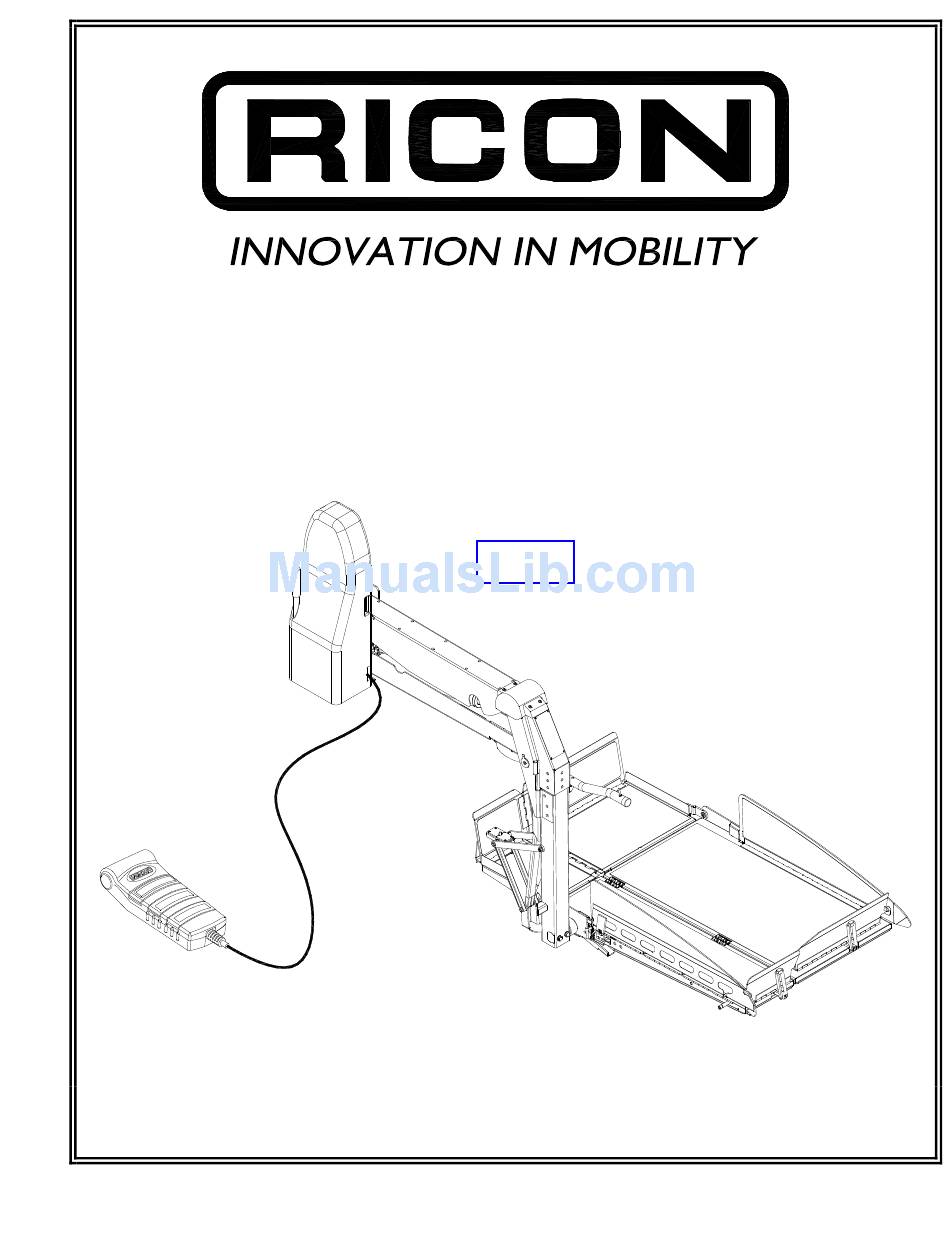

Innovator
™
Personal Use
Wheelchair Lift
PRINT
Service Manual
32DFL02.E
10/13/03
©1995 – 2003 RICON CORPORATION
U.S. and Foreign Patents Pending
All Rights Reserved
Printed in the United States of America

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Innovator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ricon Innovator

Summary of Contents for Ricon Innovator

  • Page 1 ® Innovator ™ Personal Use Wheelchair Lift PRINT Service Manual 32DFL02.E 10/13/03 ©1995 – 2003 RICON CORPORATION U.S. and Foreign Patents Pending All Rights Reserved Printed in the United States of America...
  • Page 2 This Ricon service manual is for use by qualified service technicians, and is not intended for use by non- professionals (do-it-yourselfers). The manual provides es- sential instructions and reference information, which sup- ports qualified technicians in the correct installation and maintenance of Ricon products.
  • Page 3 REVISION RECORD DATE PAGES DESCRIPTION OF CHANGE 10/13/03 Edited Table 3-1. “Maintenance Checklist”. 32DFL02. Edited Table 3-2, “Troubleshooting Guide”. Edited section C.2 “Electrical System Diagnostic Display”. Added Table 3-4 “Numerical Display Descriptions”. 3-10 Edited Table 3-5 “Display Number Descriptions for Deploy Motion”. 3-11 3-12 Edited Table 3-6 “Display Number Descriptions for Down Motion”.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Chapter Page I. INTRODUCTION........................1-1 A. RICON SERVICE SUPPORT ......................1-1 B. RICON ONE-YEAR WARRANTY ......................1-1 C. SHIPMENT INFORMATION.......................1-3 D. GENERAL SAFETY PRECAUTIONS ....................1-3 E. INNOVATOR COMPONENT TERMS....................1-4 II. INSTALLATION ........................2-1 A. MECHANICAL INSTALLATION ......................2-2 1. VEHICLE PREPARATION ........................2-2 2.
  • Page 5 FIGURE 4-9: FRONT PLATFORM ASSEMBLY SHEET-3 ...............4-18 FIGURE 4-10: FRONT PLATFORM ASSEMBLY SHEET-4 ...............4-20 FIGURE 4-11: PLATFORM WRAP MOTOR ASSEMBLY ..............4-22 FIGURE 4-12: ROLLSTOP AND SIDE BARRIER MOTOR ASSEMBLY ...........4-24 FIGURE 4-13: BRIDGEPLATE MOTOR ASSEMBLY.................4-26 FIGURE 4-14: PUMP ASSEMBLY.......................4-28 APPENDIX 1 ............................4-30 32DFL02.E...

  • Page 6: Introduction

    The front rollstop and side barriers on the platform automatically lower when the platform contacts the ground. The lowered side barriers allow entry onto the platform from a wide angle. The Innovator lift is operated by either a trained attendant or the wheelchair occupant.
  • Page 7 A Ricon rate schedule determines the parts covered and labor allowed. If You Need to Return a Product: Return this product to Ricon. Please give as much advance notice as possible and allow a reasonable amount of time for repairs.

  • Page 8: Shipment Information

    SHIPMENT INFORMATION Ricon does not sell directly to the user because of the specialized nature of this product. Instead, the product is dis- tributed through a worldwide network of authorized Ricon dealers who perform the actual sale and installation. •...

  • Page 9: Innovator Component Terms

    PENDANT BARRIER RELEASE REMOTE CONTROLLER LEFT SIDE FRONT (beneath platform) LEFT BARRIER FRONT PLATFORM SECTION, LEFT SIDE FIGURE 1-1: INNOVATOR LIFT COMPONENTS MANUAL PUMP HANDLE SOCKET MANUAL PUMP RELEASE VALVE MANUAL BACKUP PUMP HANDLE CONTROL SYSTEM CIRCUIT BREAKER INTERLOCK INDICATOR LIGHT...
  • Page 10 FIGURE 1-4: INNOVATOR FOLDED FIGURE 1-3: INNOVATOR FOLDED AND WRAPPED BUT NOT WRAPPED FIGURE 1-5: LIMIT SWITCH LOCATIONS 32DFL02.E 1 - 5...
  • Page 11 TABLE 1-1: INNOVATOR LIFT MAJOR COMPONENTS NAME DESCRIPTION Left, Right, Front, and Rear Lift reference when viewing installation from outside of vehicle. Control pendant Hand-held control box used to operate lift. Tower Houses hydraulic pump assembly, circuit breakers, and manual back-up pump.

  • Page 12: Installation

    INNOVATOR INSTALLATION his chapter contains instructions for installing the RICON Innovator Series Personal Use Wheelchair Lift. The installation kit for the Innovator Series Lift (provided with lift) contains detailed installation instructions. Contact Ricon Product Support for applications not covered by the included installation instructions or the instructions that follow.

  • Page 13: Mechanical Installation

    MECHANICAL INSTALLATION VEHICLE PREPARATION WARNING! § WEAR PROTECTIVE CLOTHING AND EYE PROTECTION AT ALL TIMES. BATTERIES CONTAIN ACID THAT CAN BURN. IF ACID COMES INTO CONTACT WITH SKIN, IMMEDIATELY FLUSH AFFECTED AREA WITH WATER AND WASH WITH SOAP. § DO NOT SMOKE OR USE OPEN FLAME IN THE VICINITY OF BATTERY. WORK IN A PROPERLY VENTILATED AREA.
  • Page 14 WARNING! LIFT WEIGHT IS APPROXIMATELY 330 LBS. USE EXTREME CARE WHEN POSITIONING. POSITIONING MUST BE PERFORMED BY AT LEAST TWO PEOPLE. g. Position lift; align the rear mounting holes of lift with holes in floor bracket. h. Secure lift: 1) Insert two ½-13 screws through holes. 2) Loosely install below-floor reinforcement brackets.

  • Page 15: Electrical Installation

    DO NOT PLACE ANYTHING METALLIC ON TOP OF BATTERY. CONTROL INTERFACE AND DOOR OPERATOR Connect appropriate RICON lift interface control (control pendant, etc.) to lift connector. Secure interface control cable to lift bracket with supplied strain relief kit. Connect power door operator to lift connector. If a power door operator is not used, install a shorting plug (included in installation kit) here.

  • Page 16: Lift Electrical Grounding

    CAUTION! Route electrical cables away from moving parts, fuel/ hydraulic lines, and exhaust system. Connect long power cable to main circuit breaker AUX terminal. Route power cable beneath vehicle floor, back to lift and up through hole near lift baseplate. Secure cable to vehicle with nylon clamps and/or cable ties.

  • Page 17: Final Adjustments

    NOTE: If lift does not operate after 1-2 full turns of adjustment screw, cycle platform UP and DOWN (the PLATFORM BELOW FLOOR switch is less sensitive than the PLATFORM ABOVE FLOOR switch). NOTE: Contact Ricon Product Support for assistance, if needed. a. Be certain that area is clear and the vehicle is parked on a flat, level surface.

  • Page 18: Anti-Stow Pressure Switch

    ANTI-STOW PRESSURE SWITCH An adjustable, pressure-sensitive, electrical switch is installed in the body of the hydraulic pump. When properly adjusted, the switch protects platform occupants by preventing the accidental stow or deploy of the platform; the platform cannot be stowed if a weight of 50 pounds, or greater, is on the platform. The switch changes state when a 50 lb load is on the deployed platform.

  • Page 19: Verify Installation

    STOW button is pressed. CUSTOMER ORIENTATION IMPORTANT CUSTOMER ORIENTATION Ricon Sales or Service personnel must review the Warranty and Operator Manual with customer to be certain he or she understands the safe operation of lift. Instruct customer to follow operating instructions without exception.
  • Page 20 32DFL02.E 2 - 9...
  • Page 21 This page intentionally left blank. 32DFL02.D 2 - 10...

  • Page 22: Maintenance And Troubleshooting

    III. MAINTENANCE AND TROUBLESHOOTING egular maintenance of the Ricon Innovator Wheelchair Lift will reduce the frequency of repairs and contribute to optimum performance and safe operation. This chapter contains cleaning and lubrication instructions, a maintenance schedule, a troubleshooting section, plus hydraulic and electrical diagrams.

  • Page 23: Troubleshooting

    THE TROUBLESHOOTING GUIDE DOES NOT INCORPORATE ROUTINE SAFETY PRECAUTIONS OR PRELIMINARY PROCEDURES. TROUBLESHOOTING MUST BE PERFORMED BY A TRAINED, AUTHORIZED RICON SERVICE TECHNICIAN DURING THE RICON WARRANTY PERIOD. IT IS RECOMMENDED THAT TROUBLESHOOTING ALSO BE PERFORMED BY AN AUTHORIZED RICON SERVICE TECHNICIAN AFTER THE WARRANTY PERIOD.
  • Page 24 TABLE 3-2: TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE REMEDY Main Circuit Breaker (located in engine compartment) Lift does not operate Reset circuit breaker. when Deploy button is has tripped. pressed Control System Circuit Breaker (located on lift tower) Reset circuit breaker. has tripped.
  • Page 25 TABLE 3-2: TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE REMEDY Up function Hydraulic pump motor is defective. Replace motor. inoperative; pump motor does not Front and rear platform contacts are dirty or do not Clean or adjust platform operate touch. contacts. Rollstop and Barrier Up limit switch is defective (left or Repair or adjust switch.
  • Page 26 TABLE 3-2: TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE REMEDY Rollstop does not Rollstop motor is defective. Replace rollstop motor. open Platform On Ground limit switch is defective or out of Repair or adjust switch. adjustment. Rollstop mechanical linkage is defective. Repair rollstop linkage. Controller rollstop lowering circuit is defective.
  • Page 27 TABLE 3-2: TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE REMEDY Pump motor runs Fold Cutoff limit switch is defective or out of Repair switch or wiring. after lift is stowed adjustment. Faulty Fold Cutoff limit switch wiring. Repair wiring. Controller Fold Cutoff circuit is defective. Replace controller.

  • Page 28: Electrical System Diagnostics Display

    ELECTRICAL SYSTEM DIAGNOSTIC DISPLAYS Observe the LED display on the main controller board (located at the lower front of the tower) to monitor electrical events that occur in the lift. These lights provide an indication of what the lift status is, such as the position of components (rollstop up, platform wrapped, platform below floor level, etc), or occurrence of output signals that energize electrical components (hydraulic pump, rollstop motor, etc), or the need for precaution (high current in certain circuits, vehicle door open, etc).
  • Page 29 32DFL02.E 3 - 8...
  • Page 30 TABLE 3-3: DIAGNOSTIC LED DISPLAY GUIDE LED LABEL DESCRIPTION Bridgeplate is down On when bridgeplate is fully lowered. Bridgeplate is up On when bridgeplate is fully folded (perpendicular to platform). Close vehicle doors On when controller sends a close signal to door operators. Com 1 circuit is shorted On when a high-current condition occurs in COM1 circuit.
  • Page 31 TABLE 3-3: DIAGNOSTIC LED DISPLAY GUIDE LED LABEL DESCRIPTION Wrap enable On when wrap disable switch is off. When switch is off, the platform wraps normally. Wrap platform On when controller sends a wrap signal to the platform wrap motor. TABLE 3-4: NUMERICAL DISPLAY DESCRIPTIONS STATUS FUNCTION LIFT CONDITION...
  • Page 32 TABLE 3-5: DISPLAY NUMBER DESCRIPTIONS FOR DEPLOY MOTION STATUS NUMBER 50 (SEE NOTE 5) INPUT SWITCHES (SEE NOTE 4) GROUND CONTACT ROLLSTOP IS UP PLATFORM IS WRAPPED (SEE NOTE 1) PLATFORM IS UNWRAPPED BRIDGEPLATE IS DOWN BRIDGEPLATE IS UP ROLLSTOP IS LOCKED REMOTE ERROR PLATFORM OCCUPIED VEHICLE DOORS ARE OPEN...
  • Page 33 TABLE 3-6: DISPLAY NUMBER DESCRIPTIONS FOR DOWN MOTION STATUS NUMBER INPUT SWITCHES (SEE NOTE 3) GROUND CONTACT ROLLSTOP IS UP PLATFORM IS WRAPPED PLATFORM IS UNWRAPPED BRIDGEPLATE IS DOWN BRIDGEPLATE IS UP ROLLSTOP IS LOCKED REMOTE ERROR PLATFORM OCCUPIED VEHICLE DOORS ARE OPEN (SEE NOTE 4) PLATFORM BELOW FLOOR LEVEL PLATFORM ABOVE FLOOR LEVEL...
  • Page 34 TABLE 3-7: DISPLAY NUMBER DESCRIPTIONS FOR UP MOTION STATUS NUMBER INPUT SWITCHES (SEE NOTE 3) GROUND CONTACT ROLLSTOP IS UP PLATFORM IS WRAPPED PLATFORM IS UNWRAPPED BRIDGEPLATE IS DOWN BRIDGEPLATE IS UP ROLLSTOP IS LOCKED REMOTE ERROR PLATFORM OCCUPIED VEHICLE DOORS ARE OPEN (SEE NOTE 4) PLATFORM IS BELOW FLOOR LEVEL...
  • Page 35 TABLE 3-8: DISPLAY NUMBER DESCRIPTIONS FOR STOW MOTION STATUS NUMBER 75 (SEE 76 (SEE NOTE 1) NOTE 2) INPUT SWITCHES (SEE NOTE 8) GROUND CONTACT ROLLSTOP IS UP PLATFORM IS WRAPPED PLATFORM IS UNWRAPPED ON (SEE BRIDGEPLATE IS DOWN NOTE 5) BRIDGEPLATE IS UP ROLLSTOP IS LOCKED REMOTE ERROR...

  • Page 36: Hydraulic System

    HYDRAULIC SYSTEM FIGURE 3-2: HYDRAULIC SYSTEM 32DFL02.E 3 - 15...

  • Page 37: Lift Electrical Wiring

    LIFT ELECTRICAL WIRING DIAGRAM LEGENDS Wire Color Codes TABLE 3-4: WIRE COLOR CODES LETTER COLOR LETTER COLOR Black Blue White Brown Yellow Green YEL/BLK Yellow w/ black stripe Violet Orange WHT/ORG White w/ orange stripe Grey GRN/BLK Green w/ black stripe END OF TABLE Electrical Symbols FIGURE 3-3: ELECTRICAL SYMBOLS...

  • Page 38: Electrical Connectors

    ELECTRICAL CONNECTORS Refer to Figure 3-4 for standard pin arrangements of several plugs and receptacles used in the lift electrical wiring. Note that receptacles are designated on the electrical diagram with the letter J, and plugs with the letter P. FIGURE 3-4: PIN ARRANGEMENTS FOR ELECTRICAL CONNECTORS WIRING DIAGRAM LABELS TABLE 3-5: WIRING DIAGRAM LABEL DEFINITIONS...

  • Page 39: Wiring Diagrams

    TABLE 3-5: WIRING DIAGRAM LABEL DEFINITIONS LABEL DESCRIPTION OPEN VEHICLE DOOR Signal; from controller to power door operator; opens doors adjacent to lift. PLATFORM ALARM Signal; +12 VDC 1A output available to vehicle for passenger warning. PLATFORM OCCUPIED Pressure switch; opens when platform is loaded with 50 lbs or more. PLATFORM ON GROUND Limit switch;...
  • Page 40 This page intentionally left blank. 32DFL02.E 3 - 19...
  • Page 41 FIGURE 3-5: INNOVATOR ELECTRICAL WIRING (SHEET 1 OF 2) 32DFL02.E 3 - 20...
  • Page 42 FIGURE 3-6: INNOVATOR ELECTRICAL WIRING (SHEET 2 OF 2) 32DFL02.E 3 - 21...
  • Page 43 This page intentionally left blank. 32DFL02.E 3 - 22...

  • Page 44: Spare Parts

    SPARE PARTS his chapter contains parts diagrams and parts list for the RICON Innovator Wheelchair Lift. Each exploded view of a major lift assembly shows individual components, or components that comprise an assembly or kit, refer- enced by a number. On each associated list is the reference number, a part description, the quantity used, and the Ricon part number.

  • Page 45: Figure 4-1: Decal Part Numbers And Locations

    FIGURE 4-1: DECAL PART NUMBERS AND LOCATIONS 32DFL02.E...
  • Page 46 This page intentionally left blank. 32DFL02.E...

  • Page 47: Figure 4-2: Tower Assembly

    FIGURE 4-2: TOWER ASSEMBLY 32DFL02.E...
  • Page 48 FIGURE 4-2: TOWER ASSEMBLY DESCRIPTION PART NO. HYDRAULIC HOSE, HYDRAULIC PUMP ASSEMBLY 28690 PUMP ASSEMBLY, 12V PM212000008 KIT, BUSHINGS, FLANGED, TOWER 28733 BUSHING RETAINER, TOP 24591 GAS SPRING, 22MMOD 23539 BUSHING RETAINER, BOTTOM 24593 KIT, MAIN CONTROLLER 28734 KIT, TERMINAL, BLACK 28731 KIT, TERMINAL, RED 28732...

  • Page 49: Figure 4-3: Tower Electrical Cables

    WHT/ORG 18 AWG GRN/BLK 18 AWG ORG 18 AWG RED 4 AWG 24" BLU 18 AWG GRN 18 AWG BLK 4 AWG 24" WHT 18 AWG BLK 4 AWG 6" BLK 10 AWG 19" BLK 10 AWG 4" RED 10 AWG 6 IN. RED 10 AWG 6 IN.
  • Page 50 FIGURE 4-3: TOWER ELECTRICAL CABLES DESCRIPTION PART HARNESS, MAIN CONTROLLER–CONTROL PENDANT, J1 24332 HARNESS, MAIN CONTROLLER–HYDRAULIC PUMP, J2 24331 HARNESS, POWER AND DATA BUS 24327 HARNESS, HANDRAIL SWITCH 23941 CABLE ASSY, SOLENOID GND, 10 AWG BLK, 4” 24338 CABLE ASSY, SOLENOID GND, 10 AWG BLK, 19” 24337 CABLE ASSY, SOLENOID PWR, 4 AWG RED, 6”...

  • Page 51: Figure 4-4: Traveling Frame Assembly

    FIGURE 4-4: TRAVELING FRAME ASSEMBLY 32DFL02.E...
  • Page 52 FIGURE 4-4: TRAVELING FRAME ASSEMBLY DESCRIPTION PART NO. KIT, HYDRAULIC CYLINDER ASSY 27511 KIT, PIVOT PIN, 1.0OD 27512 LINK ASSY, HYDRAULIC CYLINDER 27061 KIT, HANDRAIL ASSY 27513 KIT, SHAFT, PLATFORM PIVOT 27514 HARNESS, HANDRAIL, W/SWITCH 23941 KIT, GAS SPRING 28735 BUSHING, FLANGED, 1.00IDx.75W, 27071 BUMPER, RUBBER, BAG OF 10...

  • Page 53: Figure 4-5: Platform Leveling Assembly

    FIGURE 4-5: PLATFORM LEVELING ASSEMBLY 32DFL02.E 4-10...
  • Page 54 FIGURE 4-5: PLATFORM LEVELING ASSEMBLY DESCRIPTION PART KIT, BLOCK, ALIGNMENT 28738 LINK, PLATFORM, FOLD, REAR 21553 PUSHROD, FOLD LINKAGE 22875 ROD END, .375 ID, LH THD 24596 KIT, PIN, W/HDWR 27518 BRACKET, FOLD LINKAGE 23544 KIT, LINKS, PLATFORM FOLD, W/PIN 27517 KIT, KNEE ASSY, FOLD ACCELERATOR 27516...

  • Page 55: Figure 4-6: Rear Platform Assembly

    FIGURE 4-6: REAR PLATFORM ASSEMBLY 32DFL02.E 4-12...
  • Page 56 FIGURE 4-6: REAR PLATFORM ASSEMBLY DESCRIPTION PART NO. KIT, BRIDGEPLATE, LEFT SIDE SECTION 27519 KIT, BRIDGEPLATE, RIGHT SIDE SECTION 27520 KIT, HINGE, BRIDGEPLATE 27521 PLATFORM ASSY, REAR, LEFT SIDE AND RIGHT SIDE SECTIONS 21442 SAFETREAD, PLATFORM, REAR, RIGHT SIDE 21438 SAFETREAD, PLATFORM, REAR, LEFT SIDE 21439 KIT, HINGE, BRIDGEPLATE, LEFT SIDE SECTION...

  • Page 57: Figure 4-7: Front Platform Assembly Sheet-1

    FIGURE 4-7: FRONT PLATFORM ASSEMBLY – SHEET 1 32DFL02.E 4-14...
  • Page 58 FIGURE 4-7: FRONT PLATFORM ASSEMBLY – SHEET 1 DESCRIPTION PART NO. SAFETREAD, LEFT SIDE PLATFORM, FRONT 21435 SAFETREAD, RIGHT SIDE PLATFORM, FRONT 21434 GROMMET, SPLIT, 1”, BAG OF 10 19778 BARRIER, LEFT SIDE 23243 EDGING, PROTECTIVE, SIDE BARRIER 29039 SAFETREAD, RIGHT SIDE BARRIER 21447 SAFETREAD, RIGHT SIDE ROLLSTOP 21450...

  • Page 59: Figure 4-8: Front Platform Assembly Sheet-2

    FIGURE 4-8: FRONT PLATFORM ASSEMBLY – SHEET 2 32DFL02.E 4-16...
  • Page 60 FIGURE 4-8: FRONT PLATFORM ASSEMBLY – SHEET 2 DESCRIPTION PART NO. CONTROLLER, ELECTRONIC 28515 HARNESS, PLATFORM 24328 KIT, MOTOR ASSY, ROLLSTOP & SIDE BARRIER, W/HDWR 29212 KIT, MOTOR ASSY, PLATFORM WRAP, W/HDWR 28761 KIT, CONTACT ASSY, PLATFORM, W/HDWR 29235 KIT, SWITCH ASSY, PLATFORM UNWRAPPED, W/HDWR 28758 KIT, PIVOT LINK, LEFT SIDE BARRIER 28745...

  • Page 61: Figure 4-9: Front Platform Assembly Sheet-3

    FIGURE 4-9: FRONT PLATFORM ASSEMBLY – SHEET 3 32DFL02.E 4-18...
  • Page 62 FIGURE 4-9: FRONT PLATFORM ASSEMBLY – SHEET 3 DESCRIPTION PART NO. PIN, .38ODx.65L 23555 BELLCRANK, RIGHT SIDE PLATFORM 21481 BUSHING, FLANGED, .38IDx.25L 253845 LINK, BELLCRANK, PLATFORM 24521 KIT, SWITCH ASSY, ROLLSTOP & BARRIER UP, W/HDWR 28758 PIN, .38ODx1.38L 23553 BELLCRANK, LEFT SIDE PLATFORM 21482 LINK, ASSY, FRONT ROLLSTOP R/H 29745...

  • Page 63: Figure 4-10: Front Platform Assembly Sheet-4

    FIGURE 4-10: FRONT PLATFORM ASSEMBLY – SHEET 4 32DFL02.E 4-20...
  • Page 64 FIGURE 4-10: FRONT PLATFORM ASSEMBLY – SHEET 4 DESCRIPTION PART NO. SCREW, FHP, M6-1.0x16MM, (BAG OF 10) 29240 KIT, COVER, PLATFORM, BOTTOM, RIGHT 29237 KIT, COVER, PLATFORM, BOTTOM, LEFT 29236 KIT, LINKAGE, PLATFORM, WRAPPING 28760 NUT, TRI-LOBULAR, FOLDOVER, M6-1.0 29747 32DFL02.E 4-21...

  • Page 65: Figure 4-11: Platform Wrap Motor Assembly

    FIGURE 4-11: PLATFORM WRAP MOTOR ASSEMBLY 32DFL02.E 4-22...
  • Page 66 FIGURE 4-11: PLATFORM WRAP MOTOR ASSEMBLY DESCRIPTION PART NO. GEARMOTOR, HIGH TORQUE 27069 KIT, TRANSMISSION, PLATFORM FOLD MOTOR 29213 32DFL02.E 4-23...
  • Page 67 FIGURE 4-12: SIDE BARRIER MOTOR ASSEMBLY 32DFL02.E 4-24...
  • Page 68 FIGURE 4-12: SIDE BARRIER MOTOR ASSEMBLY DESCRIPTION PART NO. GEARMOTOR, HIGH TORQUE 27069 KIT, TRANSMISSION, SIDE BARRIER MOTOR 29214 32DFL02.E 4-25...

  • Page 69: Figure 4-13: Bridgeplate Motor Assembly

    FIGURE 4-13: BRIDGEPLATE MOTOR ASSEMBLY 32DFL02.E 4-26...
  • Page 70 FIGURE 4-13: BRIDGEPLATE MOTOR ASSEMBLY DESCRIPTION PART NO. GEARMOTOR, HIGH TORQUE 27069 KIT, TRANSMISSION, BRIDGEPLATE, MOTOR 29215 32DFL02.E 4-27...

  • Page 71: Figure 4-14: Pump Assembly

    FIGURE 4-14: PUMP ASSEMBLY 32DFL02.E 4-28...
  • Page 72 FIGURE 4-14: PUMP ASSEMBLY DESCRIPTION PART NO. MOTOR ASSY, 12V, 3”, ISKRA 14332 KIT, RETRO, SWCH, PRESS, ADJ 300-13000 PSI 16640 KIT, SPOOL VALVE, W/DCLR, 12V 01176 MANUAL BACK-UP PUMP ASSY V2-SH-210 SEAL KIT, MANUAL BACK-UP PUMP V2-SH-220 RESERVOIR, PUMP, PLASTIC W/DECAL AND PLUG 30938 PLUG, 3/8 NPT, PLASTIC 10333...

  • Page 73: Appendix 1

    APPENDIX 1 LIFT SPECIFICATIONS INNOVATOR LIFT Lifting system..................electro-hydraulic pump and hydraulic cylinder Hydraulic pump rating...........................1250±25 PSI Operating voltage ............................12VDC Current, max..............................120 amps Current peak (inrush) ..........................350 amps Load capacity, max ...........................660 lbs (300kg) Lift weight, typical..........................350 lbs (159kg) DIMENSIONS – inches (cm)
  • Page 74 ®...
