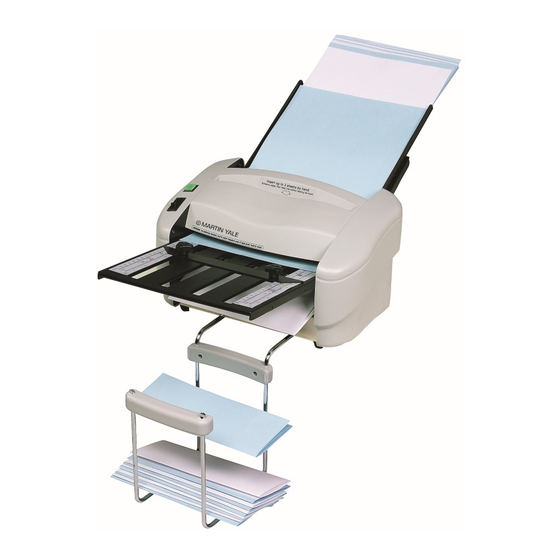

RapidFOLD
SPECIFICATIONS
• Folds 8.5" x 11", 8.5" x 14", or A4 size paper
• Creates four different folds
• Operates at a speed of 4000 sheets/hr
• Accepts 16-28 lb. bond paper (60-105 gsm)
• Folds 1 sheet at a time automatically, or up to
3 sheets at a time manually
• Automatic shut off
• Automatic jam detection
A
C
WARNING! Never connect power to the folder until you
are ready to set up and operate the machine. During set
up, operation, and maintenance keep hands, hair, loose
clothing, and jewelry away from all moving parts. Serious
bodily injury could result. Service or disassembly of fold-
er should only be attempted with the power disconnected.
INSTRUCTION MANUAL
Model P7400 (110V)
Model P740022 (220V)
B
G
F
Your P7400 comes with the following
components:
D
A.
RapidFold Folding Machine
B.
Paper Guides (2)
C. Front Fold Table
D. Back Fold Table (hidden from view)
E.
Metal Brackets (2)
F.
DC Power Supply
G.
Exit Tray Connector Set (3)
(exit tray connectors contain
3 top plastic pieces,
3 bottom plastic pieces, and
6 connector screws)
F
Manufactured in Taiwan by
Division of Martin Yale Industries, Inc.
251 Wedcor Avenue • Wabash, IN 46992
e-mail: info@martinyale.com
web-site: www.martinyale.com
Phone (260) 563-0641 • Fax (260) 563-4575
:
Premier
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Premier P7400
Summary of Contents for Premier P7400
- Page 1 • Folds 1 sheet at a time automatically, or up to 3 sheets at a time manually • Automatic shut off • Automatic jam detection Your P7400 comes with the following components: RapidFold Folding Machine Paper Guides (2) C. Front Fold Table D.
- Page 2 ASSEMBLY Remove the black plastic nuts and clear spacers from the paper guides. Insert the paper guides into the paper tray as shown in Fig. 1. Once inserted, install the clear spacers on the paper guides. Screw the nuts back onto the paper guides and tight- The paper guides should now be attached to the machine as shown in Fig.
- Page 3 1. Square stack of up to 50 sheets of paper by tapping it on all sides on a flat surface such as a table. 2. Load squared stack of paper into the P7400 feed table, the top sheet of paper should be in contact with the black feed tire.
-
Page 4: Troubleshooting
cal malfunction. Once the power is on as indicated by the illuminated green pushbutton, the I portion of the I- O rocker switch may then be depressed to initiate folding. *Note: Use Martin Yale Static Eliminator (model 300) to remove static and improve machine performance. Also use Martin Yale Rubber Roller Cleaner (model 200) for better folding performance and longer roller life.
