Hoover HF155-80 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HFI55-80

Advertisement

loading

Related Manuals for Hoover HF155-80

Summary of Contents for Hoover HF155-80

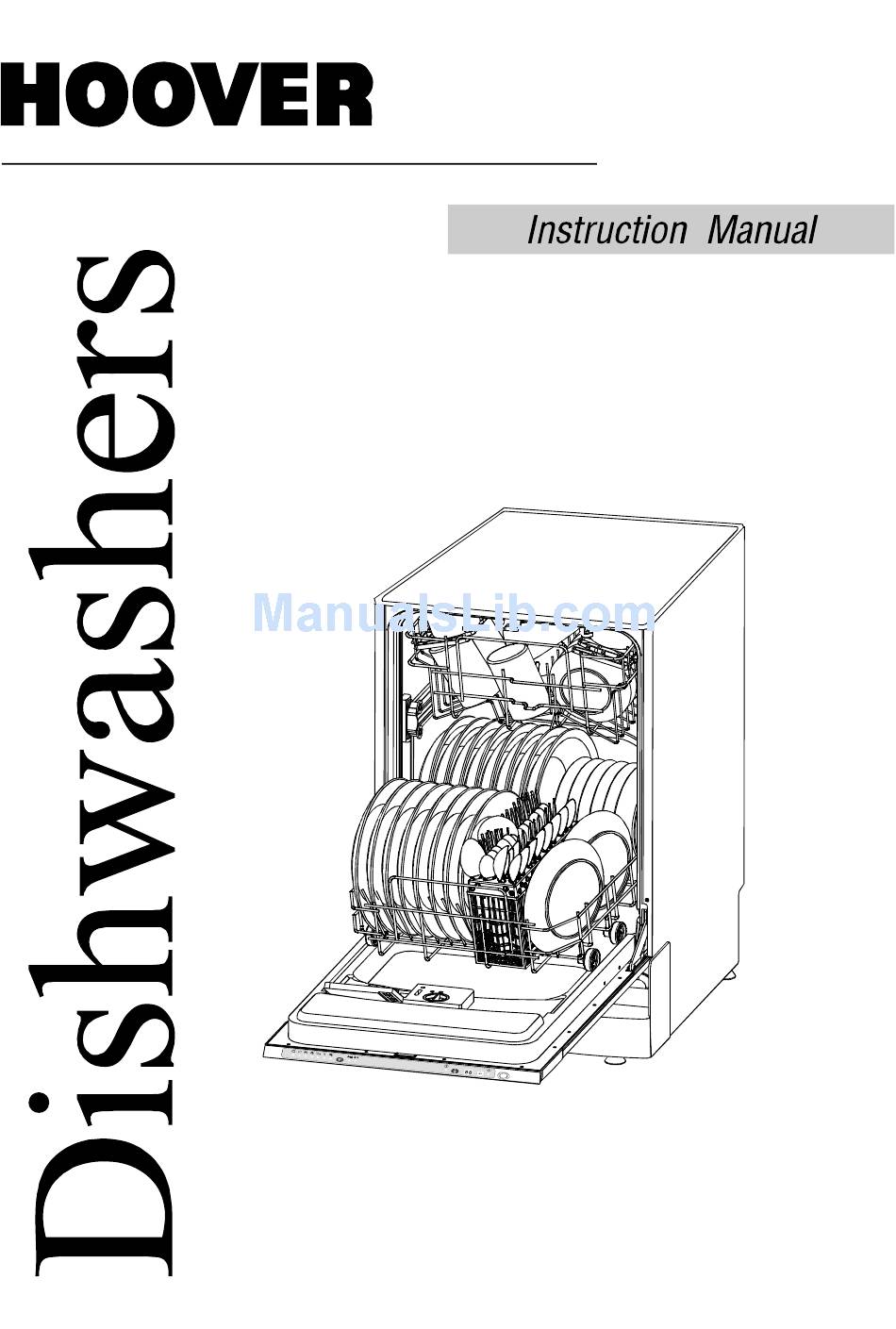

  • Page 1 HFI55-80...
  • Page 2 ....1 This manual contains sections of Safety Instructions,Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.
  • Page 3 Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes.
  • Page 4 To get the best performance from your dishwasher,read all operating instructions before using it for the first time Keep this booklet safe for future reference. Delay start time:To display booking time or the Program indicator light:when you select washing washing temperature. program,the correspond light will display.
  • Page 5 For normall y soiled loads, Pre-wash such as pots , plates,glasses Wash (50℃) Normal 4/20 gr. and lightly soiled pans. Rinse (65℃) standard daily cycle. Drying (IEC-EN 50242) Pre-wash For the heaviest soiled loads, Pre-wash (45℃) such as pots,pans,casserole Wash (70℃) Strong dishes and dishes that have 8/24 gr.

  • Page 6: Water Hardness

    If your model have not water softener, you may skip this section. There are two ways to reduce the water hardness: one way is using water softener, the other is using detergent. The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.
  • Page 7 YOU MAY NOT ADD TOO MUCH DETERGENT TO PREVENT THE FORMATIO N OF DEPOSITS BECAUSE YOUR DISHWASHERS HAVE SPECIALLY-DESIGNED WATER SOFTENERS. The dispenser must be refilled before the start of each wash cycle following the instructions provided i n the" Wash Cycle Table".Your dishwashers use less detergent and rinse aid than conventional dishwashers.
  • Page 8 If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means. The black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot decreases.
  • Page 9 Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the front of the upper rack.
  • Page 10 The filter prevent larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters. The filter system consists of a filter cylinder(Coarse filter), A flat (Main filter) and a microfilter(fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the...
  • Page 11 To clean the edge around the door, you should use only a soft warm, damp rag. To prevent To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
  • Page 12 If faucet has not threads: attach the faucet adapter to faucet, then tighten every screw of the adapter. To prevent leaking your should tighten the adapter. Pull Unicouple and its hoses completely out from storage compartment located at rear of dishwasher and attach it to the faucet adapter.
  • Page 13 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
  • Page 14 Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.
  • Page 15 HFI55-80...
  • Page 16 Notes ● Carefully read this manual before installation Reading this manual will help to understand the connections of inlet, drain hoses and power cord, and to find a optimal position for the dishwasher. The installation of the pipes Electrical Shock Hazard and electrical equipments Disconnect electrical power before should be done by professionals.

  • Page 17: Aesthetic Panel's Dimensions And Installation

    【Figure1】 90 ° 90 ° Cabinet dimensions Less than 5mm between the top 820mm of dishwasher and 580mm cabinet and the Openingen voor de stroomtoevoer en de outer door aligned aan- en afvoerleidingen to cabinet. Ruimte tussen onderkant kast en vloer 450 mm 【Figure2】...
  • Page 18 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) . Top hook 【Figure4a】...
  • Page 19 Tension adjustment of the door spring ● The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5).
  • Page 20 Dishwasher installation steps ● Install the aesthetic pannel on the outer door of the dishwasher. Adjust the tension of door spring. Connect the inlet, and drain hoses, and power cord . Putthe dishwasher on slide-rails. Push the dishwasher into the cabnet. Level the dishwahser and touch the cabinet by adjusting the four leveling legs individually.
  • Page 21 Dishwasher must be level for proper dish rack operation and wash performance. Place level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the four leveling legs individually. When level the dishwasher, pls.
  • Page 22 The manufacturer, following a policy of constant development and up-dating of the product, may make modifications without giving prior notice.
