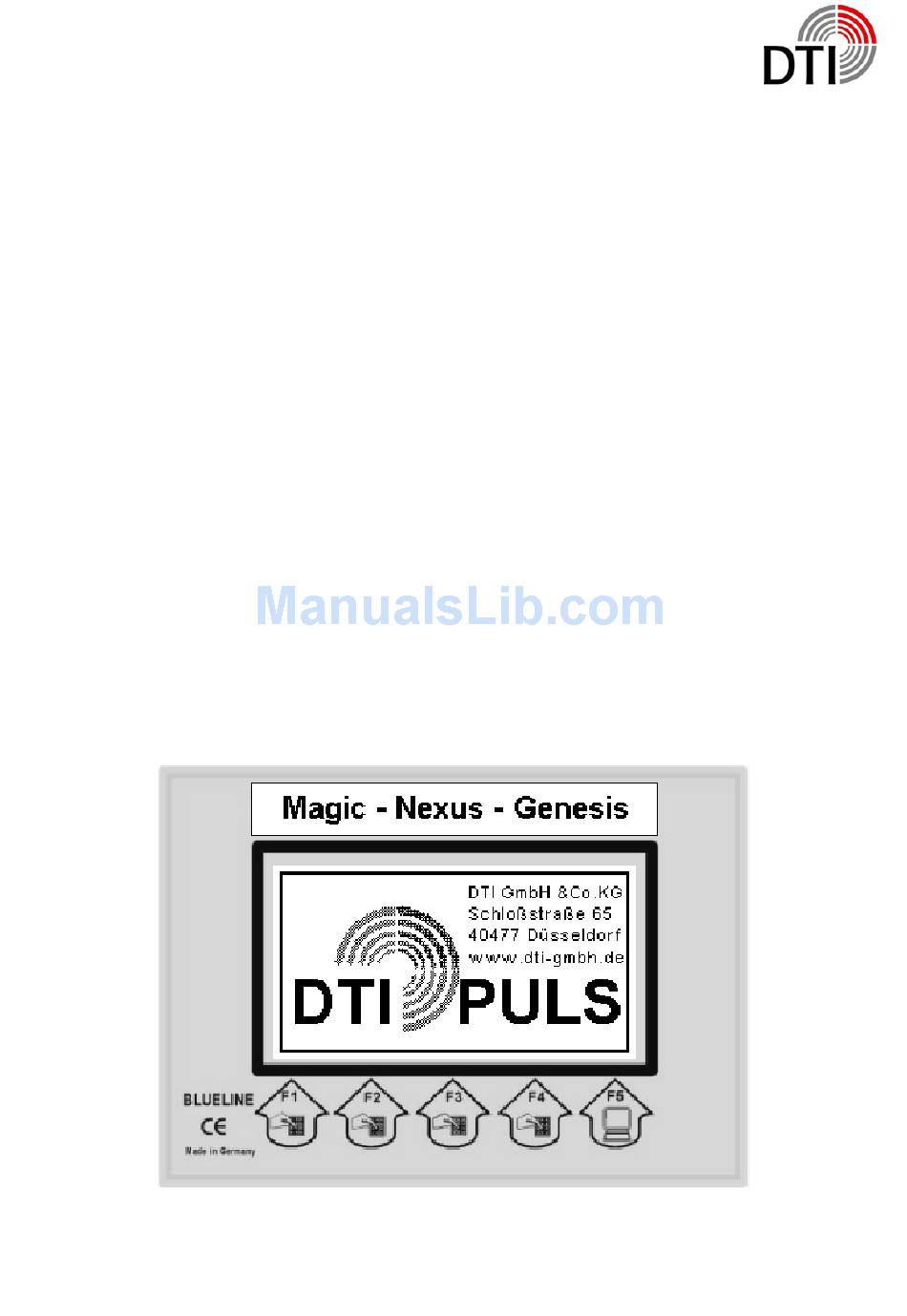

DTI GmbH & Co. KG
Manual
and
Handbook
DTI-Puls
Software-Version 4.0.1
Page 1 of 30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTI-Puls Series and is the answer not in the manual?

Questions and answers

Related Manuals for DTI DTI-Puls Series

Summary of Contents for DTI DTI-Puls Series

  • Page 1 DTI GmbH & Co. KG Manual Handbook DTI-Puls Software-Version 4.0.1 Page 1 of 30...

  • Page 2: Dti-Puls

    DTI GmbH & Co. KG DTI-Puls Metal Detectors of the DTI-Puls-Series are working on the basis of Puls-Eddy- Systems. Data handling works completely digital. The system is based on two proc- essors. The first processor is handling the measurement and the calculation of the datas.
  • Page 3 DTI GmbH & Co. KG Lieferung in stabiler Alu-Box Page 3 of 30...

  • Page 4: Assembling

    DTI GmbH & Co. KG Assembling After opening of the Aluminium-Box you will see the electronic unit of the DTI-Puls- Instrument, the 28 cm – coil, a manual and a checklist. Take this parts out. Below the coil you will find the headphone and the battery charger. Furthermore you will see the charging regula- tor, a cable and rods for the coil.

  • Page 5: Funktion

    DTI GmbH & Co. KG Funktion Connecting Touchkey F5 Touchkeys F1-F4 Back to Graphic Display Load On/Off-Switch Headphone Connector for coil Communication Connector for PC Page 5 of 30...
  • Page 6 DTI GmbH & Co. KG Five touchkeys allow several functioins. Depending on the menue they have different functions. Text The function is shown by a text Decrese settings - touchkey DOWN Increse settings - touchhey UP Back to Menue Leave Menue Please obey that a reaction time of up to one second can happen, if you go back to a menue or if zu leave a menue.

  • Page 7: Setting To Operation

    DTI GmbH & Co. KG Setting to Operation Bevor the first use you should load the detector with the attached charger for 14 hours. Especially when you read a warning after the fist switching on. If you start directly with the coil please obey the good fitting of the connector. Never connect a coil when the instrument is switched on.
  • Page 8 Push the button (F1) to select. The selected language will be displayed above the button. The detector will start using the selected language showing the DTI-Logo. Without coil the detector will switch to the demonstration mode. The PIU- Memory will be set to factory settings automatically after every start.
  • Page 9 DTI GmbH & Co. KG 4.0.1 When showing the version number the detector is waiting for ist starting require- ments. In case of a problem with the communication of both internal processors it can hap- pen that wrong datas are being used. That can happen because of some influence from outside of by switching on and off in a short time by accident.

  • Page 10: Operation Display

    DTI GmbH & Co. KG Operation Display State of Rechargable Battery Record of PROG:01 PULSE01 COIL: 02 100% Program measured data setting Non Ferrous metal Spectrum Ferrous metal SOUND GENERATOR Active All metals REFERENCE Parameter The detector now is active and what you are seeing is the operation display.

  • Page 11: Sound Generator

    DTI GmbH & Co. KG PROG:01 PULSE01 COIL: 02 100% SOUND GENERATOR Active REFERENCE Parameter The detector has the possibility to change parameters online during searching. This is comparable to the analog function of a potentiometer. So you are able to change the most important paramters without calling up a menue.

  • Page 12: Audio Gain

    DTI GmbH & Co. KG Depending on the soil concerning the searcing depth it is not possible to give a statement. The settings of the searching memorie will not be stored in memory. So it always has to be set individuelly. The factory setting is a good average value for 28 cm –...

  • Page 13: Discriminator

    DTI GmbH & Co. KG DISCRIMINATOR: The discriminator has a range of 1-5. Because of the high sensitivity of the detector it is not possible to distinguish smallest and biggest objects in the same matter. The discriminator is based on an algorithem for alloys. It equals a balance weigher. The possibility of discrimination is based on the characteristics of the metals.

  • Page 14: Menue Options

    DTI GmbH & Co. KG Menue Options PROG:01 PULSE01 COIL: 02 100% MENU :----------BASIC DATA---------: SYSTEM COIL DISPLAY AUDIO You press ‘F4’ and the Audio Menue will be displayed. 100% PROG:01 PULSE01 COIL: 02 100% CHOOSE AUDIO (1) AUDIO GAIN ( 1 –...
  • Page 15 DTI GmbH & Co. KG AUDIO GAIN This parameter is identical with the active parameter and can be changed at this place also. SPEAKER The internal loadspeaker can be switched of independently. Also the connector for the headphone is out of order when switched off. This function is to be used in connection with the audio transmitter.
  • Page 16 DTI GmbH & Co. KG 100% PROG:01 PULSE01 COIL:02 100% SHOW SELECTION (1) DIGIT SCALE ( 0 – 3 ) : 00 2 BAR GRAPHIC SCALE ( 0 – 3 ) : 01 3 GRAFIC SCALE ( 0 – 4 ) : 03 4 SPECTRUM SCALE ( 0 –...
  • Page 17 DTI GmbH & Co. KG Coil Changing CHOOSE TYPE OF COIL ROUND COIL BASIS C28-XL ( 28cm) ROUND COIL BASIS C28-XP ( 28cm) FRAME COIL BASIS C50-XL ( 50cm) FRAME COIL BASIS C75-XL ( 75cm) FRAME COIL BASIS C100-XL ( 100cm)
  • Page 18 DTI GmbH & Co. KG MAIN MENU SAVE PROGRAM ( 1-25 ) : 01 LOAD PROGRAM ( 1-25 ) : 01 SEARCH GAIN ( 1-8 ) : 01 SEARCH MODE ( 0-3 ) : 04 PULSPOWER ( 1-10 ) : 01...

  • Page 19: Dti Gmbh & Co. Kg

    DTI GmbH & Co. KG PROGRAM MEMORY INFORMATION SEARCH GAIN : 00 COIL TYPE : 00 OBJECT SIZE : 000 PULSE POWR : 00 DISCRIMINATOR : 00 SPEAKER : 00 AUDIO GAIN : 00 DISPLAY MODE : ---- DIGIT SCALE...

  • Page 20: Operating The Detector

    DTI GmbH & Co. KG Operating the Detector The first start should be made with the coil being in the air. So you will learn the be- haviour of the detector for a known metal object. The coil is a sensitive receiver and antenna for pulsing signals., which for example are transmitted by monitors, televi-...
  • Page 21 DTI GmbH & Co. KG The characteristic of the soil and of the objects are being stored in the reference memory and only changes of the intensity of signal will be detected. So you need to do the reference (storing in reference memory) either in the air, with big distance to the soil or when tilting the coil.
  • Page 22 DTI GmbH & Co. KG Choose the ‚AUDIO GAIN’ and set the value to 1. To be able to follow the effect a slow rise of the click tone is necessary. Choose the parameter ‘SEARCH MEMORY’ – by the pushbutton ‘F1’. This is an out- standing parameter.
  • Page 23 DTI GmbH & Co. KG A further parameter influencing the detecting results is the ‘SEARCH GAIN’. This set- ting should be only changed if very week detecting signals can be seen. Set all dis- cussed parameters to factory settings and do a reference (press ‘Referenz’). Chose the parameter ‘SEARCH GAIN’...
  • Page 24 DTI GmbH & Co. KG Another parameter which influences the detecting is the “OBJECT SIZE”. Again set the parameters to factory settings. Chose the parameter “OBJECT SIZE” by pushbutton ‘F1’. By this parameter you can filter out small objects in low depth or big objects at the edges of the coil.
  • Page 25 DTI GmbH & Co. KG This process can’t be done in a room except with the 50 cm coil. Frame coils have a physical characteristic which absolutely have to be obeyed. The prime- and secon- dary field of the coil is an alternating field. The folded coil works like a transformator.
  • Page 26 DTI GmbH & Co. KG A further parameter which influences the detection is the ‘DISCRIMINATOR’. Again set all parameter to factory settings. Chose now the parameter ‘DISCRIMINATOR’ by pushbutton ‘F1’. The discriminator has a range of 1-5. When sensitivity it set to high values it is not possible to detect smallest and big objects in the same way.
  • Page 27 DTI GmbH & Co. KG If you are in the fiel, test the soil first by your test object. Switch you detector on. During this procedure the position of the coil is not important. Start the detector by pressing ‚F1’...

  • Page 28: Battery Charger

    DTI GmbH & Co. KG Battery Charger The battery charger consists of following components: 1. International plug in charger 100V- to 240VAC 50/60 Hz with changeable power adapters. The output voltage is 12VDC/1200mA 2. Processor controlled DC/DC converter for a input range of 12-24 VDC/10-20 VAC 1200mA 3.

  • Page 29: Warranty

    DTI GmbH & Co. KG Warranty The warranty time for this instrument is 2 years starting with the day of invoice. Dur- ing the warranty time our service department will repair every failure of the instru- ment, which is depending on material or manufacturing. The necessary spare parts will not be charged.

  • Page 30: Table Of Contents

    Warranty........................... 29 Danger ............................29 (C) Copyright: The copyright for this manual belongs to DTI. It must not be translated, co- pied, reproduced or published without DTI’s allowance. DTI Detector Trade International GmbH & CO KG, Hamburger Str. 17, D-41450 Dormagen...
  • Page 31 Detector Trade International GmbH & Co KG  www.detector-trade.de  info@detector-trade.de  +49 (0) 2133 97 90 20 Hamburger Str. 17  41540 Dormagen Germany www.facebook.com/dtigmbh www.twitter.com/detectortradein www.youtube.de/user/detectortradeintern...
