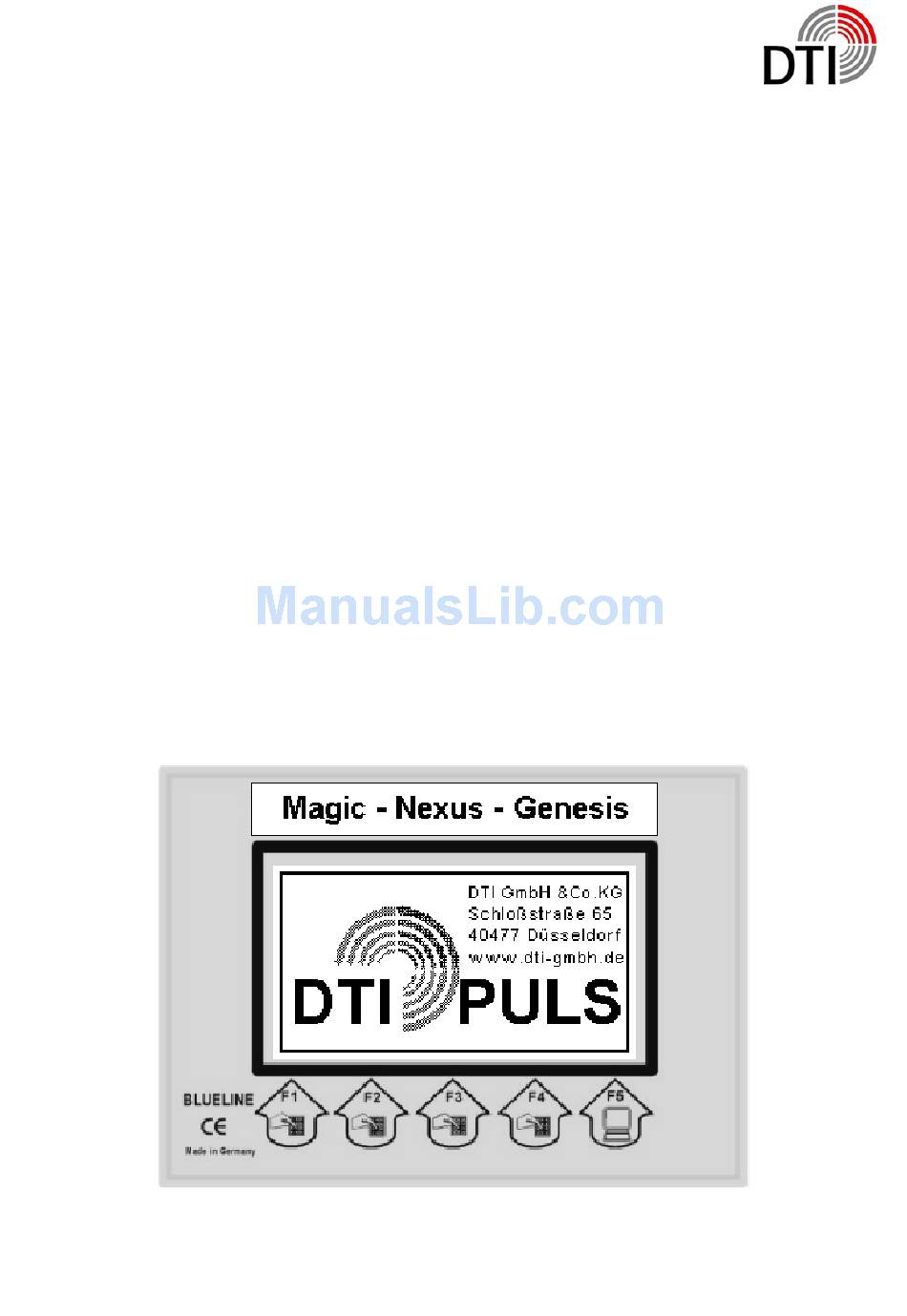

DTI GmbH & Co. KG
Manual
and
Handbook
DTI-Puls
Seite 1 von 31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTI-Puls-Series and is the answer not in the manual?

Questions and answers

Related Manuals for DTI DTI-Puls-Series

Summary of Contents for DTI DTI-Puls-Series

  • Page 1 DTI GmbH & Co. KG Manual Handbook DTI-Puls Seite 1 von 31...

  • Page 2: Dti-Puls

    DTI GmbH & Co. KG DTI-Puls Metal Detectors of the DTI-Puls-Series are working on the basis of Puls-Eddy- Systems. Data handling works completely digital. The system is based on two proc- essors. The first processor is handling the measurement and the calculation of the datas.
  • Page 3 DTI GmbH & Co. KG Lieferung in stabiler Alu-Box Seite 3 von 31...

  • Page 4: Assembling

    DTI GmbH & Co. KG Assembling After opening of the Aluminium-Box you will see the electronic unit of the DTI-Puls- Instrument, the 28 cm – coil, a manual and a checklist. Take this parts out. Below the coil you will find the headphone and the battery charger. Furthermore you will see the charging regula- tor, a cable and rods for the coil.

  • Page 5: Funktion

    DTI GmbH & Co. KG Funktion Connecting Touchkey F5 Touchkeys F1-F4 Back to Graphic Display Load On/Off-Switch Headphone Connector for coil Communication Connector for PC Seite 5 von 31...
  • Page 6 DTI GmbH & Co. KG Five touchkeys allow several functioins. Depending on the menue they have different functions. Text The function is shown by a text Decrese settings - touchkey DOWN Increse settings - touchhey UP Back to Menue Leave Menue Please obey that a reaction time of up to one second can happen, if you go back to a menue or if zu leave a menue.

  • Page 7: Setting To Operation

    DTI GmbH & Co. KG Setting to Operation Bevor the first use you should load the detector with the attached charger for 14 hours. Especially when you read a warning after the fist switching on. If you start directly with the coil please obey the good fitting of the connector. Never connect a coil when the instrument is switched on.
  • Page 8 DTI GmbH & Co. KG If there is no problem with the rechargeable battery you will see the start logo. To- gether with the start logo the detector starts sending pulses. The start phases starts. Seite 8 von 31...
  • Page 9 DTI GmbH & Co. KG When showing the version number the detector is waiting for ist starting require- ments. You have three possibiities for starting. Normal start with coil. You press F1. Start in demonstration mode. No coil is neccessary.

  • Page 10: Operation Display

    DTI GmbH & Co. KG In case of a problem with the communication of both internal processors it can hap- pen that wrong datas are being used. That can happen because of some influence from outside of by switching on and off in a short time by accident. In this case use F3 –...
  • Page 11 DTI GmbH & Co. KG In the start display you are watching the active program (0), the puls power (1) and the type of coil according to the model (2). In the right the current state of battery ca- pacity. The graphic continuously writes 200 measured data. Above the zero line non ferrous and below the zero line ferrous metals are being written.

  • Page 12: Tongenerator / Tone Generator

    DTI GmbH & Co. KG The detector has the possibility to change parameters online during searching. This is comparable to the analog function of a potentiometer. So you are able to change the most important paramters without calling up a menue. Press the pushbutton ‘F3’...

  • Page 13: Audioverstärker / Audio Amplifier

    DTI GmbH & Co. KG Depending on the soil concerning the searcing depth it is not possible to give a state- ment. The settings of the searching memorie will not be stored in memory. So it al- ways has to be set individuelly. The factory setting is a good average value for 28 cm –...

  • Page 14: Objektgröße / Object Size

    DTI GmbH & Co. KG Objektgröße / Object Size: The parameter Object Size allows filtering of small to medium objects. This is abso- lutely necessary on minerelized soils. Especially for coils of sizes 50 cm to 200 cm an adaption is necessary. Because of the high penetration depth and because of that the big volume of soil a rising of the Object Size is mandantory.

  • Page 15: Menue Options

    DTI GmbH & Co. KG Menue Options You press ‘F4’ and the Audio Menue will be displayed. By the pushbutton F1/F2 you choose the function. By the pushbutton F3 you enter for changing this parameter. By the pushbutton F1/F2 you change the value. By the pushbutton F3 you save the setting.
  • Page 16 DTI GmbH & Co. KG Audioverstärkung / Audio Amplifier This parameter is identical with the active parameter and can be changed at this place also. Lautsprecher / Loudspeaker The internal loadspeaker can be switched of independently. Also the connec- tor for the headphone is out of order when switched off. This function is to be used in connection with the audio transmitter.
  • Page 17 DTI GmbH & Co. KG 1. Skala Ziffern / Scale Numbers This parameter changes the range of display of the number display. The range up to 1000 will be devided by this value. 2. Skala Bargrafik / Scale Bargraph This parameter changes the range of the bargraph. Discriminator and all metal display do have the same value.
  • Page 18 DTI GmbH & Co. KG Here you choose the type of coil used. The puls power will be adapted for the coil automatically if the setted power is too high. The type of coil has been printed to the coil lable e. g. can be recognized by the diameter.
  • Page 19 DTI GmbH & Co. KG 1. Programm Speichern / Program Storing Below this menue you can store up to 25 programs. The chosen parameters will be stored below the chosen program number and remain being stored when the detector is switched off.
  • Page 20 DTI GmbH & Co. KG The menue „Programminfo“ – Program Info – shows all stored values of the program. Here as an example Program 1 without stored values. As discribed the searching memory is always 11. By the pushbutton F1/F2 you can choose the program. By the pushbutton F5 you leave the info side and you get to the detecting display.

  • Page 21: Operating The Detector

    DTI GmbH & Co. KG Operating the Detector The first start should be made with the coil being in the air. So you will learn the be- haviour of the detector for a known metal object. The coil is a sensitive receiver an- tenna for pulsing signals., which for example are transmitted by monitors, televisions...
  • Page 22 DTI GmbH & Co. KG The characteristic of the soil and of the objects are being stored in the reference memory and only changes of the intensity of signal will be detected. So you need to do the reference (storing in reference memory) either in the air, with big distance to the soil or when tilting the coil.
  • Page 23 DTI GmbH & Co. KG Choose the ‚Audioverstärker’ - audio amplifier – and set the value to 1. To be able to follow the effect a slow rise of the click tone is necessary. Choose the parameter ‘SUCHSPEICHER’ – searching memory – by the pushbutton ‘F1’.
  • Page 24 DTI GmbH & Co. KG A further parameter influencing the detecting results is the ‚SUCHEMPFINDLICH- KEIT’ – searching sensitivity - . This setting should be only changed if very week de- tecting signals can be seen. Set all discussed parameters to factory settings and do a reference (press ‘Referenz’).
  • Page 25 DTI GmbH & Co. KG Another parameter which influences the detecting is the ‘OBJEKTGROESSE’ – ob- ject size - . Again set the parameters to factory settings. Chose the parameter ‘OB- JEKTGROESSE’ – object size – by pushbutton ‘F1’. By this parameter you can filter out small objects in low depth or big objects at the edges of the coil.
  • Page 26 DTI GmbH & Co. KG This process can’t be done in a room except with the 50 cm coil. Frame coils have a physical characteristic which absolutely have to be obeyed. The prime- and secon- dary field of the coil is an alternating field. The folded coil works like a transformator.
  • Page 27 DTI GmbH & Co. KG A further parameter which influences the detection is the ‘DISKRIMINATOR’ – discriminator - . Again set all parameter to factory settings. Chose now the parameter ‘DISKRIMINA- TOR’ by pushbutton ‘F1’. The discriminator has a range of 1-5. When sensitivity it set to high values it is not possible to detect smallest and big objects in the same way.
  • Page 28 DTI GmbH & Co. KG If you are in the fiel, test the soil first by your test object. Switch you detector on. During this procedure the position of the coil is not important. Start the detector by pressing ‚F1’...

  • Page 29: Battery Charger

    DTI GmbH & Co. KG Battery Charger The battery charger consists of following components: 1. International plug in charger 100V- to 240VAC 50/60 Hz with changeable power adapters. The output voltage is 12VDC/1200mA 2. Processor controlled DC/DC converter for a input range of 12-24 VDC/10-20 VAC 1200mA 3.

  • Page 30: Warranty

    DTI GmbH & Co. KG Warranty The warranty time for this instrument is 2 years starting with the day of invoice. Dur- ing the warranty time our service department will repair every failure of the instru- ment, which is depending on material or manufacturing. The necessary spare parts will not be charged.

  • Page 31: Table Of Contents

    Warranty........................... 30 Danger ............................30 (C) Copyright: The copyright for this manual belongs to DTI. It must not be translated, co- pied, reproduced or published without DTI’s allowance. DTI Detector Trade International GmbH & CO KG, Schloßstr. 65, D-40477 Düsseldorf...
