Summary of Contents for Marco CP-670

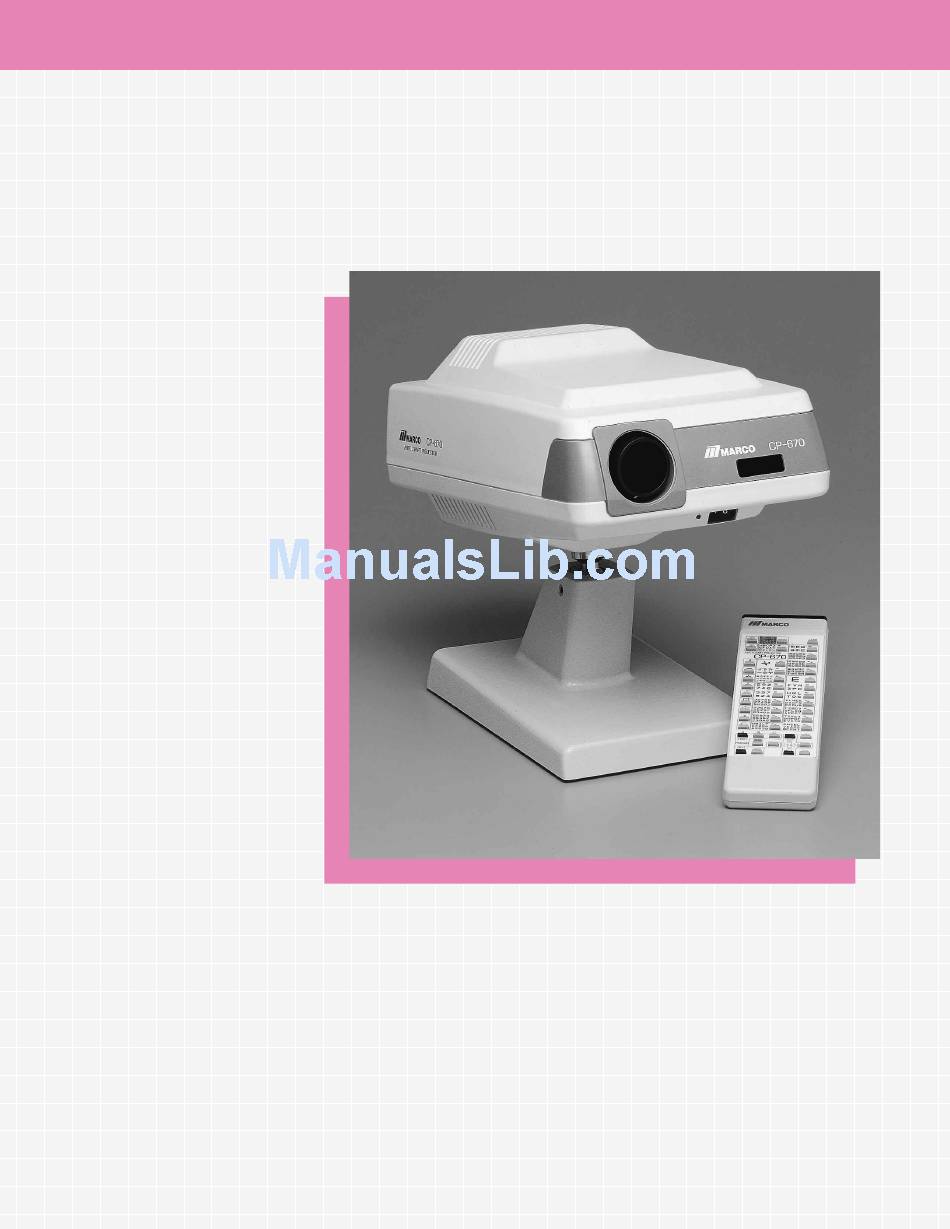

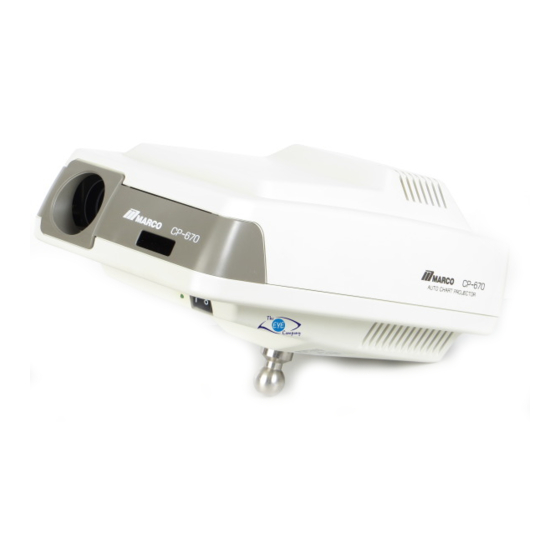

- Page 1 CP-670 AUTOMATIC CHART PROJECTOR Instruction Manual...
- Page 2 CONTENTS GENERAL DESCRIPTION....1 INSTALLATION ..... . 2 Mounting the Projector Positioning the Projector Positioning the Screen...
- Page 3 Superior masking features and red/green filtering over any appro- unit permits total operation of the Chart Projector from priate chart also extends the capability of the CP-670. The excel- anywhere within the examination room. Maximum range is 25 lent design in both function and style will increase the efficiency feet from the projector to the screen.
- Page 4 1. Project the 20/200 N on the screen. Mounting the Projector Available options for mounting the CP-670 are a wall, unit, and 2. As a reference for proper measurements, have someone hold table mount. Preferably, the instrument should be mounted at the distance scale (Figure 4) on the screen and focus the the same height as the patient’...
- Page 5 OPERATION Using the Remote To effectively operate the CP-670, it will be important that you understand and familiarize yourself with each function of the remote control unit. It can be easily operated by aiming it directly at the screen or by aiming it at the Chart Projector. Please take plenty of time to accustom yourself to the various selections on the remote control.
- Page 6 Changing the Fuse Two fuse holders are located on the bottom of the CP-670. To 4. The diagram in Figure 8 illustrates the four different setting replace a blown fuse, unplug the power cord from the wall and codes for the switches of the main body and the code carefully turn the instrument over.
- Page 7 SPECIFICATIONS Chart: 33 pcs. Dimensions - Main body: 11.02 (H) x 8.26 (W) x 13.48 (D) in. Control unit: 0.70 (H) x 2.51 (W) x 6.88 (D) in. Projection distance: 9.5 to 20 ft. (16.4 ft. is standard) Weight - Main body: 15.4 lbs.
- Page 8 V i s i o n a r y P r o d u c t s f o r y e c a r e division of Marco Ophthalmic, Inc. • 11825 Central Parkway • Jacksonville, FL 32224-2637 US/Canada Toll-free: 1-800-874-5274 904-642-9330 •...
