Summary of Contents for Marco CP-690E

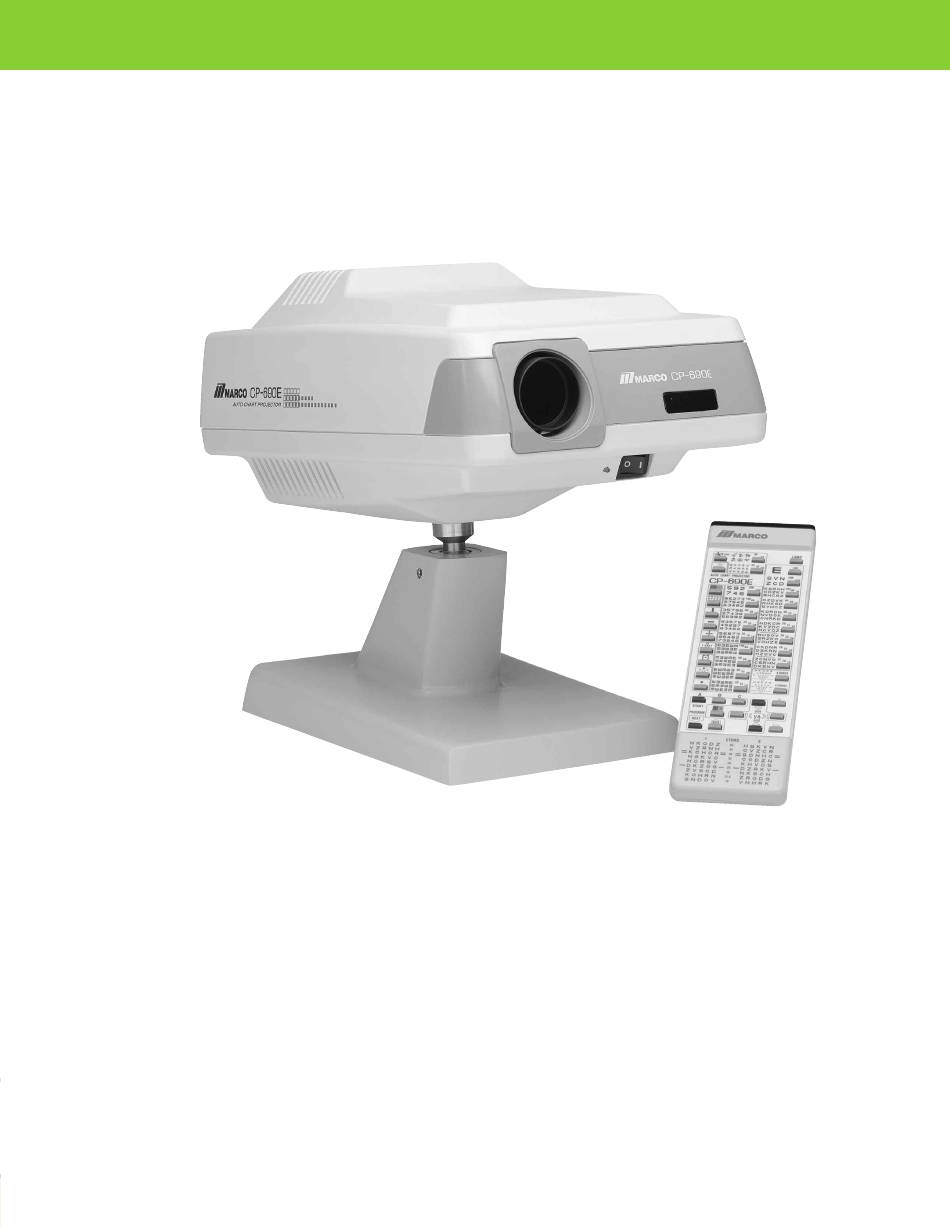

- Page 1 CP-690E AUTOMATIC CHART PROJECTOR Instruction Manual...
- Page 2 Superior masking features and red/green filtering over any appropriate chart also extends the capability of the CP-690E. The excellent design in both function and style will increase the efficiency of your examination procedures, provide you...
- Page 3 INSTALLATION Patient’s eye Mounting the Projector Available options for mounting the CP-690E are a wall, unit, and table mount. Preferably, the instrument should be mounted at the same height as the patient’s eyes. If this is not possible, tilt the...
- Page 4 Positioning the Screen (Figure 3) 3. To adjust for proper letter size and focus, remove the top cover by turning the top cover screw 1/2 turn counterclockwise (refer to Hang or hold a small mirror on the screen and tilt or turn the figure 5).
- Page 5 Three child charts provide selections from 20/100 to 20/20. Character Masking Vectograph/Polarized Charts The CP-690E is supplied with a variety of vectograph or “specialty” charts ETDRS Chart including a unique Minute Stereo test chart. When a polarized lens is Detail Sticker...
- Page 6 Changing the Fuse switches located inside the square slot directly above the battery The fuse holder for the CP-690E is also a voltage selector. Do not box. Remove the back cover of the remote control to expose change the number indicated in the voltage window. The voltage these switches.
- Page 7 SPECIFICATIONS CHART SAMPLES Chart 33 pcs. Projection Distance 9.5' to 20' (16.4' is standard) Projection Magnification 25X (at 16.4') Projection Size 9.84" x 8.85" and 10.83" diameter Tilt angle ±10° Lamp 6V 20W (Halogen), 2,000 hrs. lifetime Power Source AC 100, 120, 220 and 240V, 50/60Hz Power Consumption...
- Page 8 Marco-Certified Quality assures you of the very finest vision products, offering advanced technology, industry-leading durability and enhanced productivity for your practice. Marco-Certified Quality is your mark of confidence. T H E L E A D E R V I S I O N...
