Whirlpool WRID41TW Service Manual

Top mout no frost refrigerator, 410l dlx and 445l dlx
Hide thumbs

Advertisement

Quick Links

Service Manual

Advertisement

loading

  Also See for Whirlpool WRID41TW

  Related Manuals for Whirlpool WRID41TW

  Summary of Contents for Whirlpool WRID41TW

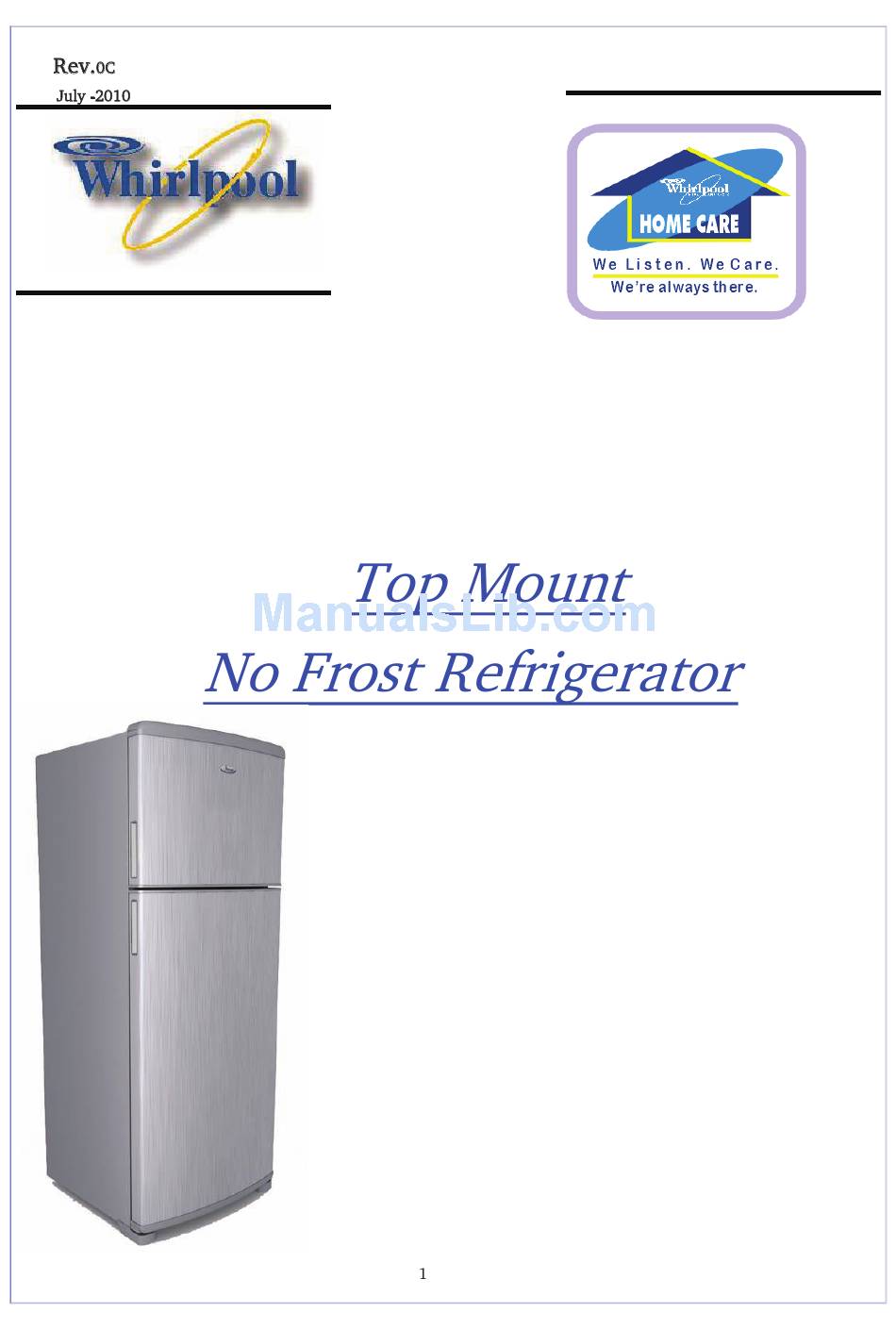

  • Page 1 Service Manual...
  • Page 3 NO FROST REFRIGERATOR: MODEL RANGE...
  • Page 6 410 L Dlx 445 L Dlx MODEL Type Frost Free Frost Free Capacities (L) total net 410L 450 L Product Dimensions (mm) Width Height 1652 1762 Depth Gross Weight (kg) Voltage / Hz 220-240V/50Hz 220-240V/50Hz Compressor EMY65HLC EMY65HLC Oil Capacity ISO 22 (280 ml) ISO 22 (280 ml) Comp.
  • Page 7 Product Configuration No frost Dlx Product Control RC Controlled Software BEE/Pot based Professional User interface Auto cool mode Ice accelerator Auto Power save mode Door Alarm Power supply for illumination DC (Linear 220mA) RC Illumination (8 LED) FC Illumination (2 LED) Control Board Yes(Nilgiri BEE) Defrost heater...
  • Page 11 Model Refrigerant R134a(gms) 410L Dlx 445L Dlx WARNING Electrostatic Discharge Risk...
  • Page 13 IMPORTANT 1. Defrost Sensor mounted on the Evaporator tube. 2. Removing/Replacing the Defrost Sensor IMPORTANT...
  • Page 14 WARNING Adaptive Defrost Control The defrost cycle shall be started after the Defrost timer has expired. According to the following defrost procedure: Defrost must be executed every time one of the following event occurs: 1. After 8 hours (+/-10 minutes) of compressor running, calculated considering just the thermostat function.
  • Page 15 Alarm Codes, Priority, Retention and Trigger Alarm code for Deluxe models: -...
  • Page 16 Board Level Diagnostics for : * Thermistor Failure FC/RC * Potentiometer Failure 1 First Turn Off the Product & disconnect the Plug. 2 Remove the Control Board from Box. 3 Disconnect the 10-Pin connector from Board. 4 For Thermistor Failure FC/RC * Check resistance on pin no.
  • Page 18 SL.NO. SL.NO. PART NO. PART NO. DESCRIPTION DESCRIPTION QTY. QTY. A208168000D ICE TWISTER BRACKET A208168000D ICE TWISTER BRACKET A2084290000 ICE TWISTER SUB ASSY A2084290000 ICE TWISTER SUB ASSY A208171000A ICE COLLECTOR A208171000A ICE COLLECTOR A2240800000 QUICK FREEZE COVER - ONYX A2240800000 QUICK FREEZE COVER - ONYX A2240810000 QUICK FREEZE SHELF, FRONT -ONYX A2240810000 QUICK FREEZE SHELF, FRONT -ONYX...
  • Page 19 SL.NO. PART NO. DESCRIPTION QTY. A2243490000 M 4.8X 13 SELF TAPPING SCREW(LINER TO PLENUM) A2242690000 SUB ASSY PLENUM FRONT -ONYX A2241810000 PLENUM CAP-ONYX A201495000C KNOB - FREEZER CONTROL A2244120000 FC DAMPER , AUS-ONYX A2240730000 COMPLEMENT EPS, PLENUM BACK- ONYX A2221170000 FAN MOTOR MI-(DUO) A224268000A SUB ASSY PLENUM BACK -ONYX...
  • Page 20 67,68 62,63 SL.NO. PART NO. DESCRIPTION QTY. A224062000C COVER AIR DIFFUSER - ONYX A201135000E THERMOSTAT KNOB CAP, COVER AIR DIFFUSER SCREW-ONYX,445L A224042000A A224042000A CAP, COVER AIR DIFFUSER SCREW-ONYX,410L A224097000A EXTENSION COVER AIR DIFFUSER-ONYX A224052000A HARNESS RC, DLX-ONYX A222248000F POT PCB ASSEMBLY A224163000A DIFFUSER EPS SUB ASSY,450L - ONYX A224328000A...
  • Page 21 87,132 95,134 93,133...
  • Page 24 SL.NO. PART NO. DESCRIPTION QTY. A2117510000 THERMAL FUSE WITH CONNECTOR A2290920000 FC THERMISTOR CLIP A2242050000 HARNESS, FC THERMISTOR...
  • Page 25 SERVICABLE PART-ONYX-AUSTRALIA Quantity WOIL PART DESCRIPTION COMMODITY NUMBER 410L 445L 1.000 1.000 CAP, TOP HINGE COVER WHITE- ONYX PLASTIC A224278200A 1.000 1.000 PLASTIC A224278B50A CAP, TOP HINGE COVER GRAPHITE - ONYX 1.000 1.000 A2240872000 TOP HINGE,COVER,RH-ONYX ,WHITE PLASTIC 1.000 1.000 PLASTIC A224087B500 TOP HINGE COVER GRAPHITE - ONYX...
  • Page 26 A2243690000 FREEZER BIN - RC ONYX PLASTIC 1.000 EA 1.000 EA A208168000D ICE TWISTER - BRACKET PLASTIC 1.000 EA 1.000 EA A2084290000 ICE TWISTER SUB ASSY PLASTIC 1.000 EA 1.000 EA A208171000A ICE COLLECTOR PLASTIC 1.000 EA 1.000 EA A2240800000 QUICK FREEZE COVER-ONYX PLASTIC 1.000 EA...
  • Page 27 A201356000B SCREW FOR FIXING BRACKET AND HOUSING SCREW 4.000 EA 4.000 EA M 4.2X 16 SELF TAPPING SCREW( FRONT TO A2243500000 SCREW 4.000 EA 4.000 EA BACK) A2223740000 SCREW FOR FIXING FAN MOTOR SCREW 1.000 EA 1.000 EA A2222710000 SOUND DAMPER RUBBER 1.000 EA 1.000 EA...
  • Page 28 2.000 A224167000A CABINET SPACER-ONYX PLASTIC 2.000 EA 1.000 COMPRESSOR BASE PLATE ASSEMBLY-ONYX ASSY 1.000 EA A224142000E 1.000 1.000 EA COMPRESSOR EMY65HLC A2253880000 (EMBRACCO)..(RELAY,OLP,CAPA ASSY 1.000 A2243930000 SUB ASSY DEFROST WATER TRAY-ONYX PLASTIC 1.000 EA 1.000 PLASTIC 1.000 EA A224419000A ASSY DRAIN TUBE 450 L - ONYX GROMMET - COMPRESSOR GNF RUBBER 4.000EA...
  • Page 29 A224127000A LEVELLER ASSEMBLY-ONYX PLASTIC 2.000 EA 2.000 EA M 5.5 X 1.8 SELF TAP SCREW (BOTTOM A2243510000 SCREW 4.000 EA 4.000 EA HINGE AND WRAPPER) SOCKLE, BOTTOM HINGE GRAPHITE, LH - PLASTIC 1.000 EA 1.000 EA A224199B50A ONYX SOCKLE, BOTTOM HINGE GRAPHITE, RH - PLASTIC 1.000 EA 1.000 EA...
  • Page 30 ASSY 1.000 EA 1.000 EA A2243860000 COVER AIR DIFFUSOR DLX - ONYX COVER AIR DIFFUSER ASSY 450L DLX - ASSY 1.000 EA 1.000 EA ONYX A2243860000 A225284000C POWER CORD- DLX,ONYX -Australia ELEC 1.000 EA 1.000 EA A2081860000 SUPPORT BUSH, ICE TWISTER PLASTIC 2.000 EA 2.000 EA...
  • Page 31 ASSY 1.000 EA 1.000 EA Core Board Box Assembly Aust Dlx - A224481000A Onyx 1.000 EA FOAMED FC DOOR AUST DLX A224215B700 BLACK HAIR -ONYX FOAM DOOR …………. FOAMED RC DOOR AUST DLX A224474B700 BLACK HAIR -ONYX FOAM DOOR 1.000 EA ………….

This manual is also suitable for:

Wrid41tsWrid45twWrid45tsWrid41tc
