- Page 1 HDBaseT™ 4×4 HDMI Matrix over CAT5e/6/7 Operation Manual Ver1.0 Page 1 of 20...

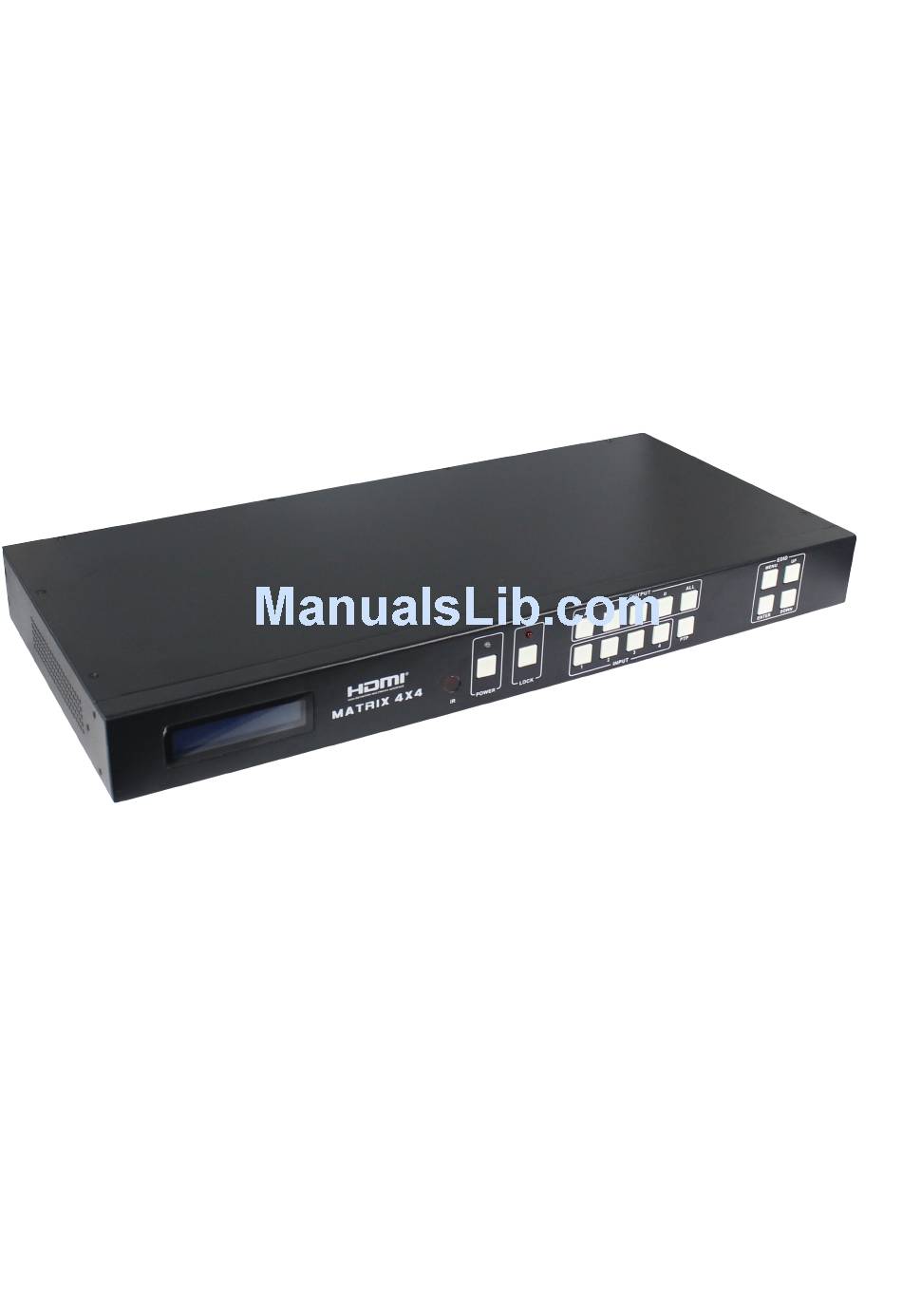

- Page 2 1.Introduction The HD BaseT 4x4 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources to eight displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolutions up to 1080p Full HD and 4Kx2K@30Hz) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby...
-
Page 3: Package Contents
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission 3.Package Contents HD BaseT 4x4 HDMI Matrix 1pcs HD BaseT Receiver 4pcs 12V/5A DC power adaptor 2pcs Operation Manual 1pcs Wideband IR Tx calbe 4pcs ... -
Page 4: Panel Functions
Dimensions 440 mm (W)×200 mm (D)×45 mm (H) Weight 1820 g Chassis Material Metal Silkscreen Color Black Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF Relative Humidity 20~90 % RH (non-condensing) Power Consumption 30 W(max)/0.5w(Standby) 5. - Page 5 unlock. Part 3. OUTPUT/INPUT: Press the OUTPUT and INPUT button to select the output corresponding input. For example: Press OUPUT ALL>INPUT 1, The OUTPUT A,B,C,D will be set to INPUT 1. Press PTP button, The OUTPUT A,B,C,D will corresponding INPUT 1,2,3,4.
- Page 6 Copy from HDMI OUTPUT A Copy from HDMI OUTPUT B Copy from HDMI OUTPUT C Copy from HDMI OUTPUT D Copy from HDBT OUTPUT A Copy from HDBT OUTPUT B Copy from HDBT OUTPUT C Copy from HDBT OUTPUT D EDID.
-
Page 7: Rear Panel
through the EDID management window, to choose how the unit will manage the EDID from multiple HDMI devices/displays. Therefore the user has some control over the resolutions/features that the source devices will output. The HDMI Matrix for has a multiple EDID management modes that will control how the EDID information from multiple devices/displays are combined, ignored, and routed. -
Page 8: Part3: Hdmi Input
the matrix. IR IN/OUT: Super IR control system interface. for further details, please refer to the Super IR system control introduction. Part3: HDMI INPUT Connect to the HDMI input source devices such as a DVD player or a Set-top Box with HDMI cable. Part4: OUTPUT The HDMI OUTPUT connect to HDMI equipped TVs or monitors and the HDBT OUTPUT connect to the HDBT Receiver. - Page 9 Matrix and Source Devices The matrix is not only a switcher and extender of multiple HDMI signals to multiple HDMI receivers located remotely, it also passes IR control signals through the IR call-back system to the matrix and HDMI sources for full, independent control of all connected inputs from output locations.
- Page 10 01. At Matrix end: Insert the 3.5mm jacks of the IR TX Emitters included with the unit into the IR TX Emitter ports at the rear of the matrix according to input. The IR signal is added to the HDMI of the input device so, for example, if the user is watching Blu-ray on input 1, the IR signal will be directed through the IR TX1 socket to control the device.
- Page 11 Receivers are positioned and connected correctly with sources, displays and display receivers fully powered and the matrix set to IR call-back enabled and IR TX Swicth mode activated, two-way IR will now be possible. Note: Misplaced or poorly secured IR Emitters and Receivers may result in intermittent IR control signals passed to and from the matrix.
-
Page 12: Hdbt Receiver
8. HDBT Receiver Ver1.0 Page 12 of 20... - Page 13 1. RS232 Port: communiate with 4x4 Matrix RS232 port. 2. IR IN: Connect to the IR Receiver for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR receiver. 3. IR OUT: Connect the IR Blaster cable included in the package for IR signal transmission.
- Page 14 Connect PC and Matrix by RS232 cable (headers of both sides of cable should be FEMALE) or TCP/IP(local area network) Power-up Matrix Double click MatirxController.exe icon to run it How to control Matrix “General” page 1. Select RS232 COM or TCP mode 2.
- Page 15 8. Click to reset to the factory settings 9. Device information display area 10. Click to refresh device status: include device information displayed in 9 area and Input/Output Settings on “Matrix” page 11. Click to clear device information 12. Enable or disable Beep ...
- Page 16 The controller have 3 methods to set the EDID mode. Manual mode, Copy mode and open EDID file mode. Select the needed EDID to input port and click set button the EDID will write to the selected HDMI input ports. 2.
- Page 17 “Matrix” page 1. LED which display Input number for respective Output 2. Click to select Input port for respective Output port 3. Click to select previous or next Input port for respective Output port “FW upgrade” page Ver1.0 Page 17 of 20...
- Page 18 1. Click to open FW file(file extension is “.fw”) 2. Display the FW file path 3. Displaying the progress of the software upgrade 4. Click to upgrade the Matrix software 5. Display the message of the software upgrade 6. Clear the message of the software upgrade Ver1.0 Page 18 of 20...
- Page 19 10. Operate and Connect 1. Connect up to 4 sources such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI inputs on the unit. Do not hotplug! Insert and extract cables carefully with the power switch off. Connecting and disconnecting while the unit is powered can result in damage to circuitry.
- Page 20 4. Plug in IR transmitters to the back of the Matrix Selector Switcher unit (IR TX), the transmitters are labeled IR TX, place in front of the IR receiver of the source, ensure that each emitter is placed in front of the IR receiver eye. Double-sided adhesive tape provided.
